All PL-L 2G11

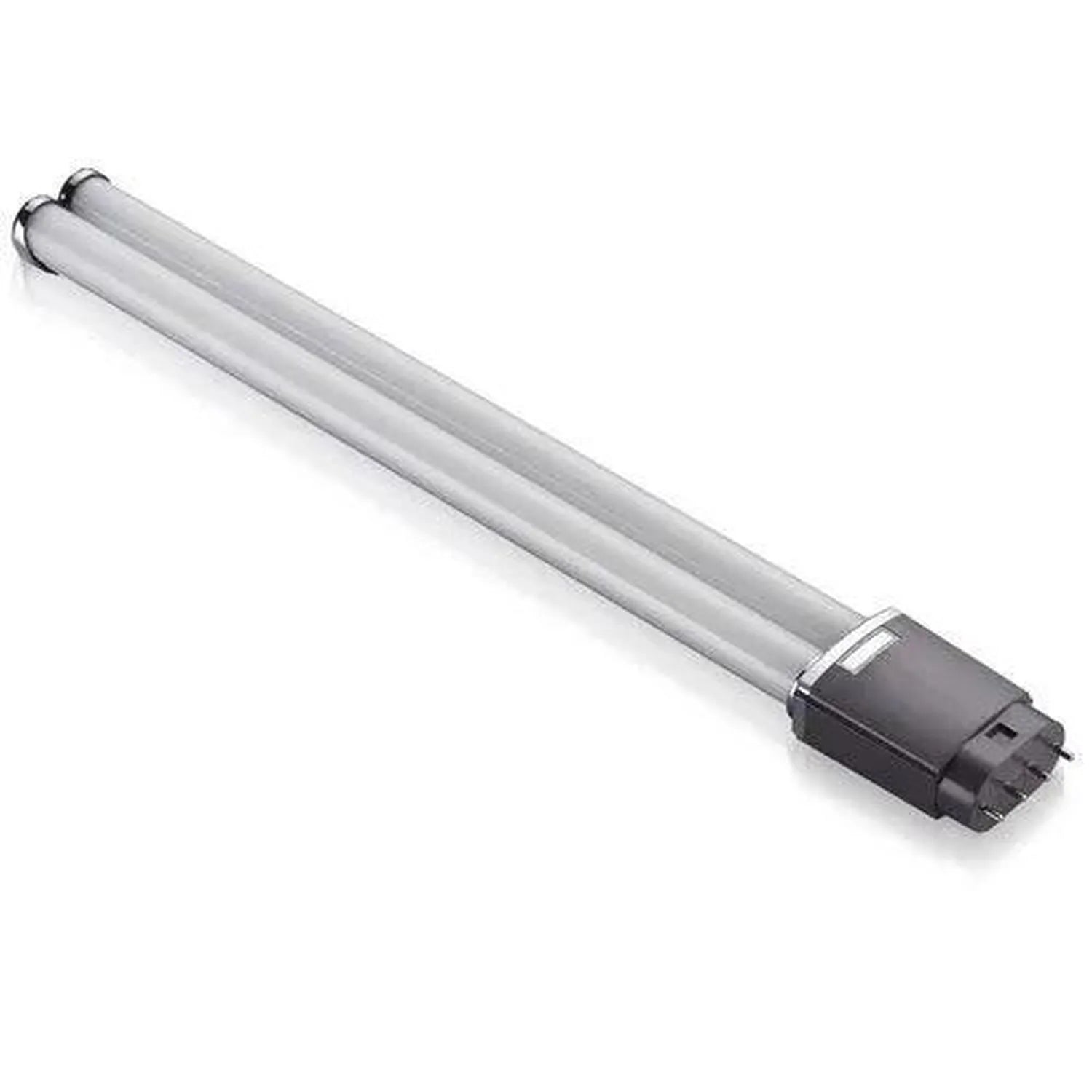

PL-L 2G11 4 Pin LED lamp with gray fluorescent-style tube and black connector base on white background

2G11 LED Lamp 9W PL-L 4-Pin 855lm Direct Mains | Ledison

Warm White 3000K
£11.54
Skip to product information
PL-L 2G11 4 Pin LED lamp with gray fluorescent-style tube and black connector base on white background

2G11 LED Lamp 9W PL-L 4-Pin 855lm Direct Mains | Ledison

Vendor
Ledison
SKU
800110
Availability
In stock
Weight
0.2 kg

£11.54inc VAT £9.62exc VAT

Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

This Ledison 2G11 LED lamp draws 9W and replaces an 18W PL-L fluorescent lamp from Philips, Osram, Sylvania or GE (Biax). It gives 855lm of light from a compact aluminium housing built to the same dimensions as the fluorescent tube it takes over from. Choose warm, natural or cool white.

2G11 LED lamp key features

  • Output: 9W, 855lm, 105lm/W
  • Colour rendering: CRI >80
  • Colour options: warm white (2700-3200K), natural white (4000-5000K) or cool white (5500-6000K)
  • Size: 232mm long including pins, 41mm diameter
  • Driver: built in, running on 85-265VAC at 50/60Hz
  • Lifetime: 50,000 hours average, with a 5-year warranty

Where it can go

The lamp is rated IP20. That limits it to dry locations. It is not dimmable, so keep it away from circuits controlled by a dimmer switch. A frosted cover in toughened plastic sits over the LEDs to spread the light more evenly across the room.

Fitting and wiring

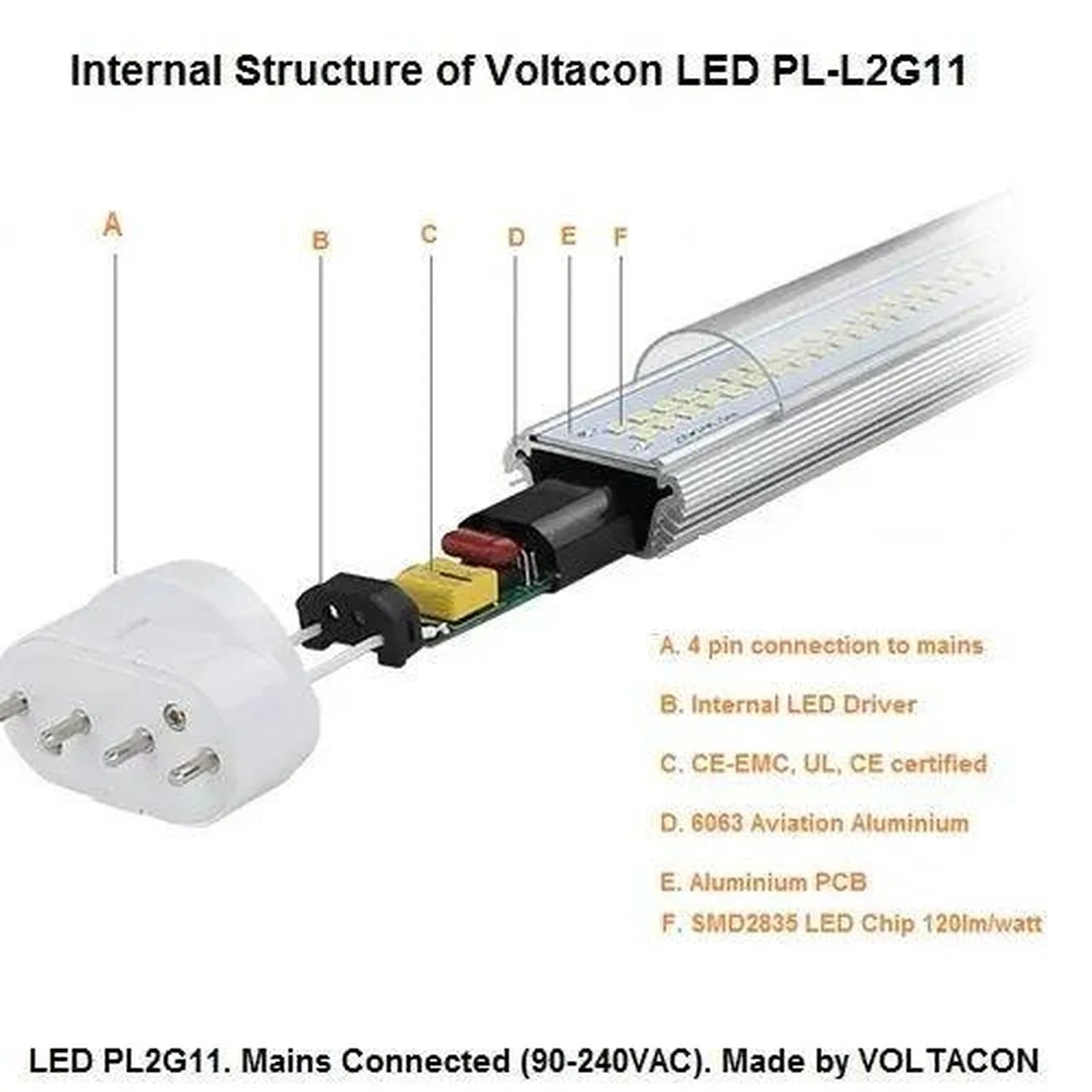

Inside the 4-pin base, the pins are wired to the LED driver. Take the ballast out of the circuit and the lamp runs straight from the mains.

  1. Switch off the power, then check that the 4-pin holder matches the lamp base.
  2. Remove or bypass the ballast in the fitting.
  3. Connect live to one outer pin and neutral to the opposite outer pin.
  4. Leave the two middle pins unconnected.
  5. Do not use the lamp with a dimmer switch.

Compliance

The lamp carries ROHS Compliant, CE and UL certification.

Technical Specifications 18 rows Show
FittingPL-L 2G11
Fitting/pinsPL-L 4PIN
Wattage (rated)9 Watt
Luminous flux855lm
Typical efficiency105lm/W
Colour rendering index>80
Voltage85-265VAC
Line frequency50/60Hz
Colour temperatureWarm white: 3000K, Natural white: 4000K, Cool white: 6000K
Diameter41mm
Length (incl pins)232mm
Average lifetime50,000 hours
DimmableNO
LED driverBuilt-in
IP ratingIP20
Operating temperature-40 OC to 50 OC
CertificationROHS Compliant, CE, UL
Warranty5 years

Manufacturer datasheet. Figures as published by the manufacturer.
