2G11 LED Lamp 15W 4-Pin 1425lm Replaces 36W PL-L | Ledison
- Vendor
- Ledison
- SKU
- 800113
- Availability
- In stock
- Weight
- 0.2 kg
£19.94inc VAT £16.62exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

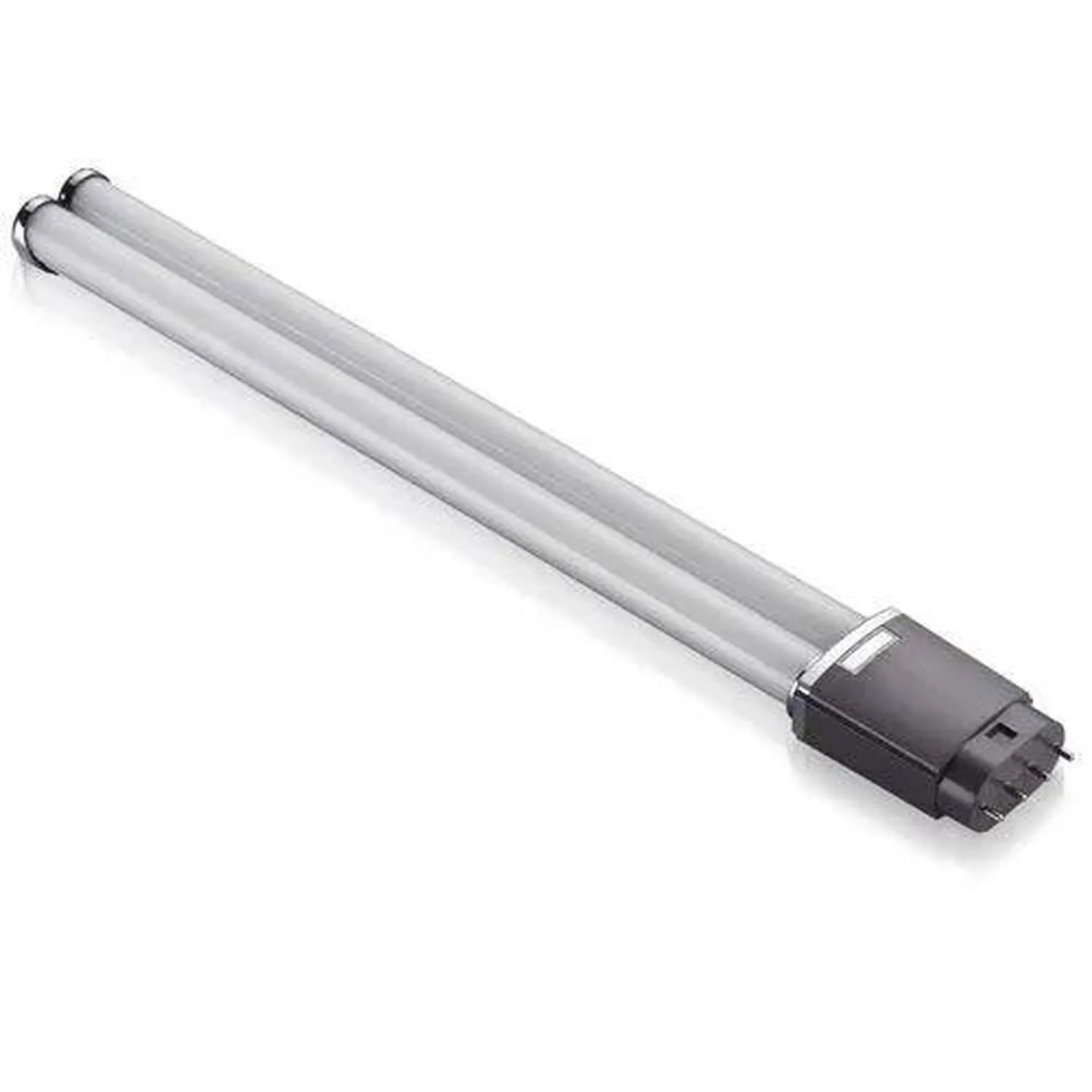

This Ledison 2G11 LED lamp draws 15W and puts out 1425lm, taking the place of a 36W PL-L fluorescent lamp in a 4-pin holder. It suits PL-L lamps from Philips, Osram, Sylvania or GE (Biax). The driver sits inside the lamp. Remove or bypass the ballast and it runs straight off the mains.
2G11 LED lamp at a glance
- Output: 15W, 1425lm, 105lm/W
- Colour rendering: CRI >80
- Size: 417mm long including pins, 41mm diameter
- Average lifetime: 50,000 hours
- Protection: IP20, for dry locations only
- Warranty: 5 years
A frosted cover spreads the light evenly. If you need a clear cover, ask and one can be supplied on request. The lamp is offered in warm white, natural white and cool white. It cannot be dimmed.
Fitting the lamp
This is a mains-direct conversion, so the existing fitting needs a small amount of rewiring before the lamp goes in.
- Isolate the power, then check that the 4-pin holder matches the lamp base.
- Remove or bypass the ballast inside the fitting.
- Wire live to one outer pin and neutral to the opposite outer pin.
- Leave the two middle pins unconnected.
Do not use it on a circuit with a dimmer switch.
Where it fits
Any dry indoor fitting that currently takes a 36W PL-L 2G11 tube is a candidate, provided the ballast can be taken out of the circuit. The IP20 rating rules out damp or outdoor positions.
Technical Specifications 18 rows Show
| Fitting | PL-L 2G11 |
| Fitting/pins | PL-L 4PIN |
| Wattage (rated) | 15 Watt |
| Luminous flux | 1425lm |
| Typical efficiency | 105lm/W |
| Colour rendering index | >80 |
| Voltage | 85-265VAC |
| Line frequency | 50/60Hz |
| Colour temperature | Warm white: 3000K, Natural white: 4000K, Cool white: 6000K |
| Diameter | 41mm |
| Length (incl pins) | 417mm |
| Average lifetime | 50,000 hours |
| Dimmable | NO |

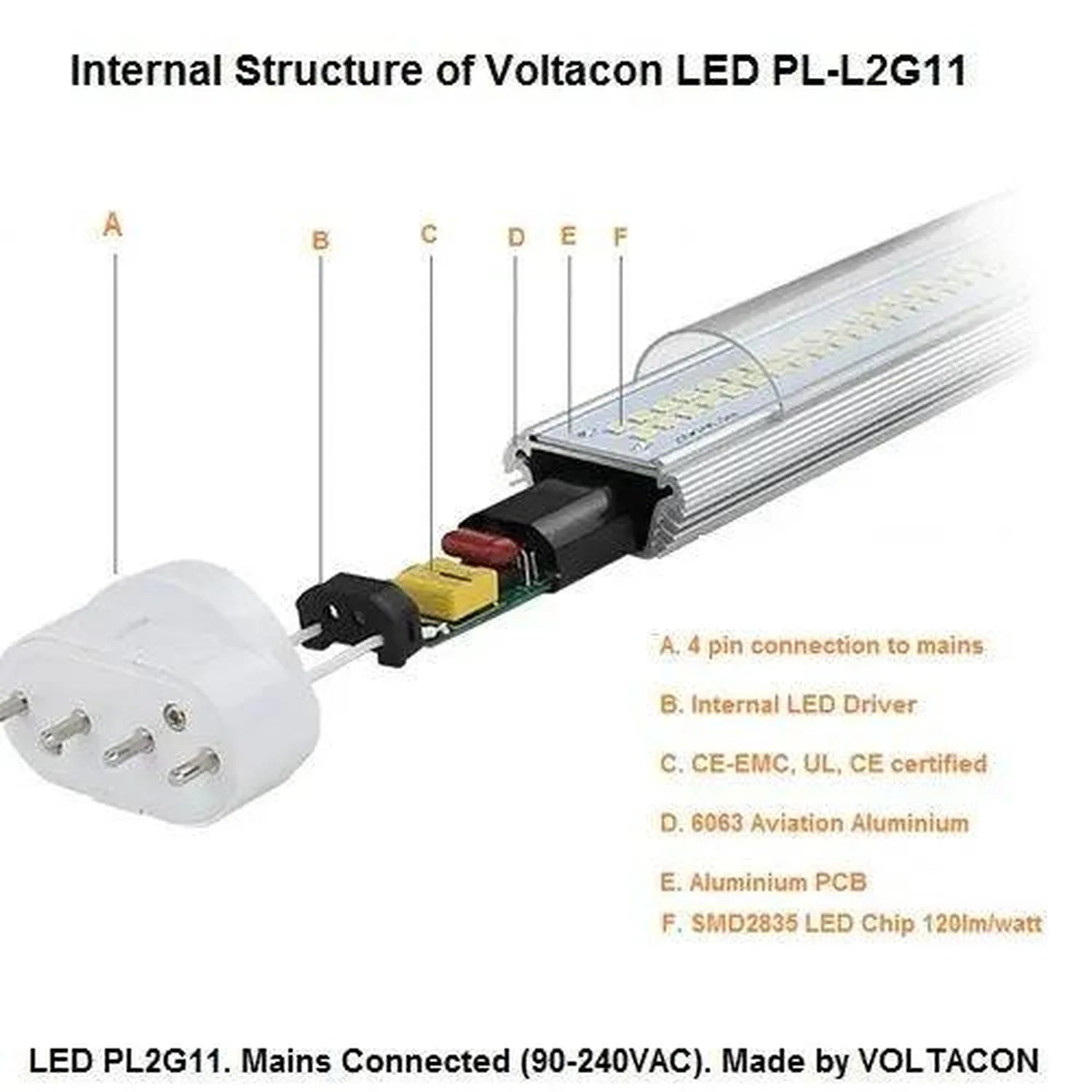

| LED driver | Built-in |
| IP rating | IP20 |
| Operating temperature | -40 OC to 50 OC |
| Certification | ROHS Compliant, CE, UL |
| Warranty | 5 years |
Manufacturer datasheet. Figures as published by the manufacturer.
