2G11 LED Lamp 26W PL-L 4-Pin 2470lm Replaces 55W | Ledison
- Vendor
- Ledison
- SKU
- 800108
- Availability
- In stock
- Weight
- 0.2 kg
£23.09inc VAT £19.24exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description
This Ledison 26W LED lamp has a 4-pin 2G11 base and takes the place of a 55W PL-L fluorescent lamp from Philips, Osram, Sylvania or GE (Biax). It shares the fluorescent lamp's dimensions, so existing ceiling and wall lights stay where they are. Output is 2470 lumens.
2G11 LED lamp key features
- Power and output: 26 watts, 2470 lumens, 105lm/W
- Colour rendering: CRI >80
- Size: 542mm long including pins, 41mm diameter

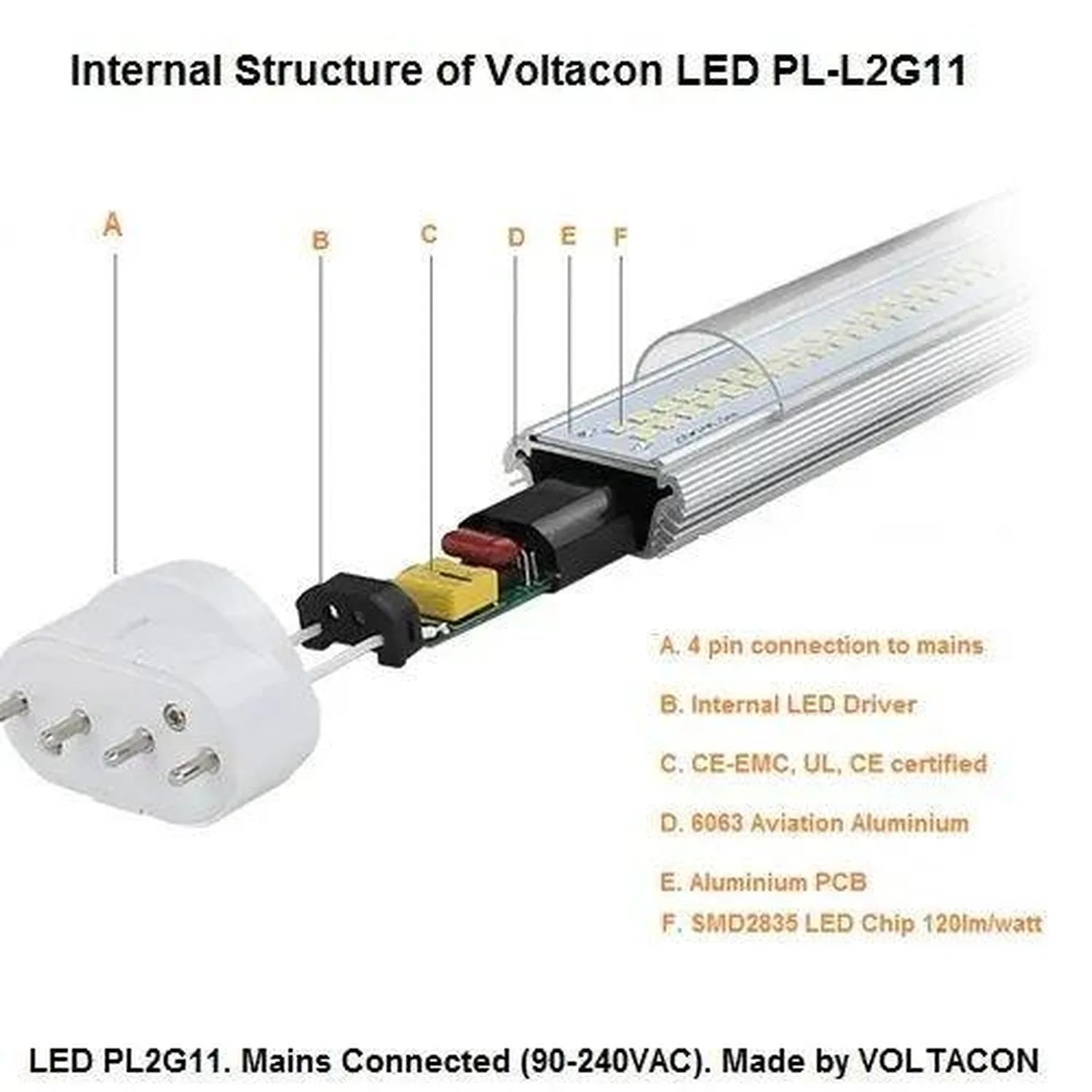

- Driver: built into the base for direct mains operation
- Lifetime: 50,000 hours average
- Warranty: 5 years
Where to fit it
The lamp is rated IP20 and is meant for dry locations only. It is not dimmable. Because the driver sits inside the base, the lamp runs straight from the mains once the ballast in the fitting has been removed or bypassed. Warm white, natural white and cool white versions are listed in the specification below.
Installation steps
- Switch off the power and check that the 4-pin holder matches the lamp base.
- Remove or bypass the ballast in the fitting.
- Connect live to one outer pin and neutral to the opposite outer pin.
- Leave the two middle pins unconnected.
Do not use this lamp with a dimmer switch. Wiring must follow the pin arrangement above, so if you are unsure, get a qualified electrician to carry out the conversion.
Technical Specifications 18 rows Show
| Fitting | PL-L 2G11 |
| Fitting/pins | PL-L 4PIN |
| Wattage (rated) | 26 Watt |
| Luminous flux | 2470lm |
| Typical efficiency | 105lm/W |
| Colour rendering index | >80 |
| Voltage | 85-265VAC |
| Line frequency | 50/60Hz |
| Colour temperature | Warm white: 3000K, Natural white: 4000K, Cool white: 6000K |
| Diameter | 41mm |
| Length (incl pins) | 542mm |
| Average lifetime | 50,000 hours |
| Dimmable | NO |
| LED driver | Built-in |
| IP rating | IP20 |
| Operating temperature | -40 OC to 50 OC |
| Certification | ROHS Compliant, CE, UL |
| Warranty | 5 years |
Manufacturer datasheet. Figures as published by the manufacturer.
