LED Emergency Pack for 2G11 PL-L and PLG24 Lamps | Liteplan NLP/1-K

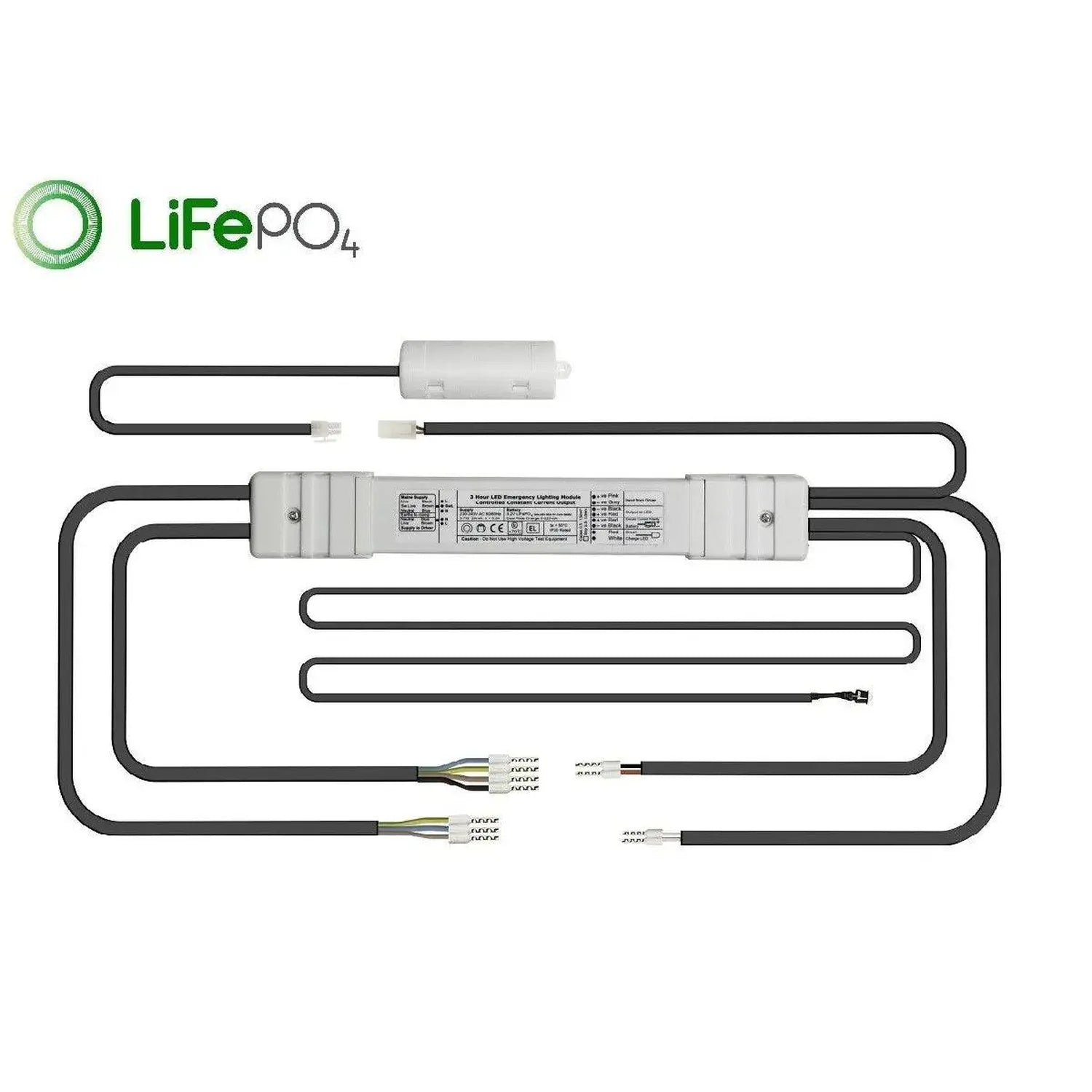

The NLP/1-K is a universal emergency lighting conversion kit from Liteplan, built for compatible LED fittings and lamp circuits including PL-L 2G11 and PLG24 LED lamps. It converts a standard LED luminaire into an emergency fitting, with strain relief cables supplied for remote mounting.

2G11 LED emergency conversion

The kit fits into many existing LED fittings and runs on LED loads between 6V and 55V. Emergency operation lasts 3 hours, powered by a long-life LiFePO4 battery. The module automatically adjusts the output LED current to match the battery to the connected LED load, keeping the emergency duration accurate for the fitting it is installed into.

Key features

• Emergency duration: 3 hours
• LED load range: 6V to 55V
• Battery type: LiFePO4, long-life
• Average emergency power: 2.2W
• Operation modes: maintained or non-maintained, depending on the fitting and wiring
• Certification: third-party tested by TÜV

Applications

Suitable for offices, corridors, stairwells, communal areas, retail spaces and commercial buildings wherever a compatible PL-L 2G11 or PLG24 LED lamp needs emergency backup. A green LED indicator shows the status of the kit, and deep discharge protection helps guard the battery. Low power consumption keeps running costs down during both operation and standby.

Choosing the right version

The NLP/1-K is matched to PL-L 2G11 and PLG24 LED lamps. If you need an emergency pack for LED tube lights instead, the NLP/1/80 version is the correct choice.
