LED PL-L 2G11

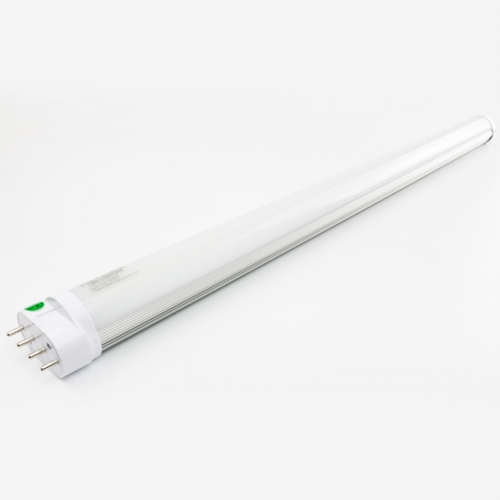

LED PL-L 2G11 - 18W, 4-pin

Ref: LDN-2G1118S840

£23.60

Price inc VAT

PL-L 2G11 18W equivalent to Philips/OSRAM 40W

Amount
Bulk Savings £££
# Items Our Price Savings
6 Items £22.89 Save 3%
12 Items £22.18 Save 6%
24 Items £21.71 Save 8%
Description
Specification
Downloads
Description

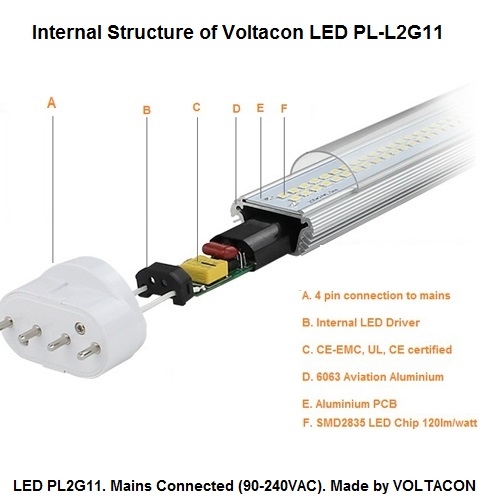

We developed an LED tube light that has identical dimensions of the old fluorescent lamp but the energy savings can reach 60-70%. The LED PL 2G11 tube light has an isolated LED power supply inside the aluminium housing. The 4 pin connector is wired internally to the driver that feeds the LED chips with low voltage 36Vdc.

The light is powered directly from the mains voltage and accepts wide range from 100-240VAC. If your old fitting has a magnetic or electronic ballast, they have to be removed or bypassed. The new light lamp works more efficiently when it operates directly from the grid voltage.

Ledison's light fitting is the perfect replacement for the fluorescent counterparts of Sylvania, Osram and Philips.

It also replaces the GE (General Electric) Biax 2G11

VOLTACON LED

PHILIPS

OSRAM

Sylvania

LED Equivalent

Fluorescent

Fluorescent

Fluorescent

G1109S 9Watt

18W PL-L 18W/4P

18W DULUX PL-L 18W/4P

PL-L 18W/4P

G1112S 12Watt

24W PL-L 24W/4P

24W DULUX PL-L 24W/4P

PL-L 24W/4P

G1112S 15Watt

36W PL-L 36W/4P

36W DULUX PL-L 36W/4P

 PL-L 36W/4P

G1112S 18Watt

40W PL-L 40W/4P

40W DULUX PL-L 40W/4P

PL-L 40W/4P

G1112S 26Watt

55W PL-L 55W/4P

55W DULUX PL-L 55W/4P

PL-L 55W/4P

Certification:

ROHS Compliant, CE, UL

Dimmable

NO

Warranty:

5

LED Driver

Built in

Operating Temp:

-40 OC to 50 OC







Specification

Specification of the PL-L 2G11 LED Bulb - BEAM ANGLE : 220 deg

Fitting:

PL-L 2G11

Luminous flux:

1890lm

Wattage (rated):

18 Watt

Color Rendering index:

>80

Voltage:

100-265Volt

Typical efficiency:

105lm/W

Line frequency:

50/60Hz

Fitting/Pins:

PL-L 4PIN

Average lifetime:

50,000 hours

Net Weight per piece



Color Temperature:



Diameter

41mm

Warm white:

2700-3200K

Length (incl pins)

542mm

Natural white:

4000-5000K

Dimmable

NO

Cool white:

5500-6000K

Warranty:

5 years

Operating Temp:

-40 OC to 50 OC

Certification:

ROHS Compliant, CE, UL

Downloads

Technical Manual

LED PL2G11 Wiring Instructions

LED PL-L2G11 Wiring Instructions

Download
