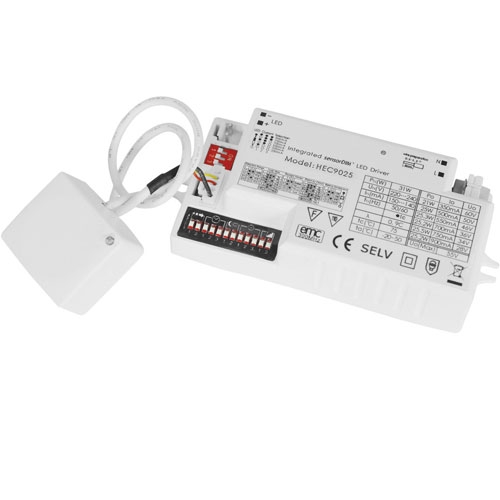

Integrated SensorDIM LED Driver HEC9025

Ref: LDN-HC9025

£43.00

Price inc VAT

Description

Specification

Downloads

Description

Hytronik mICROWAVE SENSOR WITH LED DRIVER: HEC9025

Sensor and driver 2-in-1, 3-step dimming (corridor function), adjustable current levels , suitable for LED lights and LED boards up to 25watt

Specification

PRODUCT SPECIFICATIONS FOR HEC9025

Technical Data
Operating voltage :	220~240V
Input current:	140~150mA
Input power:	31W (Max)
Warm time:	20s
Detection area:	10/50/75/100%, can be customized
Hold time:	5s/30s/1min/5min/10min/20min/30min, can be customized
Daylight threshold:	2lux/10lux/50lux /disable, can be customized
Standby period:	0s/10s/1min/5min/10min/30min/1h/+∞ can be customized
Standby dimming level:	10%/20%/30%/50% can be customized
Microwave frequency:	5.8GHz+/-75MHz
Microwave power:	<0.2mW
Detection range:	Max. (ØxH): 12m x 6m
Detection angle:	30 ° ~150 °
Mounting height:	Max. 6m
Output LED current:	350mA/500mA/550mA/700mA/750mA/900mA
Output LED voltage:	10~43V(350mA) 10~42V(500mA) 10~40V(550mA) 10~36V(700mA) 10~34V(750mA) 10~28V(900mA)
Output LED power:	3.5~21W(350mA) 5~21W(500mA) 5.5~22W(550mA) 7~25W(700mA) 5.5~25W(750mA) 9~25W(900mA)
Empty load voltage:	75V
Power factor:	≥0.96
Efficiency:	85% (Max)
Operating temperature:	-20 °C ~ +50 °C TC:75 °C
Abnormal protection:	Output short-circuit protection with auto-reset
EMC standard:	EN55015 EN61547
Safety standard:	EN61347-1 EN61347-2-13
Certification:	Semko, EMC, CE, R&TTE
Dielectric strength:	Input→output:3750VAC /5mA/1min
IP rating:	IP20
