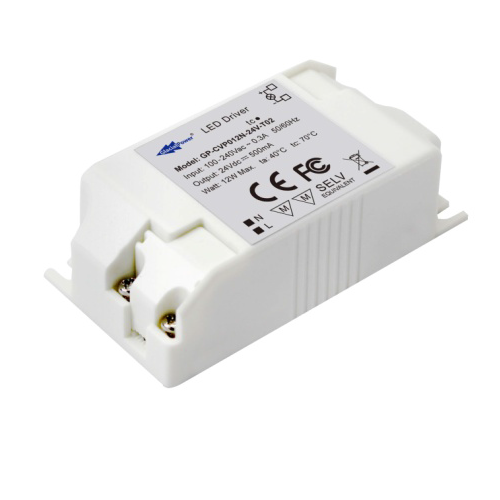

White rectangular LED driver with label, two terminal connectors visible, CE and FCC certification marks shown.

24V Power Supply 36W Constant Voltage LED Driver | Glacial

£20.95
Skip to product information
White rectangular LED driver with label, two terminal connectors visible, CE and FCC certification marks shown.
24V Power Supply 36W Constant Voltage LED Driver | Glacial

24V Power Supply 36W Constant Voltage LED Driver | Glacial

Vendor
Glacial
SKU
999009
Availability
Sold out
Weight
0.15 kg

£20.95inc VAT £17.46exc VAT

Sorry, this one is sold out

Tell us you want it and we will find out when it is back, or point you at the closest thing we have in stock.

Delivery from £3.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Talk to our sales team

Product Description

This 24V power supply delivers a 36W constant voltage output for LED strip lights, low voltage LED bulbs and small 24V DC lighting installations. The GP-CVP036N-24V-T12 provides 24V DC output at up to 1.5A, suitable for cabinet lighting, display lighting and decorative LED runs.

24V power supply for LED strip lighting

Constant voltage design keeps the output steady for 24V LED products that need a stable DC feed. Check the wattage per metre of any LED strip before wiring it in: this unit can carry loads up to 36W in total, which covers around 5 metres of 7.2W per metre strip provided the combined load stays within the rated output.

Key features

  • Output, 24V DC constant voltage, up to 1.5A
  • Rated power, 36W
  • AC input, 90-264VAC universal range
  • Class II design, fully isolated plastic case, no earth connection required
  • Protection, over current, short circuit, over temperature and over voltage
  • No load consumption, under 0.5W at 230VAC
  • Wiring, 2P screw terminal blocks on input and output

Applications

Fits 24V LED strip lights, under cabinet lighting, retail display lighting, shelf and showcase lighting, decorative low voltage LED lighting, and low voltage LED bulbs that need a 24V DC constant voltage input.

Installation notes

  • Use only with compatible 24V LED products.
  • Do not exceed the 36W rated output.
  • Check the total wattage of the connected LED strip or circuit before wiring.
  • Allow ventilation around the driver and avoid covering it with insulation.
  • Fit by a qualified person in line with current wiring regulations.
Technical Specifications 33 rows Show
Model No. GP‐CVP036N‐24V‐P02
Output DC Voltage Range 24V
Rated Current 0‐1.5A
Rated Max. Power 36W
Voltage Tolerance ± 5%
Ripple & Noise (Max.) note.2 240 mVp‐p
Efficiency (Min) 85% at 230VAC full load
Set up Time (Max) < 1S / 115VAC at full load / < 0.5S / 230VAC at full load
Input Rated Voltage 100 ‐ 240VAC
Voltage Range 90‐264VAC
Frequency Range 47 Hz ~ 63 Hz
AC Current (Max.) 1A at 115VAC /0.5A at 230VAC
Inrush Current (Max.) < 30A at 115VAC /< 60A at 230VAC
Leakage Current < 0.25mA / 240VAC
No Load Consumption ＜0.5W at 230VAC
Protections Over Current 110% ‐ 150% Constant current limiting, auto‐recovery
Short Circuit Hiccup mode, recovers automatically after fault condition is removed
Over Temperature Shut down o/p voltage, recovers automatically after temperature goes
down.
Over Voltage 29‐33V
Protection type: Shut down o/p voltage, recovers automatically after voltage goes down.
Environment Operation Temp. ‐20°C ~ 40°C (Refer to output load derating curve)
Operation Humidity 20% ~ 90% RH non‐condensing.
Storage Temp & Humidity ‐20 ~ +80°C ,10% ~ 90% RH
Safety & EMC Safety Standards EN61347‐1,EN61347‐2‐13;
Withstand Voltage I/P ‐ O/P: 3.75K VAC
Isolation Resistance I/P ‐ O/P: 100M ohms / 500VDC at 25°C
EMI Conduction & radiation meet Compliance to EN55015; FCC PART15 CLASSB
EMS immunity meet Compliance to EN61000‐4‐2,3,4,5,6,11;EN61547,EN61000‐3‐2 CLASS C
Connection Input UL rated, 18 AWG x 2 C ( 150 mm)
Output UL rated, 18 AWG x 2 C ( 150 mm)
Others MTBF 100K hours min. @Ta=25 °C
Dimension (L x W x H) 110 x 35 x 25mm; 155g/pcs
Note
  1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C ambient temperature.
  2. Ripple & Noise are measured at 20MHZ bandwidth oscilloscope and with 0.1uF & 47uF parallel capacitor.
    1. The power supply is considered a component which will be installed a final equipment. The final equipment must be re‐confirmed that it still meets EMC directives.

Manufacturer datasheet. Figures as published by the manufacturer.
