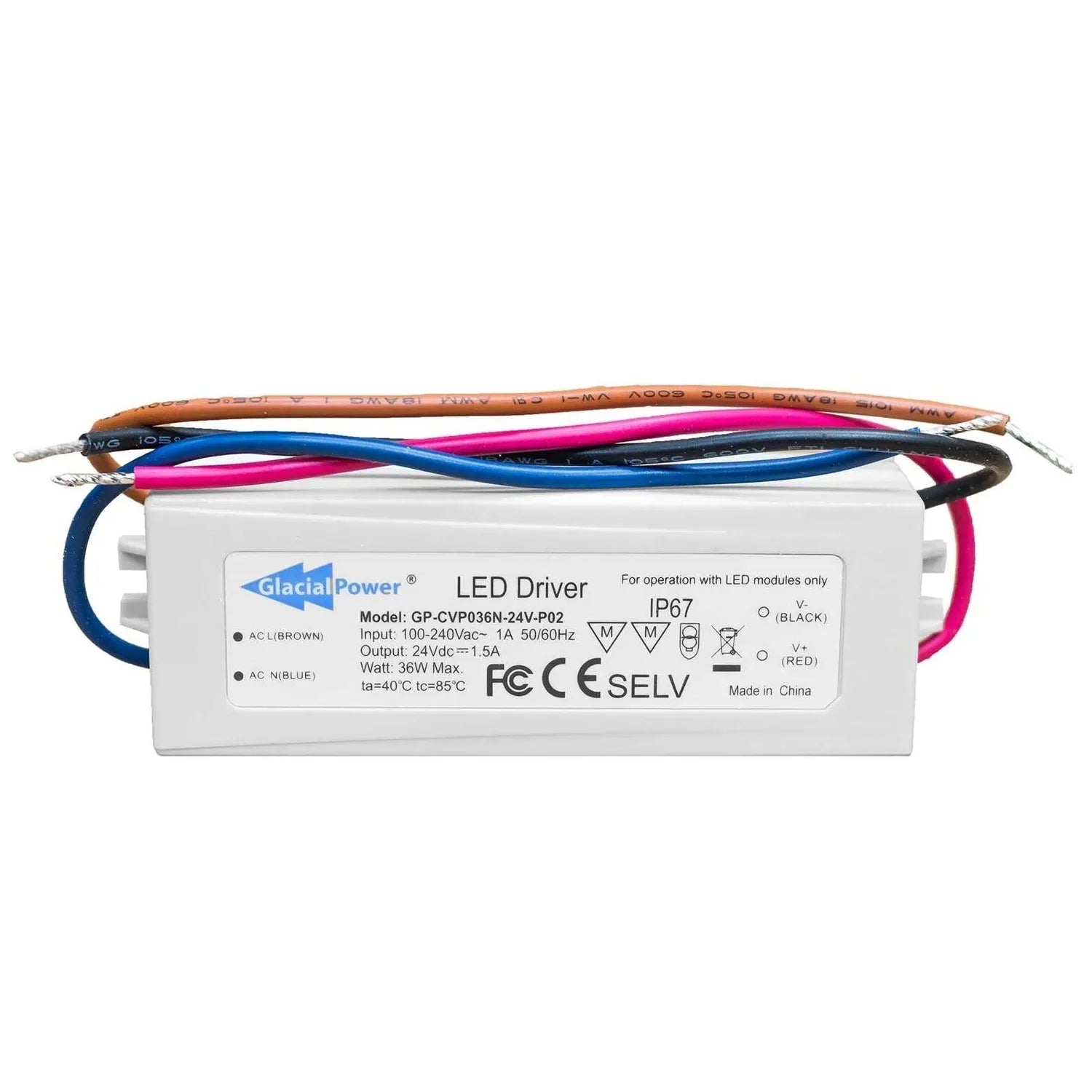

Glacial Power LED driver unit with colored input and output wires attached, showing specifications label with FC and CE certi

24V Power Supply 36W LED Strip Driver | Glacial GP-CVP036N-24V

£20.95
Skip to product information
Glacial Power LED driver unit with colored input and output wires attached, showing specifications label with FC and CE certi
24V Power Supply 36W LED Strip Driver | Glacial GP-CVP036N-24V

24V Power Supply 36W LED Strip Driver | Glacial GP-CVP036N-24V

Vendor
Glacial
SKU
900515
Availability
In stock
Weight
0.15 kg

£20.95inc VAT £17.46exc VAT

Delivery from £3.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Talk to our sales team

Product Description

A compact 24V power supply built for LED strip lighting and low voltage LED bulbs. Rated at 36W, the Glacial driver suits LED strips up to 5 metres long, including 6w-7.2w strips where an overrated supply is recommended for reliable operation.

24v power supply features

  • Output, 24V DC, constant voltage design (CV mode)
  • AC input, universal range 90~264VAC
  • No load consumption, under 0.5W at 230VAC
  • Protections, over current protection (OCP) and short circuit protection (SCP)
  • Operating temperature, -10°C to 40°C at full load
  • Enclosure, fully isolated plastic case with screw terminals, Class 2 power supply unit

Applications

Fits short runs of LED strip lighting from a few centimetres up to 5 metres, and any 24V LED circuit within that range. The screw terminal design means no special connectors or crimping tools are needed on site, which speeds up installation on strip runs and low voltage bulb circuits alike.

Build

The plastic enclosure houses the circuitry with overvoltage and short circuit protection built in as standard, despite the driver's small footprint.

Dimensions

110 x 35 x 25mm (L x W x H).

Technical Specifications 33 rows Show
Model No. GP‐CVP036N‐24V‐P02
Output DC Voltage Range 24V
Rated Current 0‐1.5A
Rated Max. Power 36W
Voltage Tolerance ± 5%
Ripple & Noise (Max.) note.2 240 mVp‐p
Efficiency (Min) 85% at 230VAC full load
Set up Time (Max) < 1S / 115VAC at full load / < 0.5S / 230VAC at full load
Input Rated Voltage 100 ‐ 240VAC
Voltage Range 90‐264VAC
Frequency Range 47 Hz ~ 63 Hz
AC Current (Max.) 1A at 115VAC /0.5A at 230VAC
Inrush Current (Max.) < 30A at 115VAC /< 60A at 230VAC
Leakage Current < 0.25mA / 240VAC
No Load Consumption ＜0.5W at 230VAC
Protections Over Current 110% ‐ 150% Constant current limiting, auto‐recovery
Short Circuit Hiccup mode, recovers automatically after fault condition is removed
Over Temperature Shut down o/p voltage, recovers automatically after temperature goes
down.
Over Voltage 29‐33V
Protection type: Shut down o/p voltage, recovers automatically after voltage goes down.
Environment Operation Temp. ‐20°C ~ 40°C (Refer to output load derating curve)
Operation Humidity 20% ~ 90% RH non‐condensing.
Storage Temp & Humidity ‐20 ~ +80°C ,10% ~ 90% RH
Safety & EMC Safety Standards EN61347‐1,EN61347‐2‐13;
Withstand Voltage I/P ‐ O/P: 3.75K VAC
Isolation Resistance I/P ‐ O/P: 100M ohms / 500VDC at 25°C
EMI Conduction & radiation meet Compliance to EN55015; FCC PART15 CLASSB
EMS immunity meet Compliance to EN61000‐4‐2,3,4,5,6,11;EN61547,EN61000‐3‐2 CLASS C
Connection Input UL rated, 18 AWG x 2 C ( 150 mm)
Output UL rated, 18 AWG x 2 C ( 150 mm)
Others MTBF 100K hours min. @Ta=25 °C
Dimension (L x W x H) 110 x 35 x 25mm; 155g/pcs
Note
  1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C ambient temperature.
  2. Ripple & Noise are measured at 20MHZ bandwidth oscilloscope and with 0.1uF & 47uF parallel capacitor.
    1. The power supply is considered a component which will be installed a final equipment. The final equipment must be re‐confirmed that it still meets EMC directives.

Manufacturer datasheet. Figures as published by the manufacturer.
