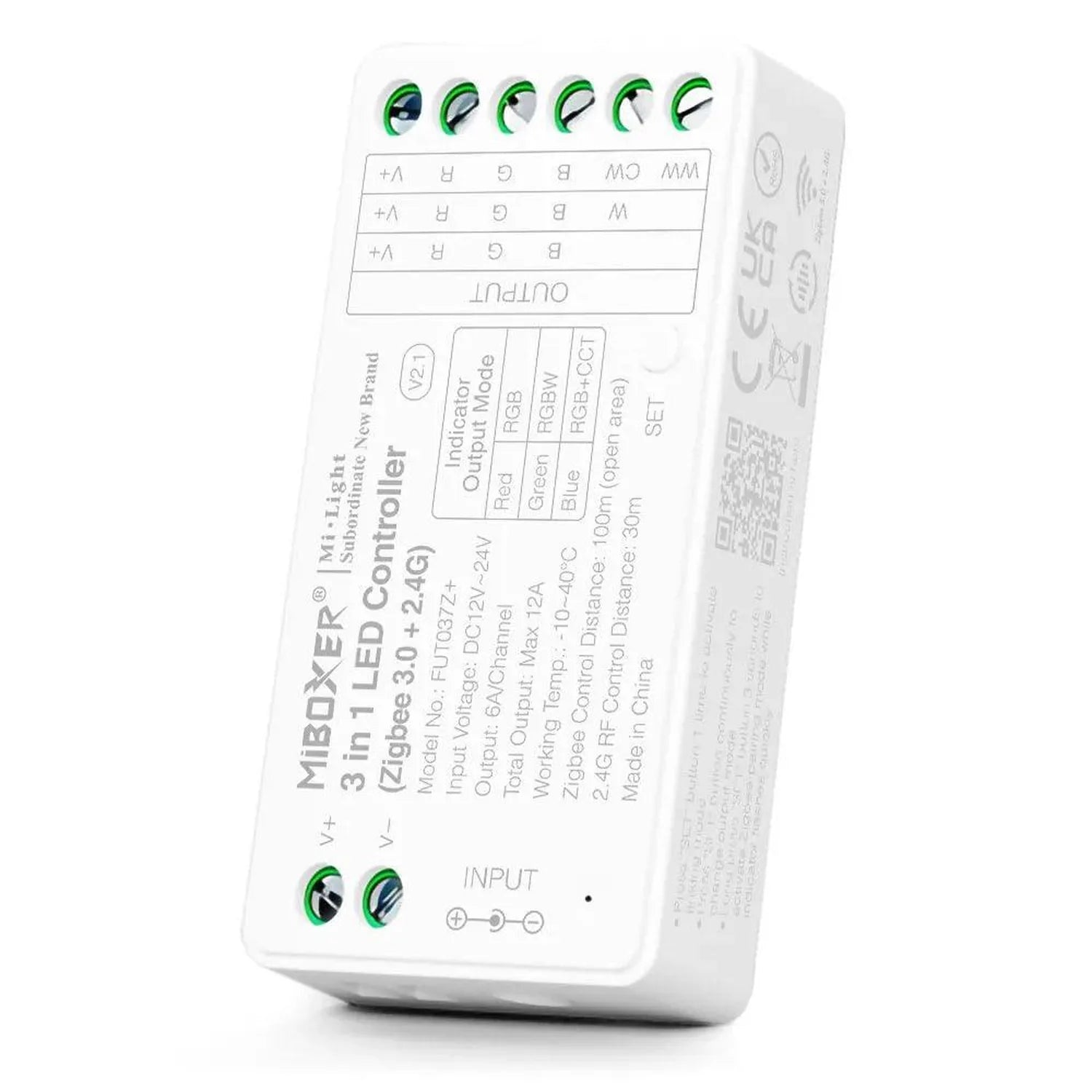

White Zigbee LED controller box showing wiring diagram, input/output terminals, and green status indicators on front and back

3 in 1 LED Strip Controller Zigbee 3.0 2.4G RF 12-24V | Mi-Light FUT037Z+

£37.75
Skip to product information
White Zigbee LED controller box showing wiring diagram, input/output terminals, and green status indicators on front and back

3 in 1 LED Strip Controller Zigbee 3.0 2.4G RF 12-24V | Mi-Light FUT037Z+

Vendor
Skydance
SKU
601203
Availability
In stock
Weight
0.15 kg

£37.75inc VAT £31.46exc VAT

Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

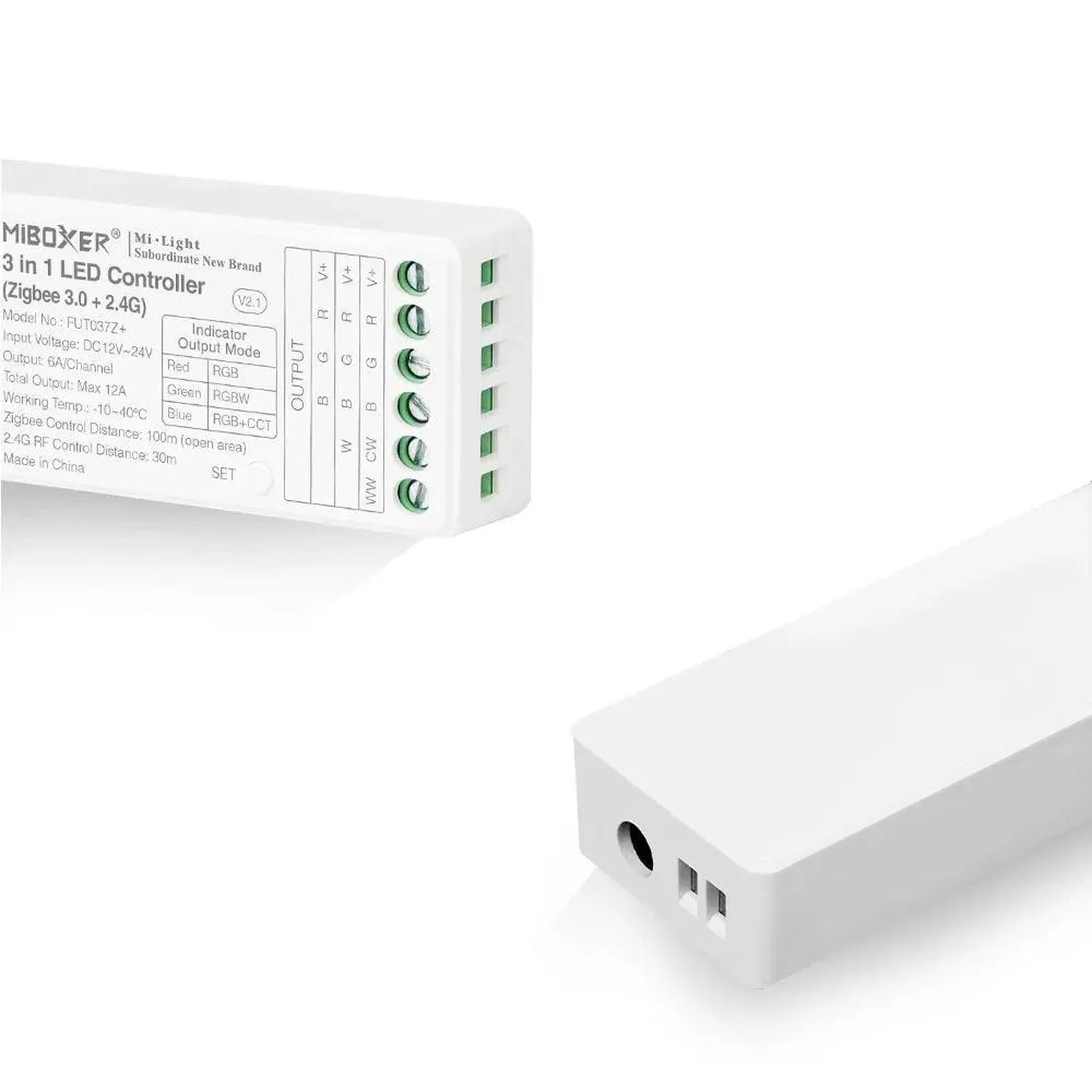

The Mi-Light FUT037Z+ is a 3 in 1 LED strip controller that runs RGB, RGBW or RGB+CCT strip from a DC12~24V supply. One unit covers all three strip types. You choose the output mode with the SET button, and the indicator shows which mode is active: red for RGB, green for RGBW and blue for RGB+CCT.

Mi-Light controller features

  • Input voltage: DC12~24V
  • Output: 6A per channel, with a maximum of 12A in total
  • Dual wireless: Zigbee 3.0 plus 2.4GHz RF in the same controller
  • Control range: 100m over Zigbee (open area) and 30m with a 2.4G RF remote
  • Adjustment: colour, colour temperature, brightness and saturation
  • DMX512: controllable in RGB+CCT mode when paired with a DMX512 LED transmitter

Control options

Out of the box, the FUT037Z+ pairs with Mi-Light / MiBoxer 2.4GHz remotes and wall panels. Add a Zigbee 3.0 gateway (sold separately) and the controller moves onto the Tuya Smart app, with voice control through Amazon Alexa or Google Home. Several lights running the same dynamic mode will synchronise with each other within 30m, which keeps a room of strips changing colour together.

Compatible remotes and panels

Supported remotes include the FUT100, FUT089S, FUT089, FUT088, FUT092, FUT096 and FUTD01, along with the B8, B0, B3 and B4 panel families and the S2 series. All are sold separately. The full list sits in the specification table below.

Where to use it

This controller suits any 12V or 24V LED strip installation that needs colour mixing, from RGB accent lighting to RGB+CCT strip where white tone matters as much as colour. It is a good fit for installers who want one stocked part that handles three strip types, and for homeowners building a smart lighting setup around a Zigbee hub.

Technical Specifications 16 rows Show
BrandMi-Light / MiBoxer
ModelFUT037Z+
Input voltageDC12~24V
Output6A/Channel
Total outputMax 12A
Output modesRGB / RGBW / RGB+CCT
Communication protocolZigbee 3.0 + 2.4GHz
Control distanceZigbee: 100m (open area), 2.4G RF: 30m
Wireless technologyZigbee 802.15.4
Wireless frequency2.400-2.480GHz
Working temperature-10~40°C
Colours16 Millions
App controlTuya Smart (Zigbee 3.0 gateway needed)
Voice controlAmazon Alexa / Google Home (Zigbee 3.0 gateway needed)
DMX512Controllable in RGB+CCT mode with a DMX512 LED transmitter
Compatible remotesFUT100, FUT089S, FUT089, FUT088, FUT092, FUT096, B8, B0 / B0-B, B4 / B4-B / T4, B3 / B3-B / T3, S2-B / S2-W, S2-G, FUTD01

Manufacturer datasheet. Figures as published by the manufacturer.
