Product Description

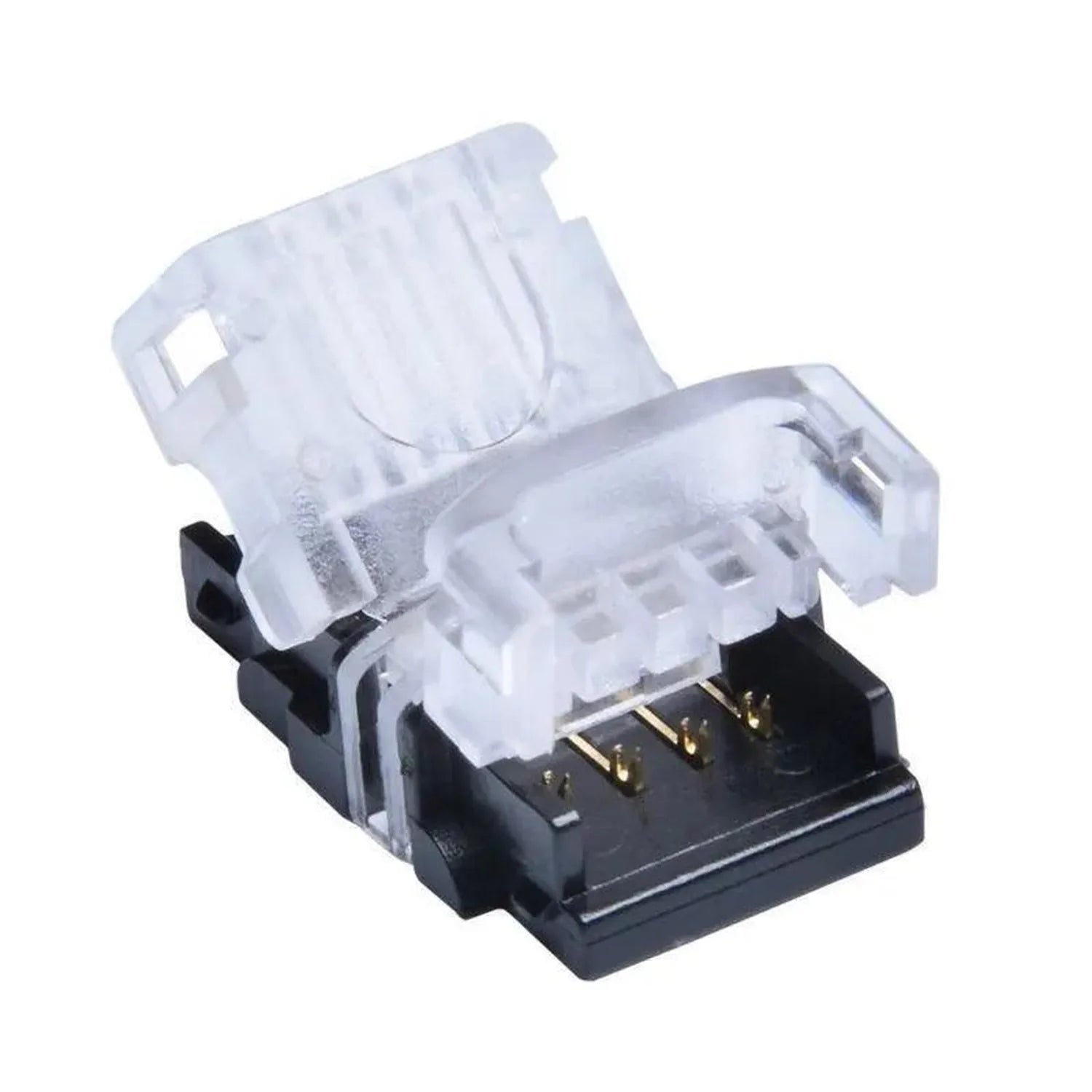

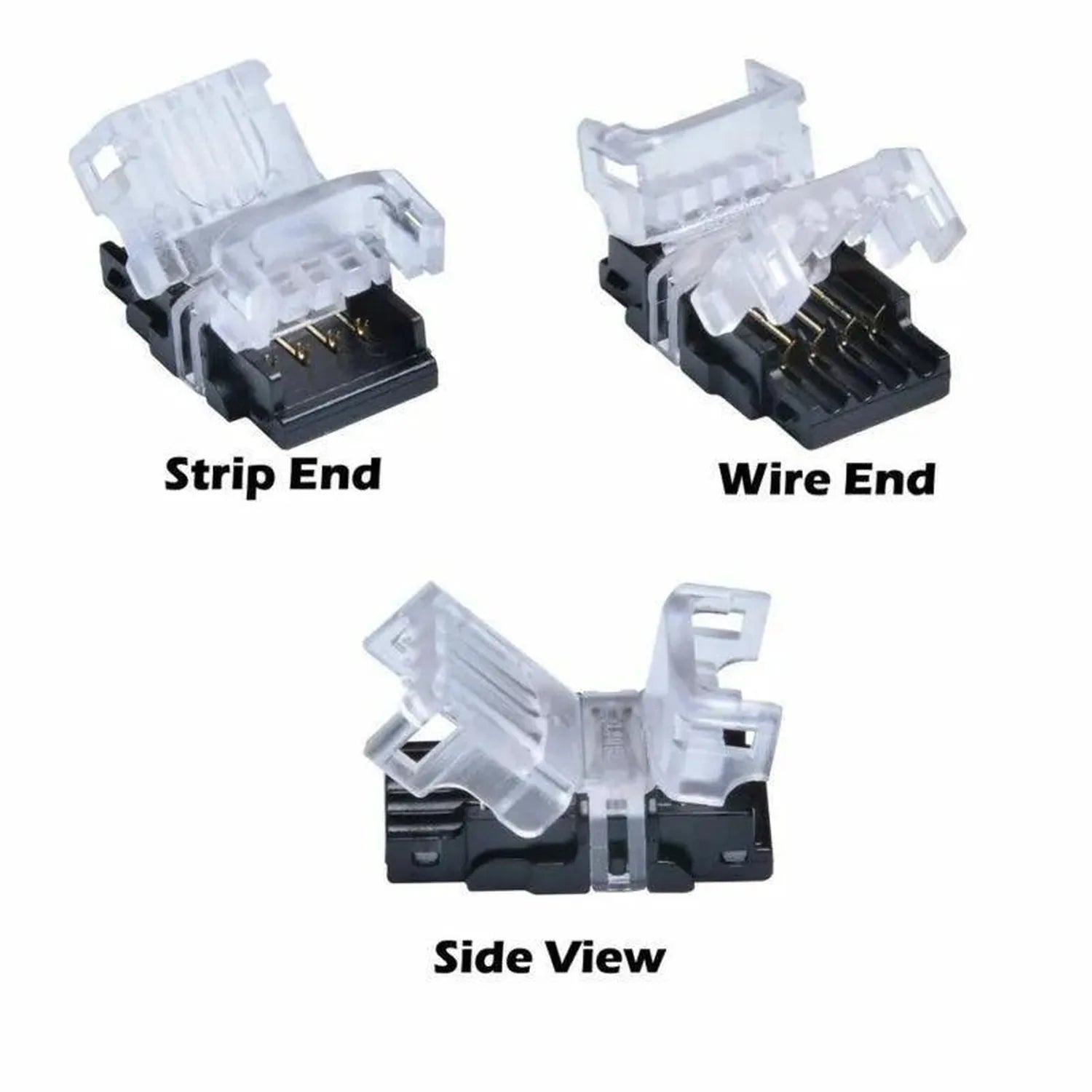

This Ledison connector joins a 10mm LED strip to a length of power cable without any soldering. Insulation-piercing contacts do the work: squeeze the cover down with pliers and the pins cut through to both the strip and the wire. It carries a 5A current rating and is made for IP20, non-waterproof strip.

10mm LED strip to wire connector features

  • Strip width: fits 10mm wide LED strip.
  • Current rating: 5A.
  • Wire size: 22~20AWG / 0.34~0.54 mm2.
  • Contacts: insulation-piercing, closed with pliers.
  • Cover: transparent, so the joint avoids dark spots.
  • Protection: IP20, for non-waterproof strip only.

Choosing a pin count

There are three versions. Match the pins to the type of strip you are connecting.

  • 2 pin (BK-TPS-10mm-2pin): single colour strip.
  • 4 pin (BK-TPS-10mm-4pin): RGB strip.
  • 5 pin (BK-TPN-10mm-5pin): RGBW or 5 in 1 strip.

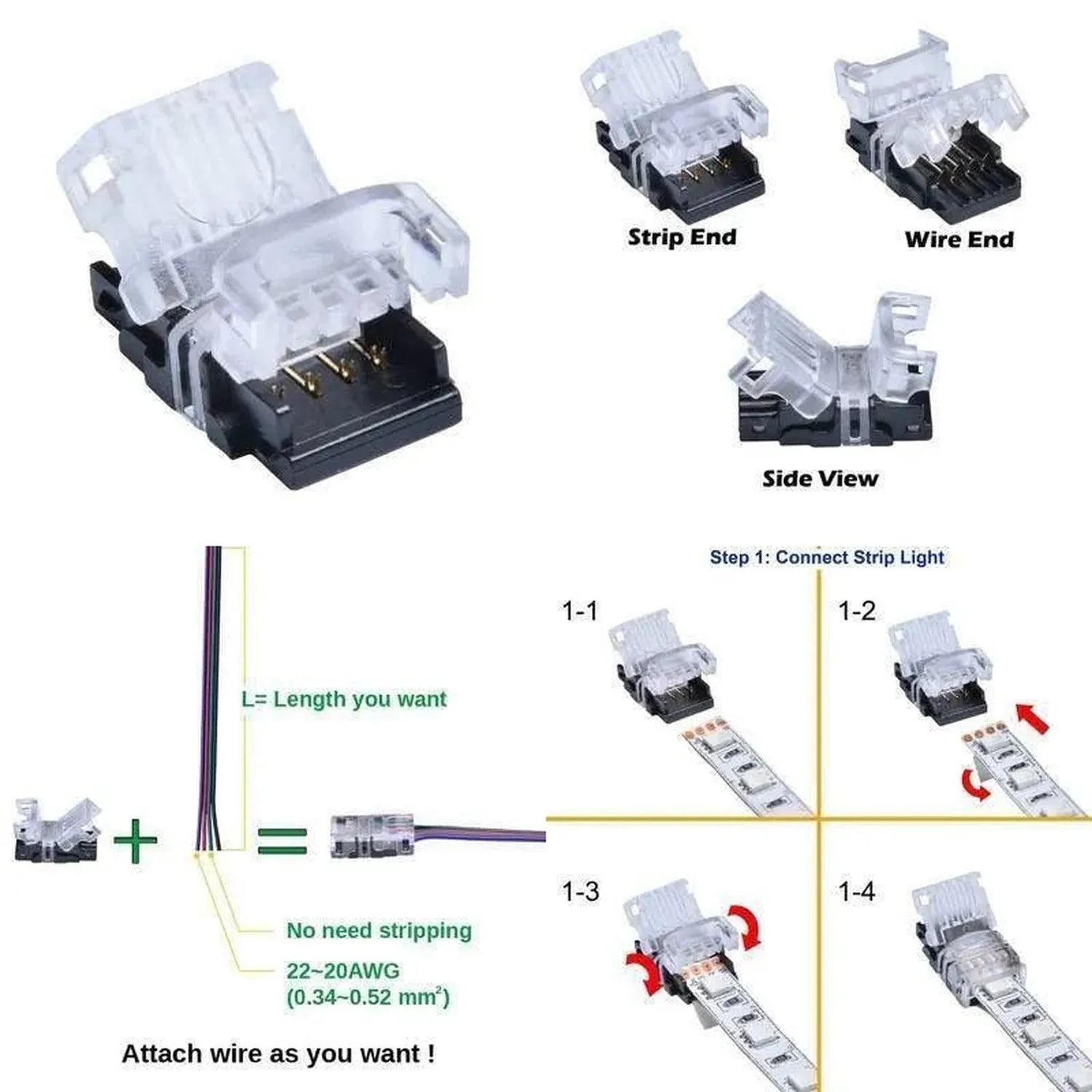

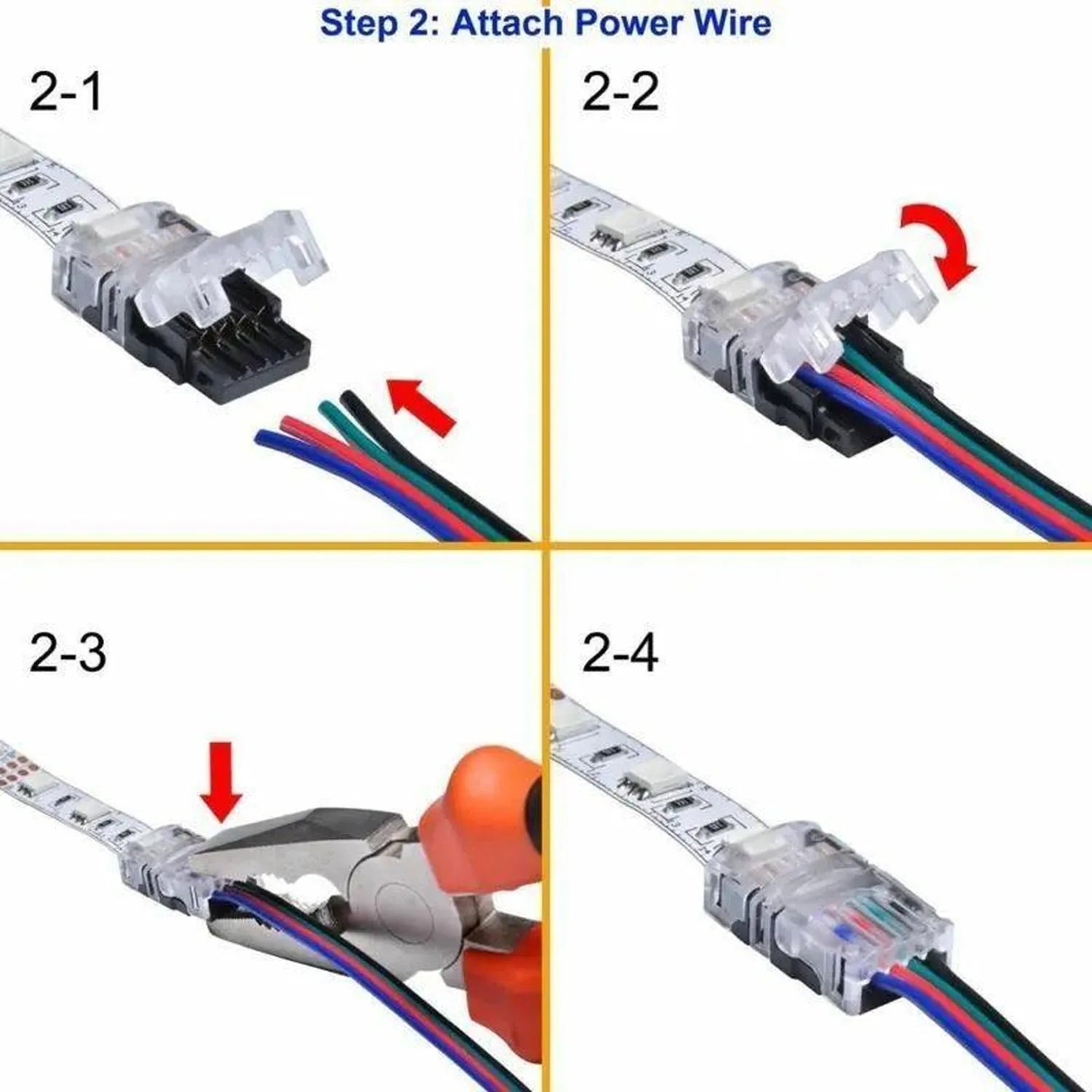

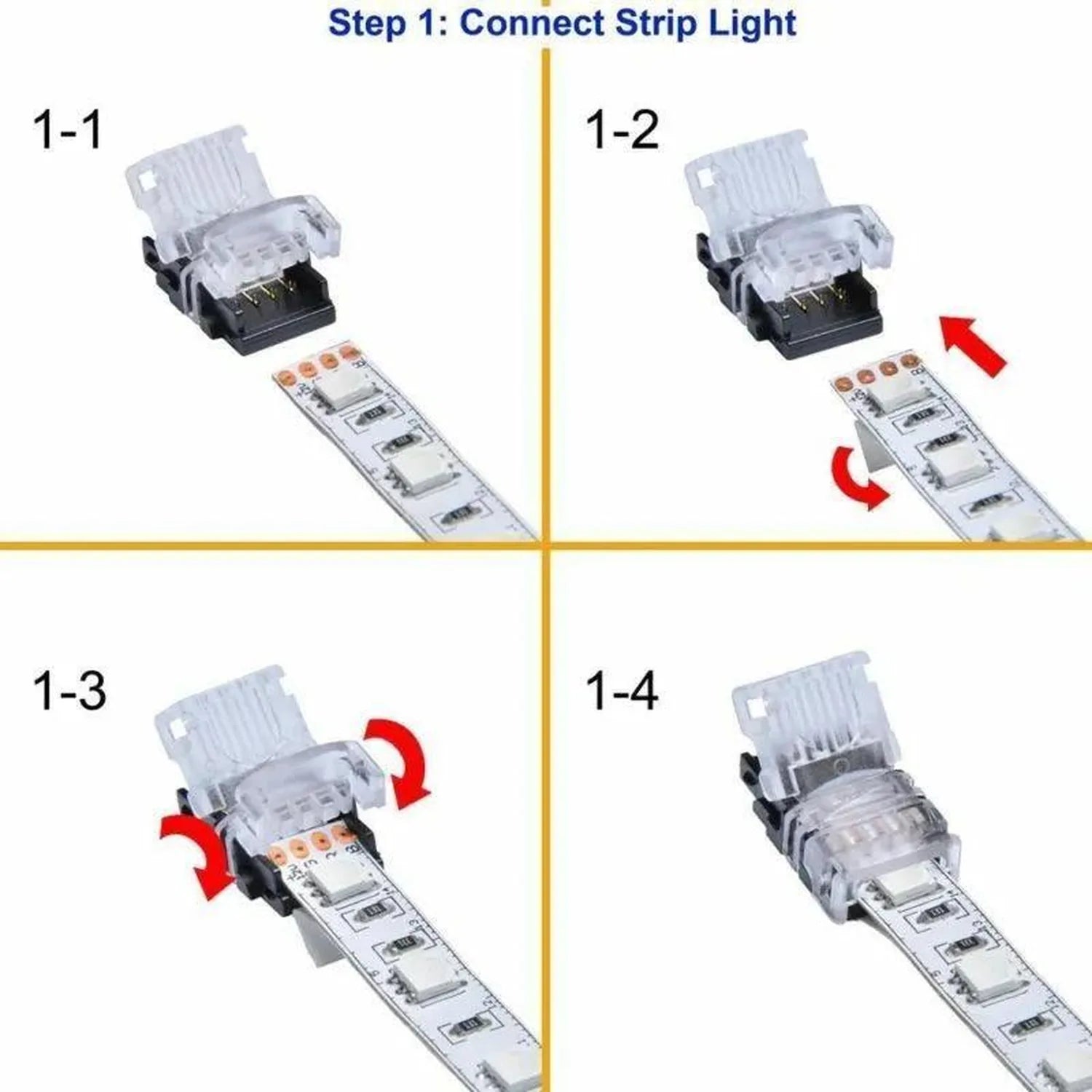

Installation

The connector takes a continuous run of wire from the strip back to the power supply. That means the driver does not have to sit right next to the strip, and you can place it wherever suits the installation better. No soldering iron is involved. Pliers are the only tool you need to close the cover and make the contact.

Epoxy resin strip

Epoxy resin LED strips use a separate version of this connector, so check which type of strip you have before ordering.

Technical Specifications 11 rows Show
TypeBoard to wire connector
LED strip width10mm
Current rating5A
Wire size22~20AWG/0.34~0.54 mm2
ContactInsulation-piercing contact
IP ratingIP20
Pins2, 4 or 5 pin
Model codesBK-TPS-10mm-2pin, BK-TPS-10mm-4pin, BK-TPN-10mm-5pin
CoverTransparent
WaterproofIP20 non-waterproof strip only
ToolPliers

Manufacturer datasheet. Figures as published by the manufacturer.
