LED Strip Connector Board to Board 2/3/4/5/6Pin 8mm 10mm | Ledison

This board-to-board LED strip connector links two identical LED strip PCBs without soldering, twisting or taping. It comes in 2, 3, 4, 5 and 6 pin versions to match different strip layouts, with 8mm and 10mm width options and a transparent cover that keeps the joint discreet once the strips are joined.

LED strip connector features

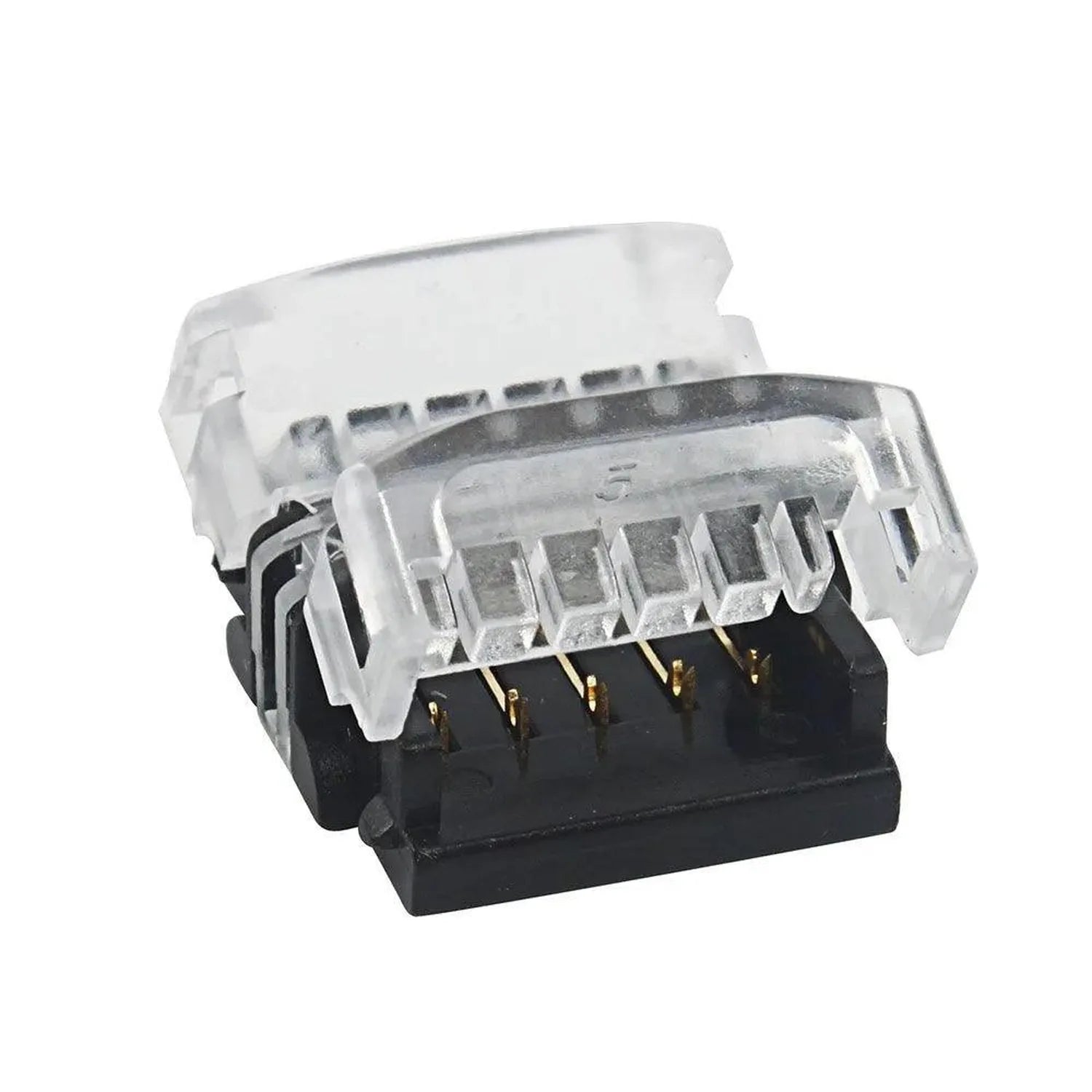

• Pin options: available in 2, 3, 4, 5 and 6 way versions.
• Width options: fits 8mm and 10mm strip PCBs.
• Rated voltage: below 300V.
• Rated current: below 10A.
• Housing temperature: below 135°C.
• Cold resistance: down to -45°C, with a moisture-proof ventilated working range of -20°C to 80°C.

How it works

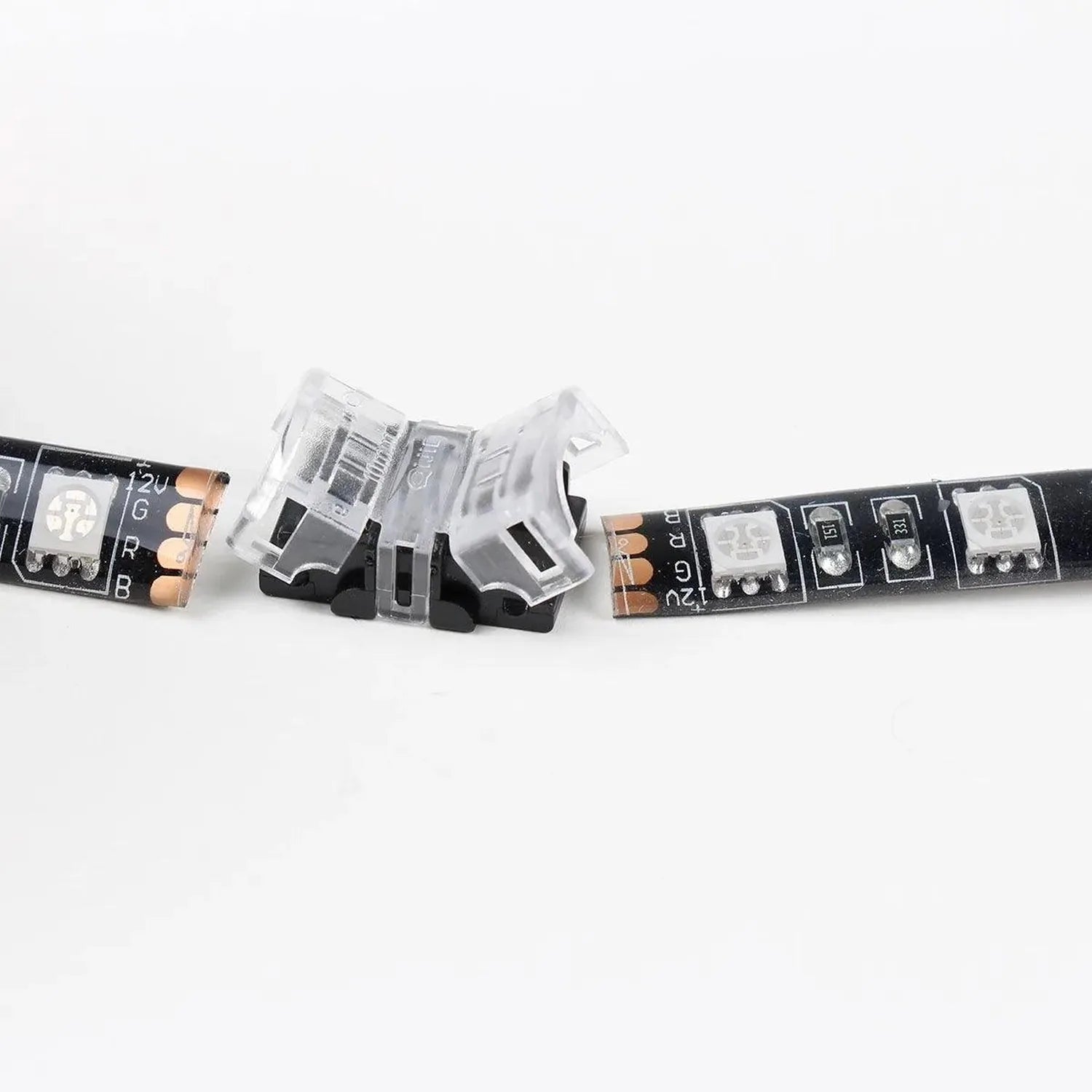

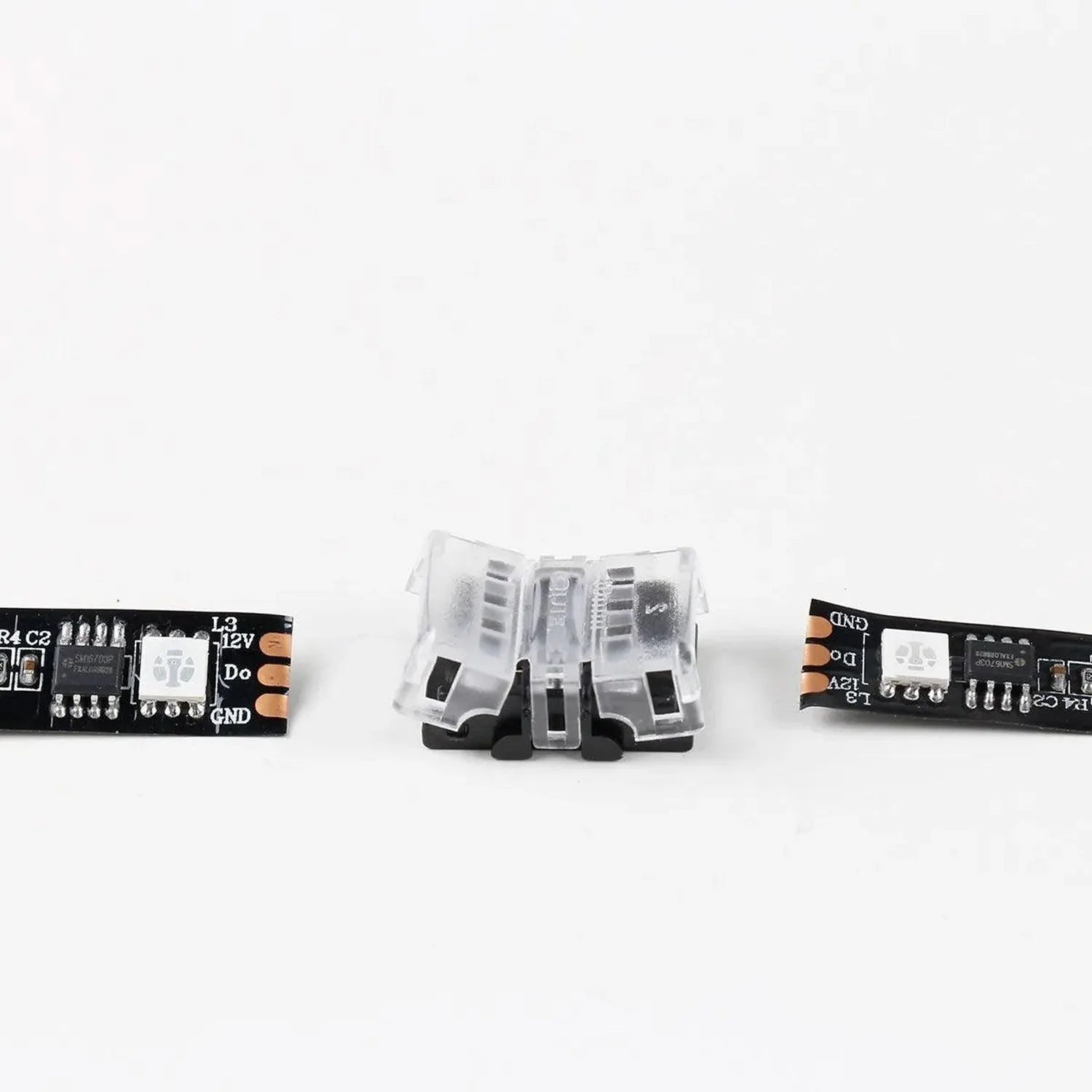

The connector clips the two PCBs together without any special tools. Wire can be inserted without stripping the insulation first, and both strand and solid core wire are accepted. Once fitted it can also be disconnected again for maintenance, which suits mixed connection projects where strips are added, removed or rerouted.

Applications

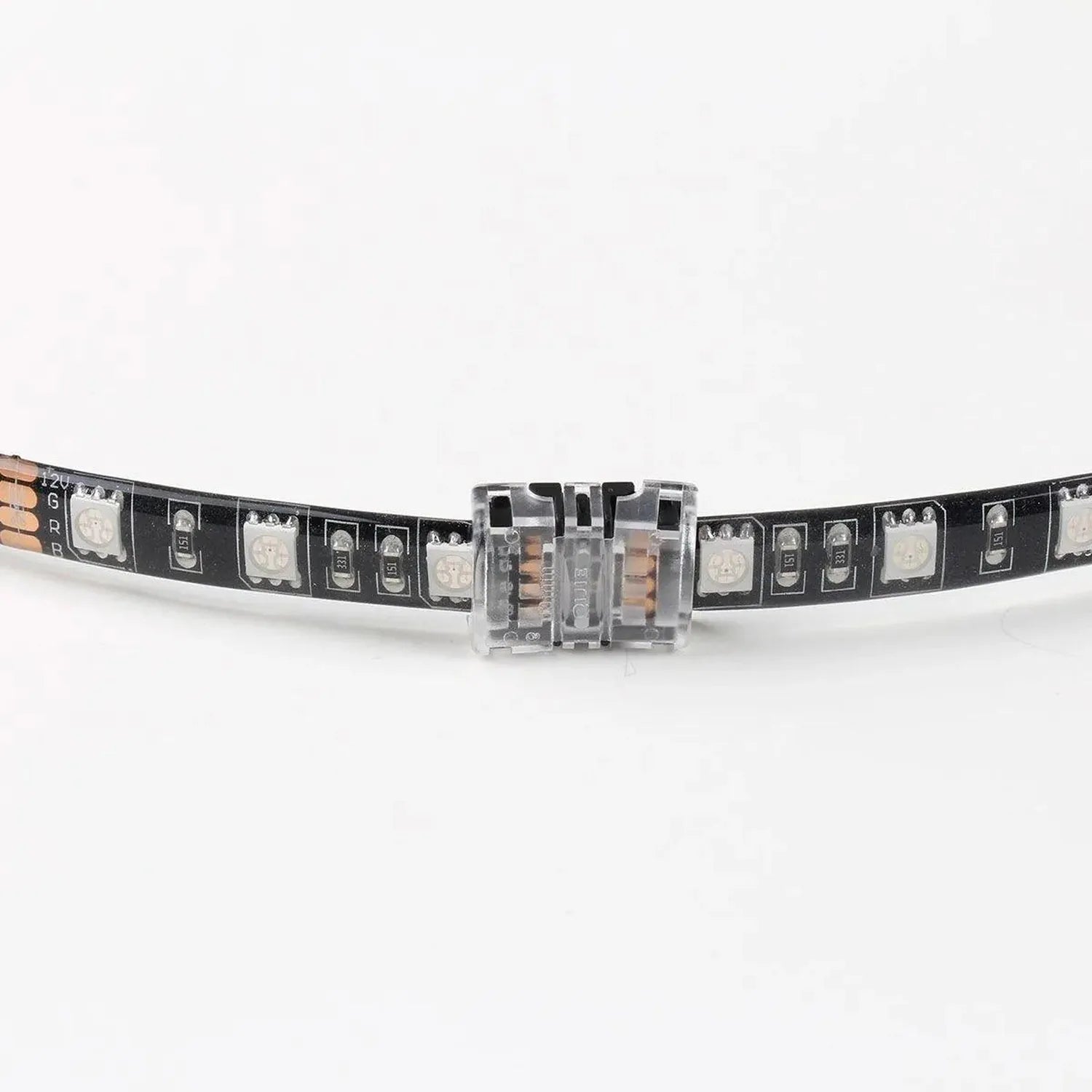

Use it to extend LED strip runs to several metres by joining identical strip PCBs end to end, rather than cutting and soldering new lengths. It is supplied in two types, one for waterproof LED strip and one for non-waterproof strip, so pick the version that matches the strip you are extending.

Material

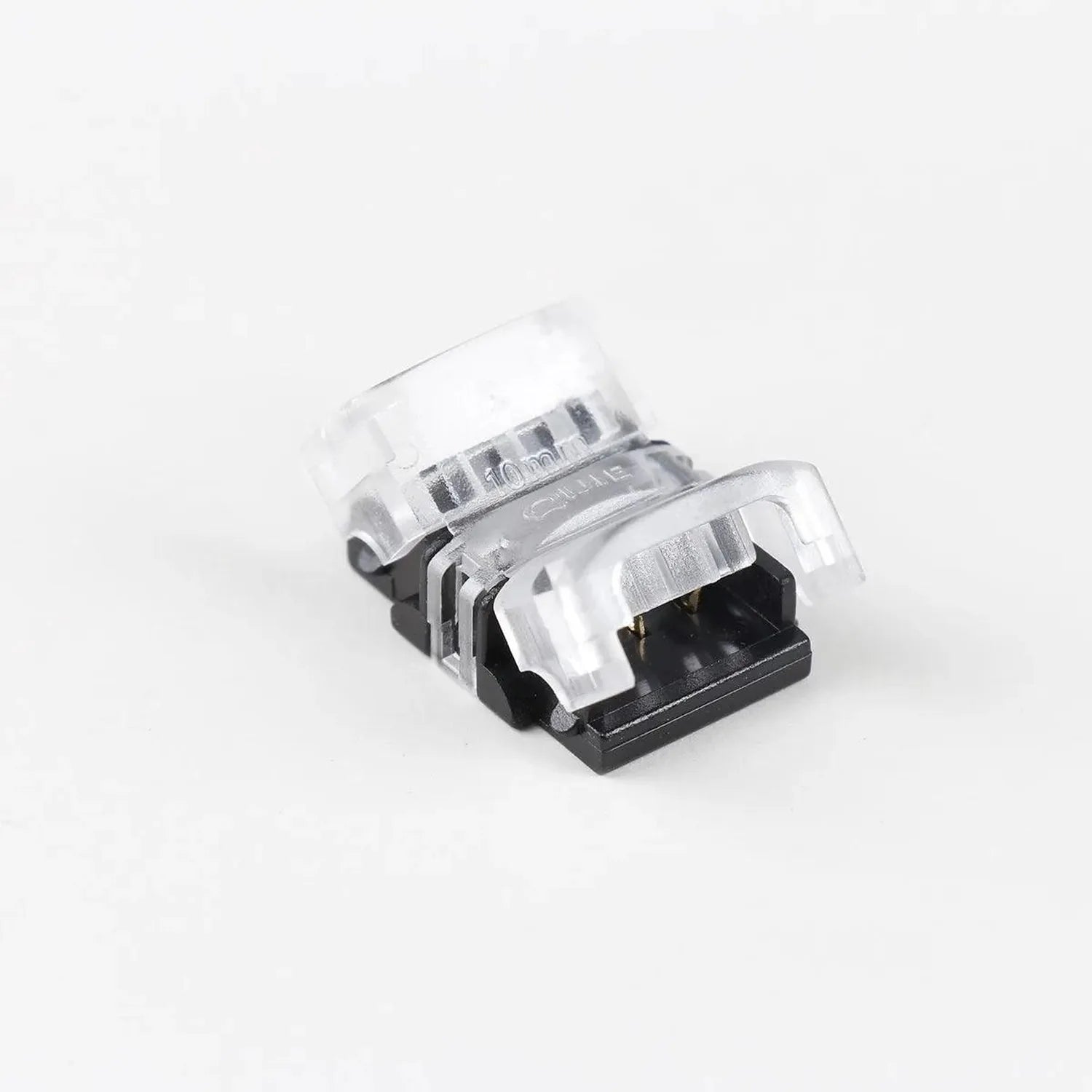

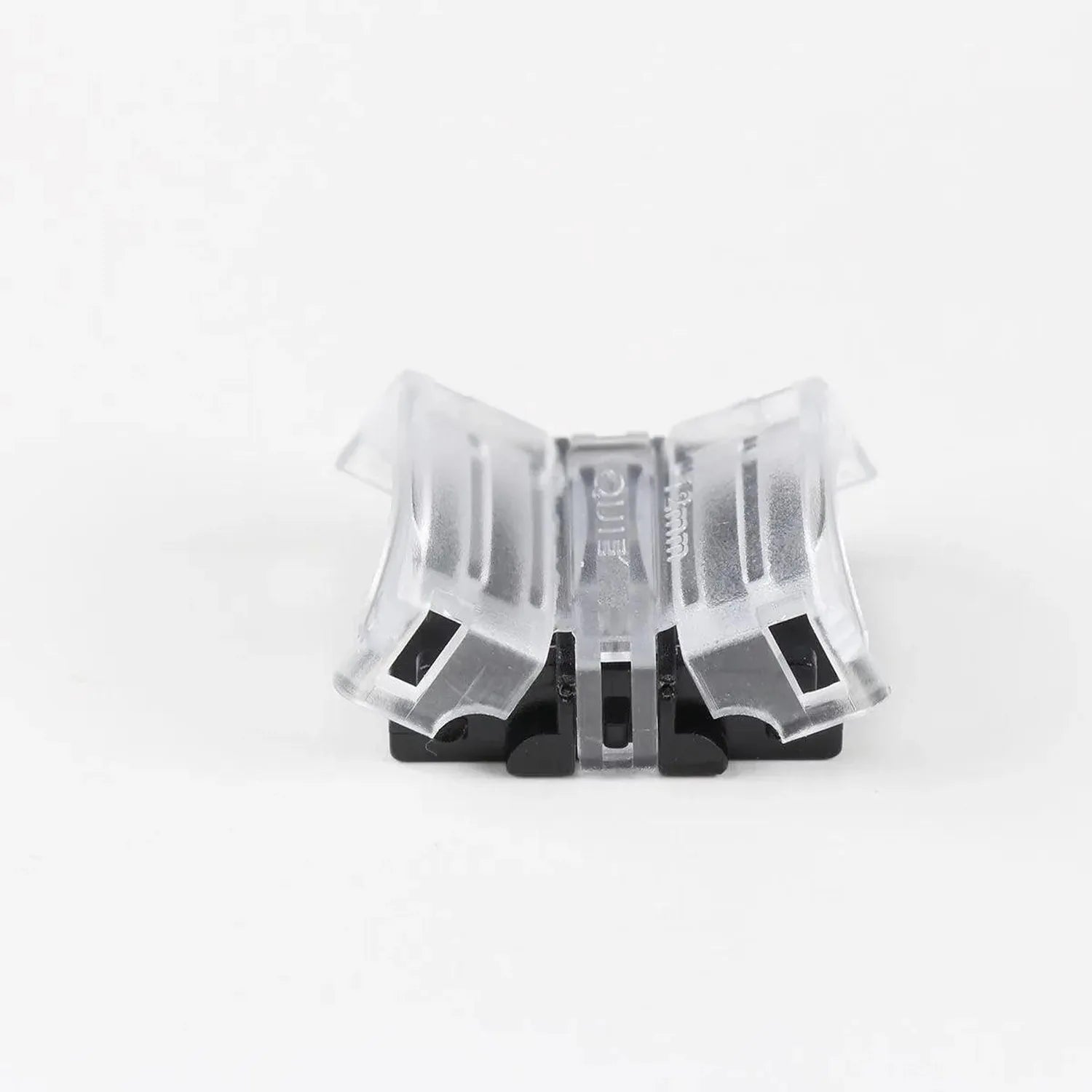

The connector housing is plastic, with a transparent cover over the joint once the strips are connected.
