LED Strip Connector 6 Pin 12mm RGB+CCT Board to Board 12V 24V | Ledison
- Vendor
- Ledison
- SKU
- 002059
- Availability
- In stock
- Weight
- 0.025 kg
£2.26inc VAT £1.88exc VAT
Delivery from £7.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

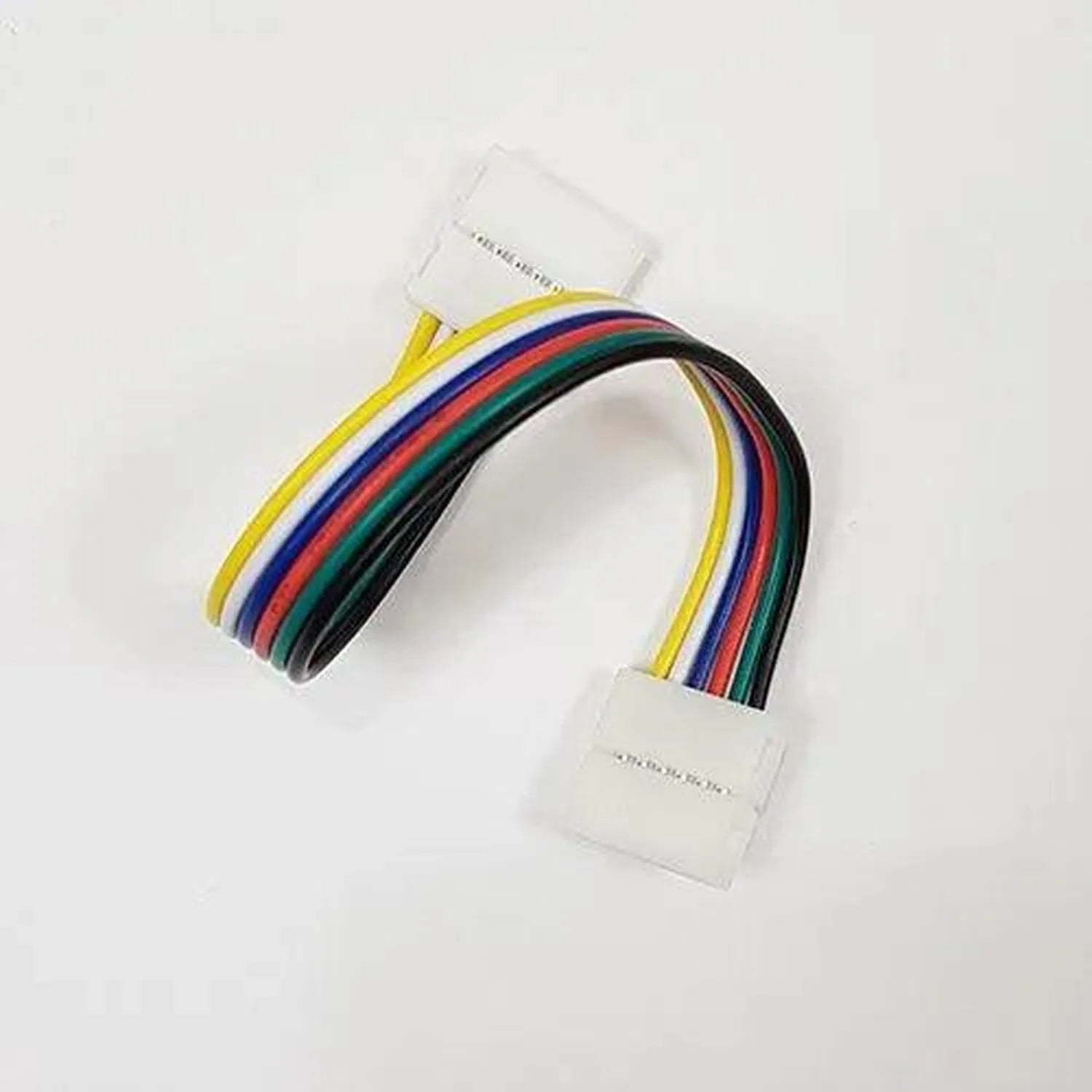

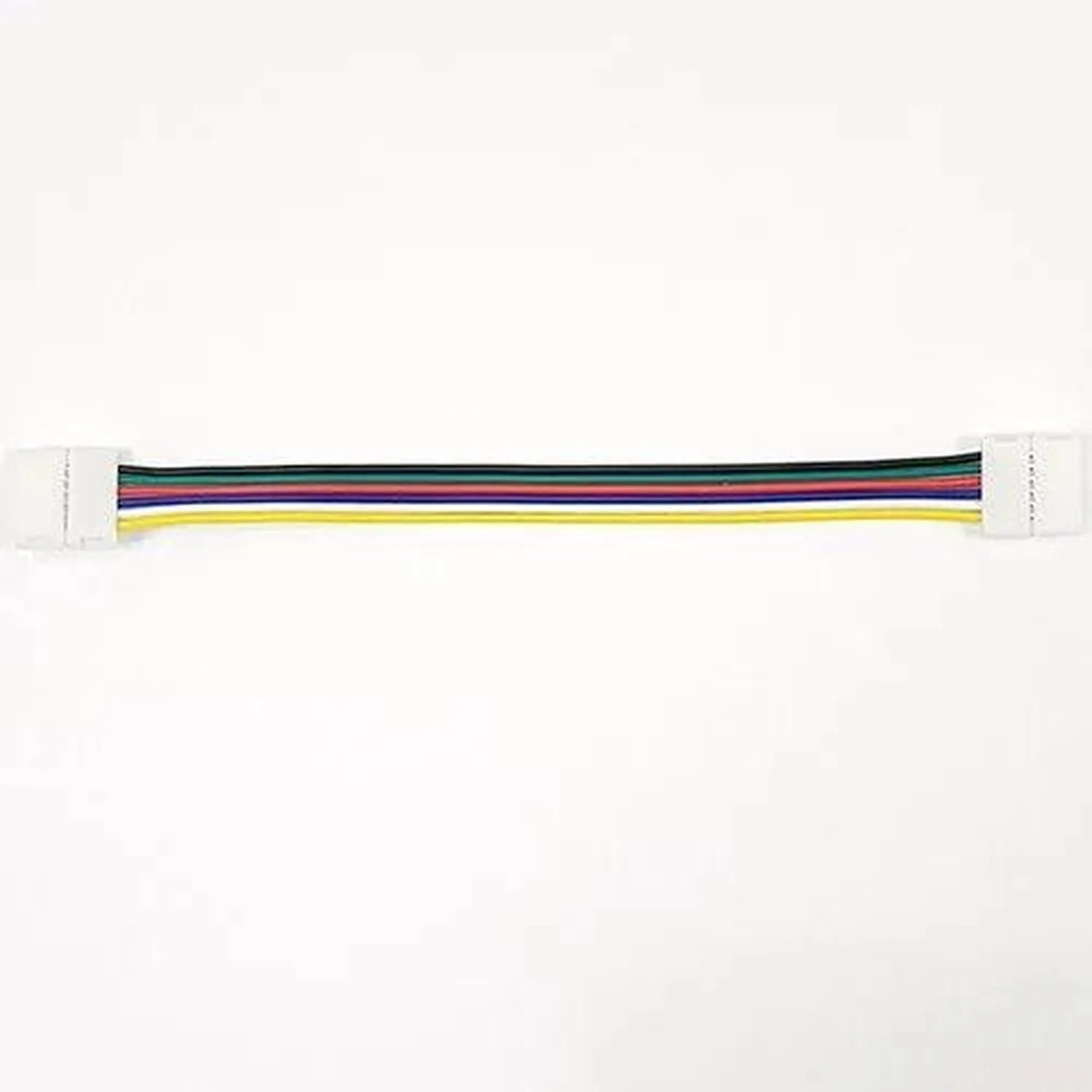

This 6 pin connector joins two lengths of 12mm RGB+CCT (5 in 1) LED strip without any soldering. A short, flexible 150mm wire sits between the two clasps, so a run can carry on round a corner instead of stopping at it. It suits RGB and RGB+WW+CW strips running at either 12V or 24V.
LED strip connector features
- Pin count: 6 ways, with 6x 0.5mm cables
- Contacts: R, G, B, CW, WW and +
- Wire length: 150mm
- Voltage: compatible with 12V and 24V strips
- Protection: IP20
- Working temperature: 0-40°C
Where it fits
Offcuts left over from a previous job do not have to go in the bin. Clip two pieces together and the run gets longer. The soft wires bend, which helps around corners, along shelving edges and in coves where a rigid joint would not sit flat. With an IP20 rating, it belongs in dry indoor locations.
Fitting the connector
- Check the strip end has six clean contacts: R, G, B, CW, WW and +.
- Open the white clasp.
- Slide the strip under the prongs. The + on the strip must line up with + on the clasp, which is the black wire.
- Close the clasp, then give the strip a gentle pull to check it is held.
Repeat at the other end of the wire. No tools or solder needed.
Warranty
Ledison covers this connector with a 1-year warranty.
Technical Specifications 15 rows Show
| LED strip | RGB+CCT 12mm |
| Type | RGB+CCT 5050 |
| Pins | 6-ways |
| Cables | 6x 0.5mm cables |
| Wire length | 150mm |
| Dimensions | L160 x H5 x W15 |
| Material | Plastic |
| Voltage | Compatible voltage 12V and 24V |
| IP rating | IP20 |
| Working temperature | 0-40°C |
| Storage temperature | -20 ~ 60°C |
| Contacts | R, G, B, CW, WW and + |
| Works with | RGB, RGB+WW+CW LED strips |
| Soldering | Not needed |
| Warranty | 1 year |
Manufacturer datasheet. Figures as published by the manufacturer.
