6 Pin LED Strip Connector T Shape 12mm RGB+CCT Solderless | Ledison
- Vendor
- Ledison
- SKU
- 0790404943651
- Availability
- In stock
- Weight
- 0.025 kg
£2.93inc VAT £2.44exc VAT
Delivery from £7.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

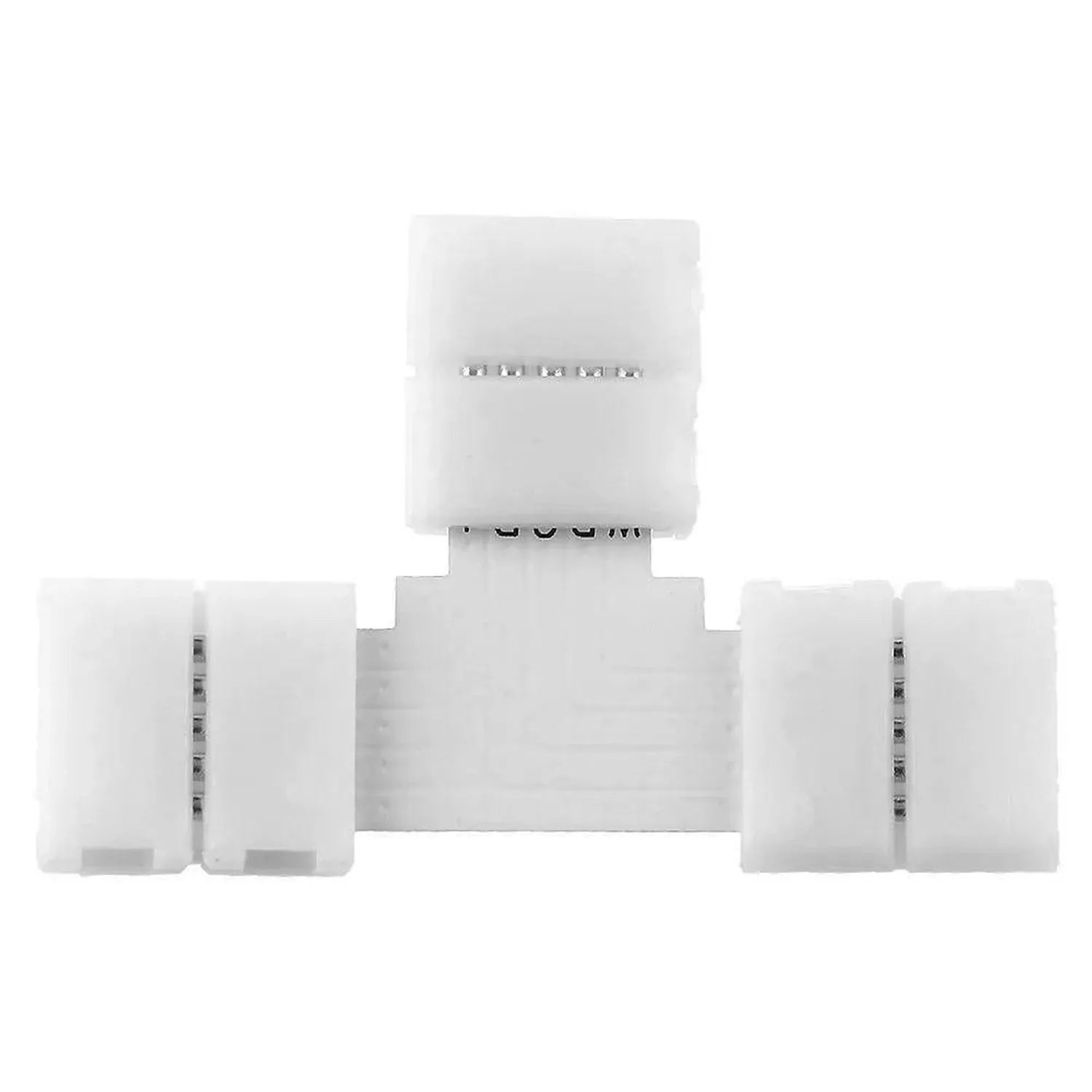

This T shape connector splits a multi-colour LED strip into a branch without soldering, tools or extension cables. It has 6 pins and suits strips up to 12mm wide, so it handles RGB, RGBW and RGB+CCT (5 in 1) tape with up to six wires. The strip slots in, the connector closes, and the run turns a corner or forks in two.
LED strip connector features
- Pins: 6 pin, for strips with up to 6 wires
- Strip width: up to 12mm
- Voltage: for 12V, 24V and 48V LED strips
- Maximum current: 2 Amps
- Chip compatibility: RGB 5050 SMD and 2835 chips
- Fitting: solderless, with no welding or cables needed
Where it fits
Use it wherever a colour-changing strip needs to branch into a T. Typical jobs include shelving, coving and cabinet runs where one feed has to serve two directions. Because it supports RGB, RGBW, RGB + CCT and 5 in 1 strip types, a single connector type can cover most multi-channel installs.
Before you buy
Check two things. First, the strip must be no wider than 12mm. Second, the current through the joint should stay within the 2 Amps maximum, so plan longer runs with that limit in mind. The connector works on 12V, 24V and 48V systems, which keeps it usable across low-voltage strip setups whether you are a trade installer wiring a fit-out or a homeowner extending an existing strip.
Technical Specifications 8 rows Show
| Type | T shape connector |
| Pins | 6 pin |
| Maximum strip width | 12mm |
| Voltage | 12V, 24, 48V |
| Maximum current | 2 Amps |
| Compatible chips | RGB 5050 SMD and 2835 chips |
| LED strip types | RGB, RGBW, RGB + CCT and 5 in 1 |
| Soldering | No welding or cables needed |
Manufacturer datasheet. Figures as published by the manufacturer.
