Zigbee Gateway ZB-Box1 Zigbee 3.0 WiFi for up to 50 Devices | Mi-Light MiBoxer
- Vendor
- Skydance
- SKU
- 601200
- Availability
- In stock
- Weight
- 0.45 kg
£37.75inc VAT £31.46exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

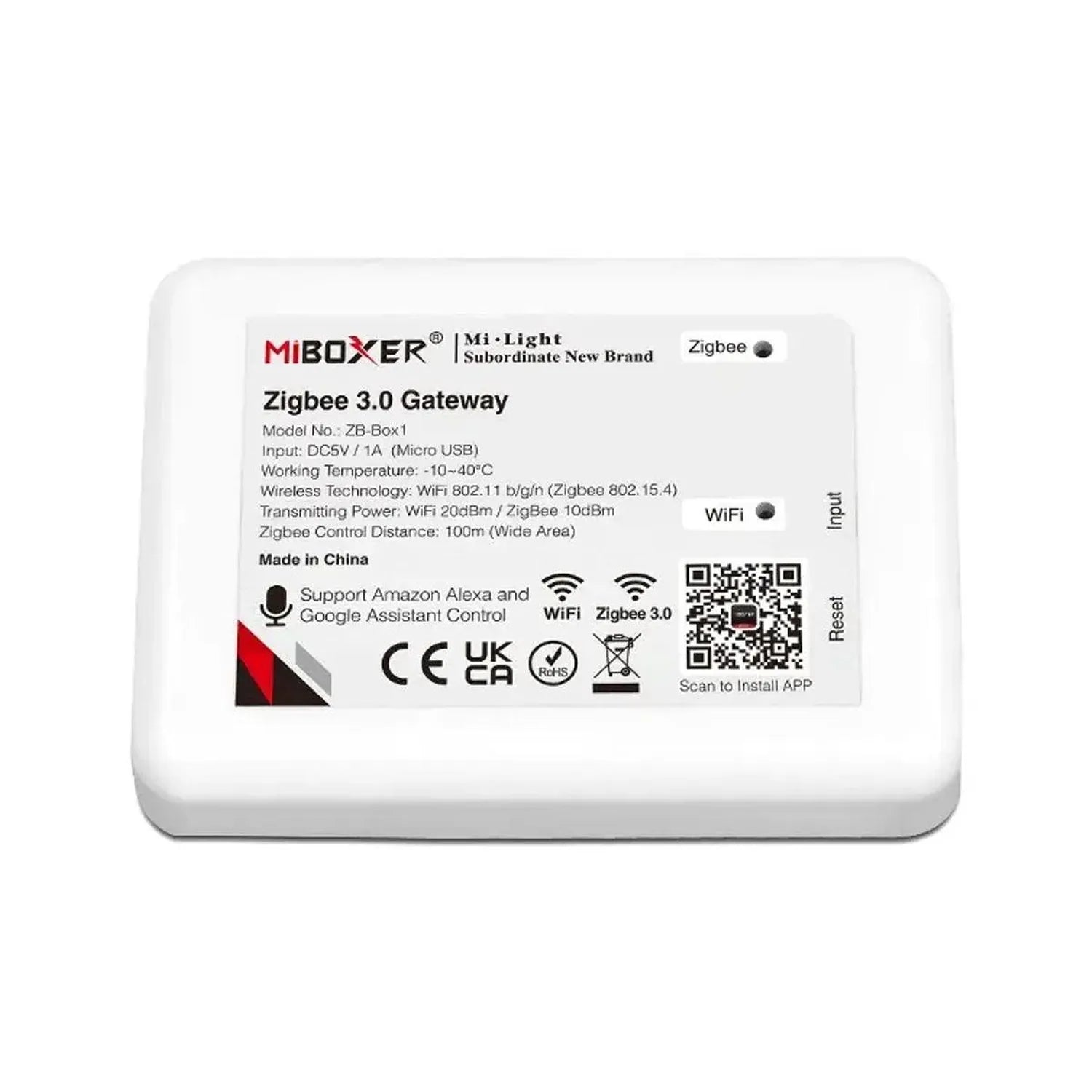

The Mi-Light MiBoxer ZB-Box1 connects Zigbee lights and controllers to your home WiFi network. Once it is linked, the MiBoxer Smart app lets you add devices, put them into groups and control them by remote or by voice through Amazon Alexa or Google Assistant. It handles up to 50 connected devices.
A Zigbee gateway that works over WiFi
There is no network cable to run. The ZB-Box1 talks to your router wirelessly, so it only needs a power source nearby. Position it close to the router. It is not limited to MiBoxer products either: any Zigbee 3.0 device can be paired with it.
Key features
- Protocol: Zigbee 3.0, compatible with all Zigbee 3.0 devices
- Capacity: up to 50 connected devices
- Zigbee range: up to 100 metres in an open area
- Power: DC5V/1A via micro USB
- Voice control: works with Amazon Alexa and Google Assistant
- Certification: RoHS, CE, UKCA
App functions
The MiBoxer Smart app goes well beyond on and off. You can build scenes, set timers and use music rhythm mode for lighting that follows sound. Sleep and wake-up plans handle the daily routine. Tap-to-Run and automation rules cover the rest.
Do Not Disturb mode is included. So is device sharing, which lets other people in the household control the same lights from their own phones.
Where it fits

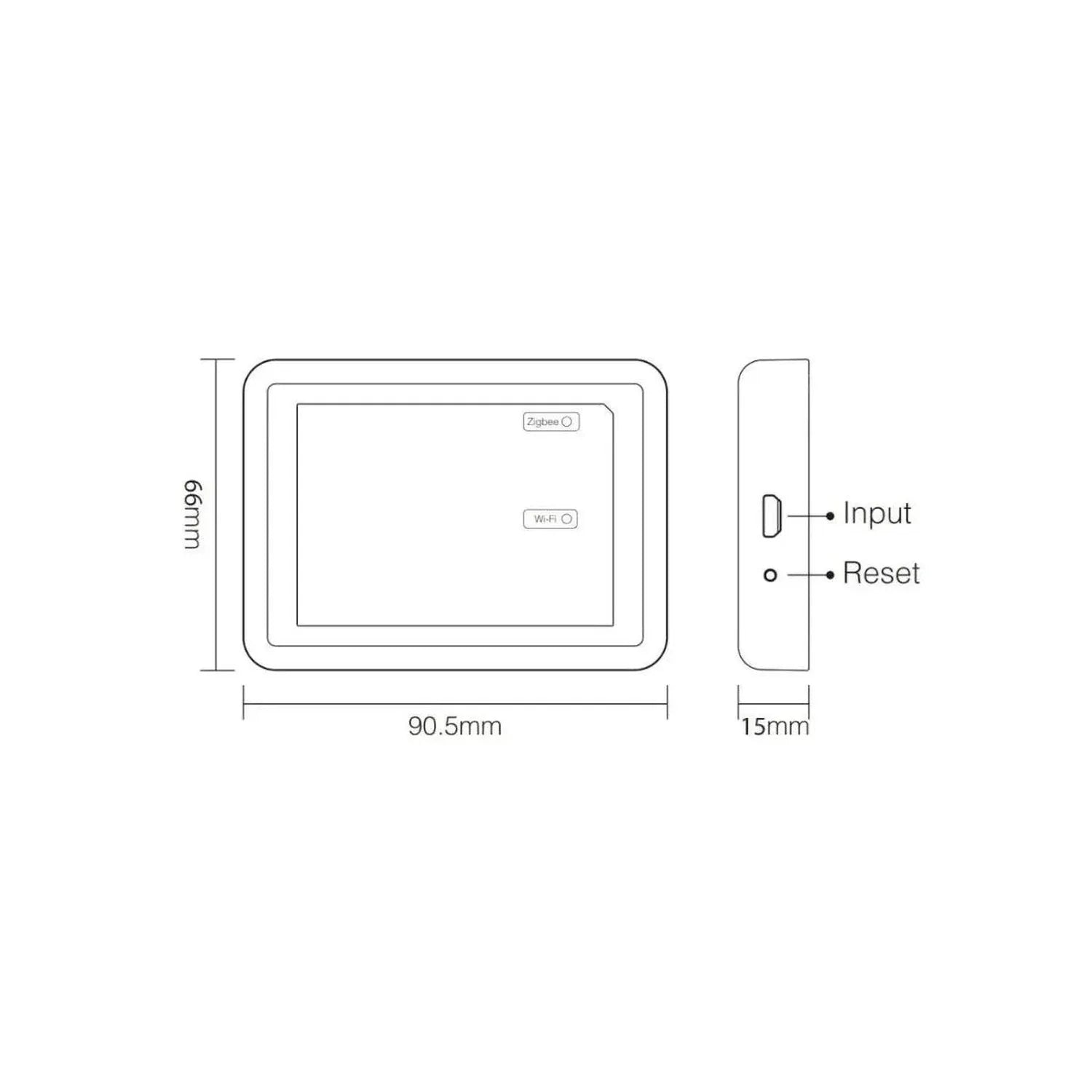

This gateway is the link between a Zigbee lighting setup and the app or voice assistant. It suits LED strip installations using Zigbee controllers, as well as mixed systems where lights and controllers come from different Zigbee 3.0 makers. It is compact at L90.5 x W66 x H15 mm and weighs 87g, so it sits beside a router without taking up much room. The unit carries a 2 year warranty.
Technical Specifications 15 rows Show
| Brand | Mi-Light / MiBoxer |
| Model number | ZB-Box1 |
| Protocol | Zigbee 3.0 |
| Input | DC5V/1A (micro USB) |
| Wireless technology | WiFi 802.11 b/g/n (Zigbee 802.15.4) |
| Wi-Fi wireless frequency | 2.400-2.4835GHz |
| Zigbee wireless frequency | 2.400-2.480GHz |
| Transmitting power | WiFi 20dBm / ZigBee 10dBm |
| Max connected devices | 50 |
| Controlling range | up to 100 meters in an open area |
| Working temperature | -10~40℃ |
| Weight | 87g |
| Dimensions | L90.5 x W66 x H15 mm |
| Certification | RoHS, CE, UKCA |
| Warranty | 2 years |
Manufacturer datasheet. Figures as published by the manufacturer.
Datasheets & documents
More in LED Strip Accessories

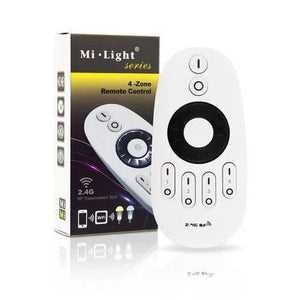

Mi-Light FUT006 4 Zone CCT Remote with Dimming Wheel 2.4GHz£11.54inc VAT
£9.62exc VAT

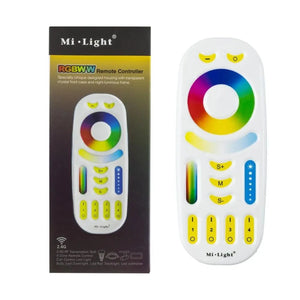

Mi-Light FUT092 4 Zone RGB+CCT Remote Control 2.4GHz£16.79inc VAT
