4 Gang LED Dimmer Switch 4 x 0-120W 2 Way Trailing Edge | Varilight V-Pro JCDP254
- Vendor
- Varilight
- SKU
- JCDP254
- Availability
- In stock
- Weight
- 0.15 kg
£82.90inc VAT £69.08exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

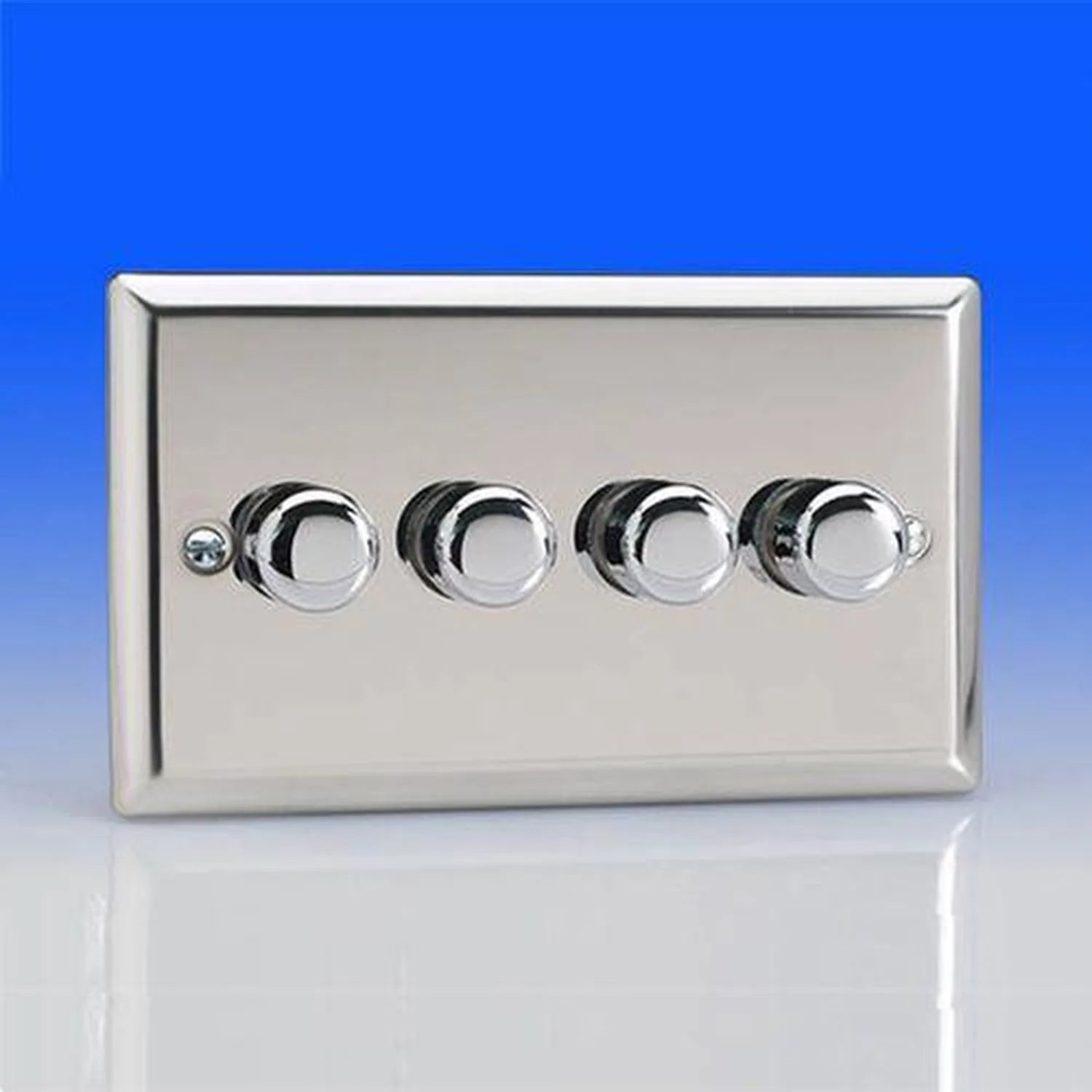

This twin plate dimmer from the Varilight V-Pro series puts four separately controlled gangs on a single faceplate, each one handling 0-120W of LED. It can be wired 1 or 2 way. The finish is Mirror Chrome, which is chrome plate over stainless steel, and dimming is silent and flicker-free. Made in the UK.
4 gang LED dimmer switch features
- Load per gang: 4 x 0-120W, with up to 120W of LED on each gang
- No minimum load: and no maximum number of lamps
- Trailing edge control: silent dimming that is gentle on the load
- Soft start: voltage to the lamp rises gently at switch-on
- Lamp detection: the dimmer identifies the lamp type and adjusts its control to match
- Switching: push on/off rotary operation, 1 or 2 way
Compatible loads
Use it with dimmable mains LED lamps and with dimmable LED lights that run from external drivers. Dimmable CFL is supported too. So are very low wattage loads and incandescent lamps, which makes it a sensible choice where a room mixes older and newer fittings across its four circuits.
Loads to avoid
Do not connect dimmable ballasts or fluorescent tubes.
Installation
The plate is built for indoor use only and must be earthed. A 25mm back box depth is recommended, with 120.6mm fixing centres. It runs on a 230V 50Hz supply and conforms to BS EN 60669-2-1. Full dimensions and terminal details are listed in the specification table.
Technical Specifications 19 rows Show
| Brand | Varilight |
| Model | JCDP254 |
| Range | V-Pro Series |
| Description | 4-Gang 2-Way V-Pro Push On/Off Rotary LED Dimmer 4 x 0-120W (Twin Plate) |
| Finish plate | Chrome Plate on Stainless Steel |
| Finish | Mirror Chrome |
| Knob colour | Chrome Knob |
| Barcode | 5021575531046 |
| Dimensions | 91x150x47mm |
| Faceplate depth | 8mm |
| Fixing centres | 120.6mm |
| Depth from mounting face | 18.1mm |
| Recommended back box depth | 25mm |
| Weight | 340g |
| Voltage | 230V 50Hz |
| Terminal (live) | 3.2mm, capacity 3 x 1.5mm² |
| Safety standard | BS EN 60669-2-1 |
| Use | Indoor Use Only |
| Earthing | Product Must Be Earthed |
Manufacturer datasheet. Figures as published by the manufacturer.
