1 Gang LED Dimmer Switch 0-120W 1 or 2 Way Trailing Edge | Varilight V-Pro JCP401
- Vendor
- Varilight
- SKU
- 002947
- Availability
- In stock
- Weight
- 0.15 kg
£35.65inc VAT £29.71exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

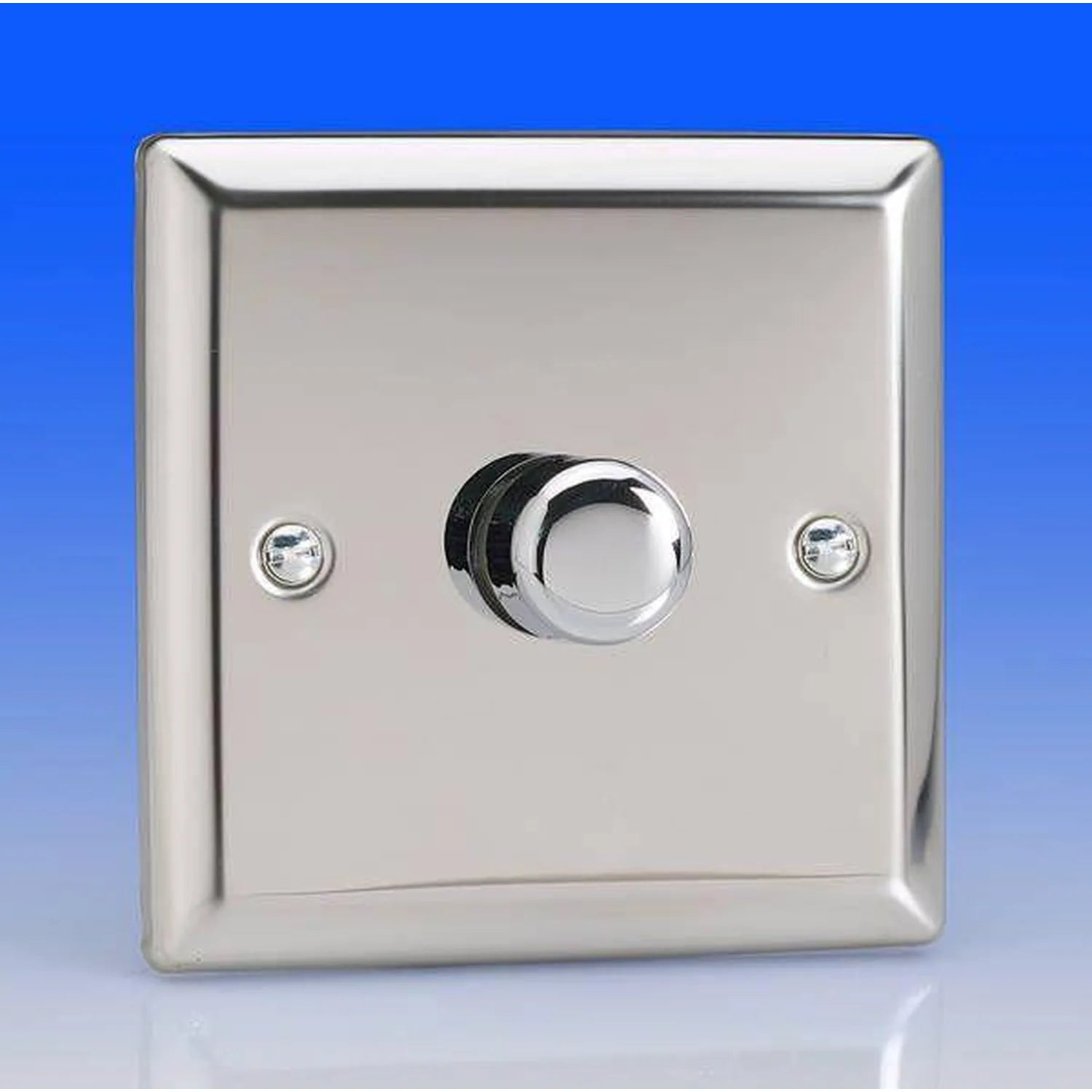

The Varilight V-Pro JCP401 is a 1 gang LED dimmer switch for 1 or 2 way circuits. It is finished in Mirror Chrome, which is chrome plate on stainless steel, with a matching chrome knob. It handles 0-120W of lighting and dims silently, without flicker.
A 1 gang LED dimmer switch from the V-Pro series
Trailing edge dimming is the default. Some LEDs respond better to a different control method, so the switch also offers a selectable simulated leading-edge mode, called Mode 2. A soft start brings the voltage up to the lamp gently. The dimmer also detects the lamp type and adjusts its control to suit. Made in the UK.
Key features
- Load range: 0-120W, with no minimum load and no maximum number of lamps.
- Dimming method: trailing edge as standard, with a simulated leading-edge option (Mode 2).
- Soft start: voltage to the lamp rises gently.
- Lamp detection: the dimmer identifies the lamp type and adapts its control.
- Switching: 1 gang, 1 or 2 way.
- Finish: Mirror Chrome plate on stainless steel with a chrome knob.
Compatible loads
- Dimmable mains LED lamps
- Dimmable LED lights running from external drivers
- Dimmable CFL
- Very low wattage loads
- Incandescent lamps
Not suitable for
- Dimmable ballasts
- Fluorescent tubes
Installation
This switch is for indoor use only and must be earthed. It runs on 230V 50Hz and meets BS EN 60669-2-1. A back box depth of 25mm is recommended. Check the full dimensions and terminal details in the specification table before fitting.
Technical Specifications 20 rows Show
| Brand | Varilight |
| Model | JCP401 |
| Range | V-Pro Series |
| Gangs | 1 Gang, 1 or 2 Way |
| Finish plate | Chrome Plate on Stainless Steel |
| Finish | Mirror Chrome |
| Maximum load rating | LED: 120W |
| Knob colour | Chrome Knob |
| Barcode | 5021575531060 |
| Dimensions | 91x91x47mm |
| Faceplate depth | 8mm |
| Fixing centres | 60.3mm |
| Depth from mounting face | 18.1mm |
| Recommended back box depth | 25mm |
| Weight | 146g |
| Voltage | 230V 50Hz |
| Terminal (live) | 3.2mm, capacity 3 x 1.5mm² |
| Safety standard | BS EN 60669-2-1 |
| Use | Indoor Use Only |
| Earthing | Product Must Be Earthed |
Manufacturer datasheet. Figures as published by the manufacturer.
