300W LED Dimmer Switch 1 Gang 2 Way Trailing Edge | Varilight V-Pro JQP601W
- Vendor
- Varilight
- SKU
- JQP601W
- Availability
- In stock
- Weight
- 0.15 kg
£48.29inc VAT £40.24exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

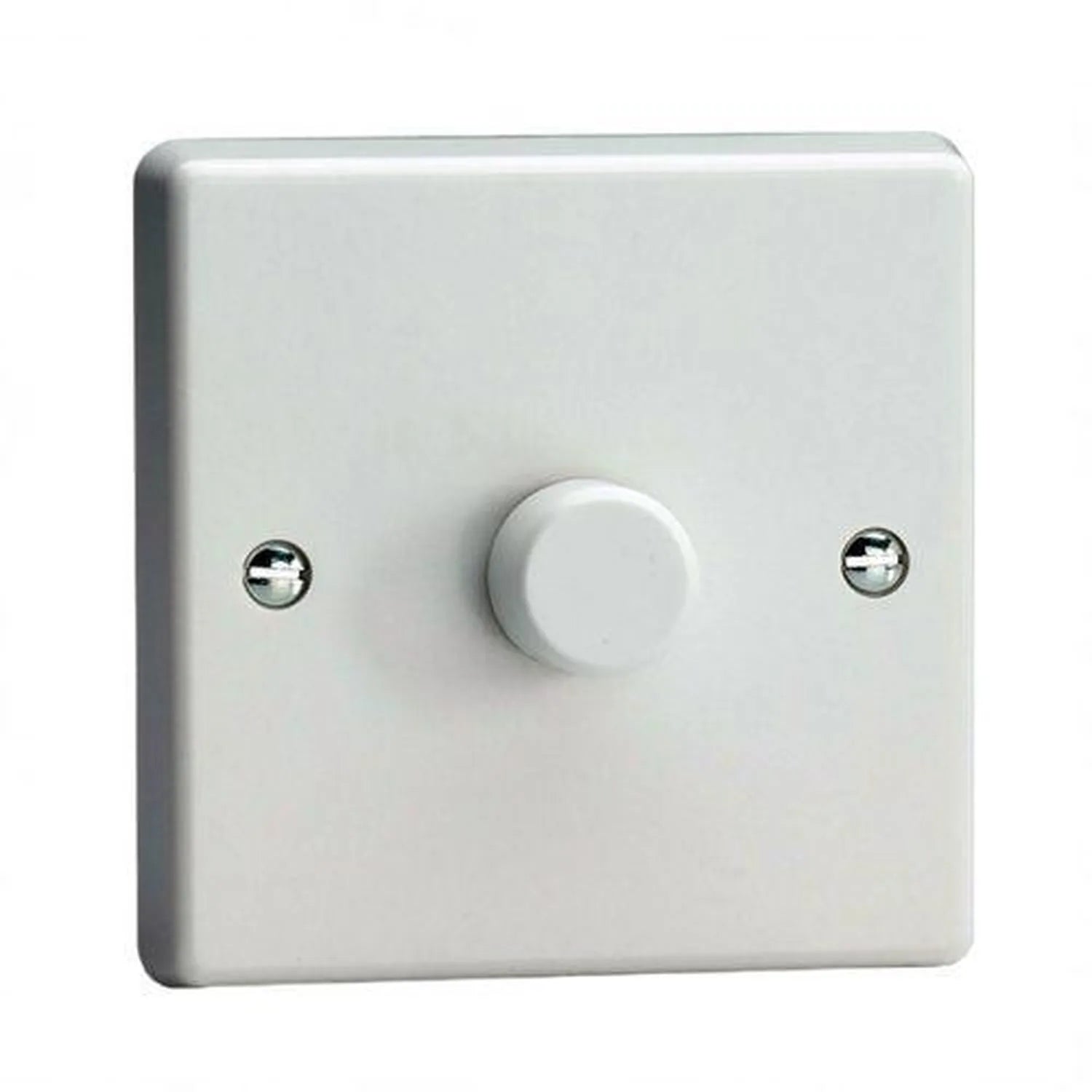

The Varilight V-Pro JQP601W is a 1 gang 300W dimmer switch for LED lighting, wired for either 1 way or 2 way switching and rated for loads of 0-300W. Operation is simple. Push the knob to turn the lights on or off, then rotate it to set the level. Dimming is silent trailing edge, which is gentle on the connected load.
300W dimmer switch features
- Load range: 0-300W, with no minimum load and no maximum number of lamps
- Control: push on/off rotary knob
- Dimming type: silent trailing edge
- Minimum brightness: programmable using pushes of the knob
- Protection: microprocessor overload protection
- Finish: white plastic plate with a white knob, 85x85x45mm
Setting it up
Dimmable LEDs vary in how low they will go before flickering or cutting out. Because the minimum brightness on this dimmer can be programmed with pushes of the knob, you can match the bottom of the range to your own lamps and get the widest usable dimming from them.
If the switch is connected to too many lights or transformers, its microprocessor steps in. It turns the lights down or off until the load has been corrected, protecting the dimmer itself.
Fitting notes
The JQP601W runs on 230V 50Hz and is for indoor use only. Varilight recommends a back box depth of 25mm, and the plate uses 60.3mm fixing centres. It is built to BS EN 60669-2-1.
Suitable loads
Use it with mains lighting and many dimmable LEDs, along with most dimmable electronic transformers. A good choice for a single circuit in a living room, bedroom or hallway where a plain white finish suits the decor.
Technical Specifications 19 rows Show
| Brand | Varilight |
| Model | JQP601W |
| Range | V-Pro |
| Description | 1-Gang 1 or 2-Way Push-On/Off Rotary LED Dimmer 1 x 0-300W |
| Power rating | 0-300W |
| Finish | White Plastic |
| Knob colour | White Knob |
| Dimensions | 85x85x45mm |
| Dimming type | Silent trailing edge |
| Barcode | 5021575003918 |
| Faceplate depth | 11mm |
| Fixing centres | 60.3mm |
| Depth from mounting face | 14.5mm |
| Recommended back box depth | 25mm |
| Weight | 106g |
| Voltage | 230V 50Hz |
| Terminal (live) | 3.2mm, capacity 3 x 1.5mm² |
| Safety standard | BS EN 60669-2-1 |
| Use | Indoor Use Only |
Manufacturer datasheet. Figures as published by the manufacturer.
