1 Gang LED Dimmer Switch 0-120W 2 Way Screwless White | Varilight V-Pro JDQP401S
- Vendor
- Varilight
- SKU
- JDQP401S
- Availability
- In stock
- Weight
- 0.15 kg
£19.94inc VAT £16.62exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

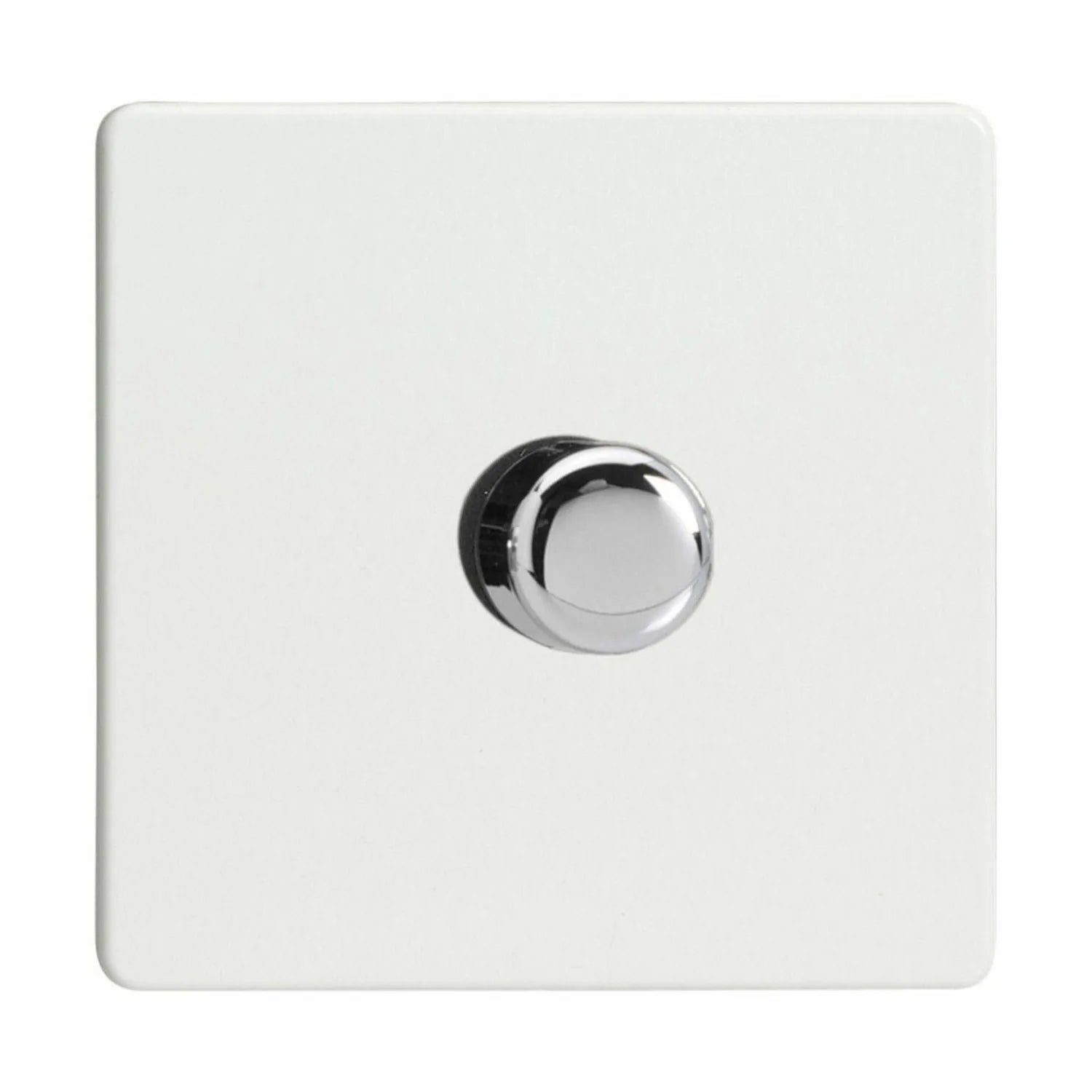

This 1 gang, 2 way LED dimmer switch comes from the Varilight V-Pro range. It pairs a slim, low-profile screwless faceplate in premium white with a polished chrome knob, and handles LED loads up to 120W on a 230v 50Hz supply.
A 1 gang LED dimmer switch with V-Pro control
V-Pro intelligent dimming brings a soft start, overload protection, an adjustable minimum brightness setting and a choice of driving modes. That last option lets the dimmer be matched to the LED lamps on the circuit. The screwless plate hides its fixings for a clean finish on the wall.
- Maximum load: LED 120W
- Maximum current: 1.3A
- Supply: 230v 50Hz
- Switching: 1 gang, 2 way
- Finish: screwless premium white faceplate, polished chrome knob
- Standard: BS EN 60669-2-1
Fitting and installation
The switch measures 86x86x48mm overall. Its faceplate is 4mm deep and the body sits 23.6mm behind the mounting face, so Varilight recommends a back box depth of 35mm. Fixing centres are 60.3mm.
It must be earthed. Indoor use only.
Loads to avoid
Check the circuit before fitting. This dimmer is not suitable for:
- Non-dimmable fluorescent bulbs and tubes
- TRIAC dimmable loads
- Wire-wound or toroidal transformers
- Electric motors
Where it fits
A good match for living rooms, bedrooms and hallways where a single dimmable LED circuit is controlled from two positions, such as the top and bottom of a staircase. The white plate with chrome knob suits installers and homeowners finishing a room in a coordinated screwless range.
Technical Specifications 22 rows Show
| Brand | Varilight |
| Model | JDQP401S |
| Range | Screwless |
| Finish | Premium White |
| Knob | Polished Chrome Knob |
| Product category | LED Dimmers |
| Maximum load rating | LED; 120W |
| Maximum current rating | 1.3A |
| Operating voltage | 230v 50Hz |
| Dimensions | 86x86x48mm |
| Faceplate depth | 4mm |
| Depth from mounting face | 23.6mm |
| Recommended back box depth | 35mm |
| Fixing centres | 60.3mm |
| Terminal (live) | Diameter: 3.2mm; Capacity: 3 x 1.5mm² |
| Terminal (earth) | Diameter: 3.3mm; Capacity: 3 x 1.5mm² |
| Net weight | 156g |
| Safety standard | BS EN 60669-2-1 |
| Barcode | 5021575191066 |
| Gross weight | 158g |
| Use | Indoor Use Only |
| Earthing | Product Must Be Earthed |
Manufacturer datasheet. Figures as published by the manufacturer.
