0-10V Dimmer Switch Touch Glass Panel 1 Zone AC100-240V | Ledison T18
- Vendor
- Ledison
- SKU
- 201002
- Availability
- In stock
- Weight
- 0.15 kg
£32.54inc VAT £27.12exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

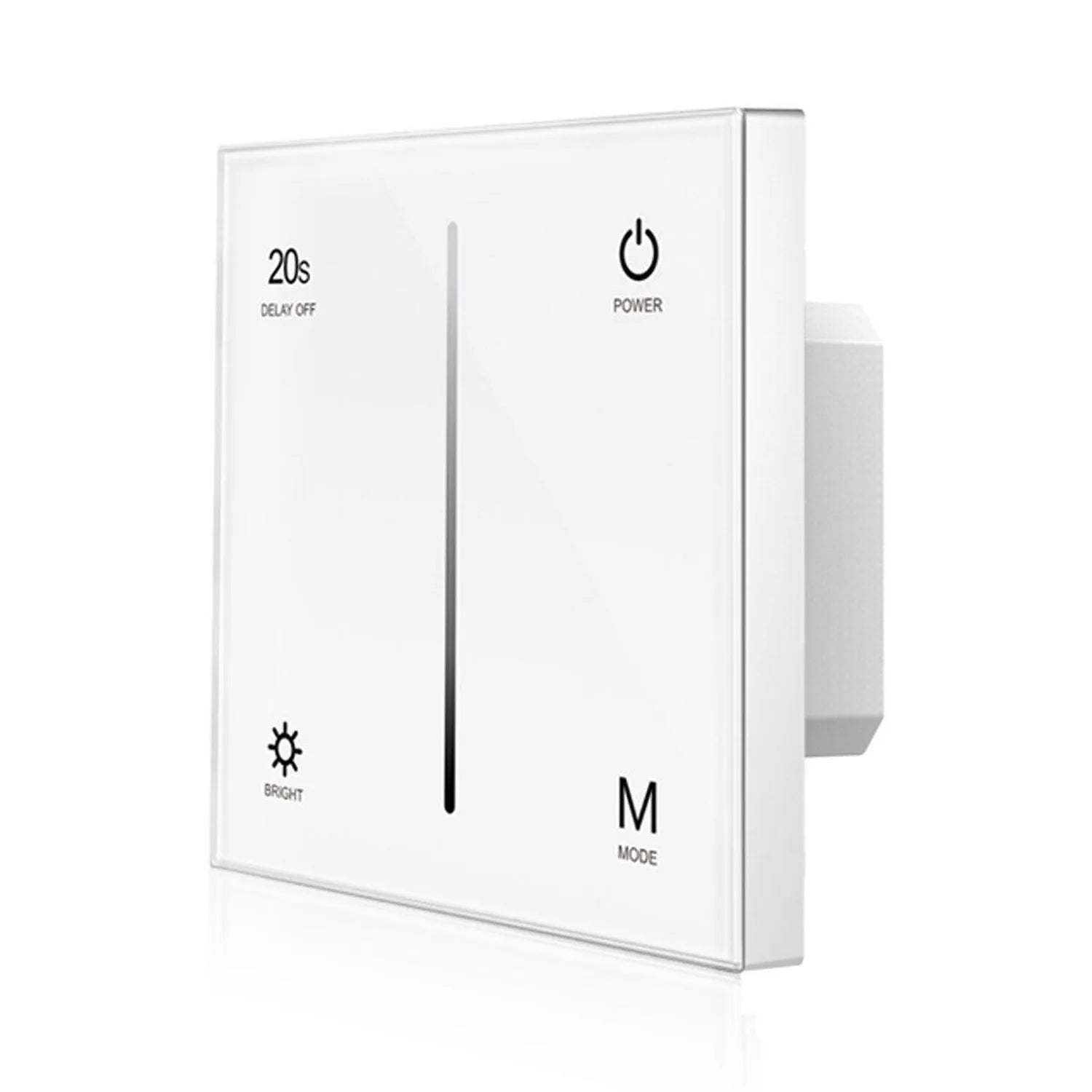

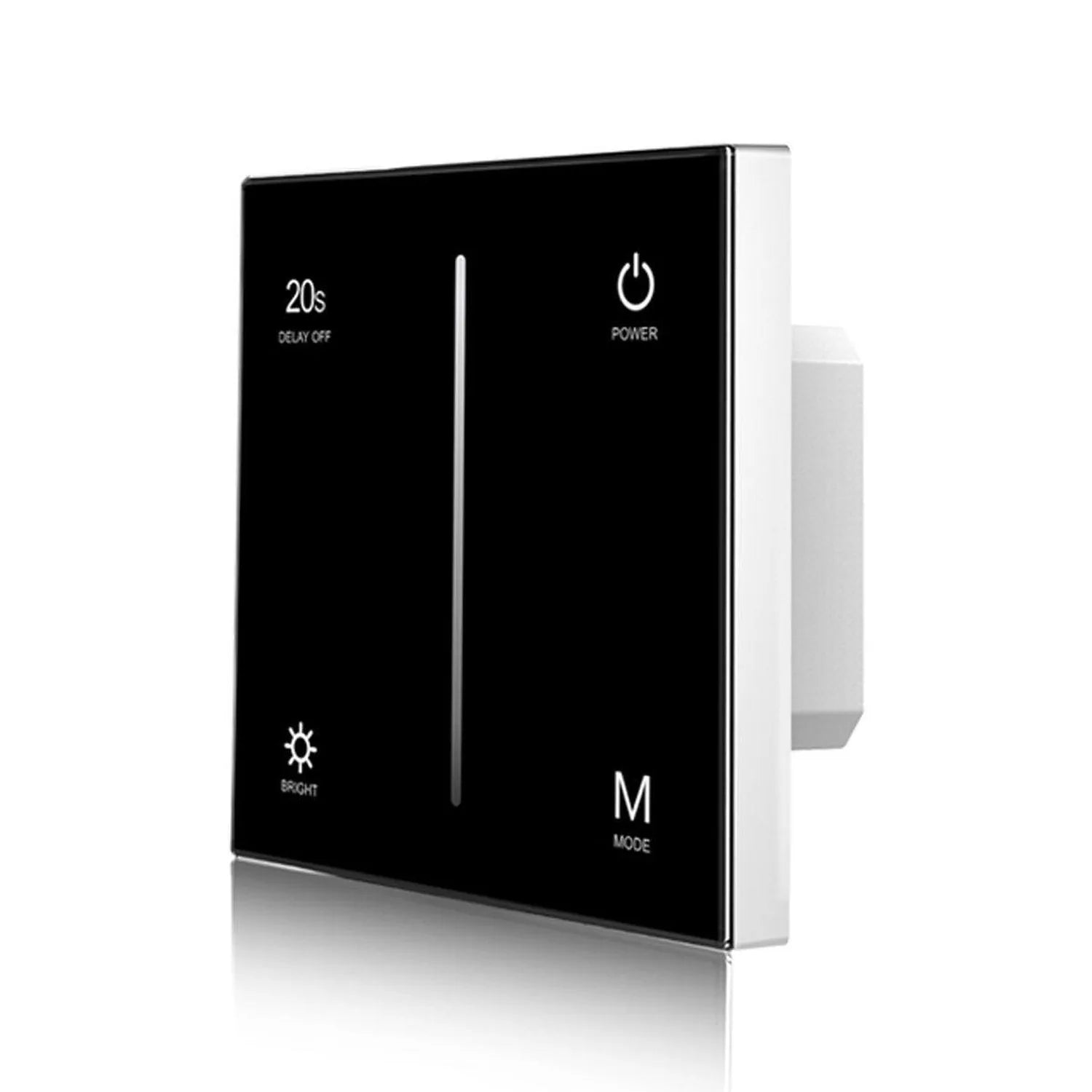

The Ledison T18 is a wall-mounted dimmer with a touch glass panel, made for LED lights running on 0-10V or 1-10V dimmable drivers. To set the brightness, slide a finger along the glass. The panel is backlit, and each touch key has its own LED indicator, so it is easy to find in a dark room. It comes in a white or black glass finish.
0-10V dimmer switch features
- Output: 1 channel 0-10V signal, switchable to 1-10V
- Input voltage: AC100-240V
- Switched AC output: AC Out=Max 1.5A
- Dimming: 256 levels across a 0-100% range
- Remote: works with an optional RF 2.4GHz dimming remote, with a range of up to 30m
- Delay off: the light turns off after 20s
The T18 is rated IP20 and carries a 5-year warranty.
Fitting and wiring

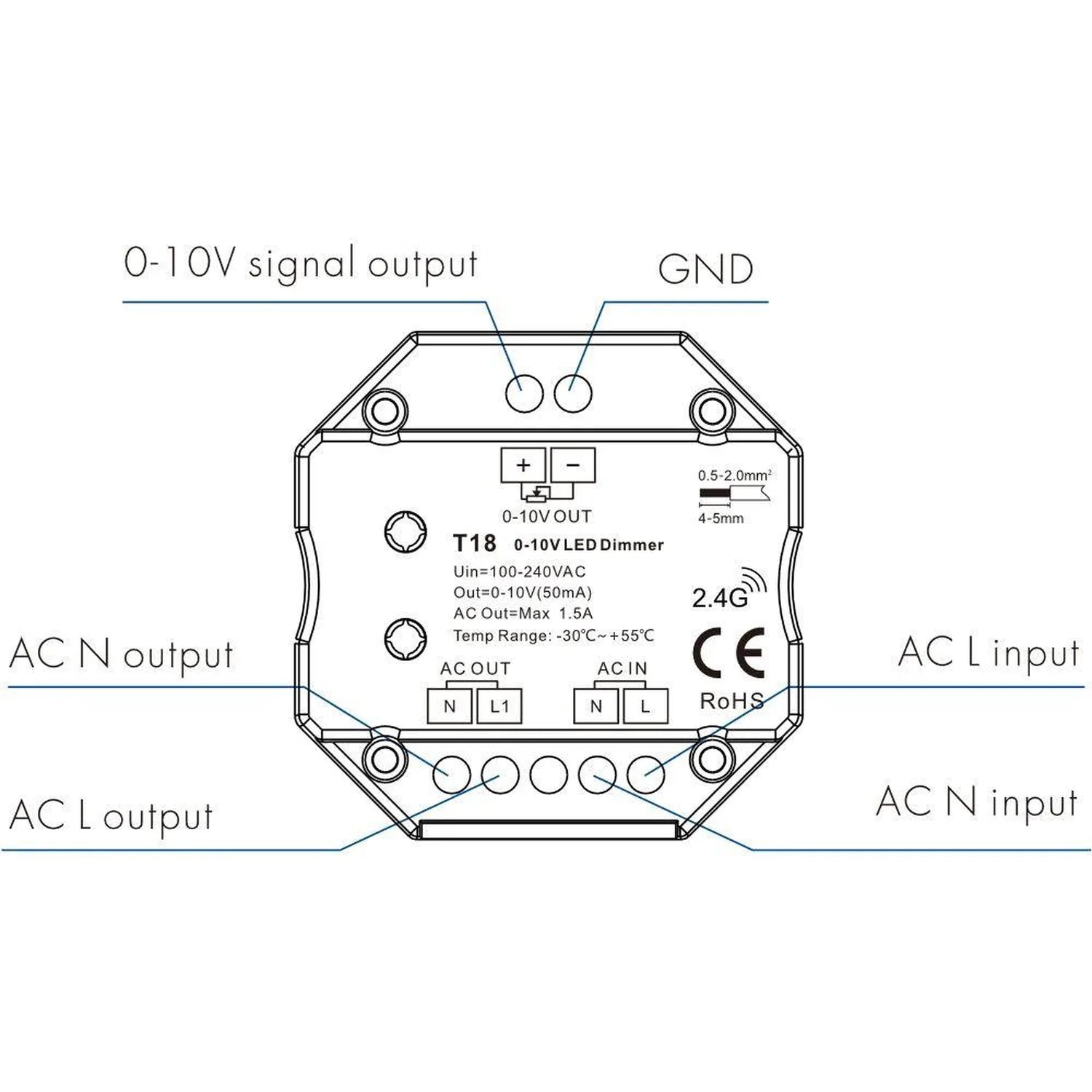

The panel fits a European style 86 size back box. Ledison recommends connecting no more than 5 LED drivers to each dimmer, and the wire run from dimmer to driver should be kept to no more than 15 meters. Where the load draws more than 1.5A, or the inrush current is greater than 15A, add a relay or contactor.
Switching between 0-10V and 1-10V
Out of the box the output is 0-10V. Changing it is quick. Turn the light off with the power key, then hold the power key down for 15s to move to 1-10V. To return to 0-10V, hold it for 10s.
Where it suits
Use it wherever a wall-mounted touch control is wanted for 0-10V or 1-10V dimmable LED drivers, in homes or on commercial jobs. Adding the optional RF remote means the same lights can be dimmed from across the room as well as from the wall.
Technical Specifications 25 rows Show
| Model | T18 |
| Product type | Touch glass panel 0-10V dimmer, 1 channel output |
| Input voltage | AC100-240V |
| Output signal | 0-10V (20mA) |
| Output current | 20mA/CH |
| AC output | AC Out=Max 1.5A |
| Input signal | Touch key + RF 2.4GHz |
| RF control distance | 30m(Barrier-free space) |
| Dimming level | 256 levels |
| Dimming range | 0 - 100% |
| Operating temperature | Ta: -30 OC ~ +55 OC |
| Case temperature (max) | T c: +65OC |
| IP rating | IP20 |
| EMC standard | EN 55015:2013, EN 61547:2009, EN 61000-3-2:2014, EN 61000-3-3:2013 |
| Safety standard | EN 61347-2-11:2002, EN 61347-1:2015, EN 62493:2015 |
| Certification | CE,EMC,LVD |
| Back box | European style 86 size |
| Warranty | 5 years |
| Compatible drivers | 0/1-10V dimmable driver |
| Remote control | RF 2.4G dimming remote control (optional) |
| Delay off | Turn off light after 20s |
| Panel size | 86.00 mm x 86.00 mm |
| Drivers per dimmer (recommended) | Not more than 5 pieces |
| Wire length to driver | No more than 15 meters |

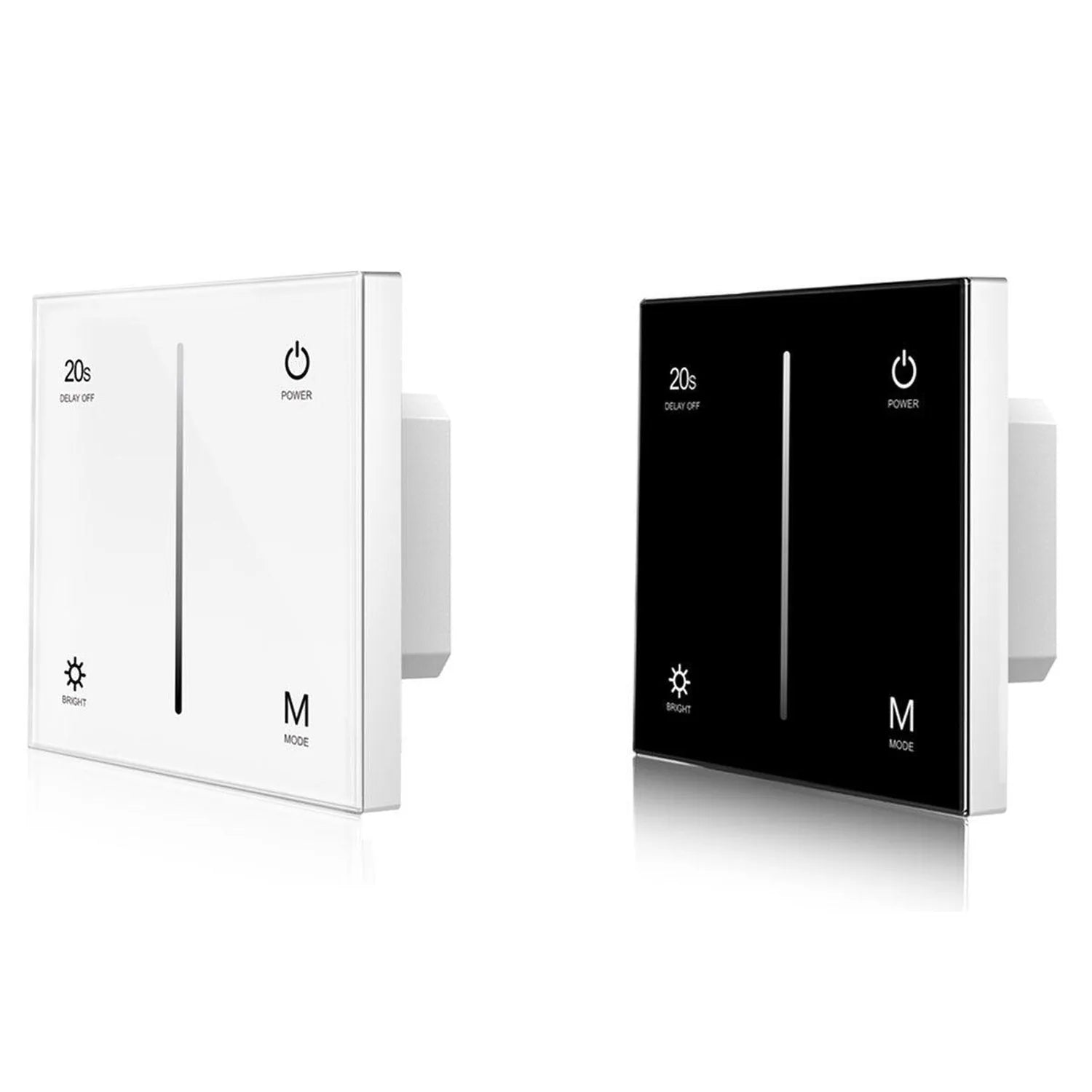

| Panel colours | White & Black glass panel |
Manufacturer datasheet. Figures as published by the manufacturer.
