800W Plug-In Solar Kit with Micro Inverter | 2x JA Solar 465W

This plug-in solar kit pairs two JA Solar 465W N-type full black panels with a Hoymiles HF-800-WB micro inverter, giving a household 930W of PV capacity feeding into up to 800VA of usable 230V power. It is built for gardens, patios, flat roofs and outbuildings where a full rooftop array is not practical, and it needs no rewiring beyond plugging into a household socket.

Micro inverter and panel pairing

• 930W of panels on an 800VA inverter so the system reaches full output for longer through the day

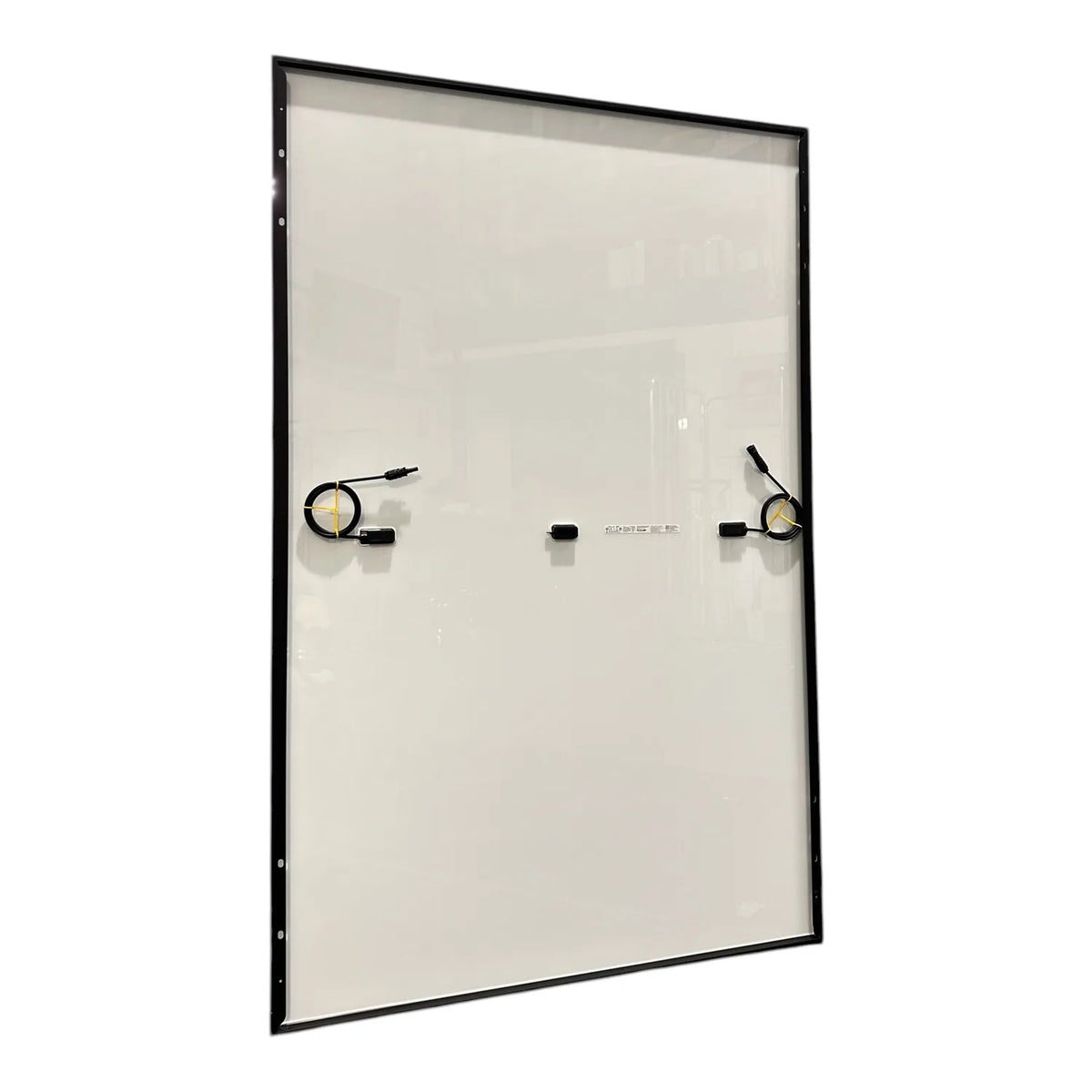

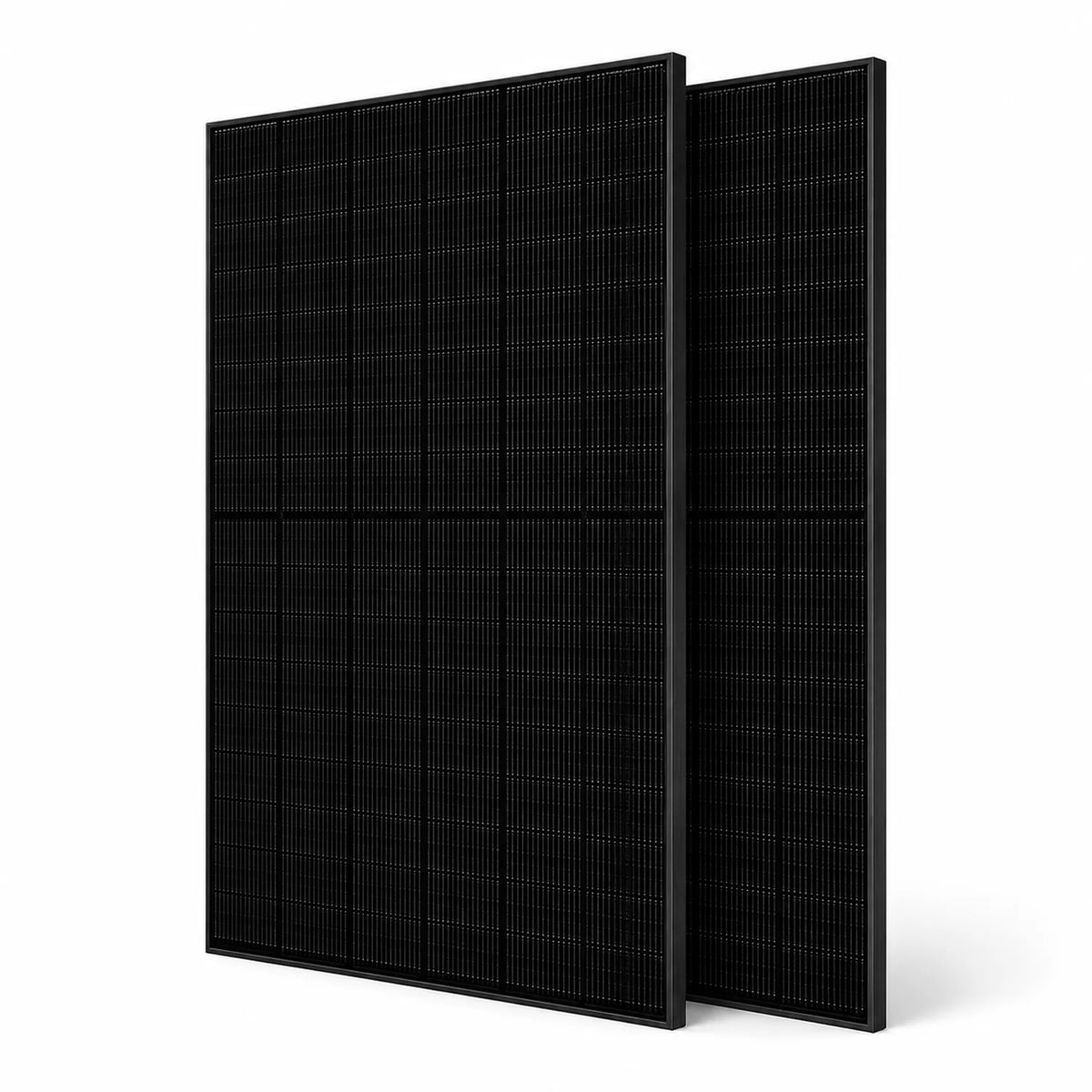

• 2x JA Solar 465W N-type panels with 23.3% module efficiency and an all black double glass finish

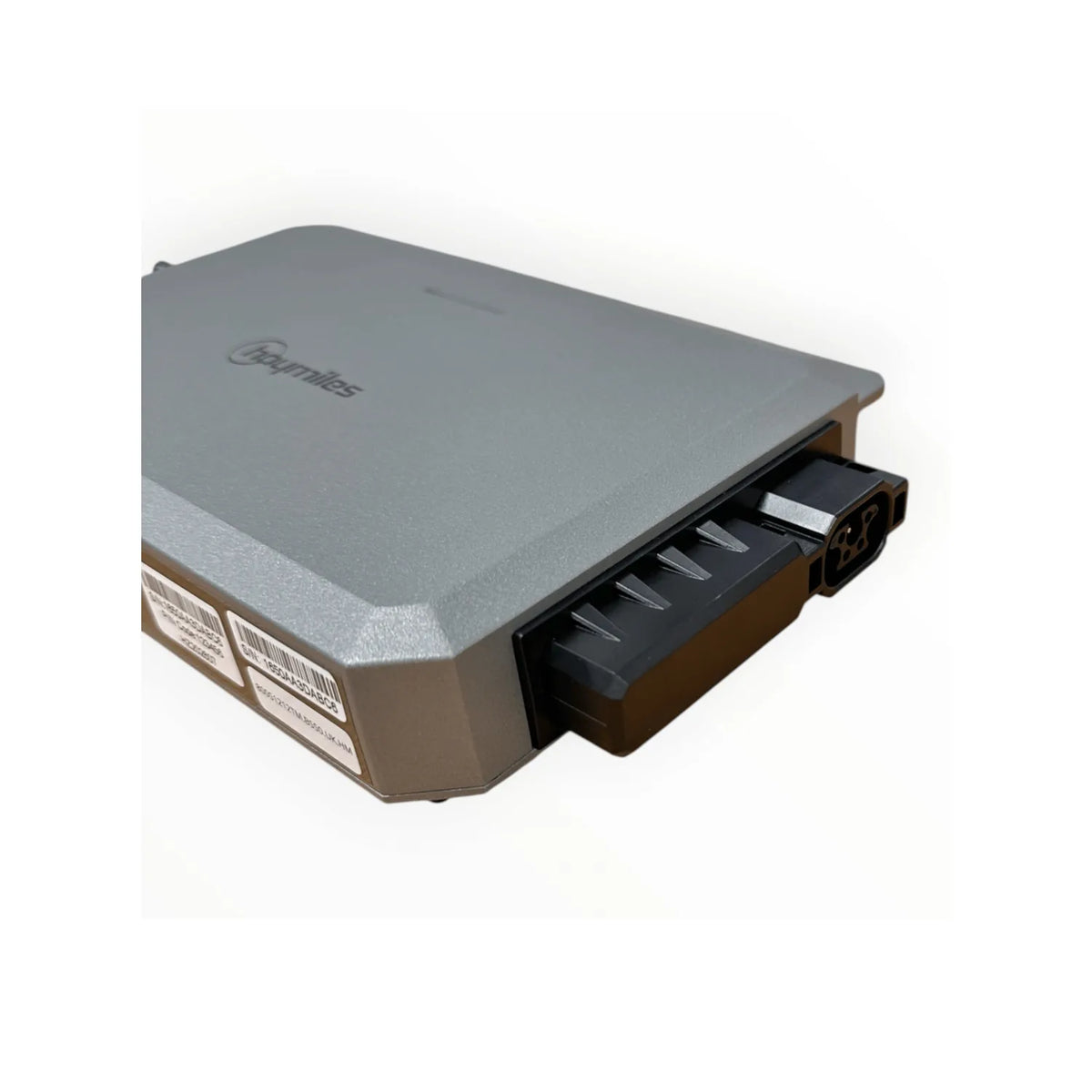

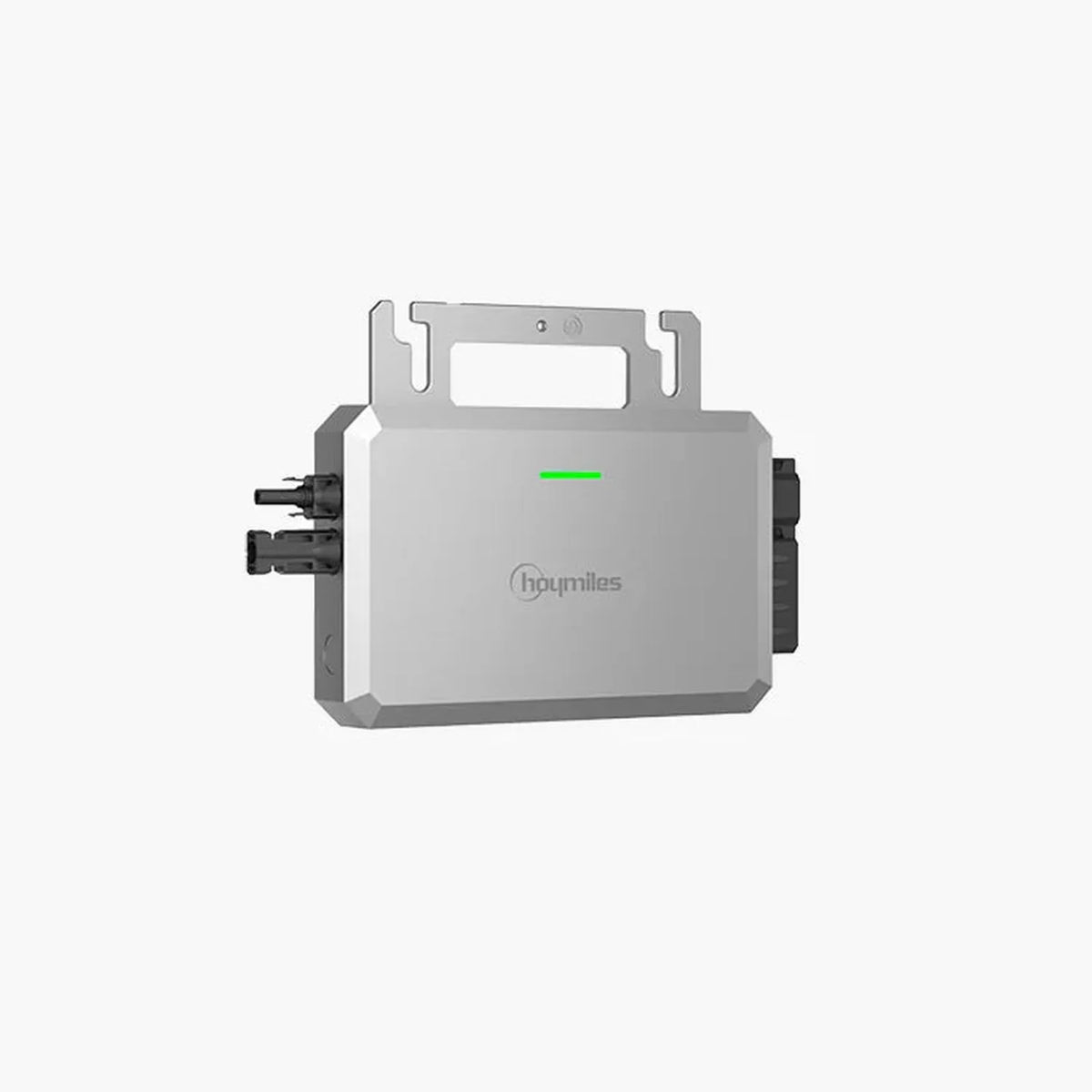

• Hoymiles HF-800-WB micro inverter with 97% peak efficiency and a 16A MPPT input
• Built-in Wi-Fi and Bluetooth for monitoring through the S-Miles Cloud app
• IP67 inverter and double glass panels for outdoor use year round
• 25 year panel product warranty and 30 year linear power warranty from JA Solar, plus a 12 year inverter warranty from Hoymiles

How it works

The two panels are wired in series into the single DC input on the micro inverter. Combined open circuit voltage sits at around 81V, well inside the inverter's 100V maximum. The inverter connects to the household supply through a 5m AC cable fitted with a UK plug, and it includes grid monitoring with anti-islanding protection that shuts the unit down if the mains supply fails.

Applications

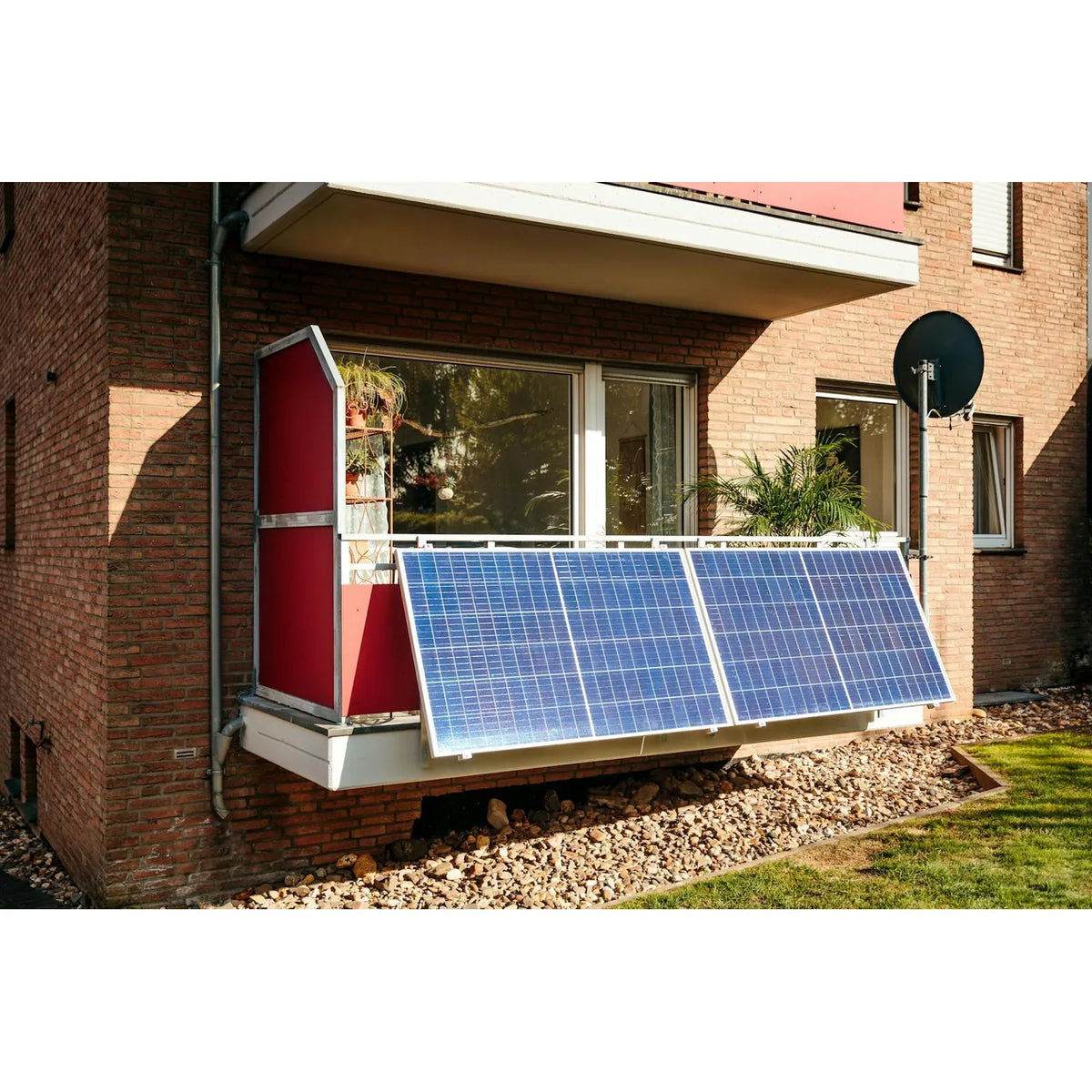

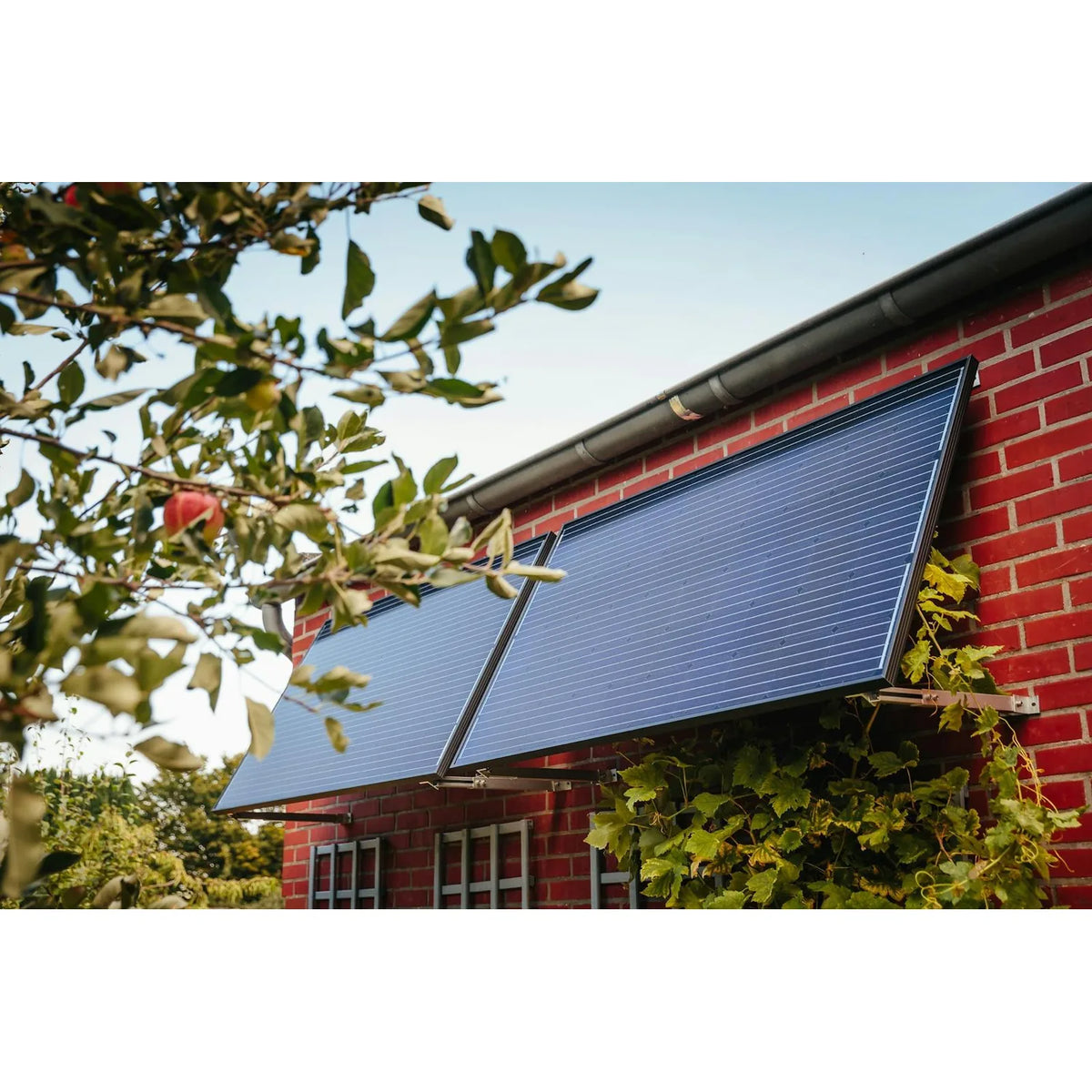

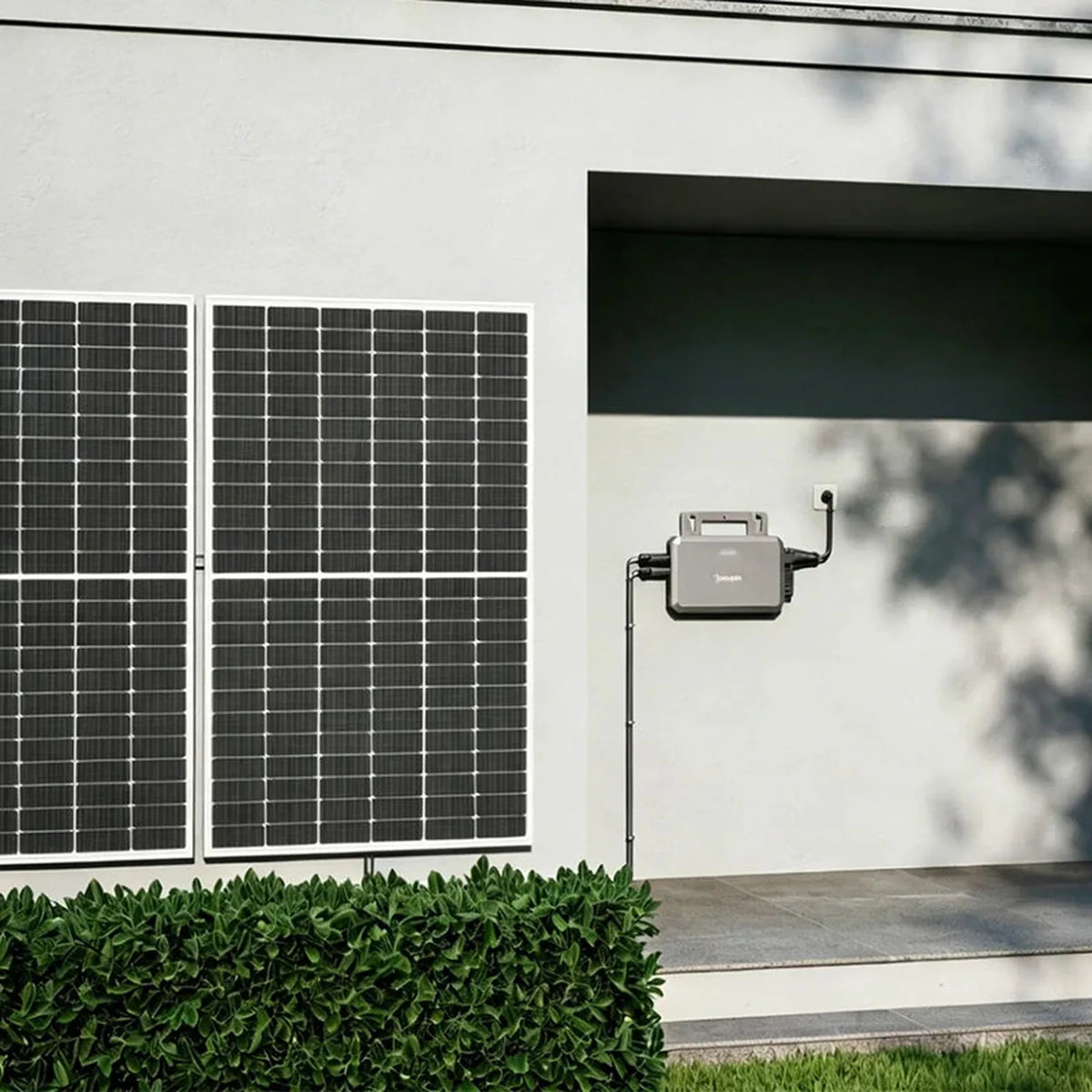

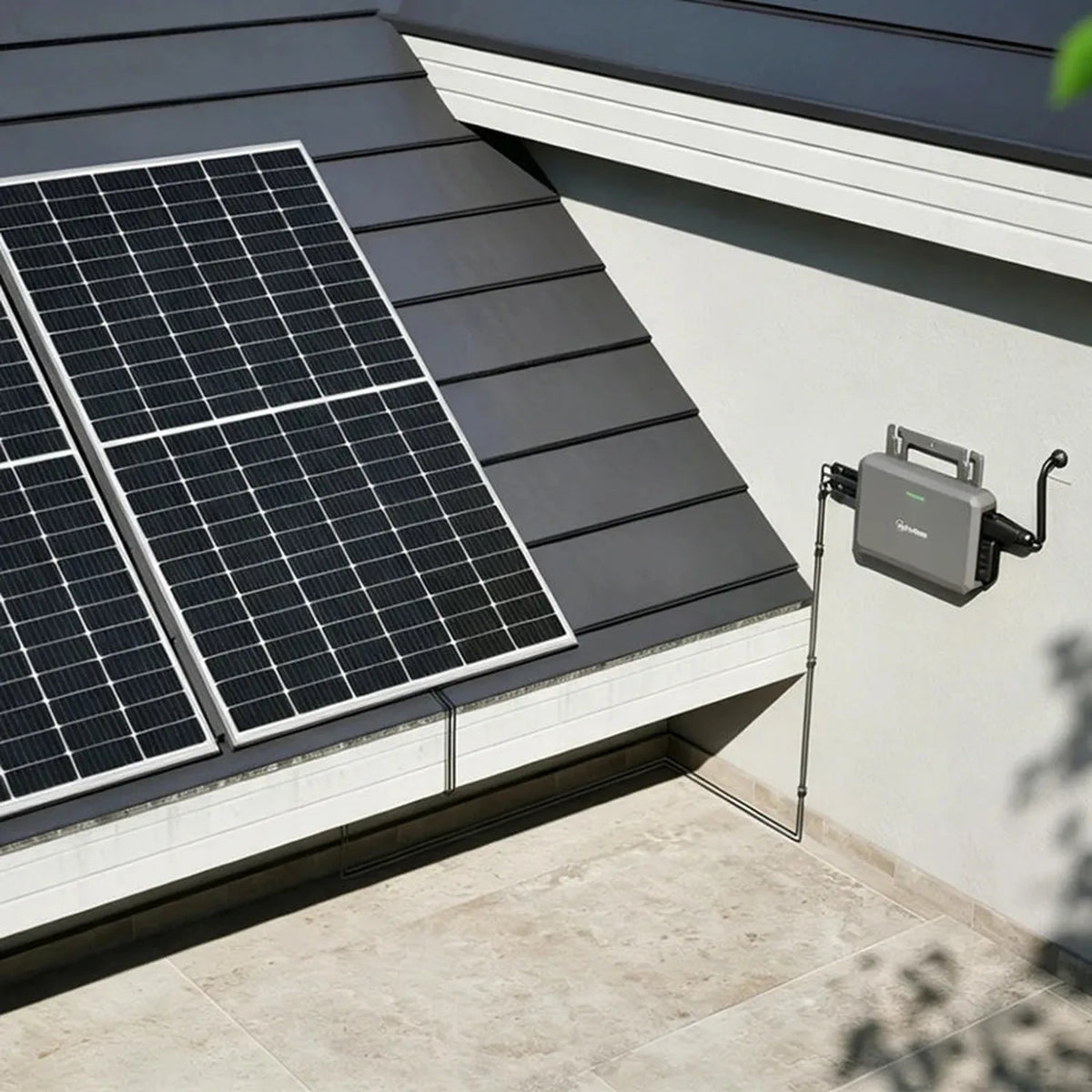

Suited to garden and ground mounted solar, garage, shed and carport roofs, flat roofs with secure mounting, and any household looking to offset daytime grid consumption without a full rooftop installation. It also suits rented or smaller properties where a permanent rooftop system is not an option.

What's in the box

• 2x JA Solar JAM54D41-465/LR 465W full black solar panels

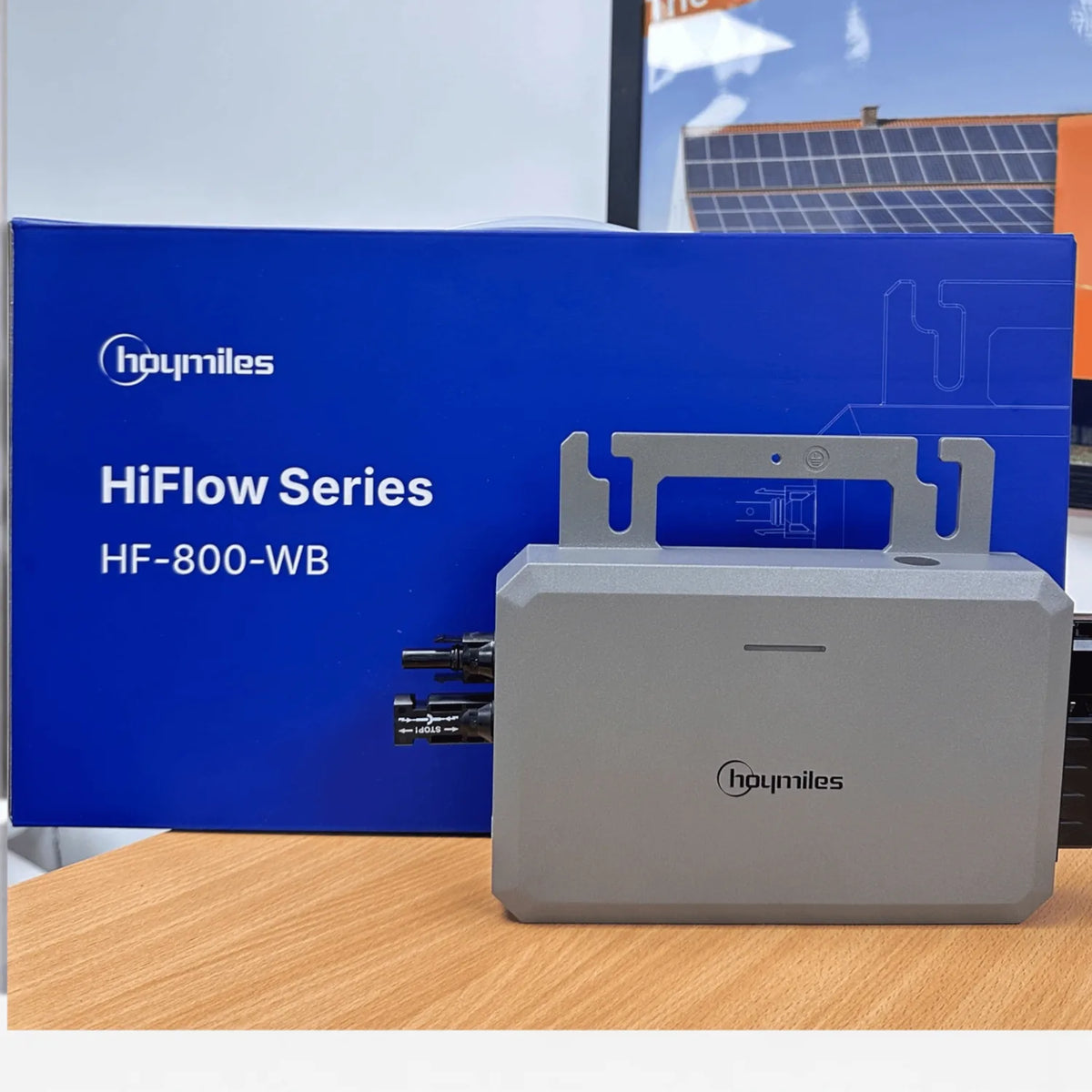

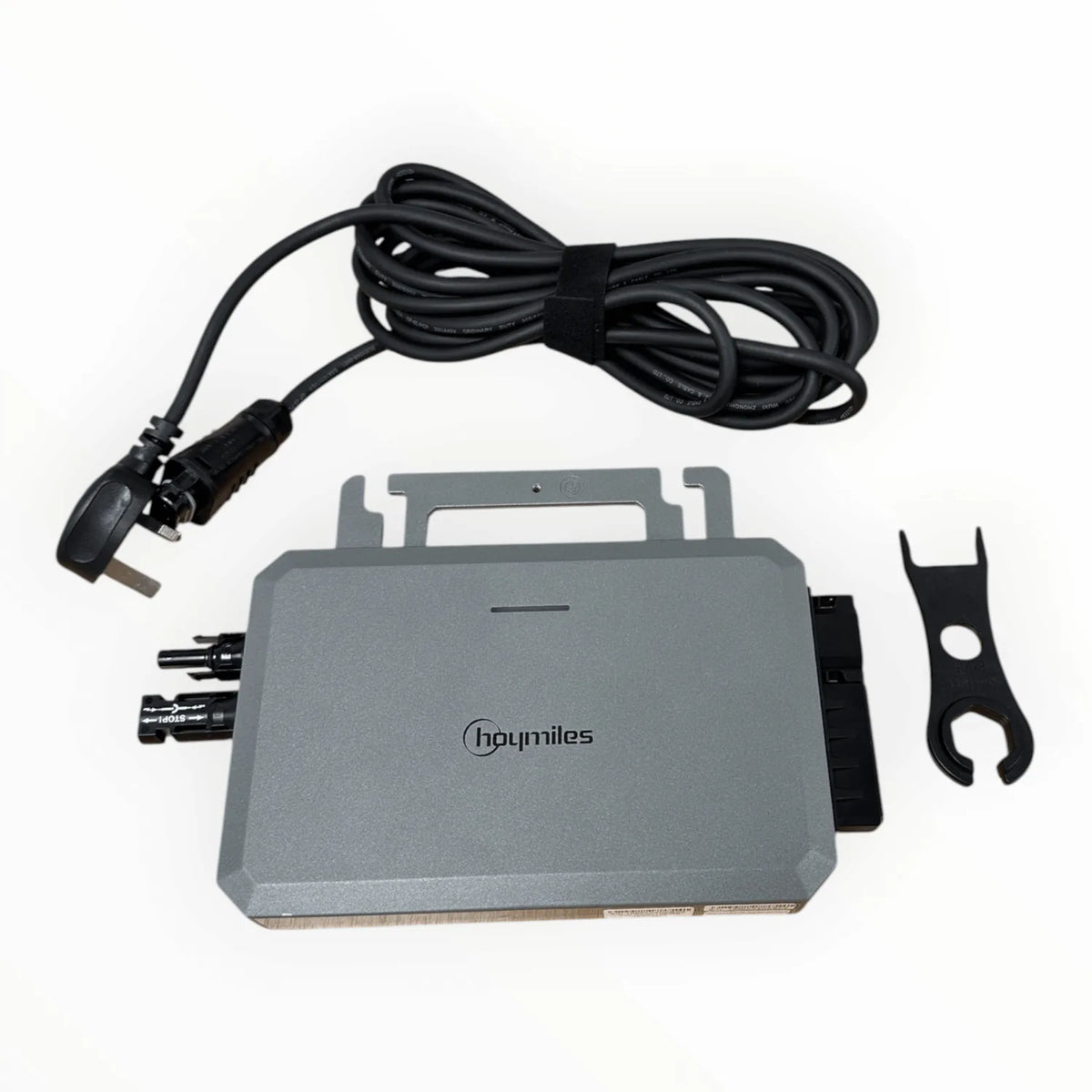

• 1x Hoymiles HF-800-WB 800VA micro inverter
• 1x 5m AC cable with UK plug
