800W Plug-In Solar Kit Hoymiles HMS-800-2WB Dual MPPT | JA Solar 465W

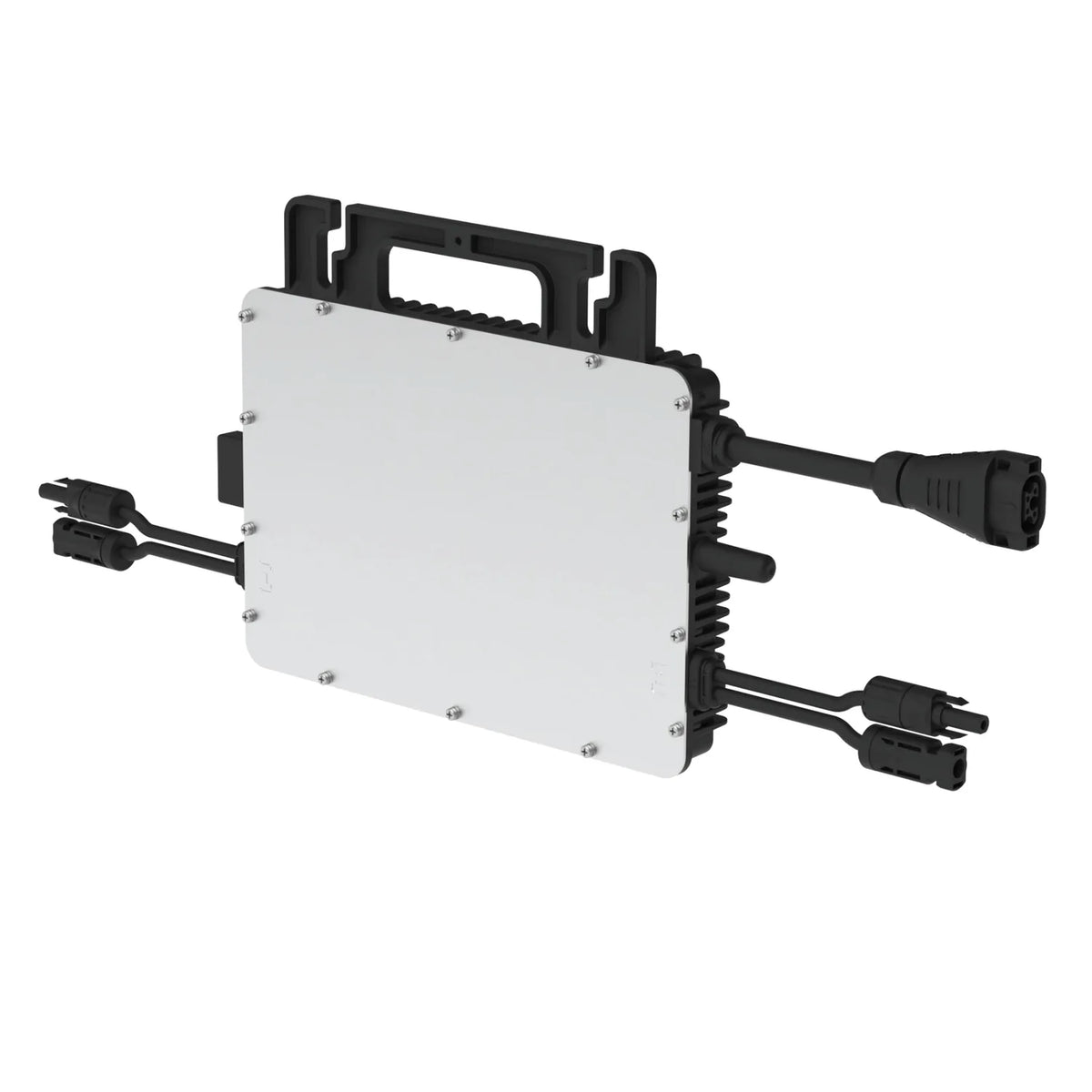

This plug-in solar kit pairs two JA Solar 465W full-black panels with the Hoymiles HMS-800-2WB, an 800VA dual MPPT microinverter built for two-panel systems. Combined installed solar capacity is 930W, while the microinverter delivers up to 800VA of 230V AC power for use in the property.

Key features of this micro inverter for solar panel setups

• Output, 800VA at 230V single-phase AC
• MPPT inputs, 2 independent trackers, one panel per input
• Panels, 2 x JA Solar 465W N-Type full-black, 930W total
• Monitoring, built-in 2.4GHz Wi-Fi and Bluetooth, no separate DTU gateway needed
• Enclosure, IP67 rated, fanless natural convection cooling

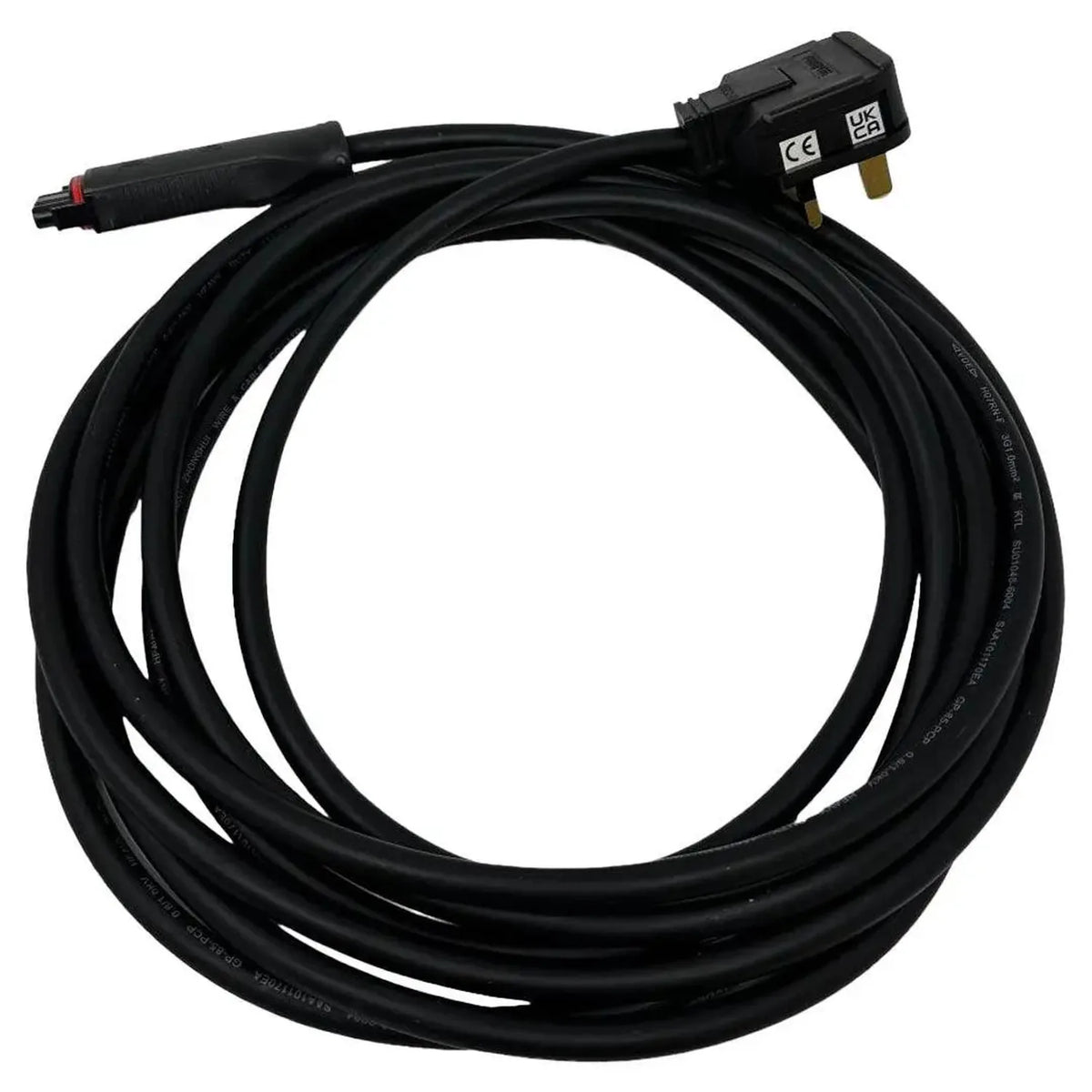

• Connection, 5m plug-and-play AC cable with UK Type G plug

Dual MPPT: one solar panel per input

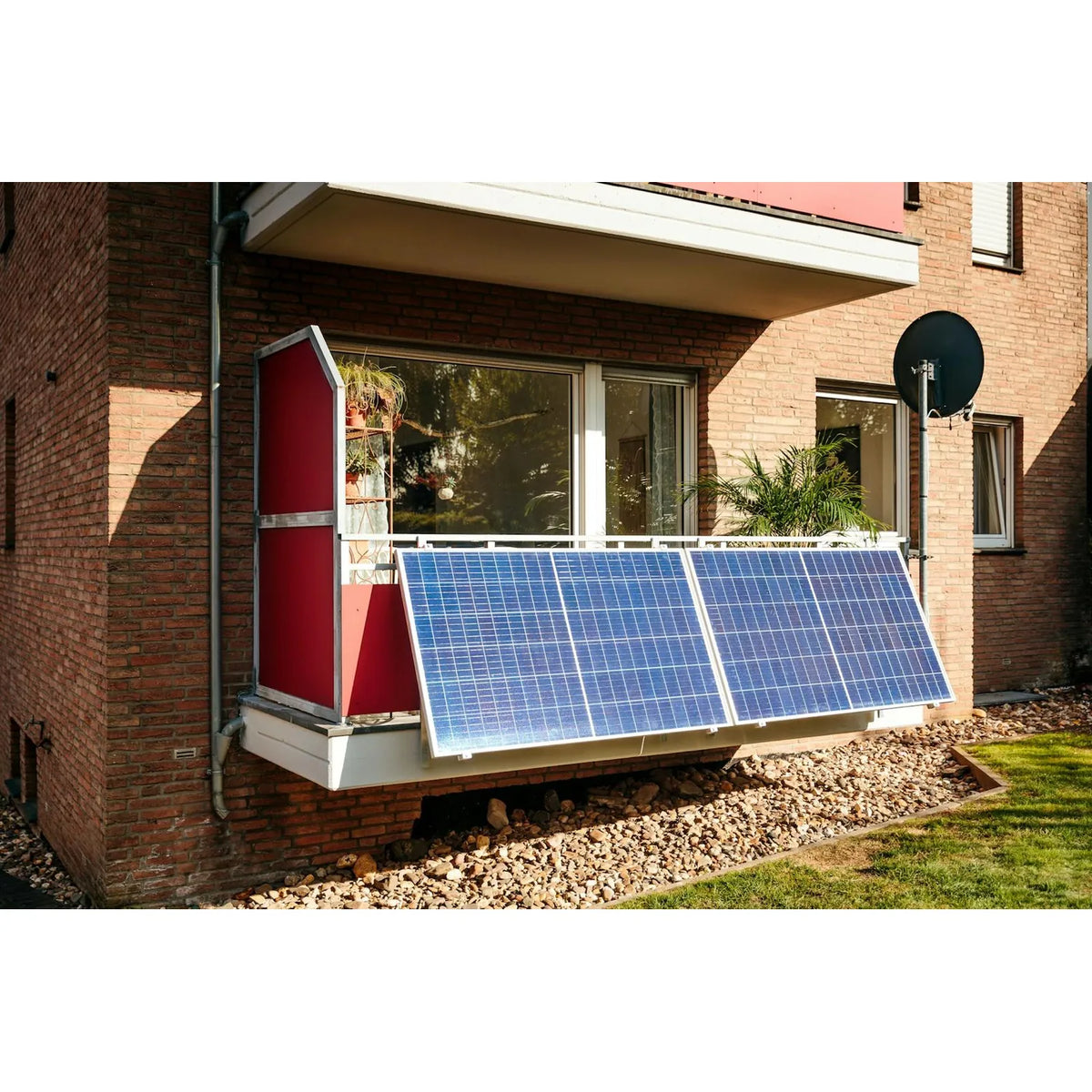

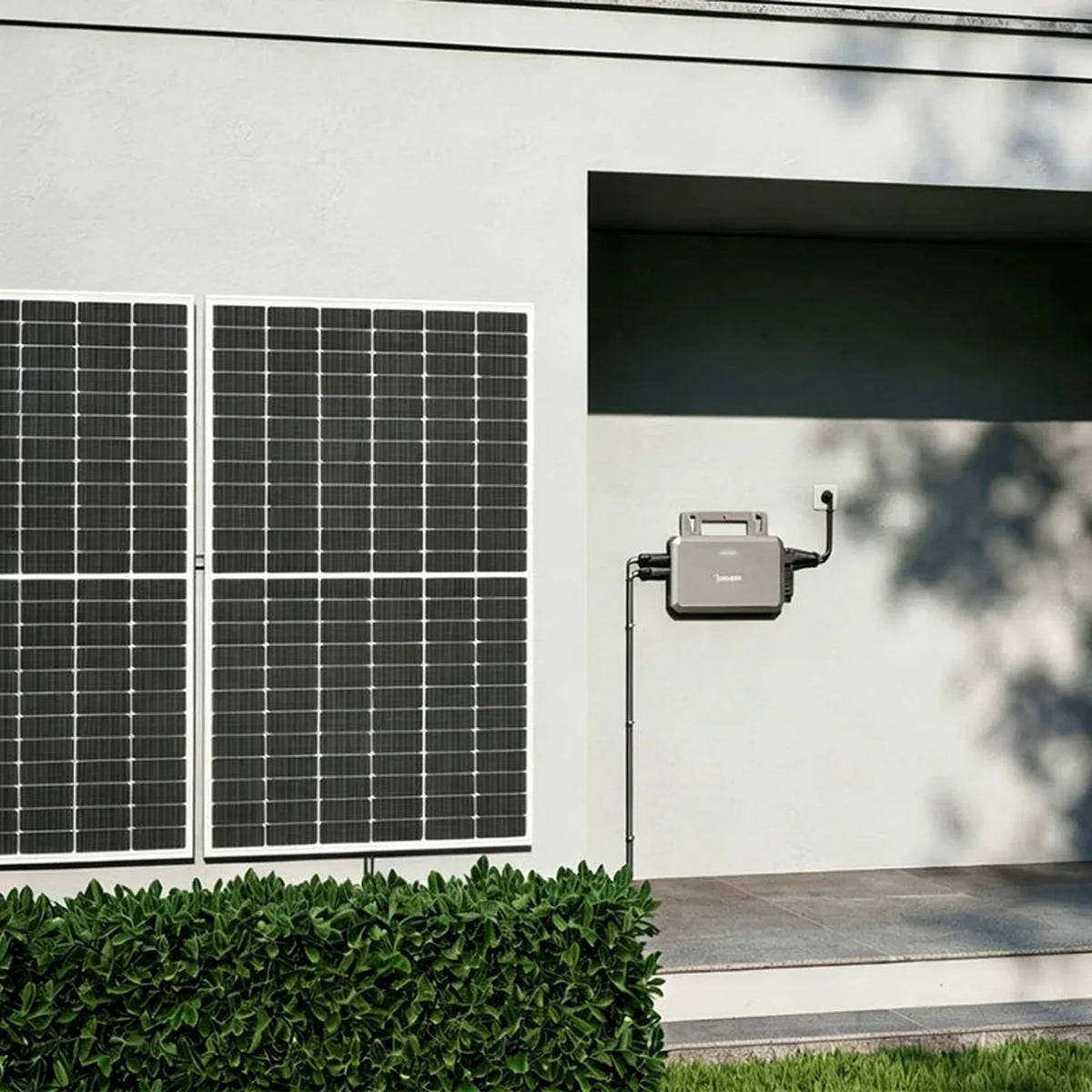

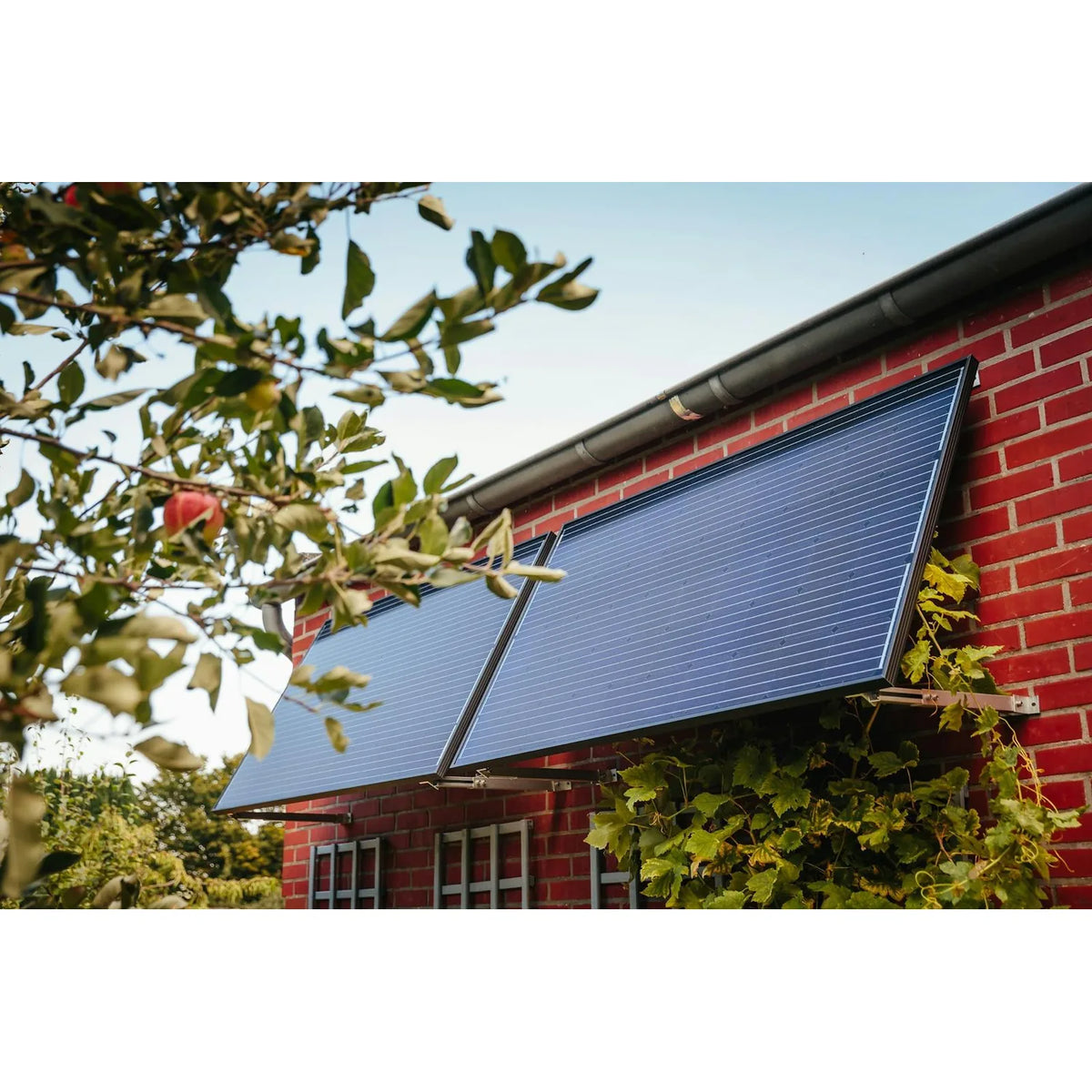

Each JA Solar panel connects to its own MPPT input, so the microinverter tracks each module separately. If one panel sees partial shade or faces a different angle, the other keeps producing at its own optimum point rather than being pulled down with it. That makes this kit suited to gardens, balconies, garages and outbuildings where the two panels rarely receive identical light.

Why 930W of panels feeds an 800W inverter

Panel wattage is measured under lab test conditions that UK weather rarely matches. Running 930W of solar capacity into an 800W microinverter helps the system reach its rated AC output more often through cloud, low sun angles and mornings and evenings. When the panels do produce more than the inverter can convert, the HMS-800-2WB simply caps its AC output at its rated maximum.

Built-in Wi-Fi and Bluetooth monitoring

Generation data is viewed through the Hoymiles S-Miles Home app, with no extra monitoring gateway required.

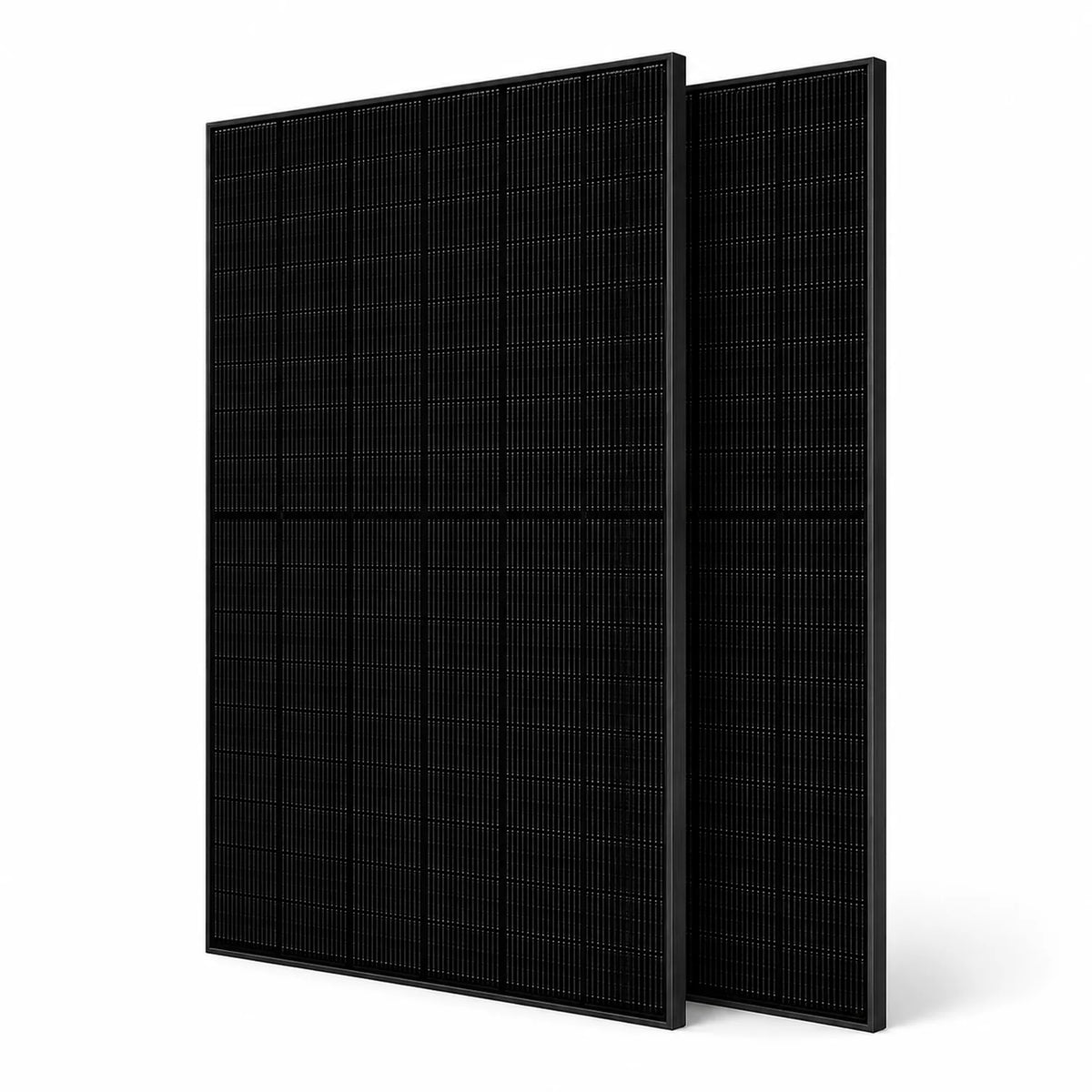

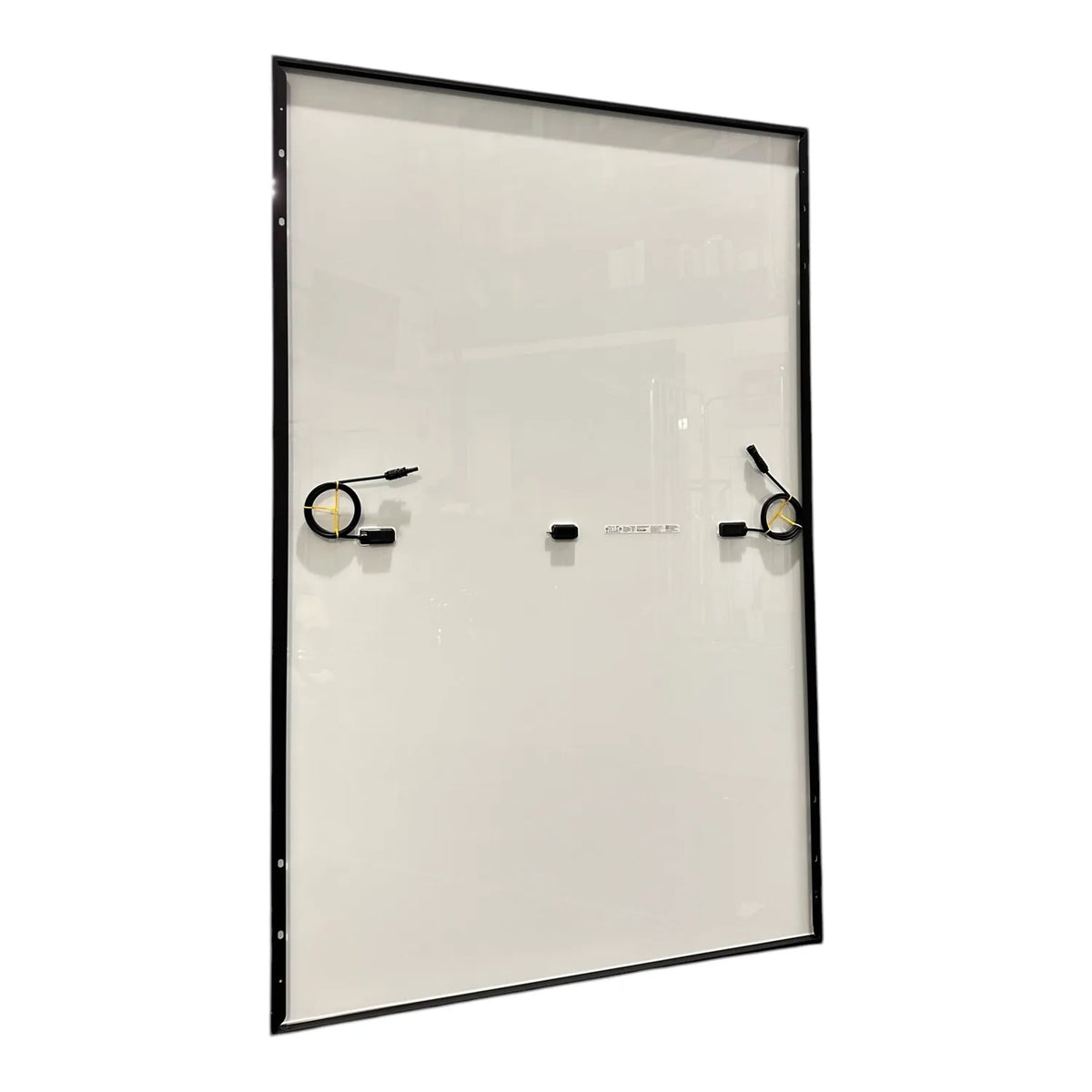

JA Solar 465W N-Type panels

The two JAM54D41-465/LR panels are N-Type monocrystalline modules with 108 half-cut cells, full-black double-glass construction and 23.3% module efficiency.
