800W Plug-In Solar Microinverter WiFi 5m UK Cable | Hoymiles HF-800-WB
£124.95
Skip to product information
800W Plug-In Solar Microinverter WiFi 5m UK Cable | Hoymiles HF-800-WB
- Vendor
- Voltacon
- SKU
- HF-800-WB
- Availability
- In stock
- Weight
- 3.0 kg
£124.95inc VAT £104.13exc VAT
Delivery from £7.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Secure checkout
Talk to our sales team
Product Description

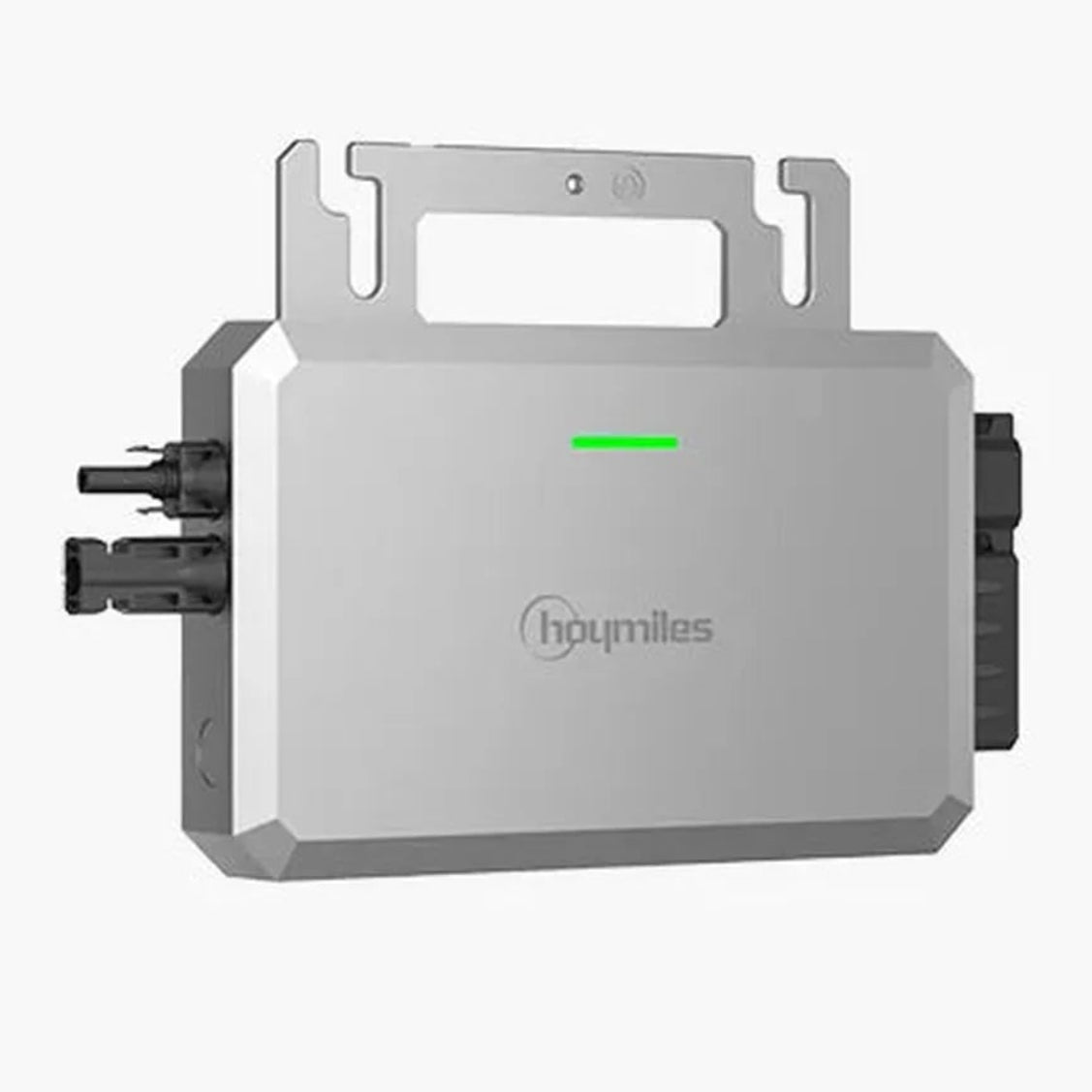

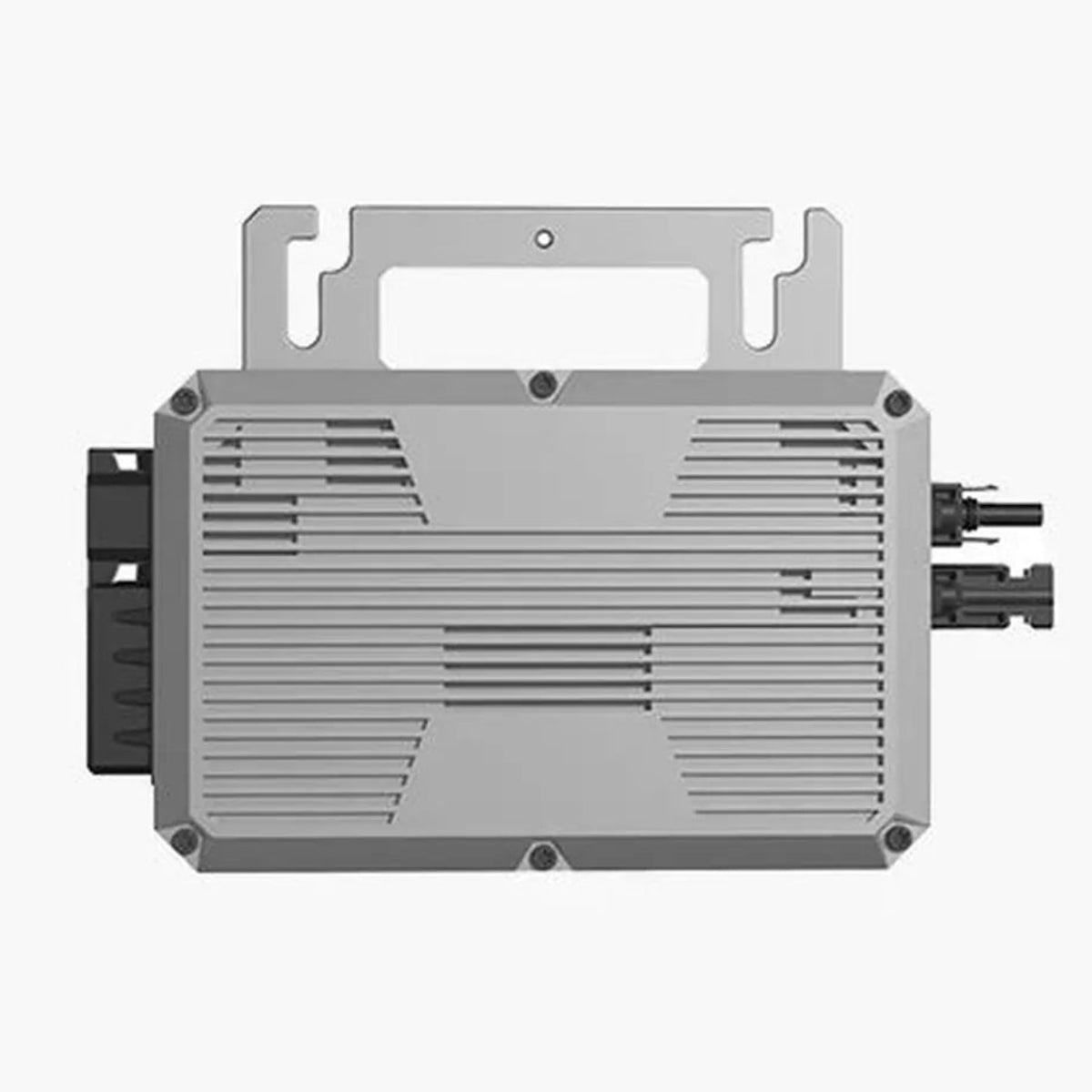

The Hoymiles HF-800-WB is a plug-in solar microinverter rated at 800VA, built for small residential PV systems in the UK. It combines G98 compliance, anti-islanding protection and built-in Wi-Fi monitoring in a single compact unit, supplied from UK stock with a 12-year manufacturer warranty.
Compact micro inverter for UK grid-connected solar
The unit is G98 type-tested for UK low-voltage networks and carries an ENA registration reference of HOYMZ/18074/V1/A3. If two panels are connected, they should be wired in series with a maximum PV output of 90Vdc, and MPPT tracking reached 99% accuracy under these conditions.
- Rated output, 800VA AC
- Grid compliance, G98 type-tested, ENA reference HOYMZ/18074/V1/A3
- Safety, built-in anti-islanding protection
- Monitoring, built-in 2.4GHz Wi-Fi and Bluetooth, works with the Hoymiles S-Miles app
- Efficiency, up to 97% peak inverter efficiency, up to 99.8% nominal MPPT efficiency
- Enclosure, IP67 rated, fanless natural-convection cooling

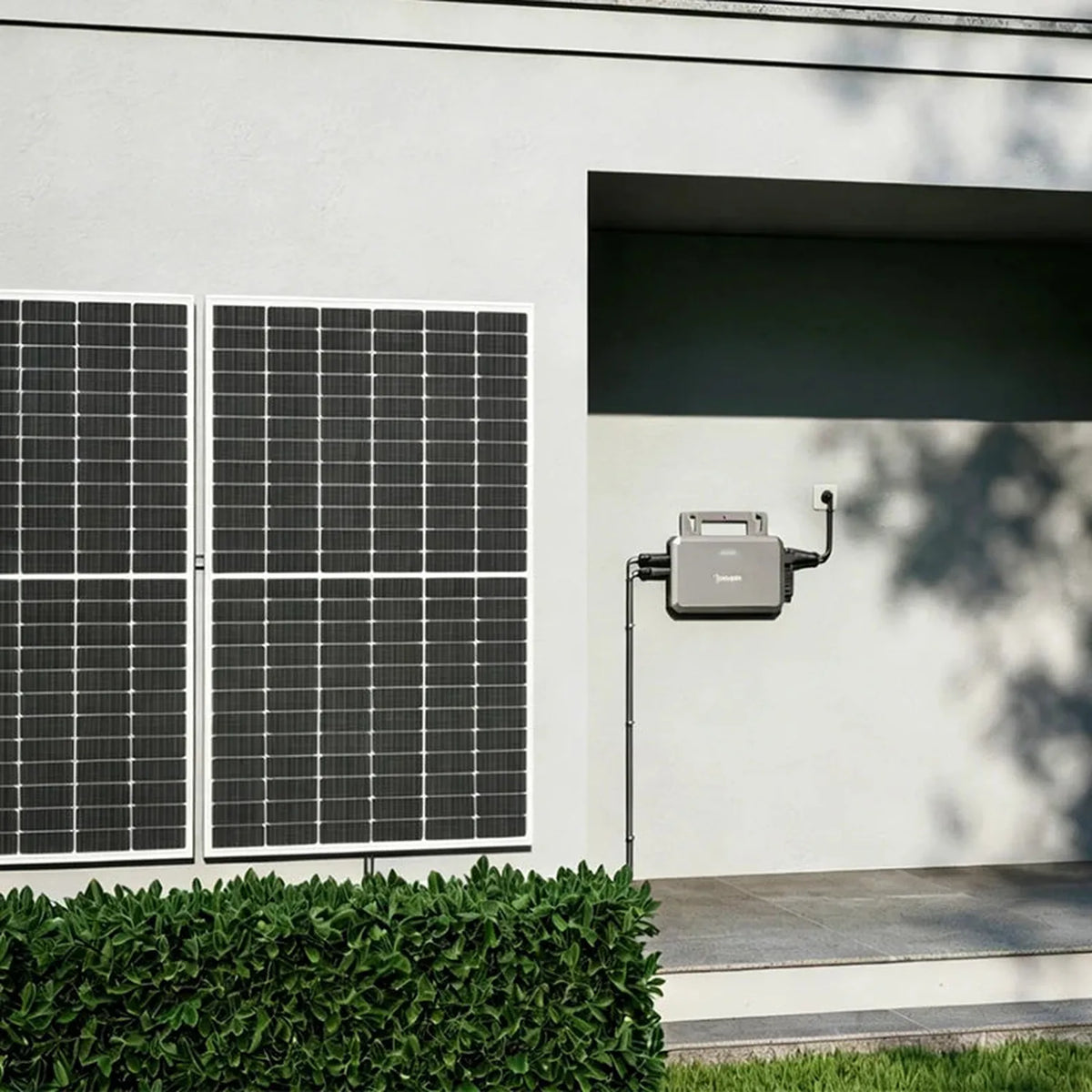

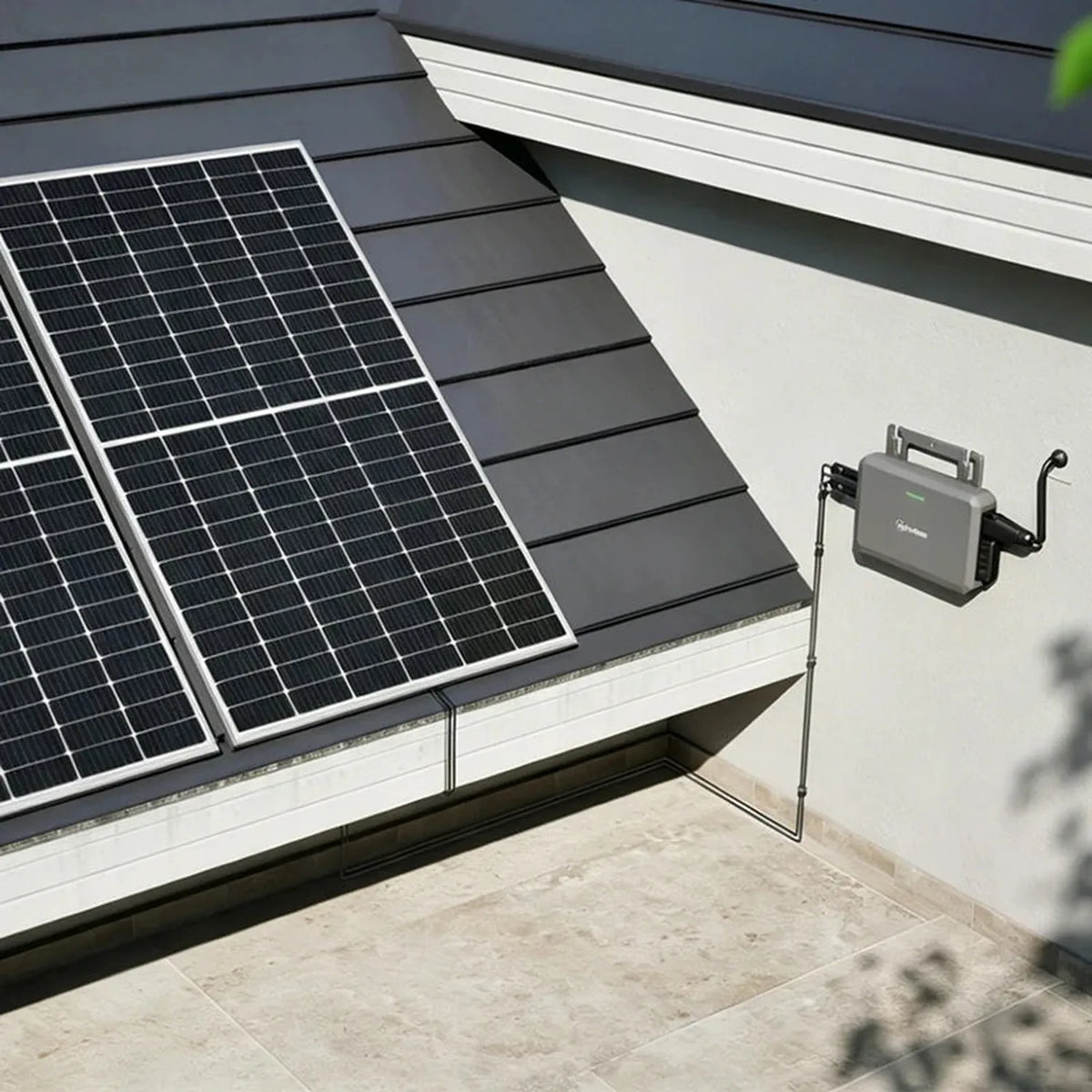

Simple plug-in installation
Compatible solar panels connect to the DC input, and the AC output connects to the property through the supplied 5 metre cable fitted with a UK Type G plug. A European plug version is also available. This makes the unit suitable for balconies, patios, gardens, garages and sheds where panels sit close to a household socket.
Anti-islanding and monitoring
If mains supply is lost, the microinverter automatically stops exporting solar power to the circuit and only resumes once the grid supply and voltage and frequency conditions have returned to normal. Once connected to a home 2.4GHz network, output can be checked through the Hoymiles S-Miles Cloud app, with Bluetooth available for local setup.
What's in the box
- 1 x Hoymiles HF-800-WB 800W microinverter

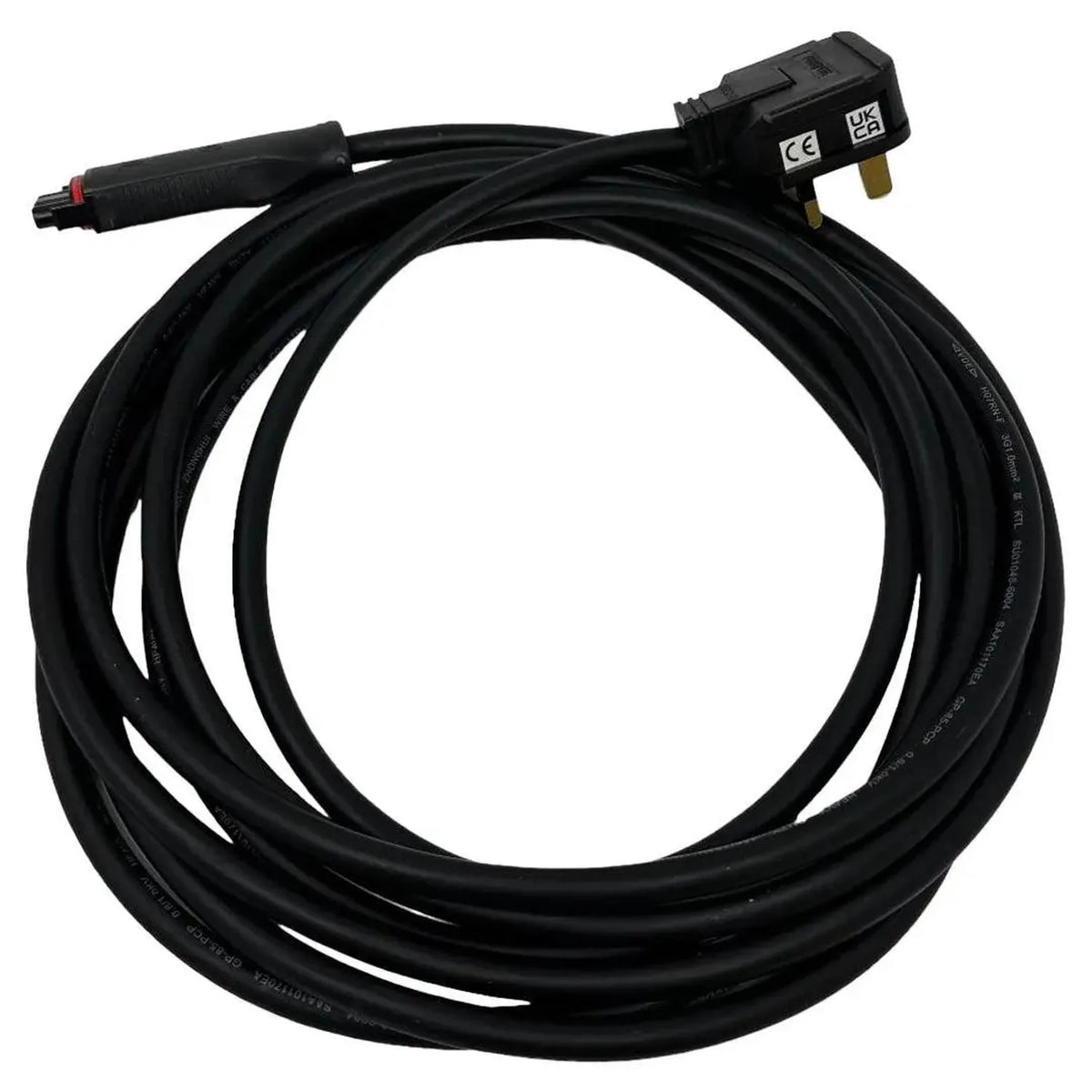

- 1 x 5 metre AC connection cable with UK Type G 3-pin plug
- 1 x Hoymiles disconnect tool
- 1 x User manual
Solar panels, mounting equipment and additional DC extension cables are not included unless stated separately.
Technical Specifications 45 rows Show
Hoymiles HF-800-WB Technical Specifications
| Model | HF-800-WB |
| Input Data (DC) | |
|---|---|
| Commonly Used Module Power | 320 to 520+ W |
| Maximum Input Voltage | 100 V |
| MPPT Voltage Range | 16 to 96 V |
| Peak MPPT Voltage Range | 54 to 80 V |
| Minimum / Maximum Start Voltage | 22 / 96 V |
| Maximum Input Current | 16 A |
| Maximum Input Short-Circuit Current | 25 A |
| Peak Short-Circuit Current | 5.8 A |
| Number of MPPTs | 1 |
| Number of Inputs per MPPT | 1 |
| Maximum Inverter Backfeed Current to Array | 0 A |
| DC Overvoltage Category | II |
| Output Data (AC) | |
| Rated Output Power | 800 VA |
| Rated Output Current | 3.48 A |
| Nominal Output Voltage / Range | 230 V / 184 to 276 V |
| Nominal Frequency / Range | 50 Hz / 45 to 55 Hz |
| Adjustable Power Factor at Nominal Power | >0.99 default; 0.8 leading to 0.8 lagging |
| Total Harmonic Distortion at Nominal Power | <3% |
| AC Port Backfeed Under Single Fault | 0 A |
| AC Overvoltage Category | II |
| Plug-and-Play Cable | |
| Connector Type | Flex-S3 Field Connector |
| Cable Size | 1 mm² |
| Cable Length | 5 m standard, customisable |
| Plug Type | Type G for UK / Schuko for rest of EU |
| Efficiency | |
| Peak Efficiency | 97.00% |
| European Weighted Efficiency | 96.00% |
| Nominal MPPT Efficiency | 99.80% |
| Night Power Consumption | <50 mW |
| Mechanical Data | |
| Ambient Temperature Range | -40°C to +65°C |
| Storage Temperature Range | -40°C to +85°C |
| Dimensions | 213 × 182.5 × 36.5 mm, excluding connectors and brackets |
| Weight | 2.1 kg |
| Enclosure Rating | Outdoor IP67 |
| Cooling | Natural convection, no fans |
| Communication and Monitoring | |
| Cloud Communication | 2.4 GHz Wi-Fi |
| Local App Communication | BLE Bluetooth Low Energy |
| Topology | Galvanically Isolated HF Transformer |
| Monitoring Platform | S-Miles Cloud, Hoymiles Monitoring Platform |
| Compliance | |
| Standards | VDE-AR-N 4105:2018, EN 50549-1:2019, NF EN 50549-1:2019, NF EN 50549-10:2022, VFR 2019, IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4 and IEC/EN 61000-3-2/-3 |
| Product Features | |
| Installation | Plug-and-play connection |
| Wireless Connectivity | Built-in Wi-Fi and Bluetooth |
| Maximum Output | 800 VA |
| Rapid Voltage Reduction | Voltage cut-off to 34 V within 1 second |
| Warranty | 12 years |
* Nominal voltage and frequency ranges may vary depending on local requirements.
** Hoymiles states that plug-and-play cable lengths other than the standard 5 m can be supplied as a custom order through the distributor.
Manufacturer datasheet. Figures as published by the manufacturer.
