Product Description

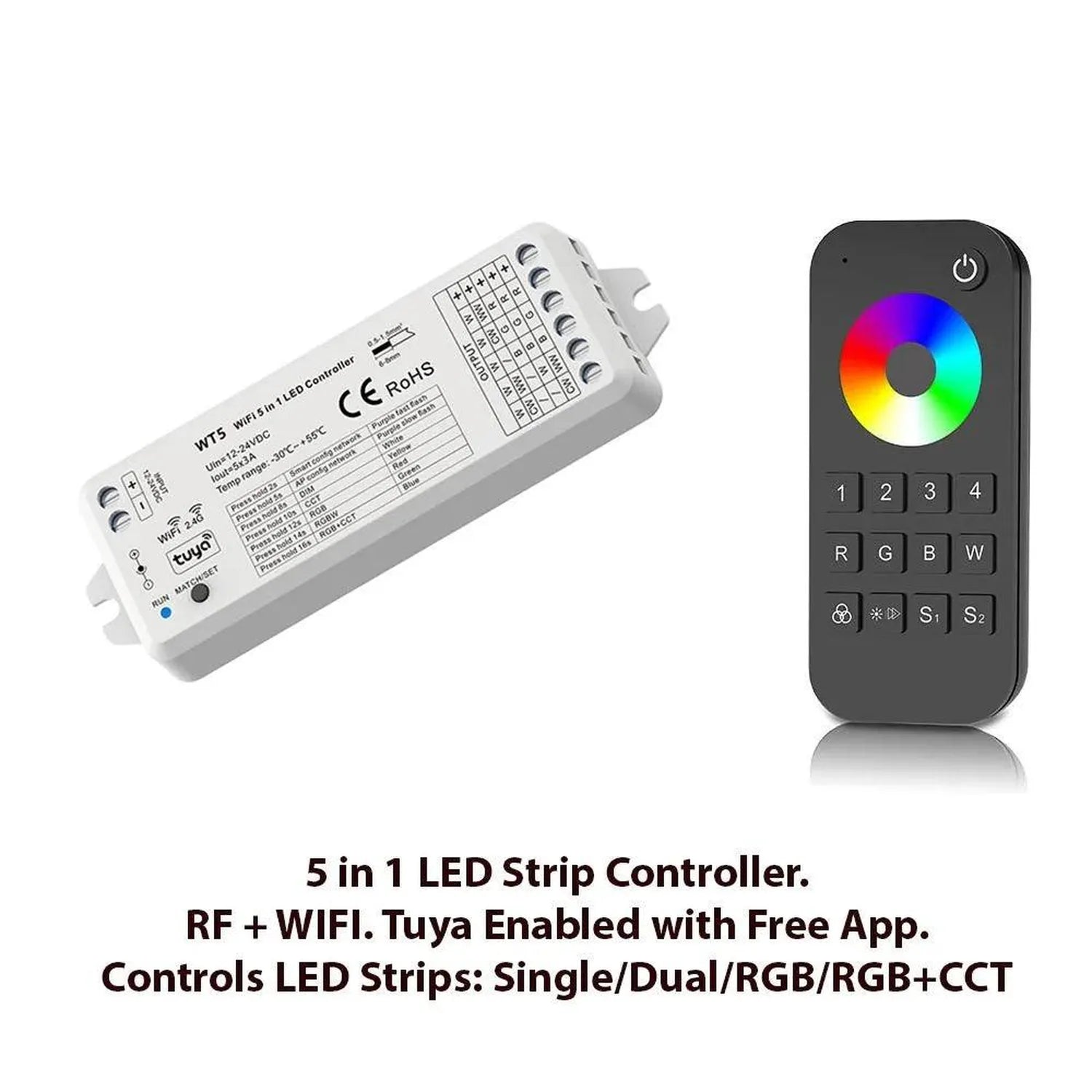

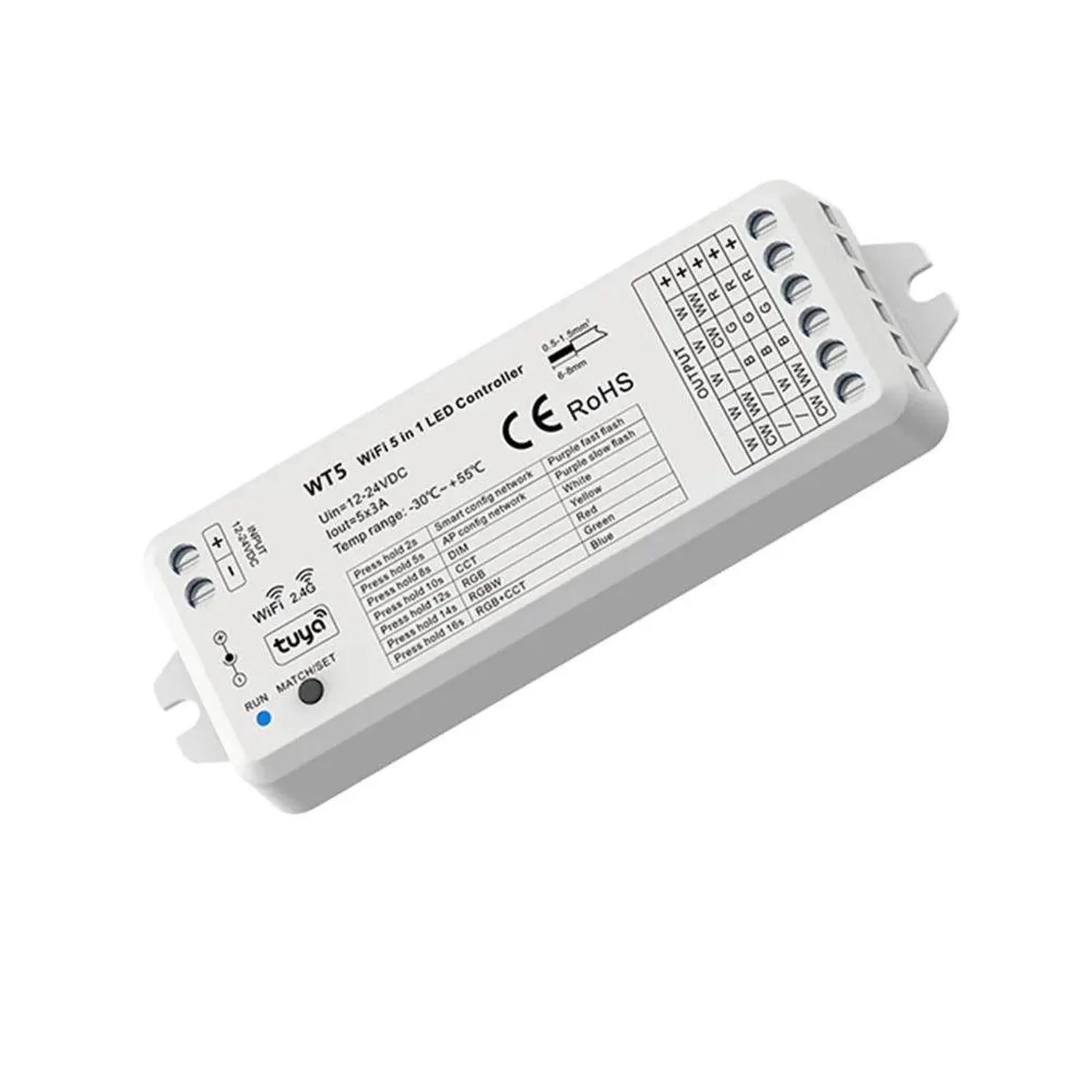

The Skydance WT5 runs single colour, dual white (CCT), RGB, RGBW and RGB+CCT LED strip from one unit. It connects to your home WiFi and is controlled through the free Smart Life (Tuya) app on iOS or Android. No gateway is needed. Input is 12-24VDC constant voltage, with five output channels rated at 3A each.
WT5 LED controller features
- Strip types: single colour, CCT, RGB, RGBW and RGB+CCT
- Input: 12-24VDC, constant voltage
- Output: 5 channels, 3A per channel
- Dimming: 4096 levels, 0-100%
- Voice control: Amazon Alexa and Google Assistant
- Protection: reverse polarity and over-heat, IP20
App and RF control

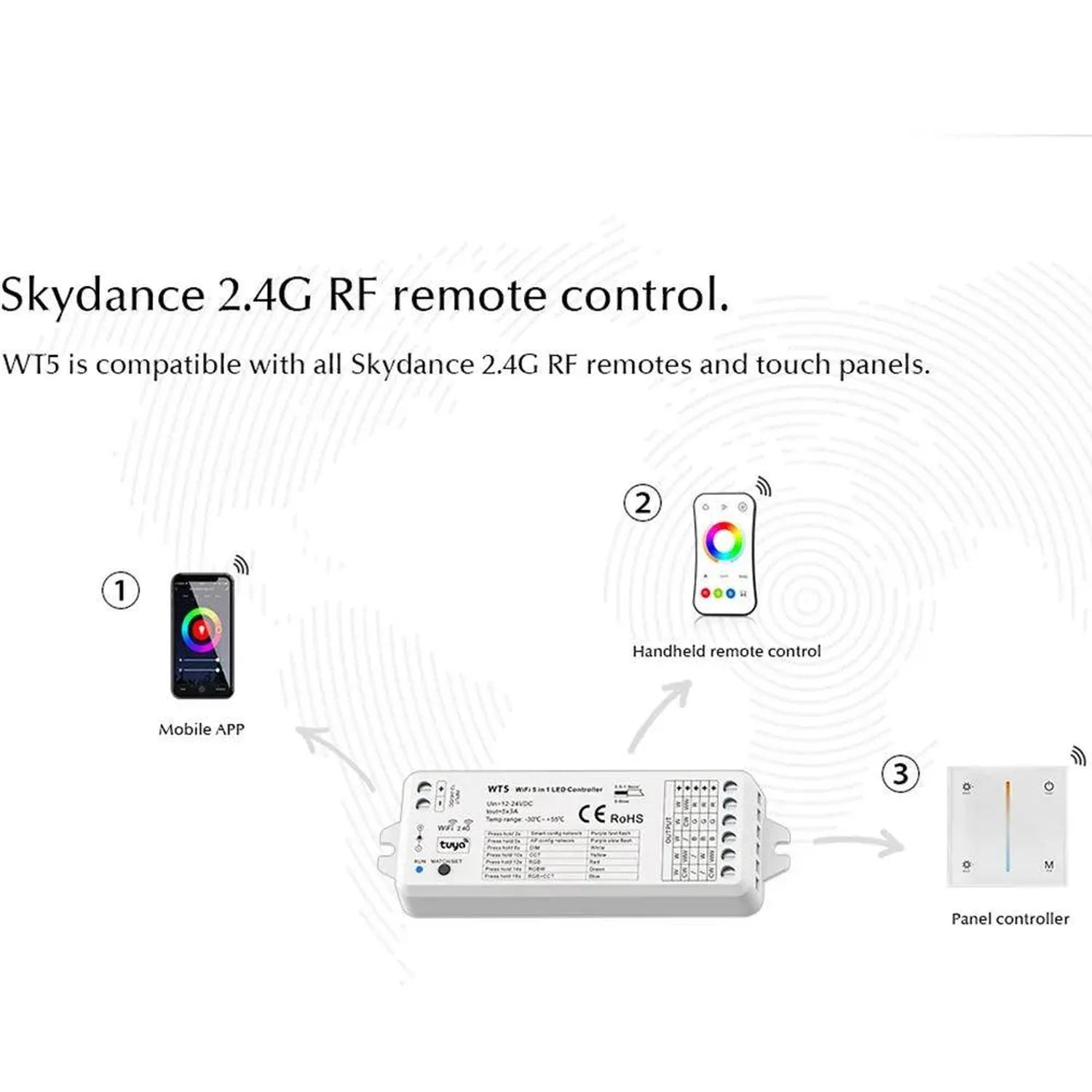

Alongside the app, the WT5 pairs with Skydance 2.4G RF remotes and touch panels, with a control distance of 30m. It can also work as a WiFi-to-RF bridge, bringing other Skydance RF controllers and dimmable drivers into the Smart Life app. That makes it a useful first controller in a larger Skydance setup.
Available versions

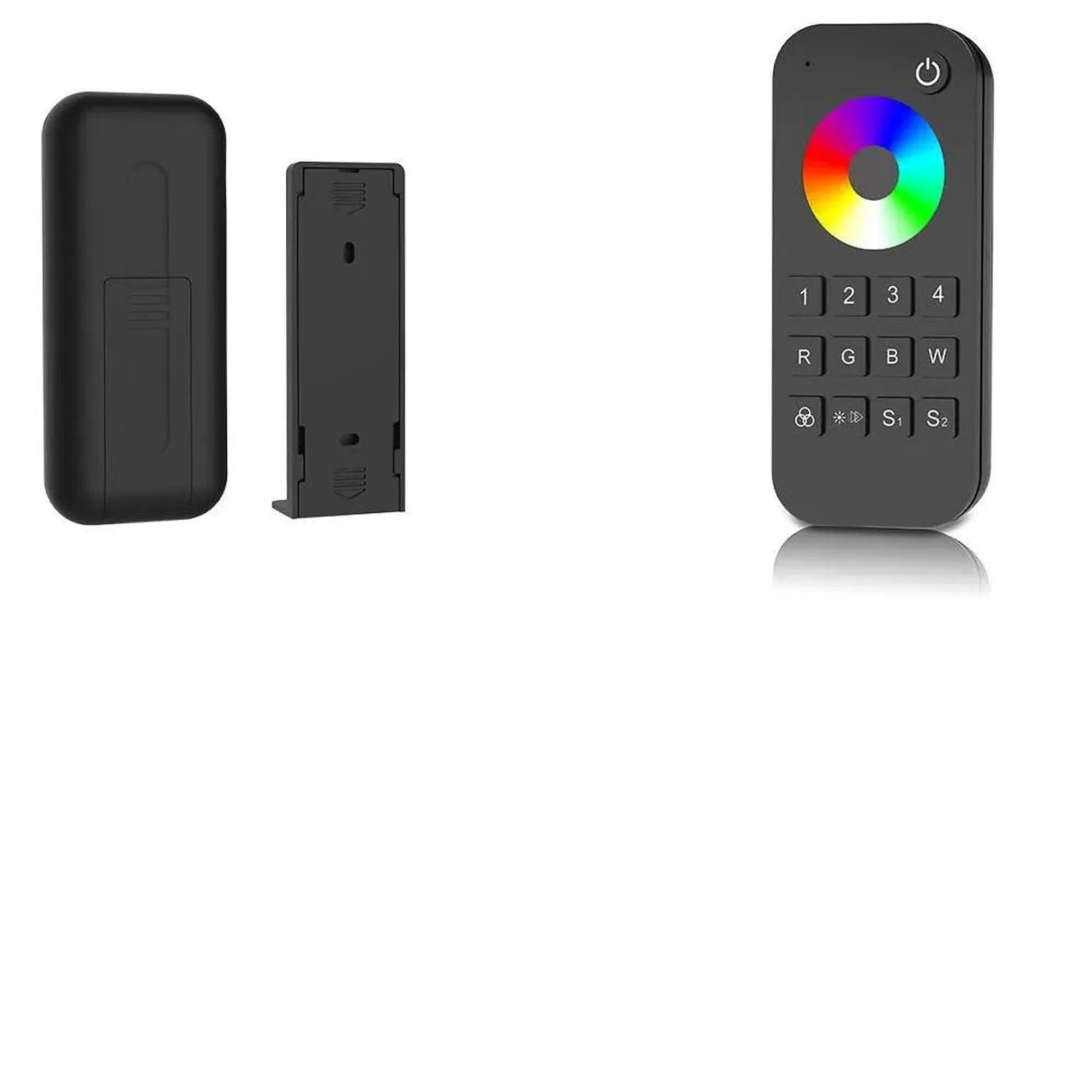

Order it with a 4-zone RF remote, or on its own for app-only control.
Setting up
Pick the light type before linking to the app. Hold the Match/Set key to do this. The controller needs a 2.4GHz WiFi network, as 5GHz is not supported, so check your router's band settings first if it uses a combined network name.
Warranty
Skydance covers the WT5 with a 5-year warranty.
Technical Specifications 22 rows Show
| Brand | Skydance |
| Model | WT5 |
| Input voltage | 12-24VDC |
| Input current | 15.5A |
| Output voltage | 5 x (12-24)VDC |
| Output current | 5CH,3A/CH |
| Output power | 5 x (36-72)W |
| Output type | Constant voltage |
| Control | Tuya APP + RF 2.4GHz |
| Control distance | 30m(Barrier-free space) |
| Dimming | 4096 (2^12) levels, 0 -100% |
| Operating temperature | Ta: -30 OC ~ +55 OC |
| IP rating | IP20 |
| Protection | Reverse polarity, Over-heat |
| LED types | RGB, RGBW, RGB+CCT, CCT and single colour |
| Voice control | Amazon Alexa, Google Home |
| Dimming curve | Logarithmic |
| PWM frequency | 500Hz (default) |
| Fade time | Light on/off fade time 3s selectable |
| Case temperature (max.) | Tc: +85OC |
| WiFi | 2.4G band only, 5G band not available |
| Warranty | 5 years |
Manufacturer datasheet. Figures as published by the manufacturer.
