0-10V Rotary Dimmer Switch 1-10V Relay Output | Ledison KL
- Vendor
- Ledison
- SKU
- 201010
- Availability
- In stock
- Weight
- 0.15 kg
£19.94inc VAT £16.62exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

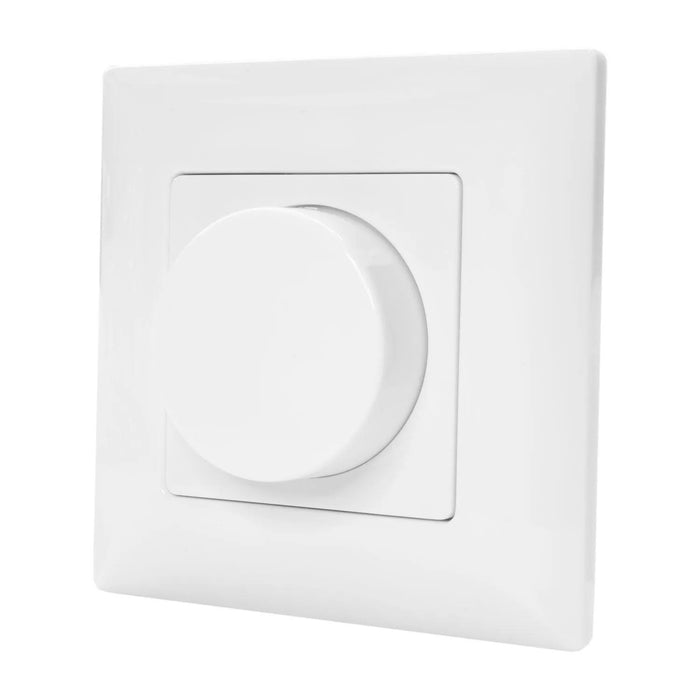

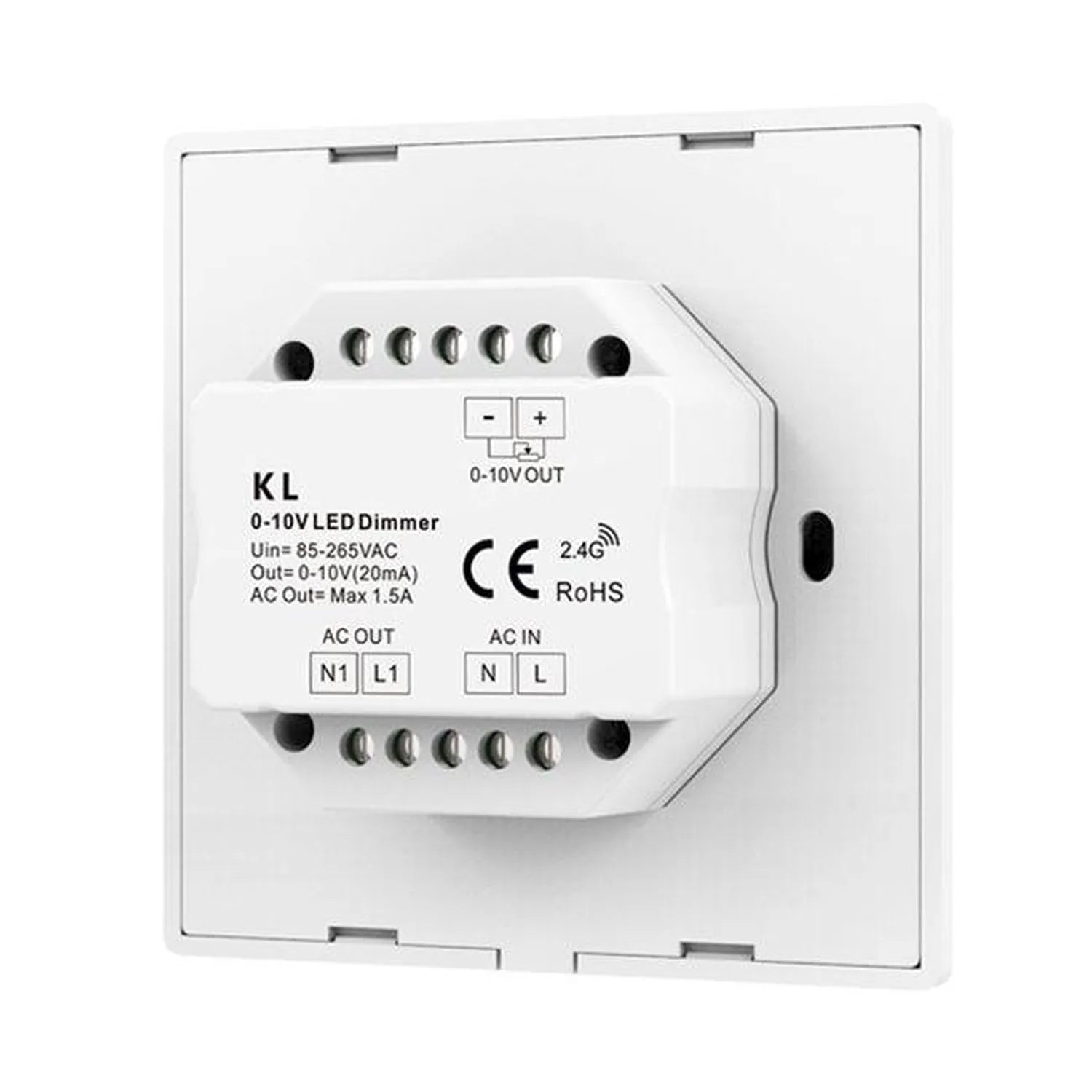

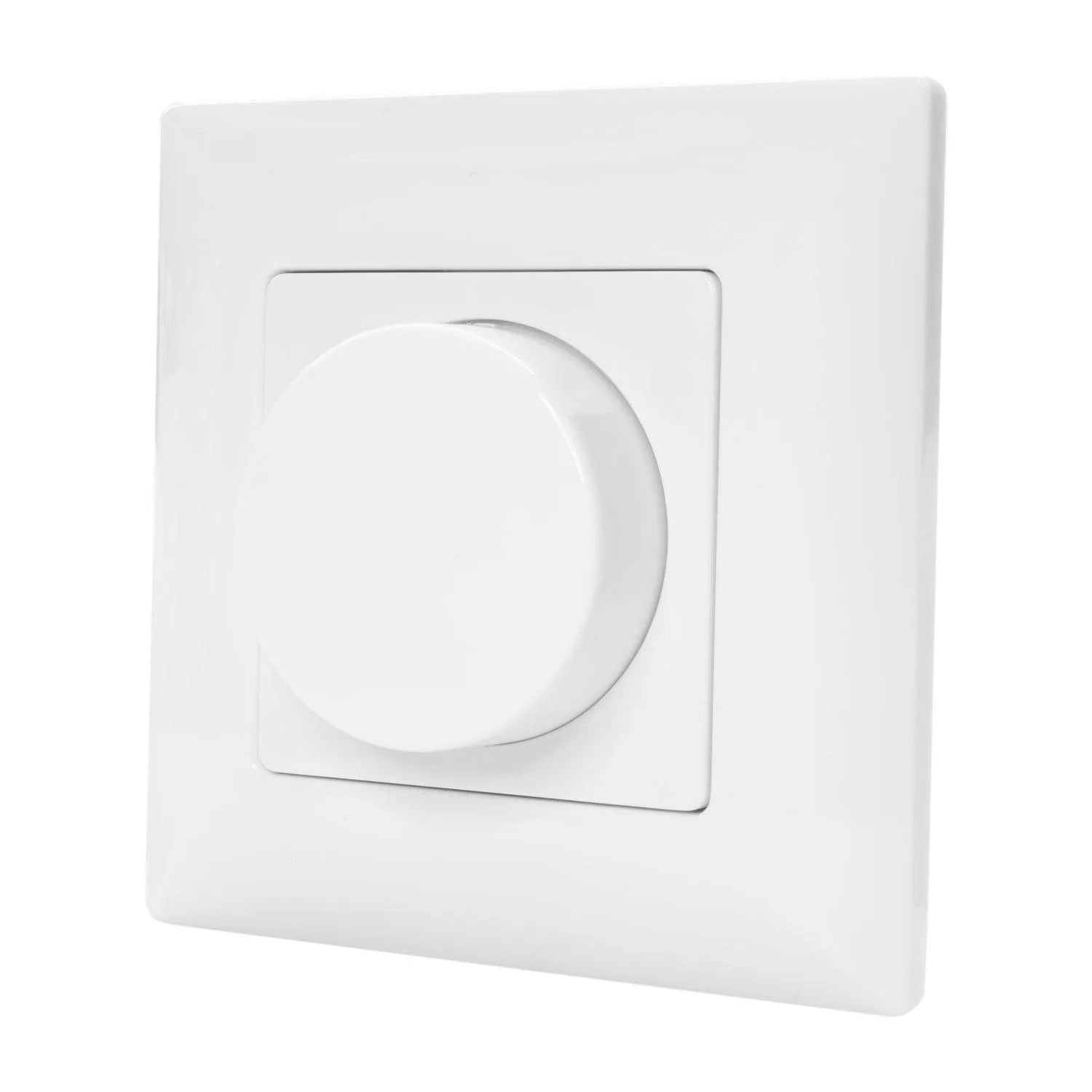

The Ledison KL is a wall-mounted rotary dimmer for LED lighting running on 0-10V or 1-10V dimmable drivers. Push the knob to turn the lights on or off. Turn it to dim. Because a relay output switches the mains feed to the drivers, the lights shut off completely rather than idling at a low level.
0-10V rotary dimmer features
- Signal selection: 0-10V or 1-10V output set by DIP switch
- Supply: AC100-240V input
- Control output: 1 channel 0/1-10V (20mA)
- Relay output: AC, max 1.5A
- Knob control: 2.5 turns giving 50 levels, with a long push for 256 levels
- Remote option: works with Skydance's 2.4G dimming remote control, with an RF range of 30m
Where it fits

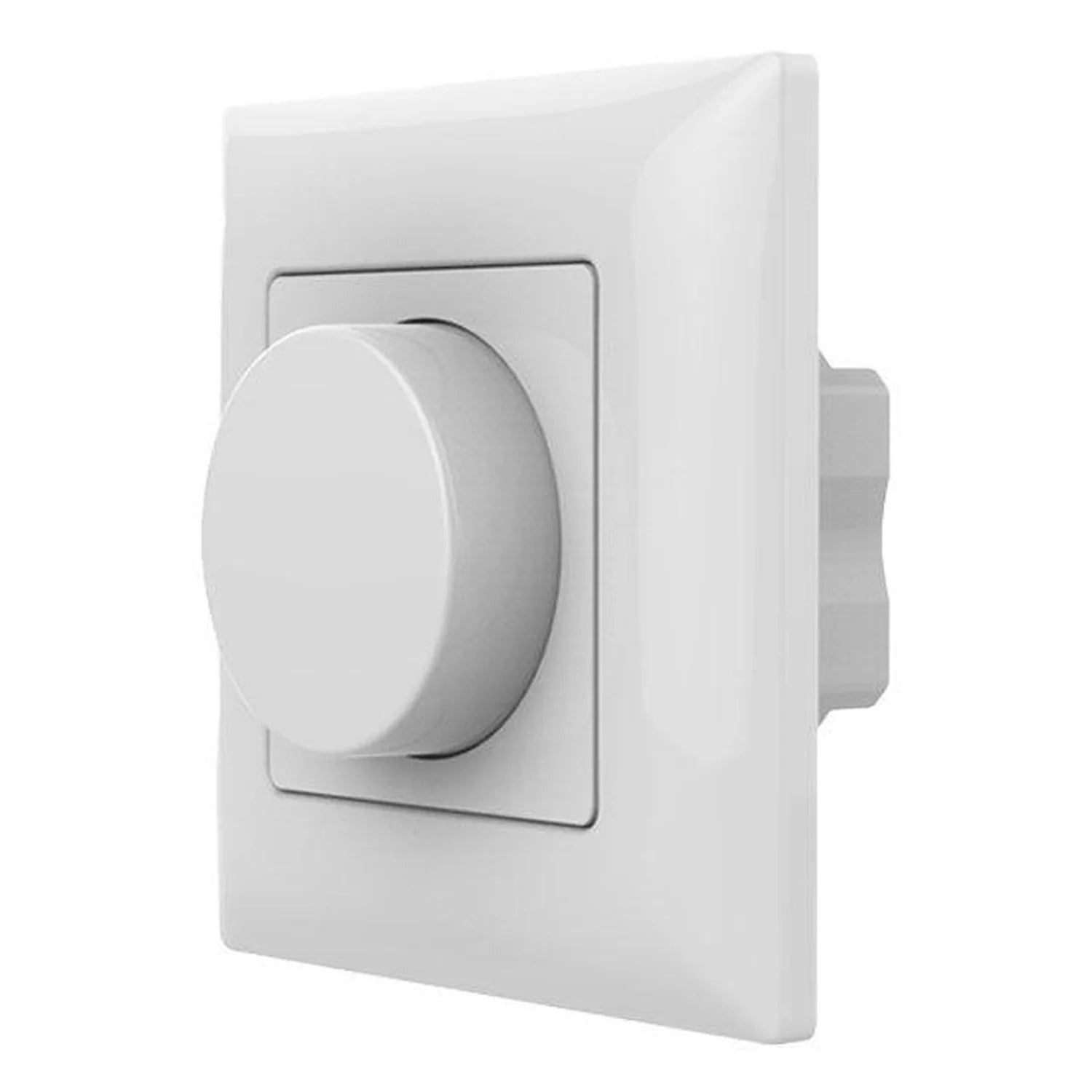

The KL sits in a European style 86 size back box and has a glass front panel. It is rated IP20 and carries a 5-year warranty.
Pairing it with the optional Skydance 2.4G remote lets you dim from across the room as well as at the wall, which suits living spaces, offices and meeting rooms where the switch is not always within reach.
Installation guidance
- No more than 10 LED drivers per dimmer is recommended
- Keep the cable run from dimmer to driver to 15 meters or less
- Fit an additional relay or contactor if the load draws more than 1.5A or the inrush current exceeds 15A
Check the driver dimming type before wiring. The DIP switch needs to match it.
Technical Specifications 22 rows Show
| Model | KL |
| Product type | Rotary panel 0/1-10V dimmer, 1 channel output |
| Input voltage | AC100-240V |
| Output signal | 0/1-10V (20mA) |
| Output current | Max 1.5A (AC) |
| Input signal | Rotary knob + RF 2.4GHz |
| RF control distance | 30m |
| Dimming level | 256 levels |
| Dimming range | 0 -100% |
| Signal select | 0-10V or 1-10V output selectable by DIP switch |
| Operation temperature | Ta: -30 OC ~ +55 OC |
| Case temperature (max) | T c: +65OC |
| IP rating | IP20 |
| Net weight | 0.100kg |
| Certification | CE,EMC,LVD |
| Warranty | 5 years |
| Output | High voltage AC relay output |
| Knob control | Push: on/off. Rotate: 2.5 turns, 50 levels. Long push (1-5s): continuous 256 levels |
| Remote control | Skydance's 2.4G dimming remote control (optional) |
| Back box | European style 86 size |
| EMC standard | EN 55015:2013, EN 61547:2009, EN 61000-3-2:2014, EN 61000-3-3:2013 |
| Safety standard | EN 61347-2-11:2002, EN 61347-1:2015, EN 62493:2015 |
Manufacturer datasheet. Figures as published by the manufacturer.
