RGB LED Dimmer Controller 4 Zone Touch Panel DMX512 RF 2.4GHz | Ledison T13
- Vendor
- Ledison
- SKU
- 201026
- Availability
- In stock
- Weight
- 0.15 kg
£30.44inc VAT £25.37exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

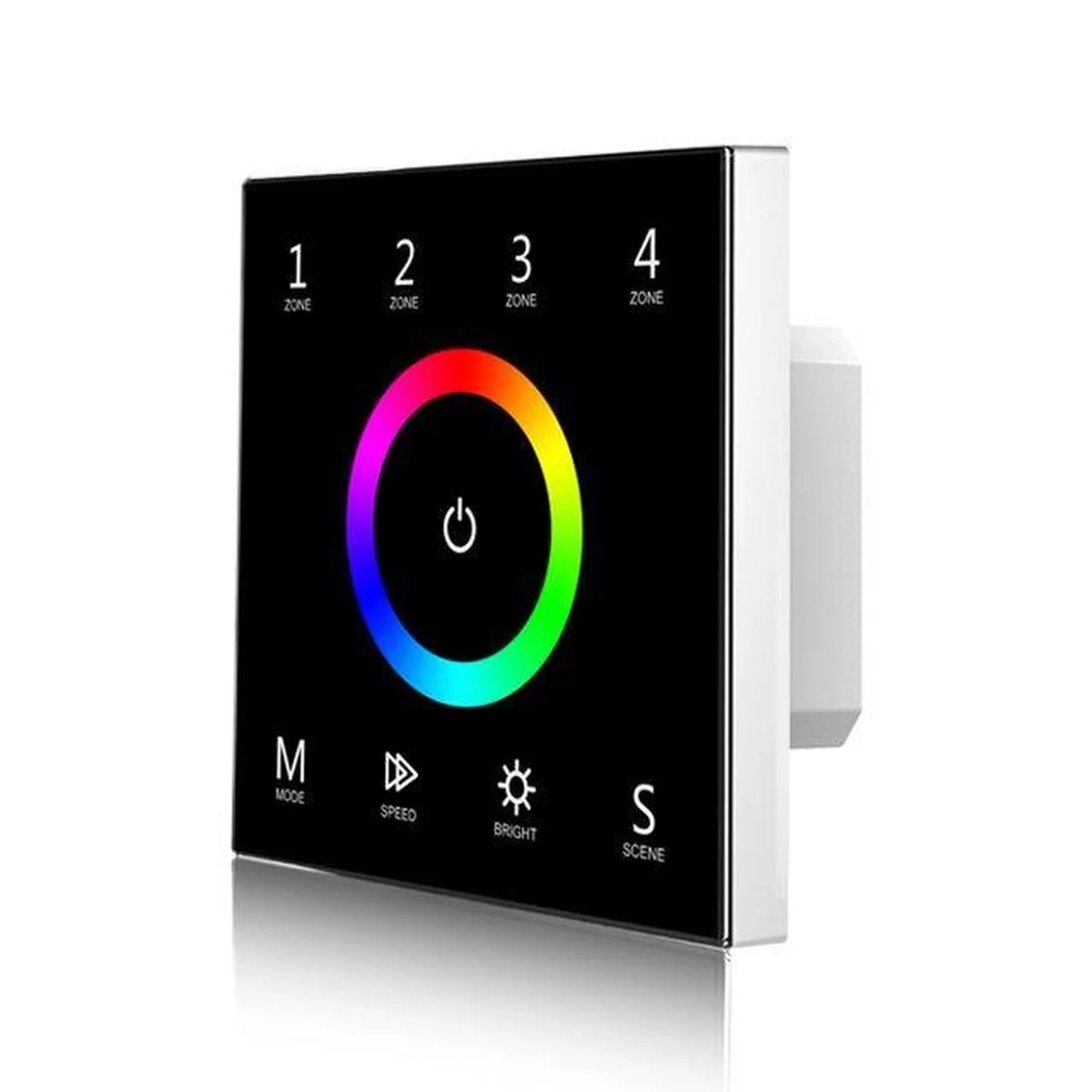

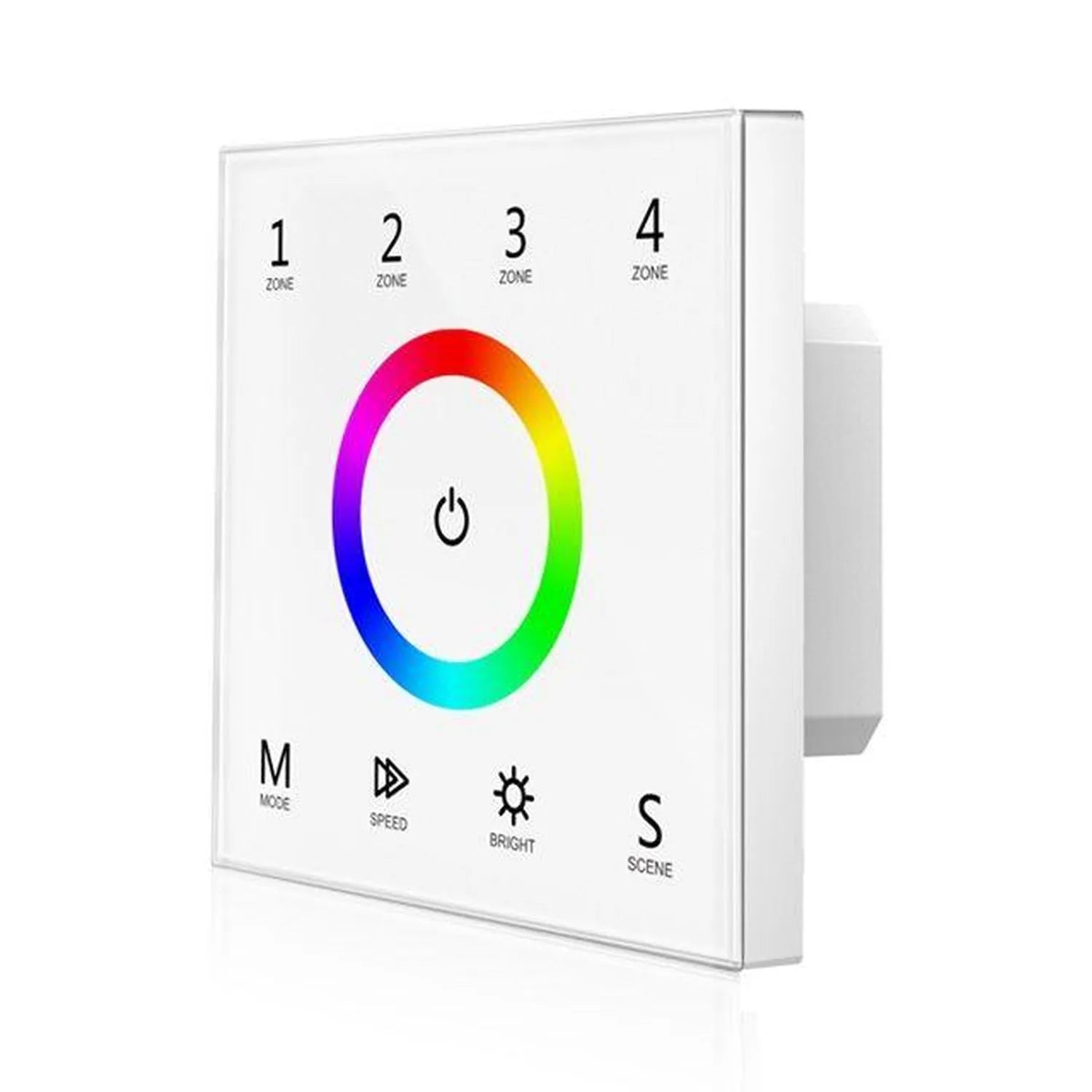

The Ledison T13 is a wall-mounted RGB LED dimmer controller that runs from a 100-240VAC mains supply. It covers 4 zones, and you can adjust them one at a time or all at once. To pick a colour, touch the wheel set into the centre of the backlit glass panel.
RGB LED dimmer controller features
- Zones: 4 RGB zones, controlled separately or together
- Outputs: DMX512 master with 12 DMX channels, plus RF 2.4GHz
- Dimming: 256 levels across a 0-100% range
- RF range: 30m control distance
- Effects: 10 built-in dynamic modes
- Rating and cover: IP20, with a 5-year warranty
Two ways to control your lighting
In DMX512 mode the panel acts as a master and talks to DMX decoders from any supplier. That leaves the choice of decoder open on a new install or a refit. Switch to RF and it becomes a 4 zone 2.4GHz remote instead, with each zone able to drive several RF 2.4G LED controllers. One panel can therefore look after a large run of RGB strip split into separate areas.

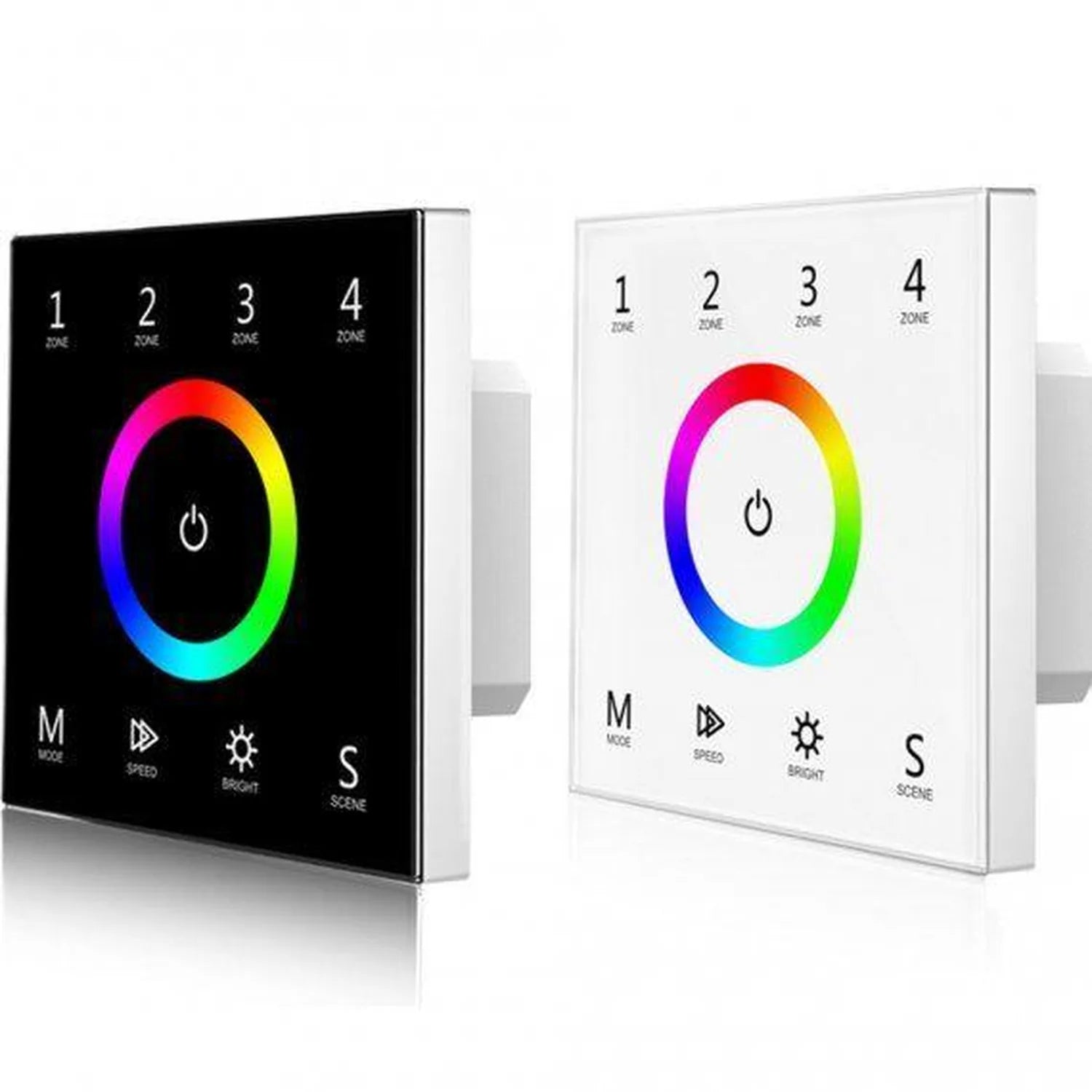

The input draws a maximum of 0.1A. The glass front comes in white or black, so it can sit with the other switches and sockets in the room.
Fitting the panel

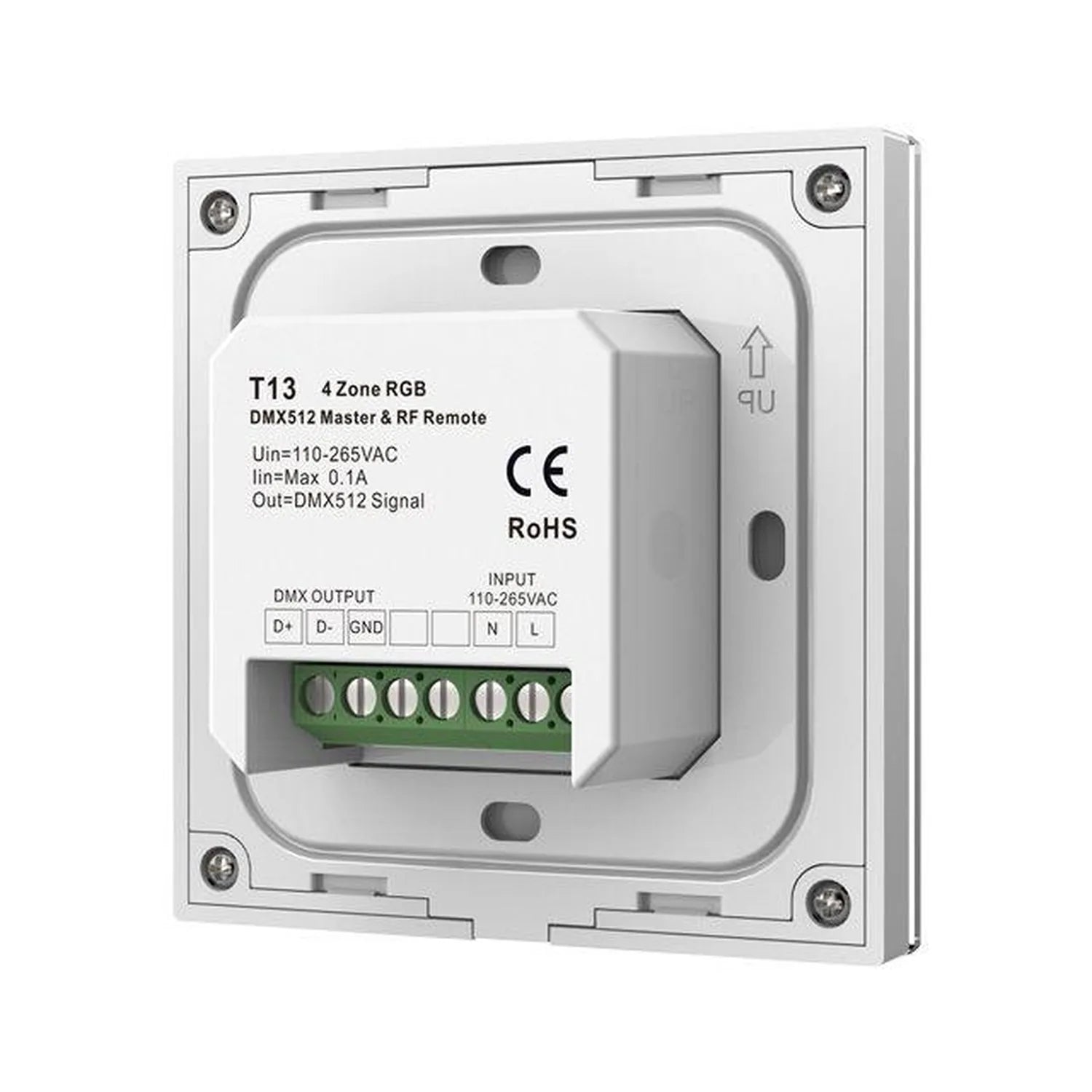

The T13 fits a European style 86 size back box. Its IP20 rating means it is for indoor installation only. When working with DMX decoders, set their addresses as described in the manual before commissioning the system.
Where it suits
Use it for colour-change lighting in living spaces, bars, shop displays or any interior where RGB LED zones need wall control. It works through either DMX decoders or RF receivers.
Technical Specifications 23 rows Show
| Model | T13 |
| Light type | RGB |
| Zones | 4 zones, controlled separately or together |
| Control | Touch colour wheel |
| Input voltage | 100-240VAC |
| Input current | Max 0.1A |
| Output signal | DMX512, RF 2.4GHz |
| Input signal | Touch key + RF 2.4GHz |
| RF control distance | 30m |
| Dimming level | 256 Levels |
| Dimming range | 0-100% |
| Output DMX channel number | 12 |
| Dimensions | 86x86x33mm |
| Operation temperature | Ta: -30 OC ~ +55 OC |
| Case temperature (max) | T c: +65OC |
| IP rating | IP20 |
| Net weight | 0.181kg |
| Certification | CE,EMC,LVD,RED |
| Warranty | 5 years |
| Dynamic modes | 10 built-in dynamic modes |
| DMX compatibility | DMX decoder from any supplier |
| Back box | European style 86 size |
| Panel colours | White & Black glass panels |
Manufacturer datasheet. Figures as published by the manufacturer.
