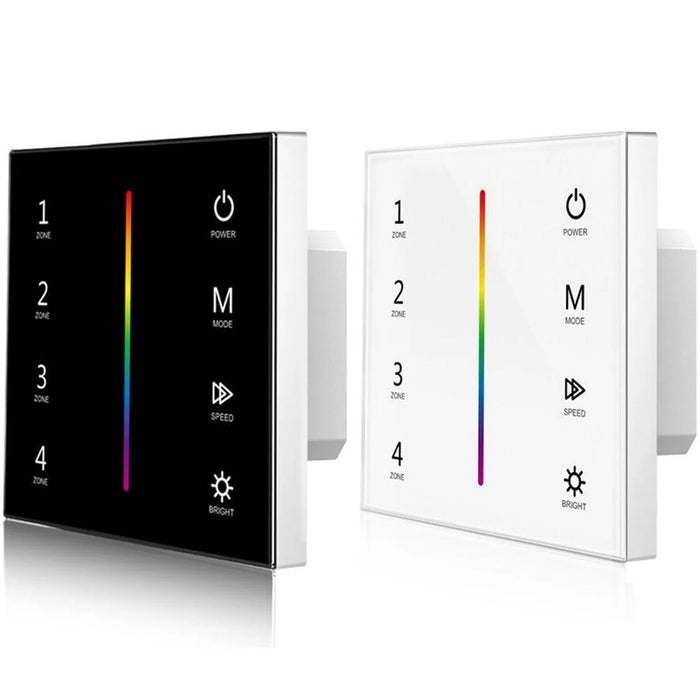

Black and white RGB LED controller panels shown side-by-side, each with 4 zone controls, colorful vertical gradient bar, and

RGB LED Dimmer Controller 4 Zone Touch DMX512 RF 2.4GHz | Ledison T13-1

White
£30.44
Skip to product information

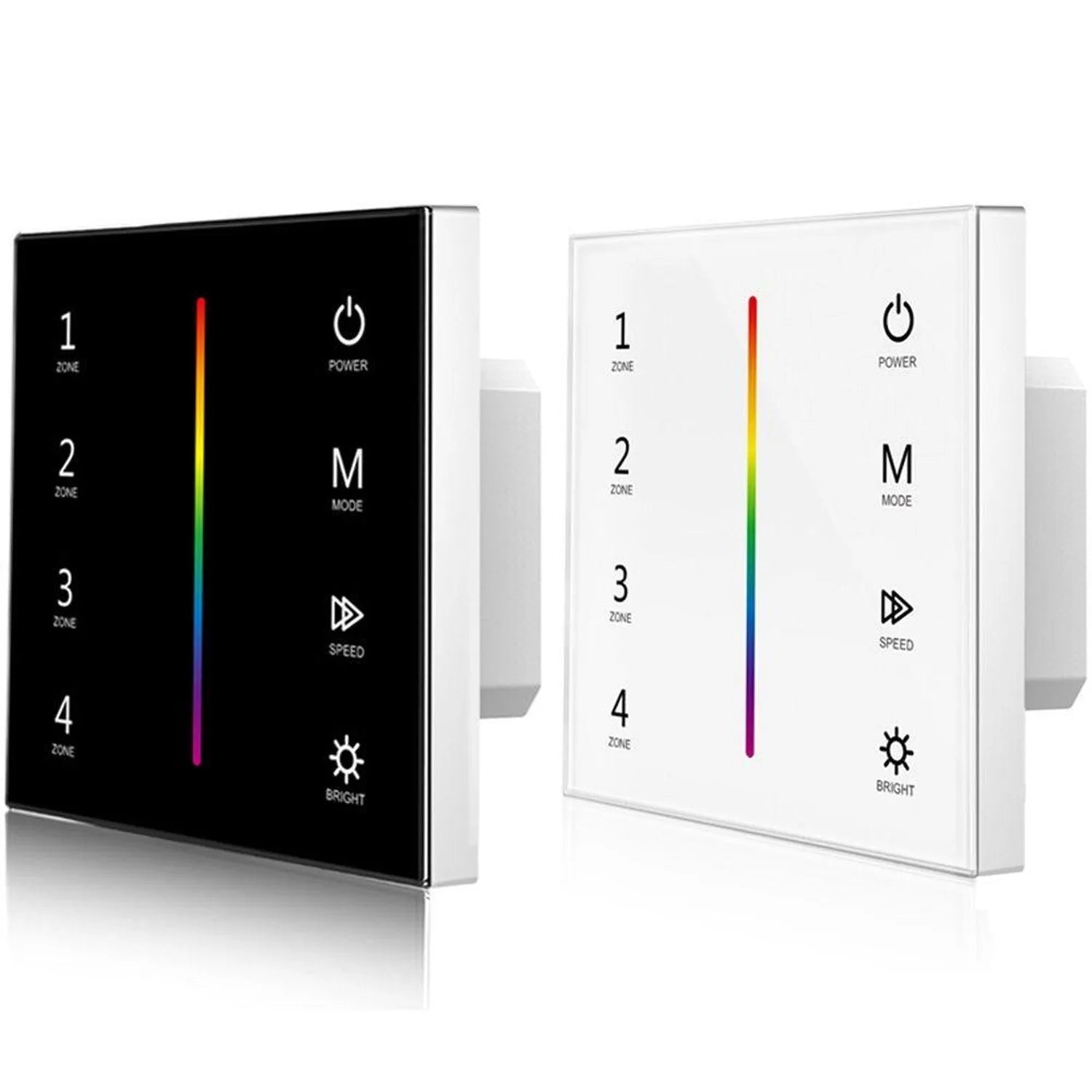

Black and white RGB LED controller panels shown side-by-side, each with 4 zone controls, colorful vertical gradient bar, and

RGB LED Dimmer Controller 4 Zone Touch DMX512 RF 2.4GHz | Ledison T13-1

Vendor
Ledison
SKU
201011
Availability
In stock
Weight
0.15 kg

£30.44inc VAT £25.37exc VAT

Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

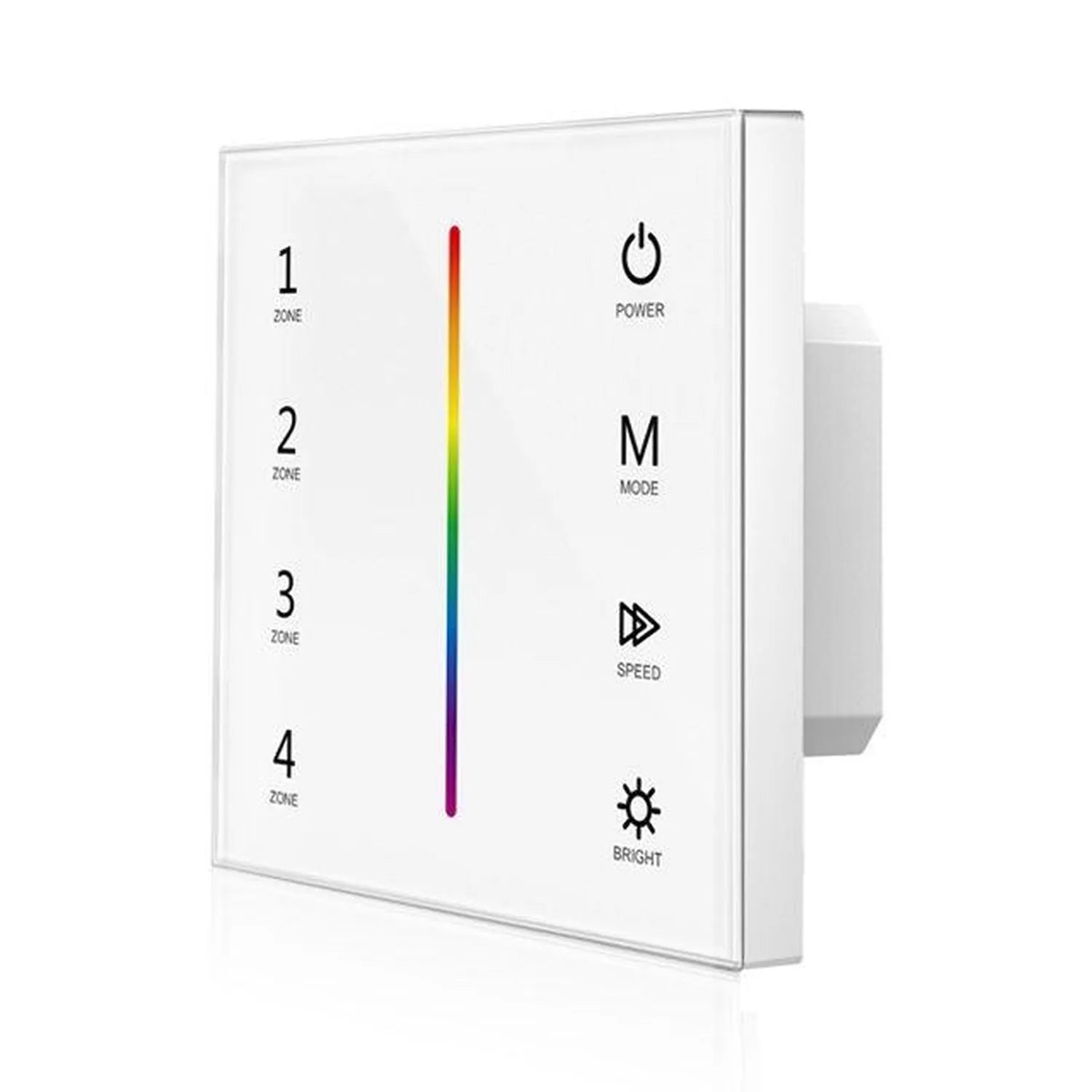

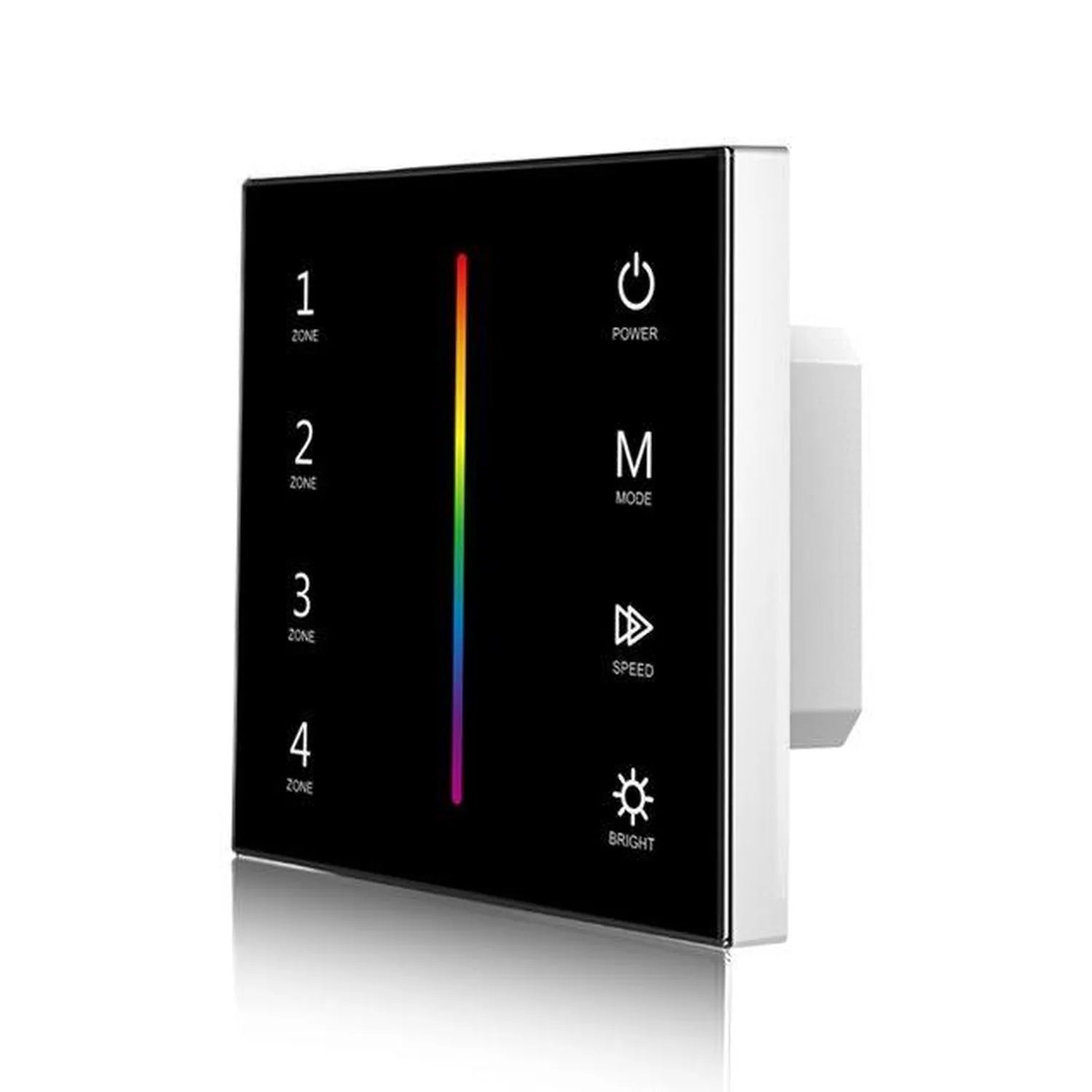

The Ledison T13-1 is a wall-mounted RGB LED dimmer controller that runs from the mains at 100-240VAC. It handles 4 zones, and you can control them one at a time or all together. Colour is set from a touch slide in the centre of the backlit glass panel. The panel comes in white or black.

A 4 zone RGB LED dimmer controller with two outputs

You can use the T13-1 in two ways. As a DMX512 master it drives DMX decoders from any supplier across 12 DMX channels. As a 4 zone RF 2.4GHz remote, each zone can control several RF 2.4G LED controllers. Both work from the same panel.

  • Zones: 4, RGB, controlled separately or together
  • DMX output: DMX512, 12 channels
  • RF range: 30m control distance at 2.4GHz
  • Dimming: 256 levels across 0-100%
  • Effects: 10 built-in dynamic modes
  • Power: 100-240VAC input, max 0.1A

Where it fits

It suits RGB LED strips and DMX lighting. Shop displays, bars, restaurants and reception areas are typical commercial uses, and it works just as well in home interiors where you want wall control of colour lighting. The controller is rated IP20, so it is for indoor installation.

Installation notes

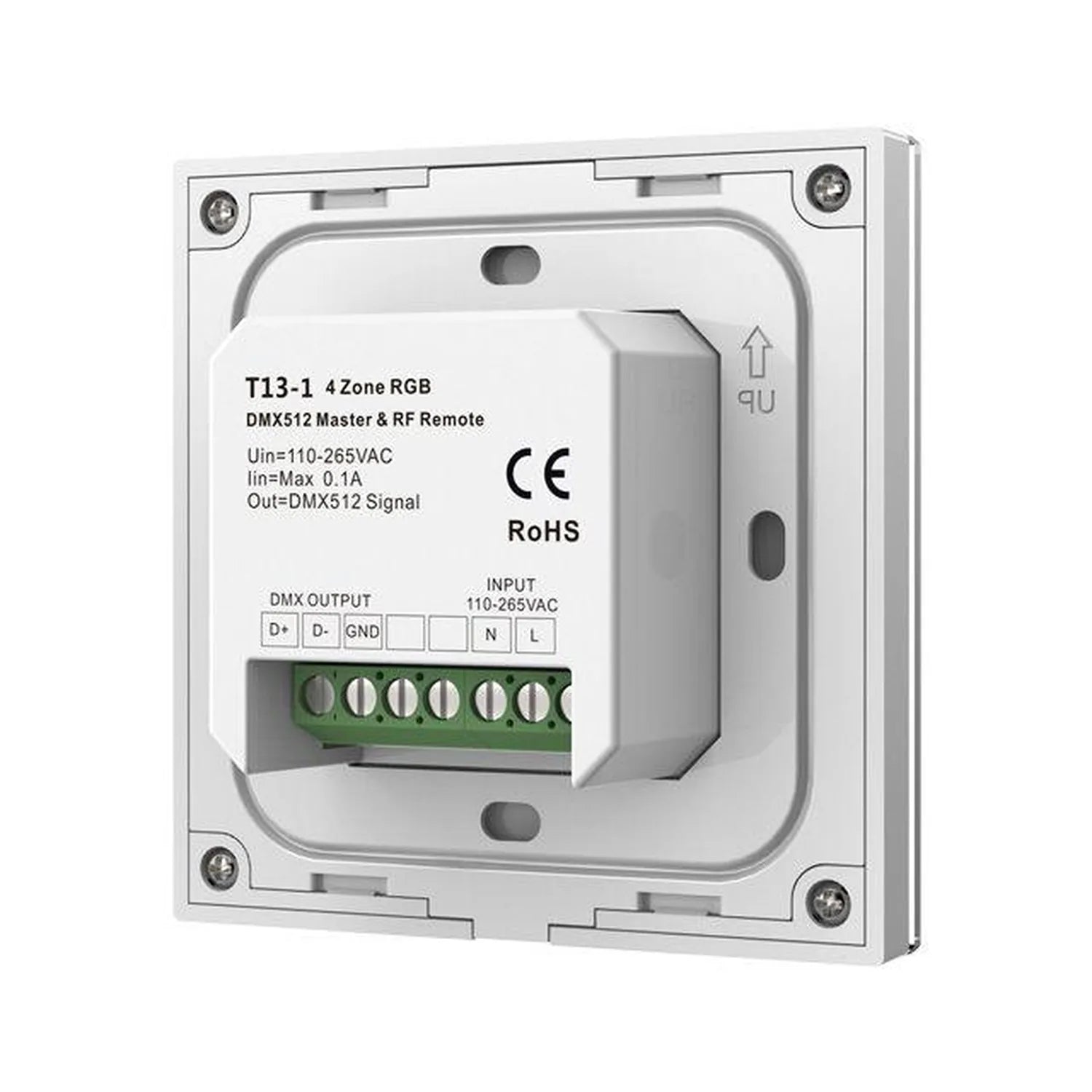

The T13-1 fits a European style 86 size back box. If you are running it as a DMX master, set the decoder addresses as shown in the manual before you commission the system. It carries a 5-year warranty.

Technical Specifications 23 rows Show
ModelT13-1
Light typeRGB
Zones4 zones, controlled separately or together
ControlTouch colour slide
Input voltage100-240VAC
Input currentMax 0.1A
Output signalDMX512, RF 2.4GHz
Input signalTouch key + RF 2.4GHz
RF control distance30m
Dimming level256 levels
Dimming range0-100%
Output DMX channel number12
Dimensions86 x 86 x 33mm
Operation temperatureTa: -30 OC ~ +55 OC
Case temperature (max)T c: +65OC
IP ratingIP20
Net weight0.176kg
CertificationCE,EMC,LVD,RED
Warranty5 years
Dynamic modes10 built-in dynamic modes
DMX compatibilityDMX decoder from any supplier
Back boxEuropean style 86 size
Panel coloursWhite & Black glass panels

Manufacturer datasheet. Figures as published by the manufacturer.
