RGB LED Dimmer Controller Touch Glass Panel 12-24V DC 3 x 4A | Ledison T3-1
- Vendor
- Ledison
- SKU
- 201015
- Availability
- In stock
- Weight
- 0.15 kg
£29.35inc VAT £24.46exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

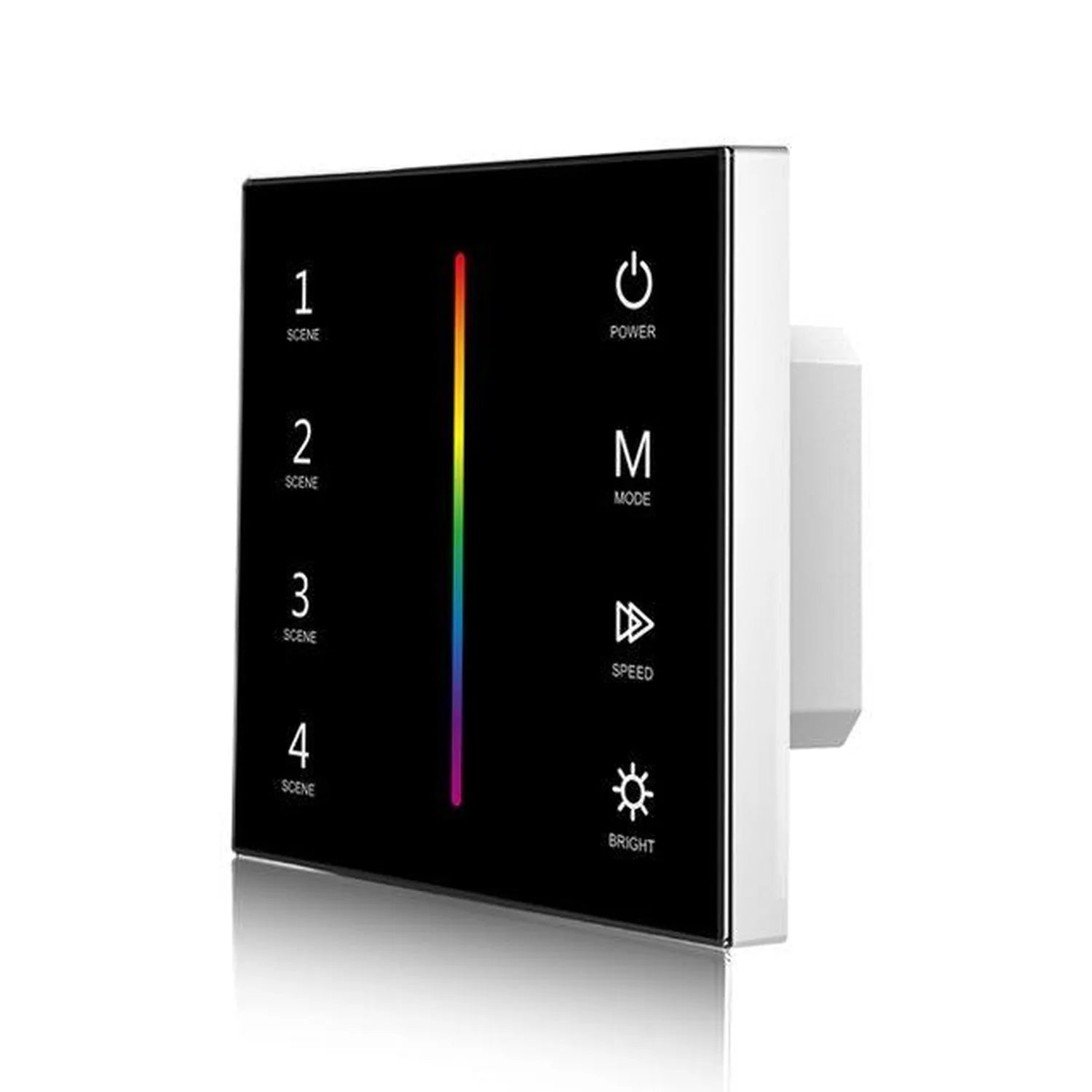

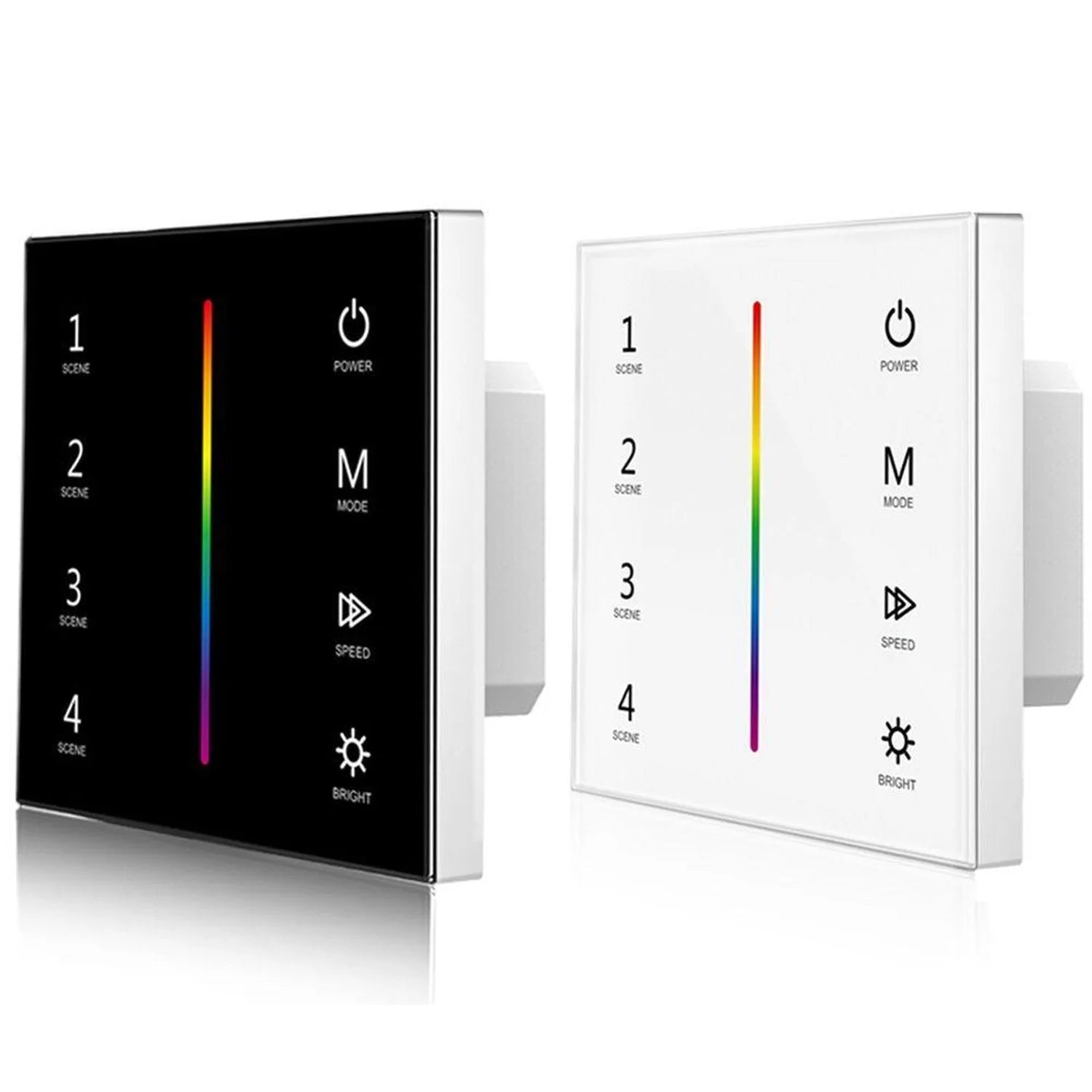

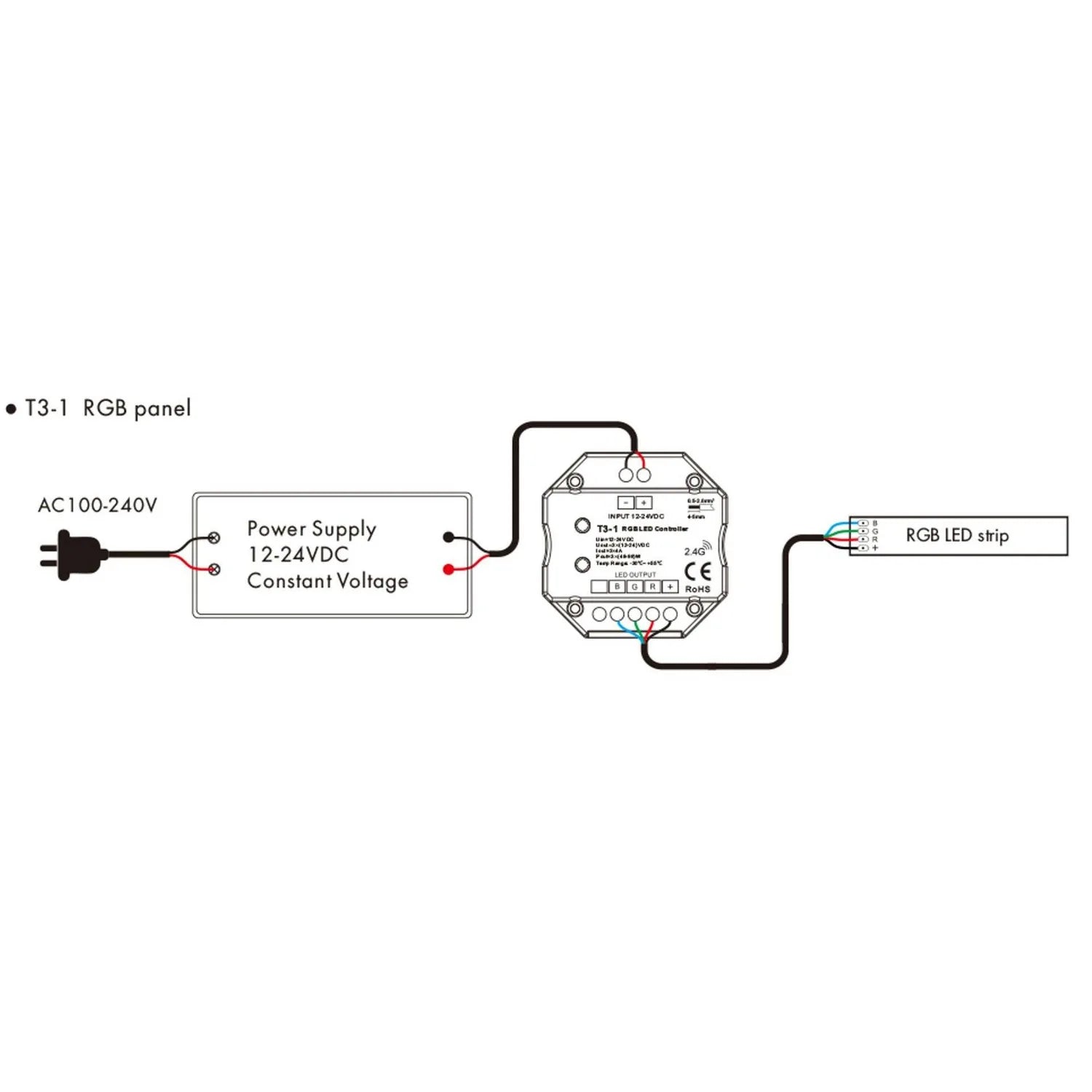

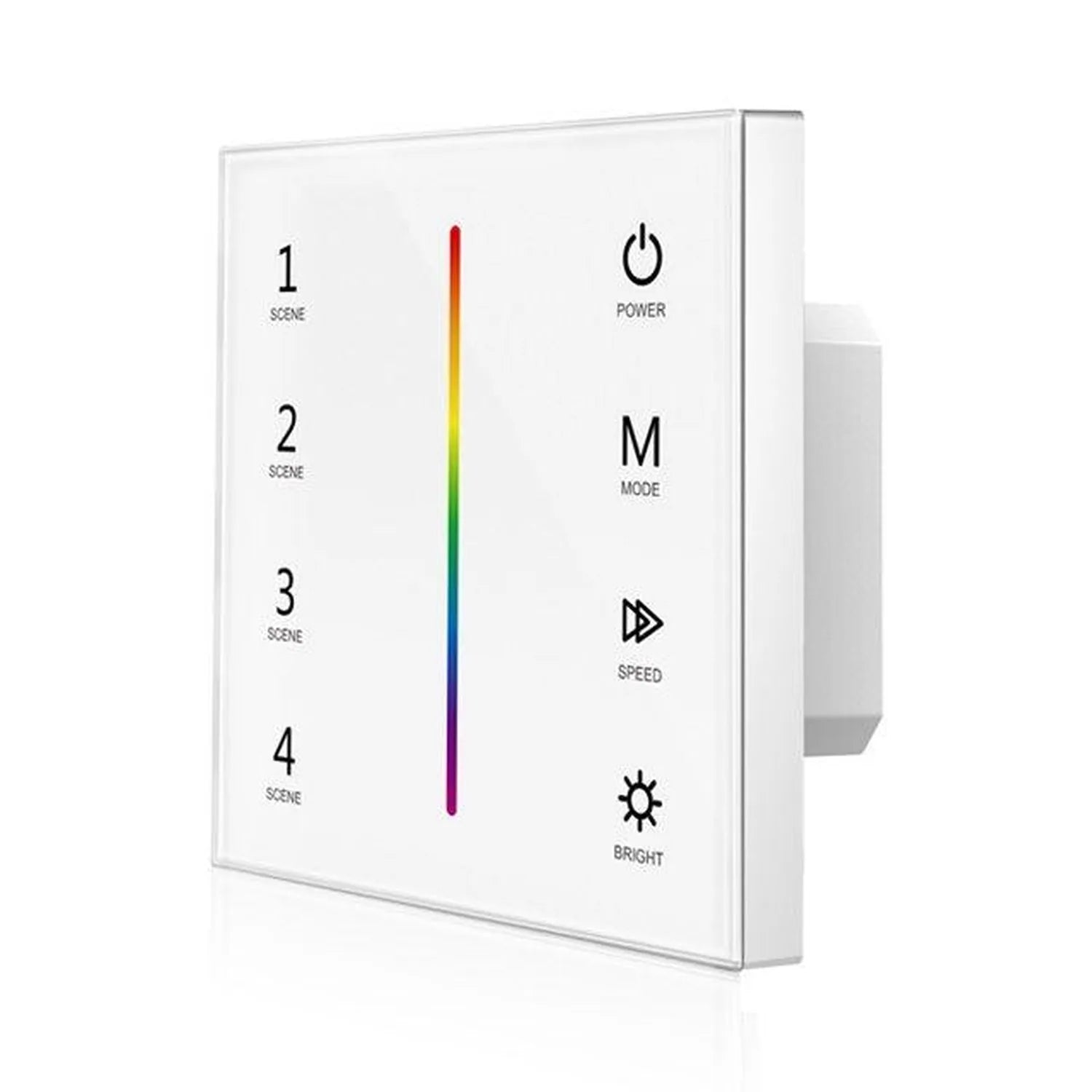

The Ledison T3-1 is a wall-mounted RGB LED dimmer controller for 12V or 24V constant voltage RGB LED strip. It is wired between the LED power supply and the strip. You choose the colour with a touch colour slide on the glass panel and dim the lighting from the wall. The panel comes in white or black glass.
RGB LED dimmer controller features
- Input: 12-24V DC, 12.5A
- Output: 3 x (12-24)V DC across 3 channels, 4A per channel
- Load: 0-144W on 12V strip, 0-288W on 24V strip
- Effects: 10 built-in dynamic modes and 4 scenes
- Protection: reverse polarity, over heat and short circuit
- Rating and warranty: IP20, 5-year warranty
Panel and remote control

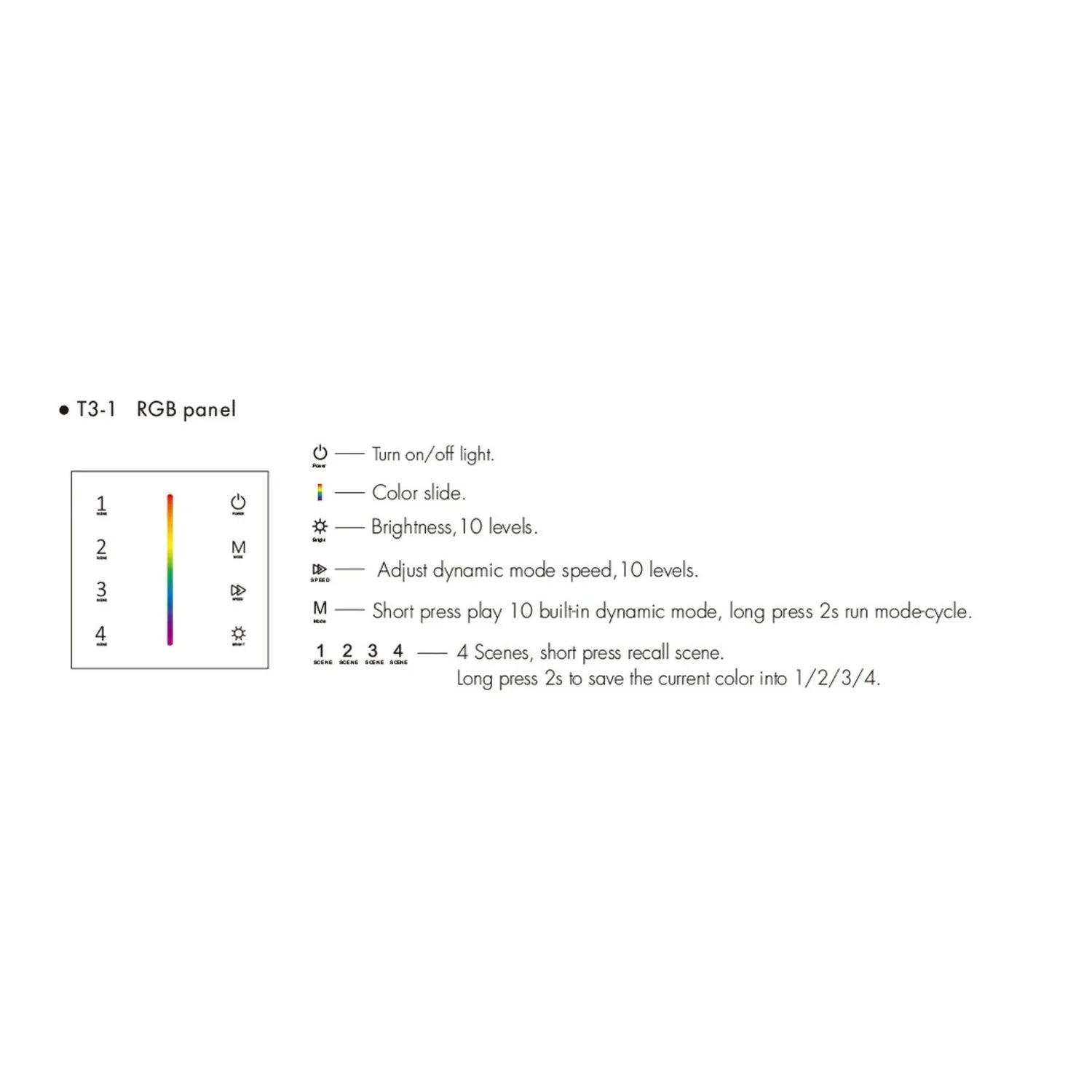

The glass panel is backlit, and each touch key has its own LED indicator so it can be found in a dim room. For control away from the wall, the T3-1 pairs with RF 2.4G single zone or multiple zone remotes. Lights switch off after a 20s delay.
Where to use it
It suits RGB LED strips fitted in coves, under kitchen or display cabinets and in display lighting. Commercial interiors are a good match too: shops, bars, restaurants and hotels. The IP20 rating means indoor fitting only.
Installation notes
- Fits a European style 86 size back box.
- Size the power supply 20% larger than the connected load.
Check the strip voltage before wiring. The controller accepts 12V or 24V, and the load limit depends on which one you use.
Technical Specifications 22 rows Show

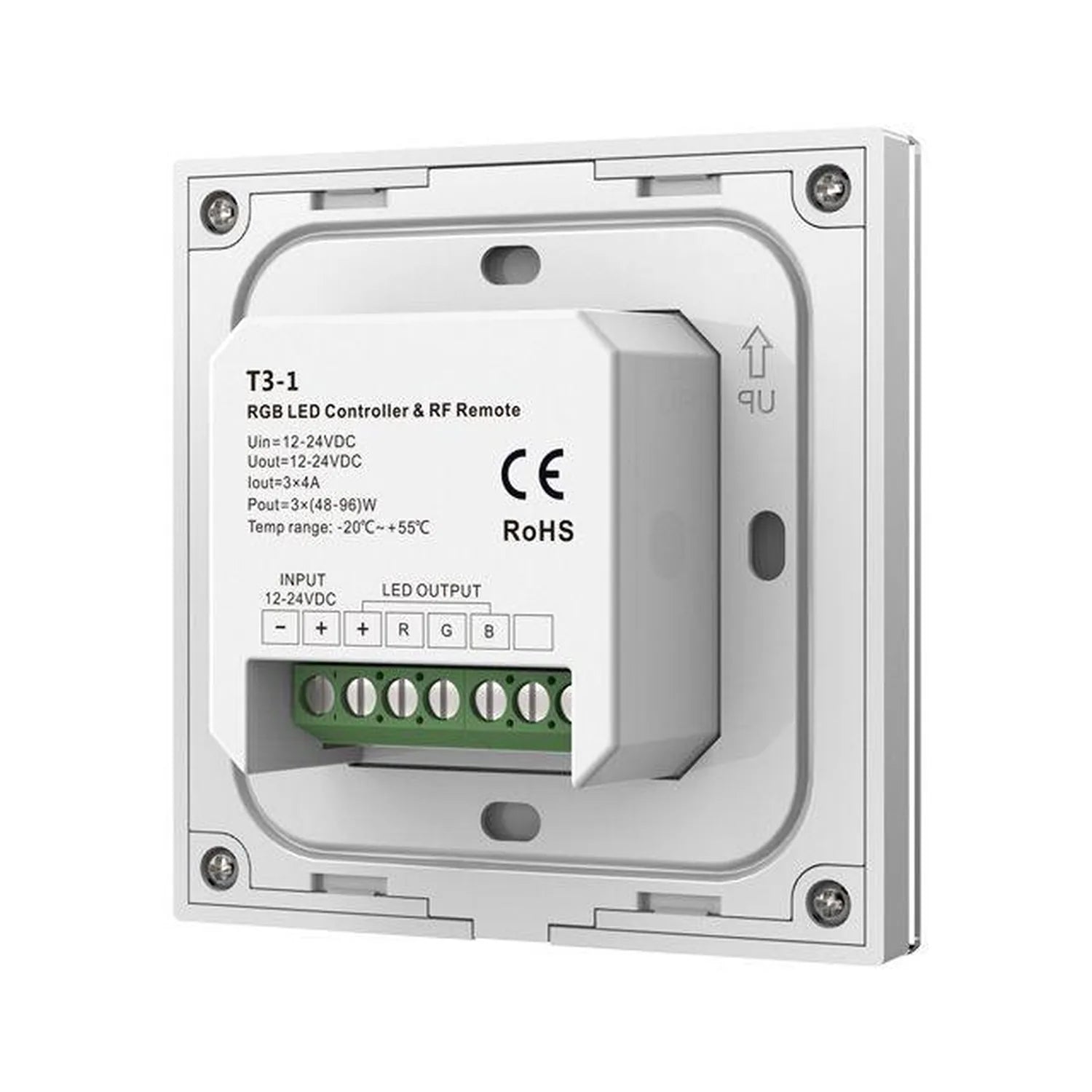

| Model | T3-1 |
| Zones | 1 zone |
| Input voltage | 12-24V DC |
| Input current | 12.5A |
| Output voltage | 3 x (12-24)V DC |
| Output current | 3CH, 4A per channel |
| Output power | 144-288W |
| Output type | Constant voltage |
| Light type | RGB |
| Controls | Touch colour slide |
| Dimensions | 86 x 86 x 33mm |
| Operation temperature | Ta: -30 OC ~ +55 OC |
| Case temperature (max) | T c: +85OC |
| IP rating | IP20 |
| Protection | Reverse polarity, Over heat, Short circuit |
| Net weight | 0.177kg |
| Certification | CE,EMC,LVD,RED |
| Warranty | 5 years |
| Output | PWM constant voltage |
| Remote control | RF 2.4G single zone or multiple zone remote control |
| Delay off | Turn off light after 20s |
| Panel colours | White & Black glass panel |
Manufacturer datasheet. Figures as published by the manufacturer.
