MiBoxer WL5 WiFi 5 in 1 LED Strip Controller RGB+CCT 12-24V
£24.81
Skip to product information

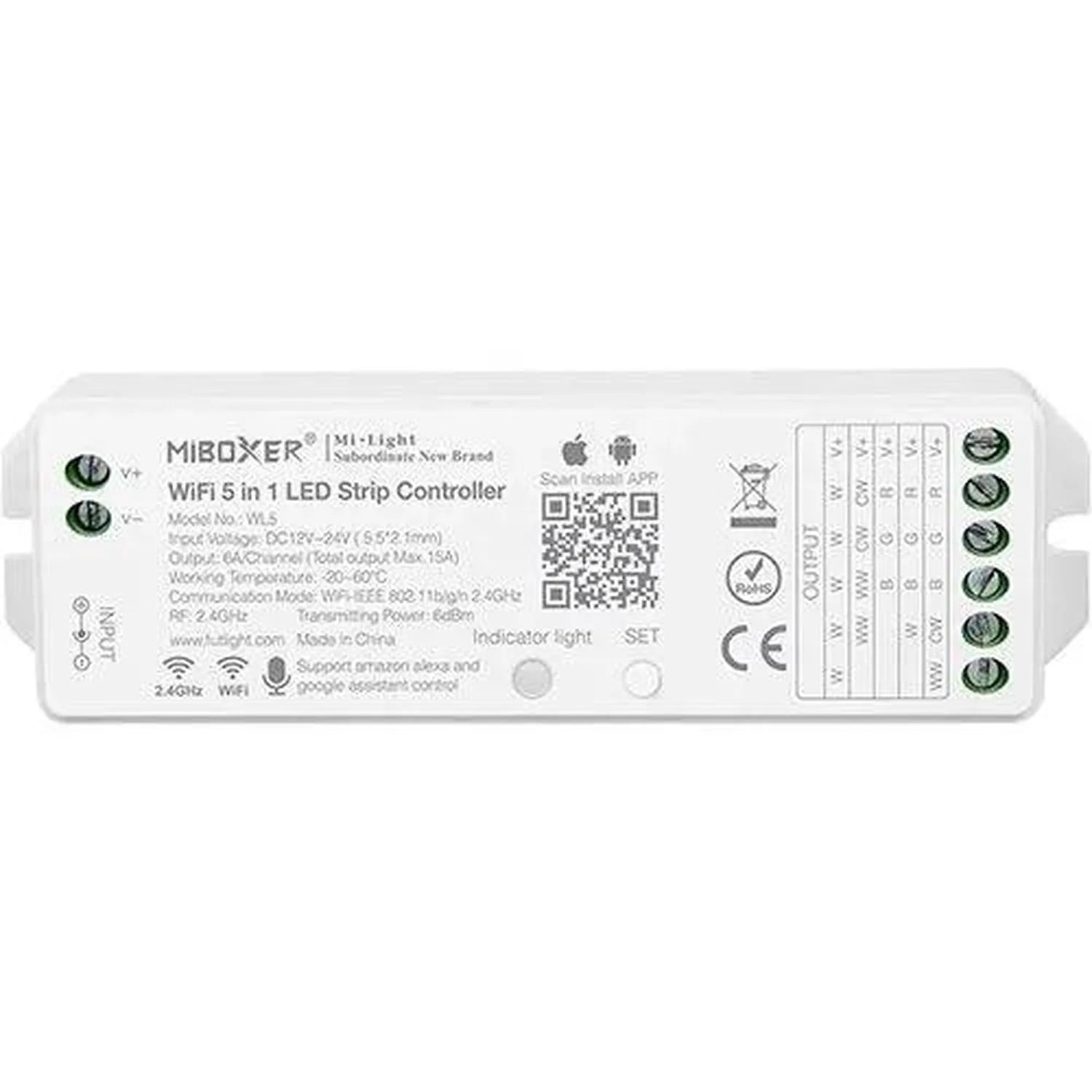

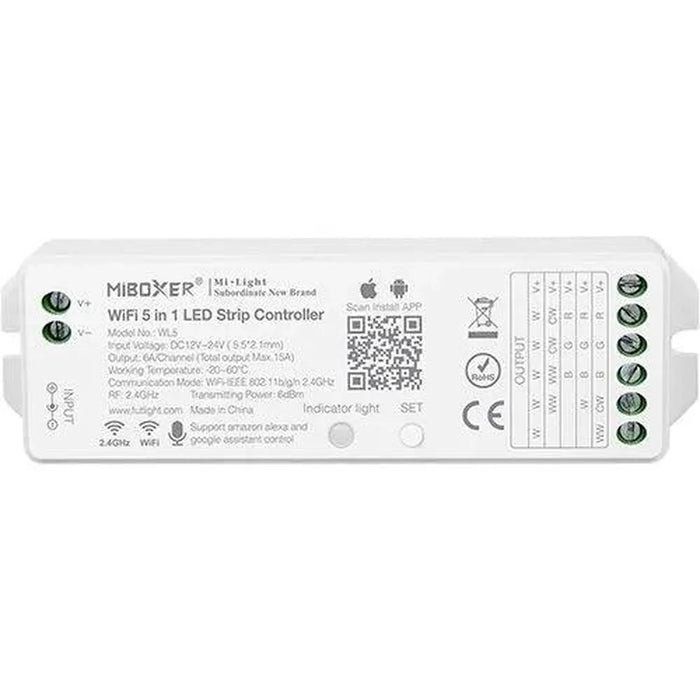

MiBoxer WL5 WiFi 5 in 1 LED Strip Controller RGB+CCT 12-24V
- Vendor
- Skydance
- SKU
- 001204
- Availability
- In stock
- Weight
- 0.25 kg
£24.81inc VAT £20.68exc VAT
Delivery from £7.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Secure checkout
Talk to our sales team
Product Description

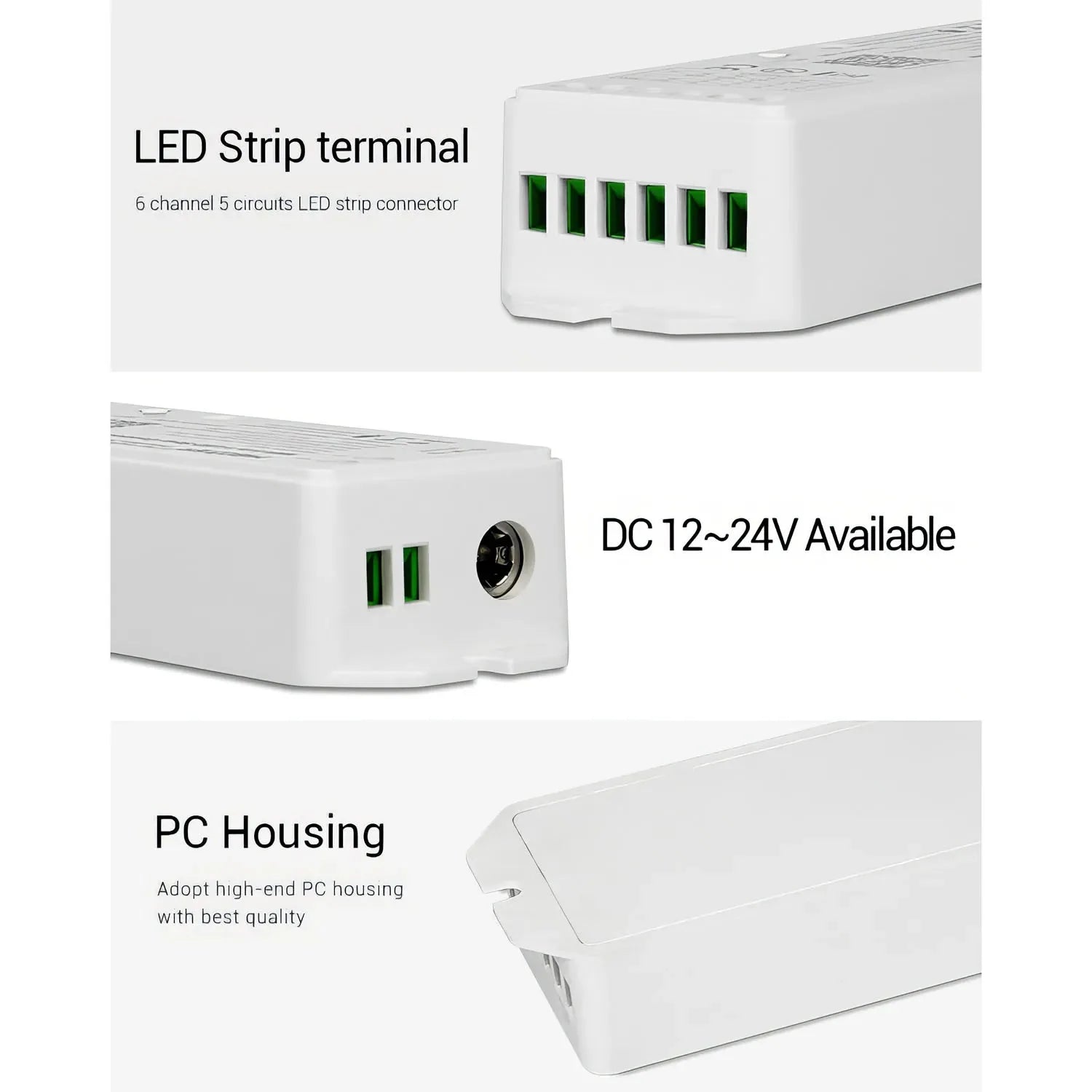

The MiBoxer WL5 is a WiFi LED strip controller built for Single Colour, CCT, RGB, RGBW and RGB+CCT strips. It runs on a 12-24V DC supply and connects straight to a 2.4GHz WiFi network, so no extra hub or bridge is needed to bring it onto your home network.
Miboxer wifi 5 in 1 led strip controller features

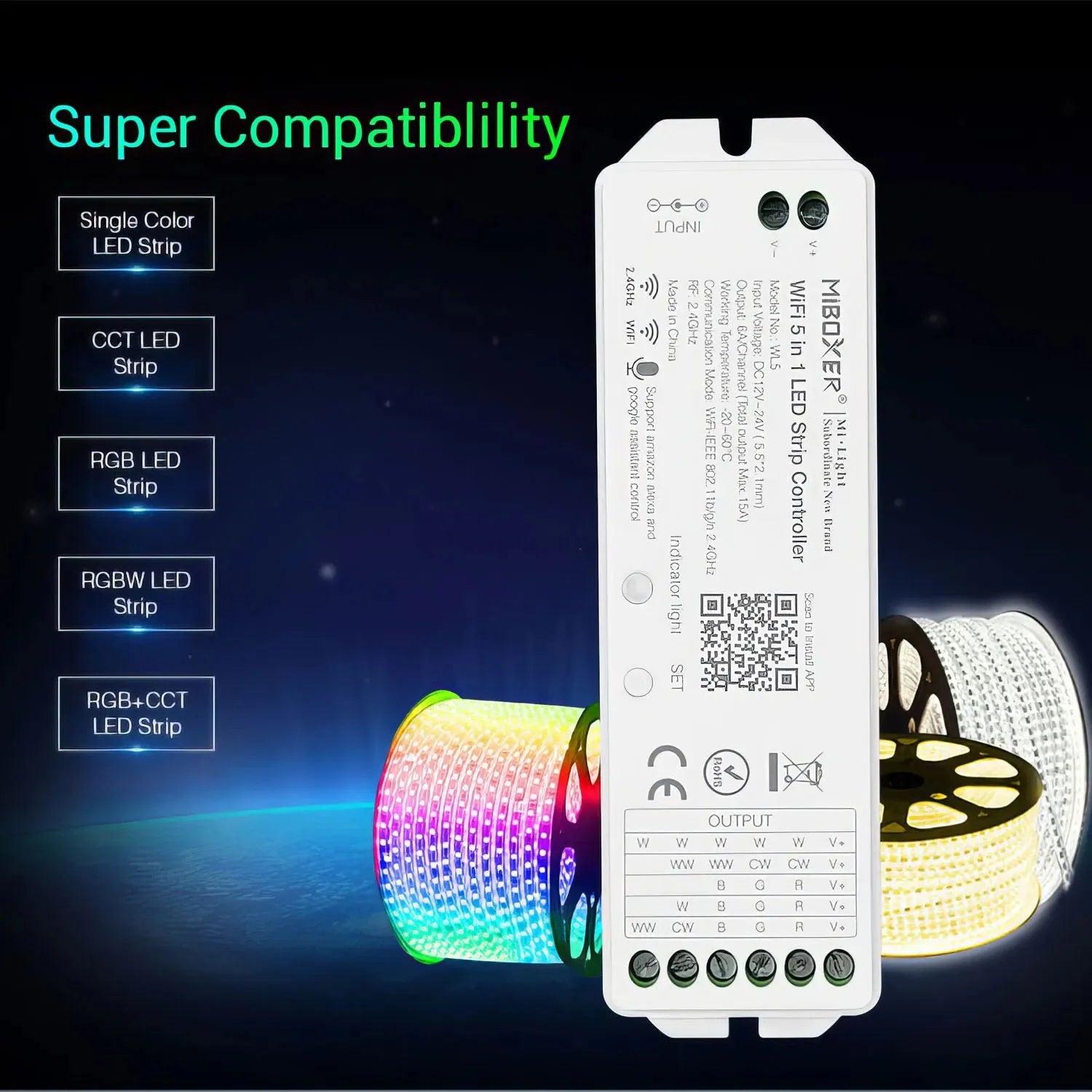

- Strip compatibility, works with Single Colour, CCT, RGB, RGBW and RGB+CCT LED strips.
- Power input, DC12~24V working voltage.
- Output, 6A per channel, 15A total maximum output.

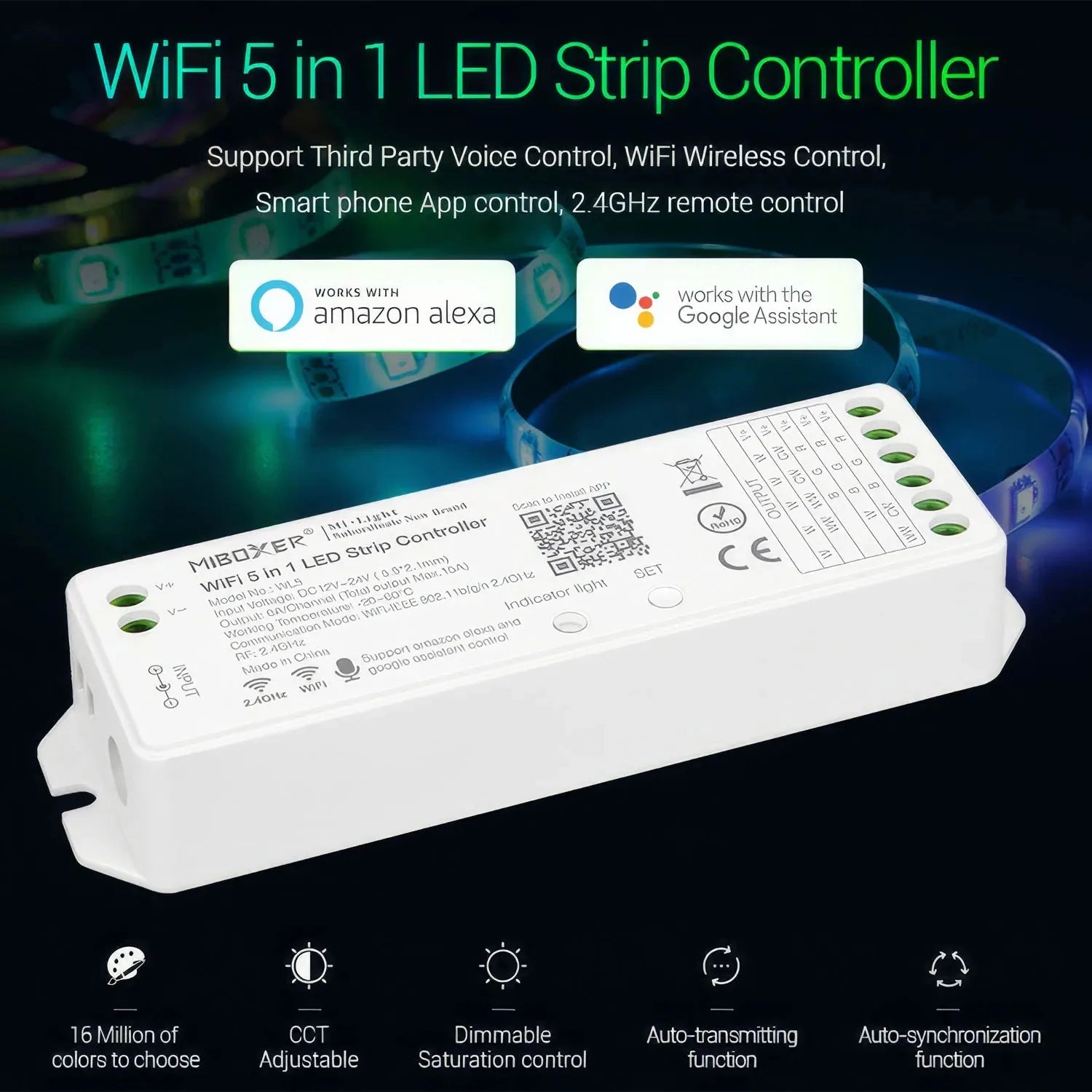

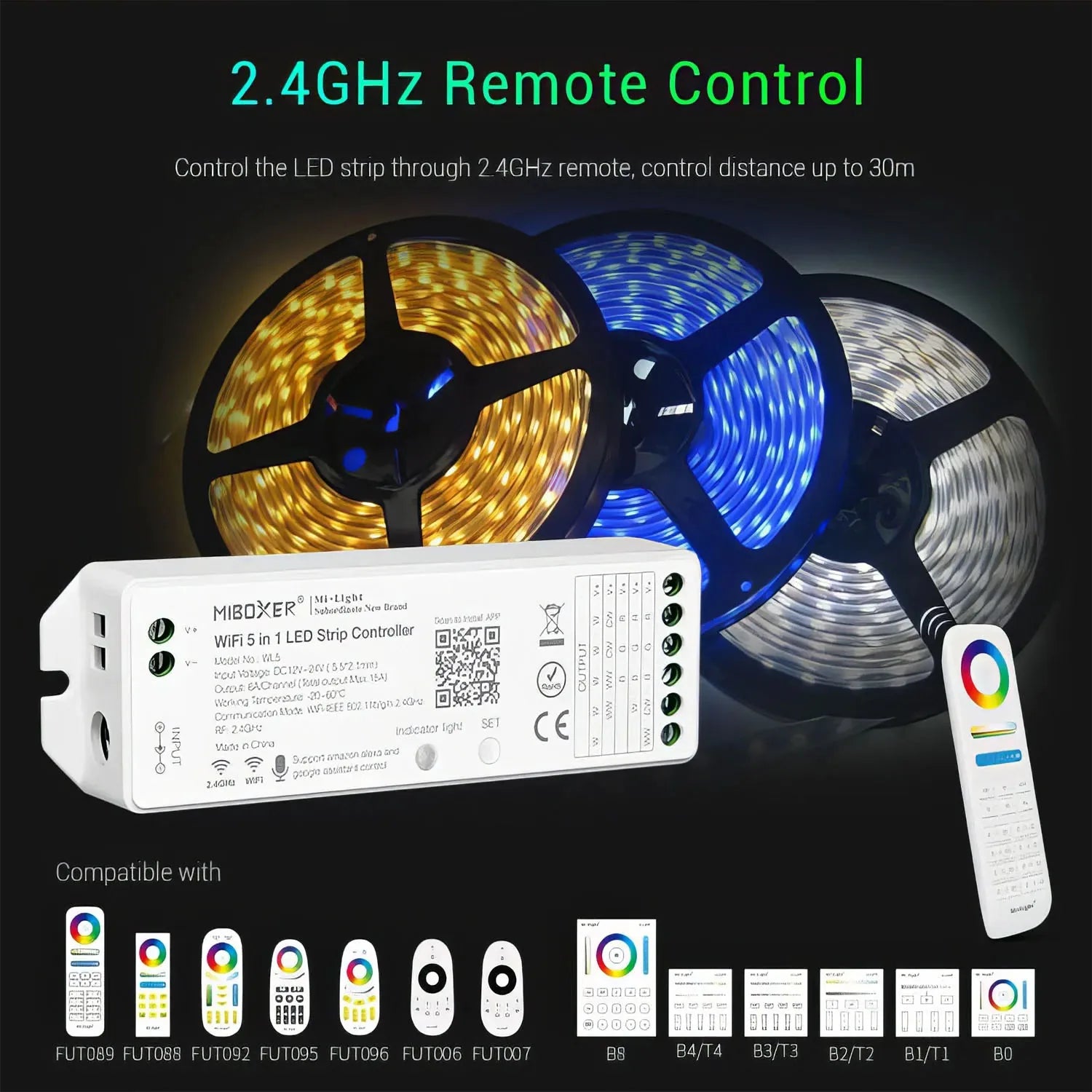

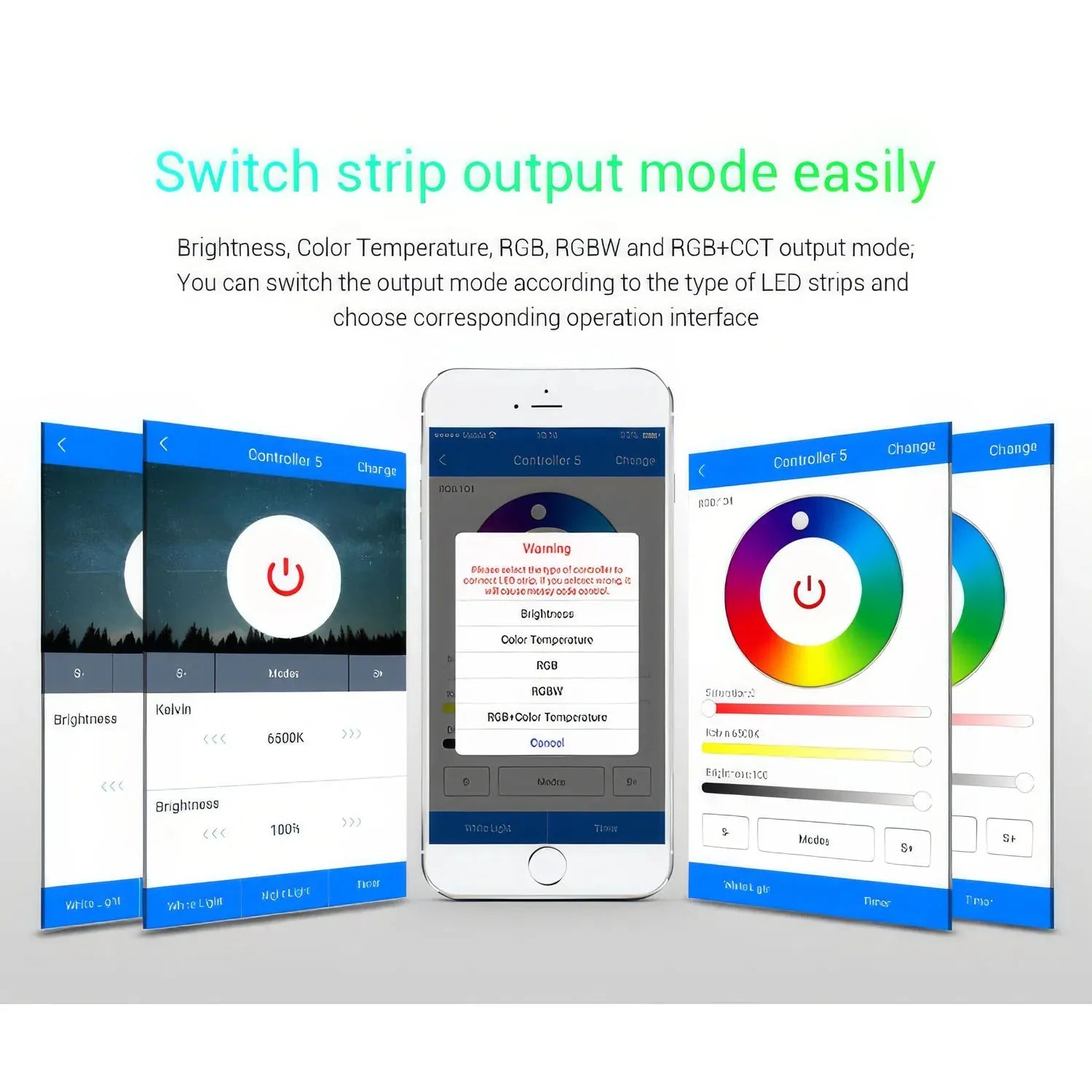

- Control options, Amazon Alexa and Google Assistant voice control, Tuya Smart app control, and a 2.4G RF remote control.
- Colour range, 16 million colours with adjustable colour temperature and saturation.
- Communication, WiFi-IEEE 802.11b/g/n 2.4GHz.
Connectivity and setup

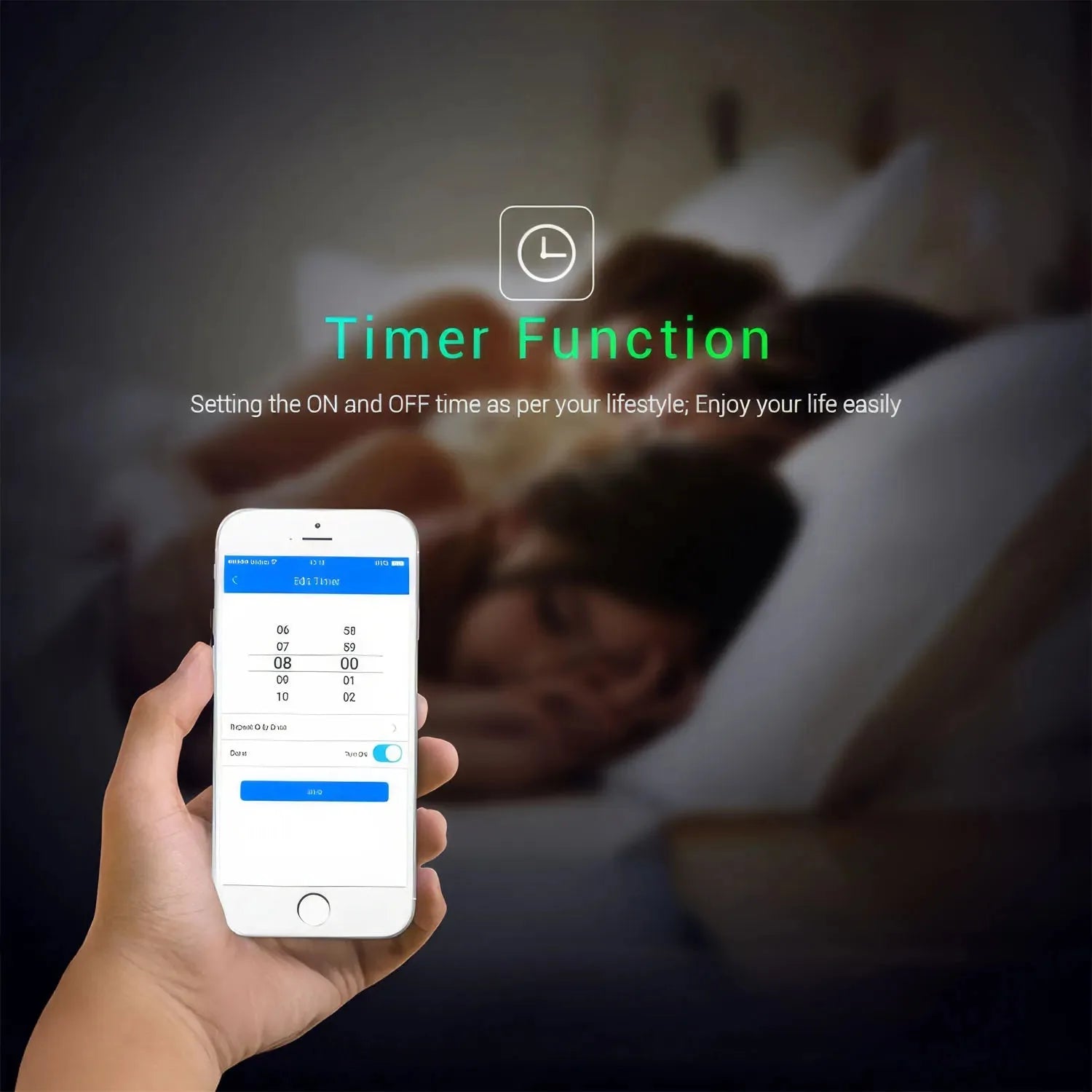

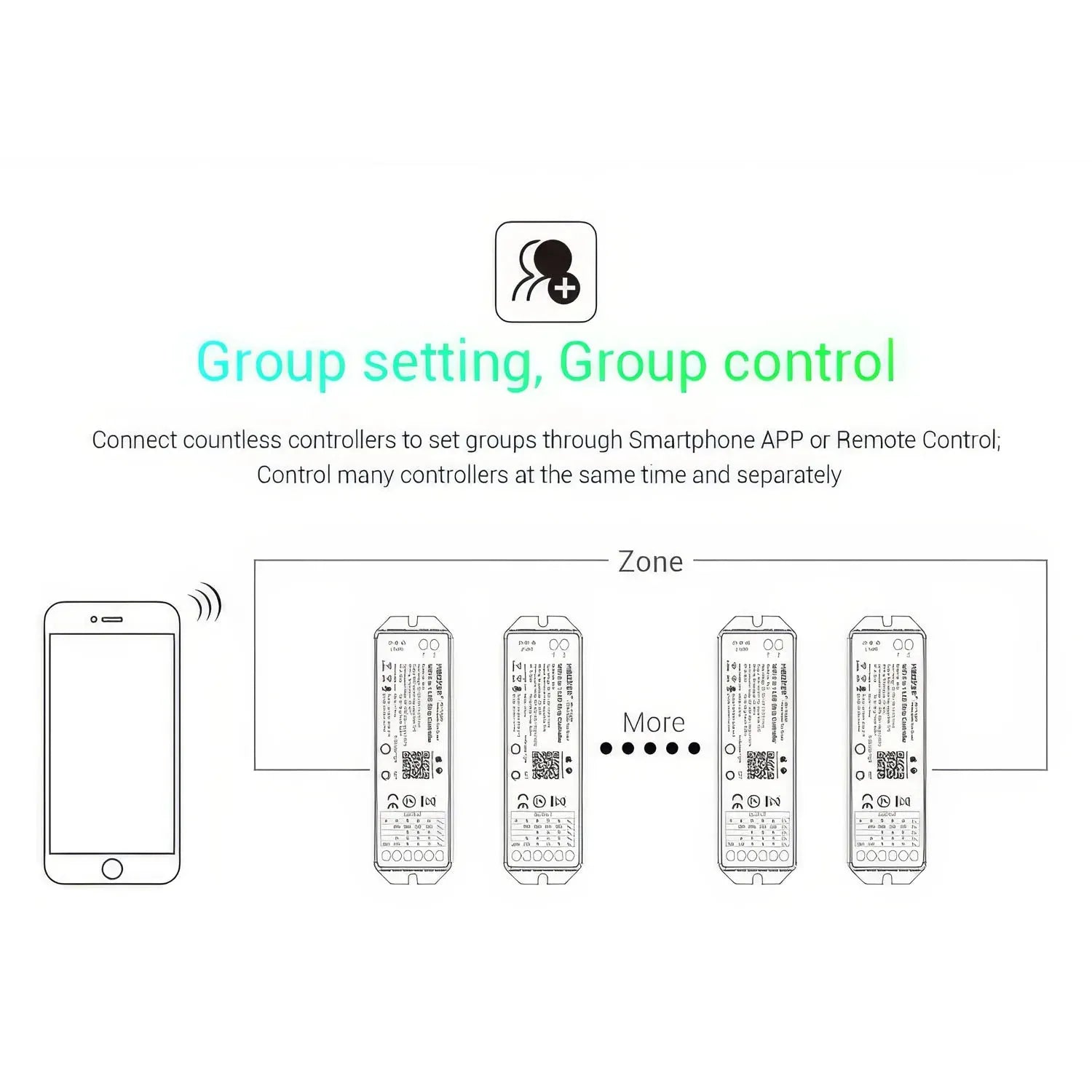

The WL5 connects directly to a 2.4GHz WiFi network without extra hardware. Multiple controllers can be grouped into zones for scenes across a room or a whole property, and a timer function lets you schedule strips to switch on and off automatically.
Applications
Suited to homes and commercial spaces running mixed LED strip types where a single controller needs to switch between Single Colour, CCT, RGB, RGBW or RGB+CCT strips, with app, voice or remote control on hand.
Dimensions

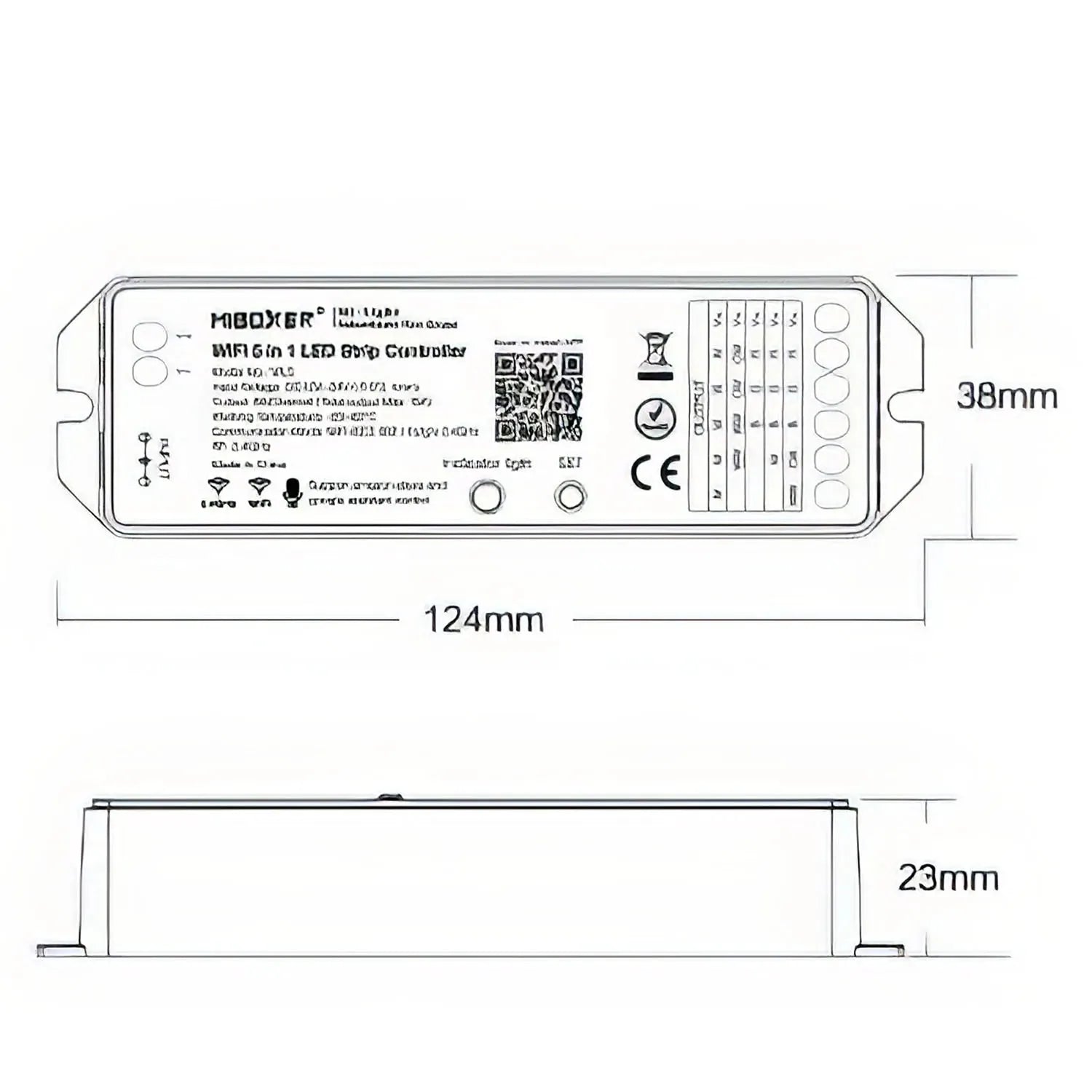

The unit measures 124mm x 38mm x 23mm and operates in temperatures from -20 to 60°C.
Technical Specifications 19 rows Show
| Specification | Details |
|---|---|
| Type | Universal LED strip controller |
| Rated Power | 180W/360W |
| Rated Voltage | 12V/24V DC |
| Light Colour | MONO, CCT, RGB, RGBW, RGB+CCT |
| Output | 6A per channel |
| Total Output | 15A |
| Communication Mode | WiFi-IEEE 802.11b/g/n 2.4GHz |
| Controlling | using the Mi-Light/MiBoxer remote control (see compatible MiBoxer products) |
| The method of communication with the remote control | 2.4GHz radio |

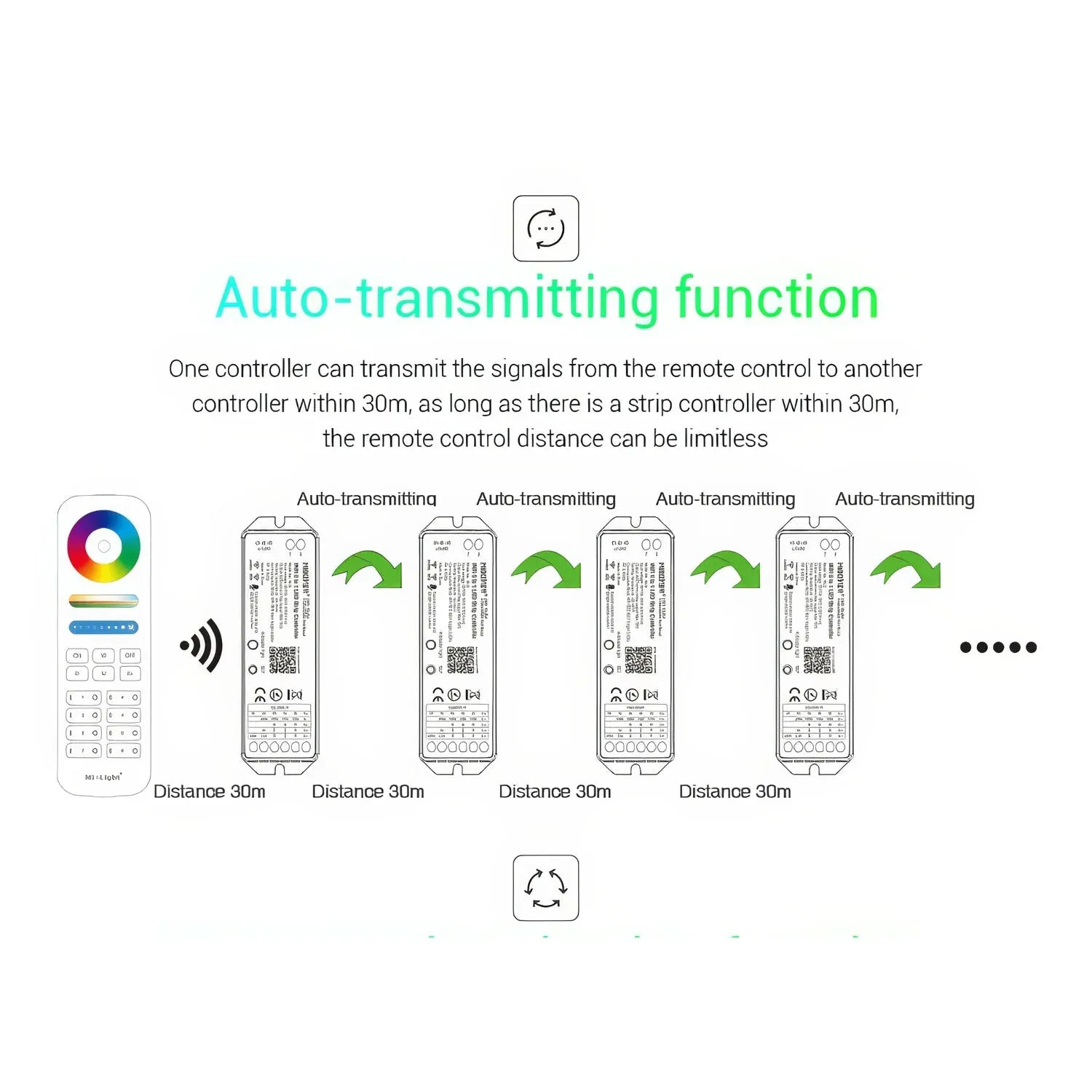

| The range of communication | up to 30 meters in the open area |
| Model Number | WL5 |
| Voice Control | Amazon Alexa, Google Assistant |
| Cooling | free air |
| Working Temperature | -20~60°C |
| Protective Quick | Yes (plastic) |
| Level of Security | IP20 |
| Size | 124 x 38 x 23mm |
| Declarations/Certificates | RoHS, CE, UKCA |
| Warranty | 24 months |
Manufacturer datasheet. Figures as published by the manufacturer.
