Product Description

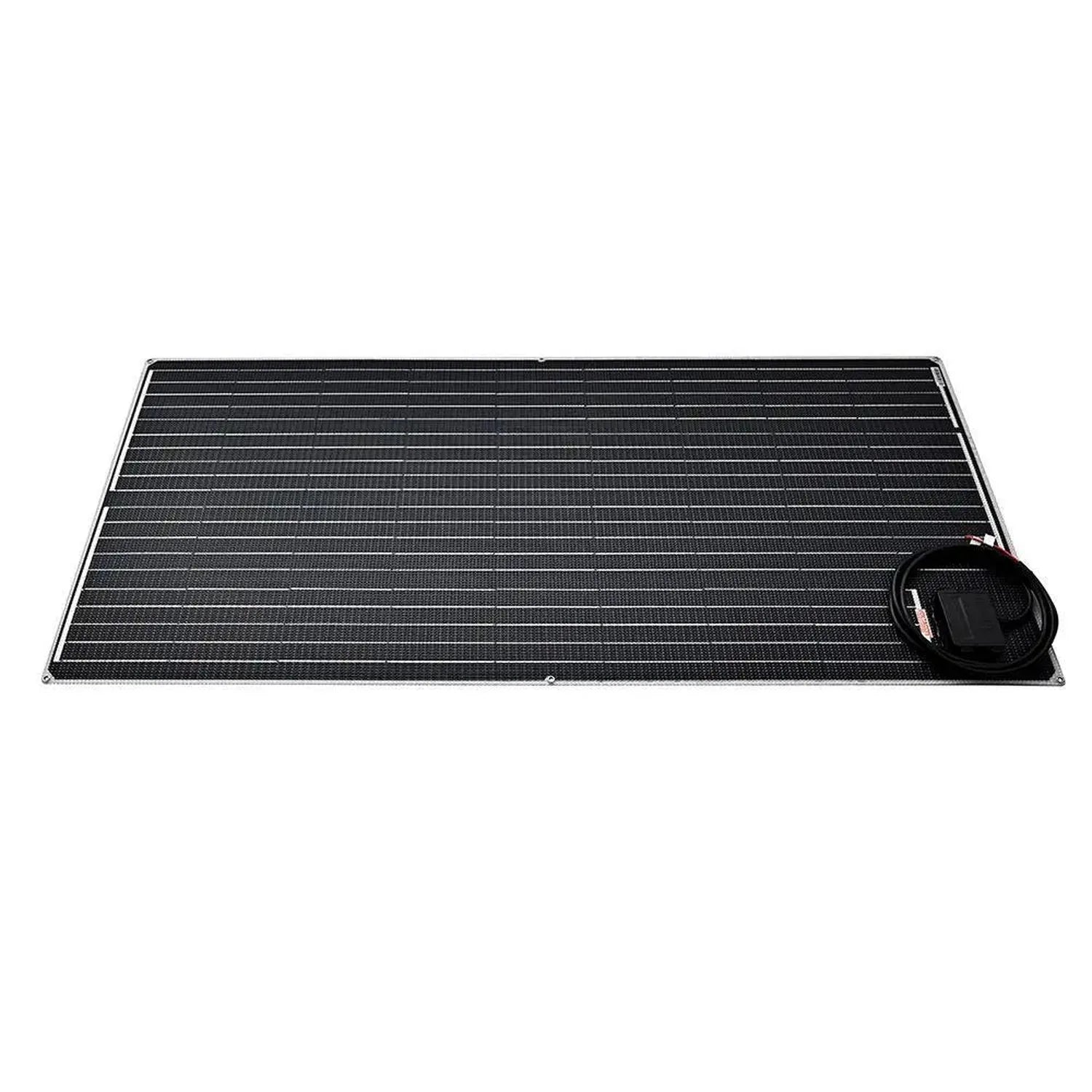

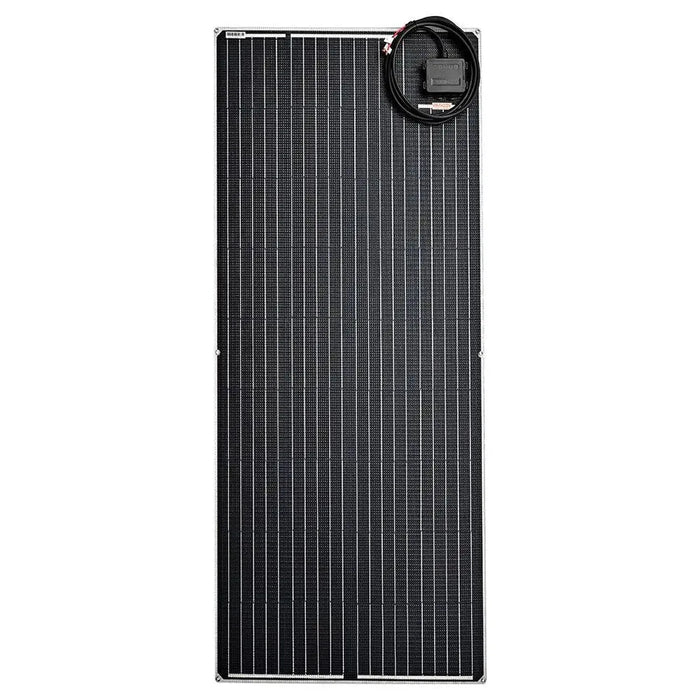

This 195W flexible monocrystalline solar panel uses an ETFE top coating and rated cell efficiency of 22.42%. It weighs 3kg and flexes through a 248-degree arc, making it suitable for curved or uneven surfaces where a rigid panel will not fit.

Key features of this monocrystalline flexible solar panel

  • Power output, 195W maximum power with 22.42% cell efficiency.

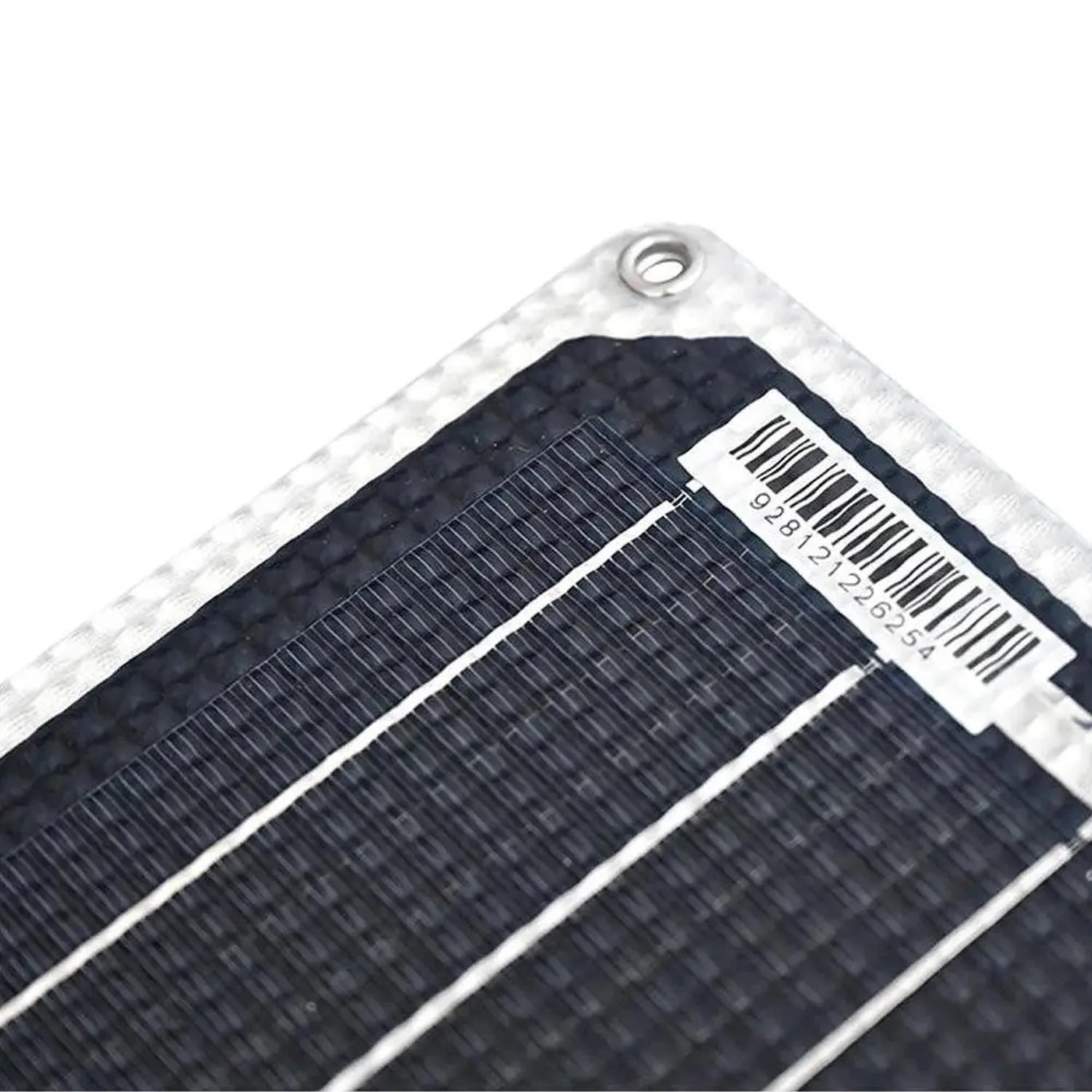

  • ETFE coating, self-cleaning, scratch-resistant and UV-stable surface layer.
  • Flexibility, bends through a 248-degree arc for contoured mounting.
  • Weight and thickness, 3kg, less than 5mm thick.
  • Junction box, IP66-rated with a pre-fitted twin-core double-insulated 3m cable.
  • Cell count, 36 solar cells.

Applications

Designed for campervans, motorhomes, caravans and boats, or any surface unable to take a rigid frame. It works with MPPT chargers at 12V, 24V and 48V.

Mounting

Fix using silicone structural adhesive on the rear of the panel. Grommets are supplied for static, non-mobile installations only. For vehicle or marine fitting, a qualified installer should confirm the correct bonding method.

Build

The ETFE layer resists cracking and UV degradation better than PVF or glass laminates, and its self-cleaning surface helps maintain output outdoors. The panel's positive and negative terminals are clearly marked on the junction box.

Technical Specifications 13 rows Show
ParameterValue
Maximum Power195Watt
Open Circuit Voltage (Voc)23.4V
Voltage at Pmax (Vmp)19.5V
Short Circuit Current (Isc)10.6A
Current at Pmax (Imp)10.0A
Cell Efficiency22.42%
System Max Voltage200Vdc
Power Temperature Coefficient-0.43%/oC
Voltage Temperature Coefficient-0.34%/oC
Current Temperature Coefficient0.05%/oC
Output Tolerance+/- 3%
Operating Temperature Range-20 to 75oC
Number of Cells36 solar cells.

Manufacturer datasheet. Figures as published by the manufacturer.
