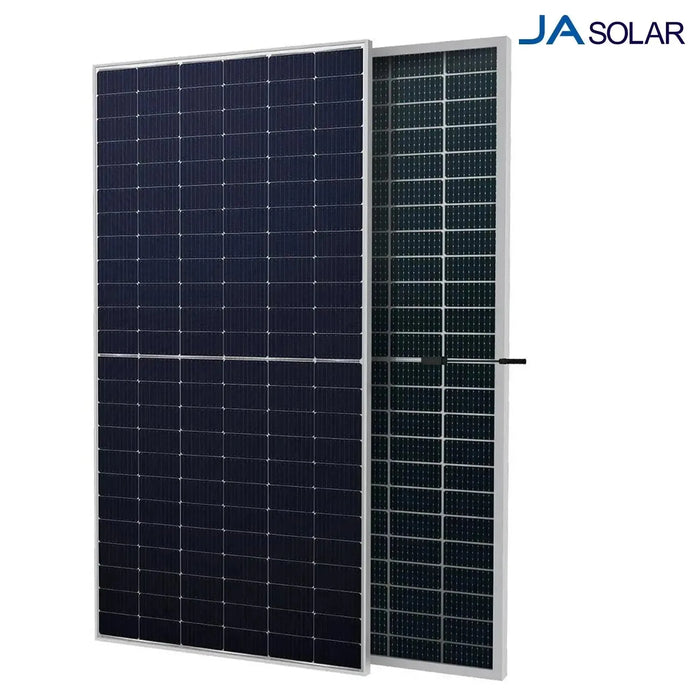

Two JA Solar bifacial photovoltaic panels displayed side by side, showing front and back surfaces with grid patterns and whit

JA Solar 600W Bifacial N-Type Solar Panel | JAM72D40-600/MB

£110.25
Skip to product information
Two JA Solar bifacial photovoltaic panels displayed side by side, showing front and back surfaces with grid patterns and whit
JA Solar 600W Bifacial N-Type Solar Panel | JAM72D40-600/MB

JA Solar 600W Bifacial N-Type Solar Panel | JAM72D40-600/MB

Vendor
JA Solar
SKU
JAM72D40-600-MB
Availability
In stock
Weight
33.0 kg

£110.25inc VAT £91.88exc VAT

Delivery from £39.00 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Talk to our sales team

Product Description

The JA Solar JAM72D40-600/MB is a 600W bifacial N-type double glass solar panel built for commercial rooftops, ground mount arrays and large-scale solar installations. Bifacial cells capture light from both the front and rear surfaces, adding extra energy yield on reflective surfaces such as light-coloured roofing membranes, concrete and open ground. The double glass construction replaces the usual plastic backsheet with a second tempered glass layer, giving better moisture resistance over the panel's life.

Key features of this monocrystalline solar panel

  • Rated output, 600W with 23.2% module efficiency
  • Cell type, N-type bifacial double glass construction
  • Power tolerance, 0 to +3%
  • Maximum system voltage, 1500V DC
  • Electrical figures, Voc 52.79V, Vmp 44.85V, Isc 14.04A, Imp 13.38A
  • Warranty, 12-year product warranty, 30-year linear performance warranty

Applications

At 600W, each panel produces more power per module than standard 450W to 465W panels of similar size, which cuts the number of panels, rails and labour hours needed for a given roof area or ground mount. Rear-side gain from the bifacial cells is greatest on ground mounts and flat membrane roofs, where reflected light from below is consistent; on pitched roofs with dark tiles the rear gain is minimal. N-type cell chemistry gives lower long-term degradation than P-type modules of similar output.

Suited to commercial and industrial rooftops, ground-mounted arrays and solar farms, agricultural buildings and large barn roofs, and flat roofs with reflective membranes.

Installation notes

At 31.8kg and 2278mm long, this panel needs two installers for safe handling. String voltage in cold conditions must be checked against the inverter's maximum DC input, and the panel's maximum system voltage is 1500V DC. Fitting should be carried out by a qualified MCS-accredited solar installer.

What's in the box

  • 1 x JA Solar JAM72D40-600/MB bifacial double glass panel
  • Factory-fitted QC 4.10-351 or MC4-EVO2A connectors and cables
Technical Specifications 20 rows Show
Specification Value
BrandJA Solar
ModelJAM72D40-600/MB
Rated Maximum Power600W
Module Efficiency23.2%
Power Tolerance0 to +3%
Open Circuit Voltage (Voc)52.79V
Maximum Power Voltage (Vmp)44.85V
Short Circuit Current (Isc)14.04A
Maximum Power Current (Imp)13.38A
Dimensions2278 x 1134 x 30mm
Weight31.8kg
Number of Cells144 (6 x 24)
Maximum System Voltage1500V DC
Operating Temperature-40°C to +85°C
Front / Back Glass2.0mm / 2.0mm
Junction BoxIP68, 3 diodes
ConnectorQC 4.10-351 / MC4-EVO2A
Product Warranty12 years
Performance Warranty30 years linear

Manufacturer datasheet. Figures as published by the manufacturer.
