25W Constant Current LED Driver 0-10V PWM 350-1050mA | Mean Well LCM-25
- Vendor
- Meanwell
- SKU
- 770036
- Availability
- In stock
- Weight
- 0.15 kg
£32.54inc VAT £27.12exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

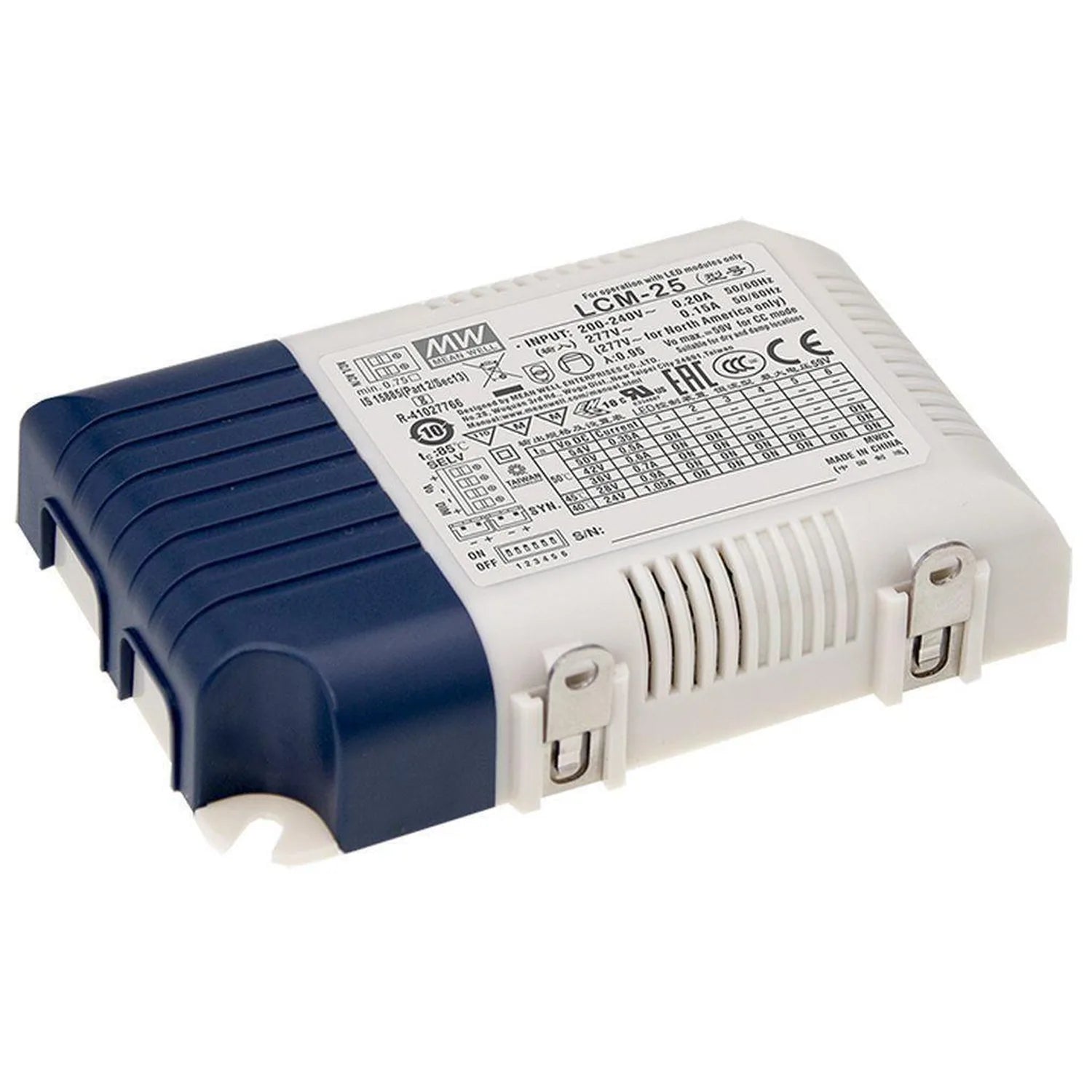

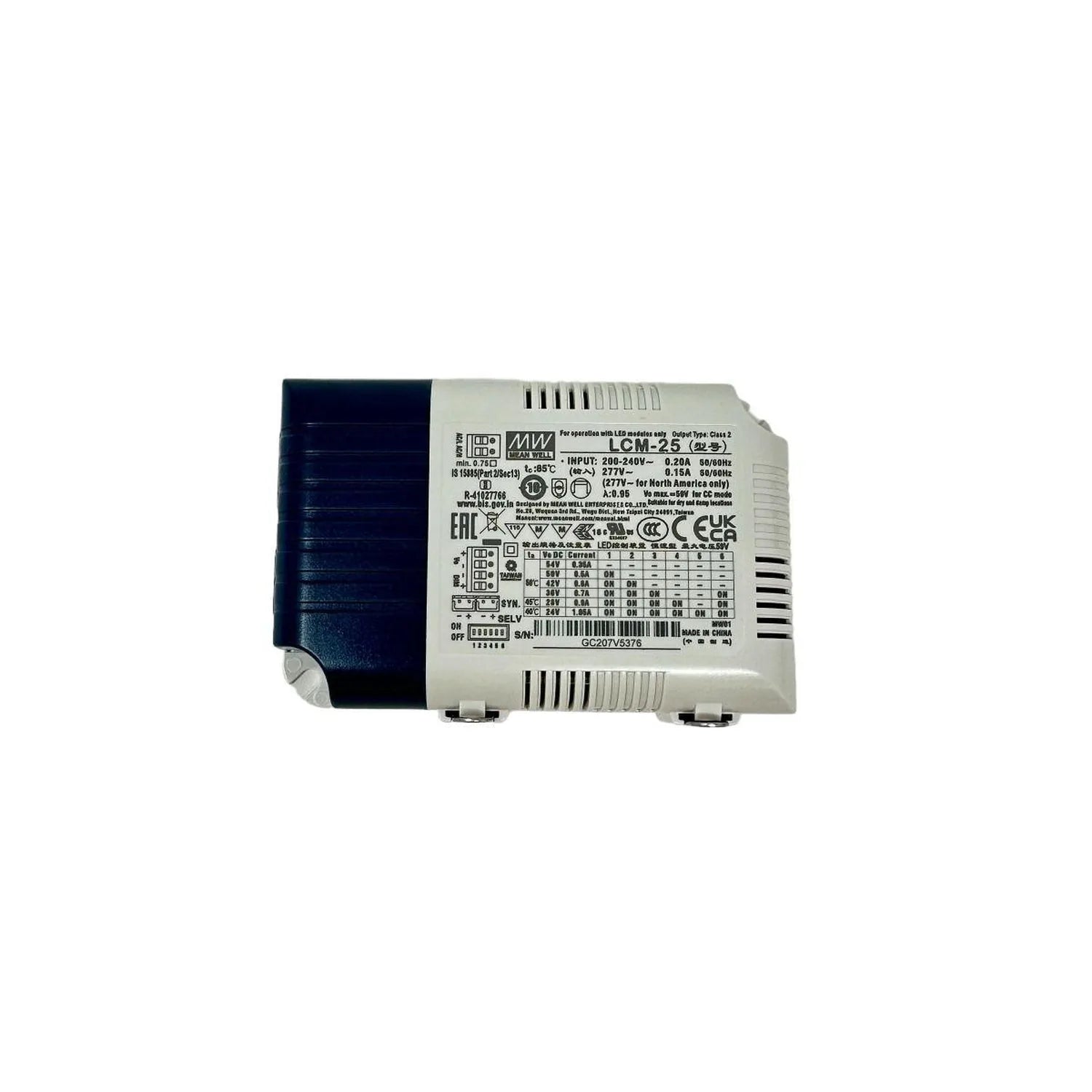

The Mean Well LCM-25 is a 25W dimmable constant current LED driver for downlights, panel lights, T5/T8 LED systems and architectural lighting. Output current is set on DIP switches, from 350mA up to 1050mA, and it leaves the factory at 700mA. Dimming works three ways: a 0-10VDC signal, a 10V PWM signal, or resistance.
Mean Well LCM-25 key features
- Selectable output: 350mA, 500mA, 600mA, 700mA (default), 900mA or 1050mA via DIP switch
- Dimming: 0-10VDC, 10V PWM signal or resistance
- Synchronisation: up to 10 drivers linked as 1 master + 9 slaves
- Input: 180 ~ 277VAC, with built-in active PFC giving PF0.94/230VAC
- Efficiency: 86%, with standby power under 0.5W
- Protection: short circuit and over temperature, both recovering automatically
Installation and applications

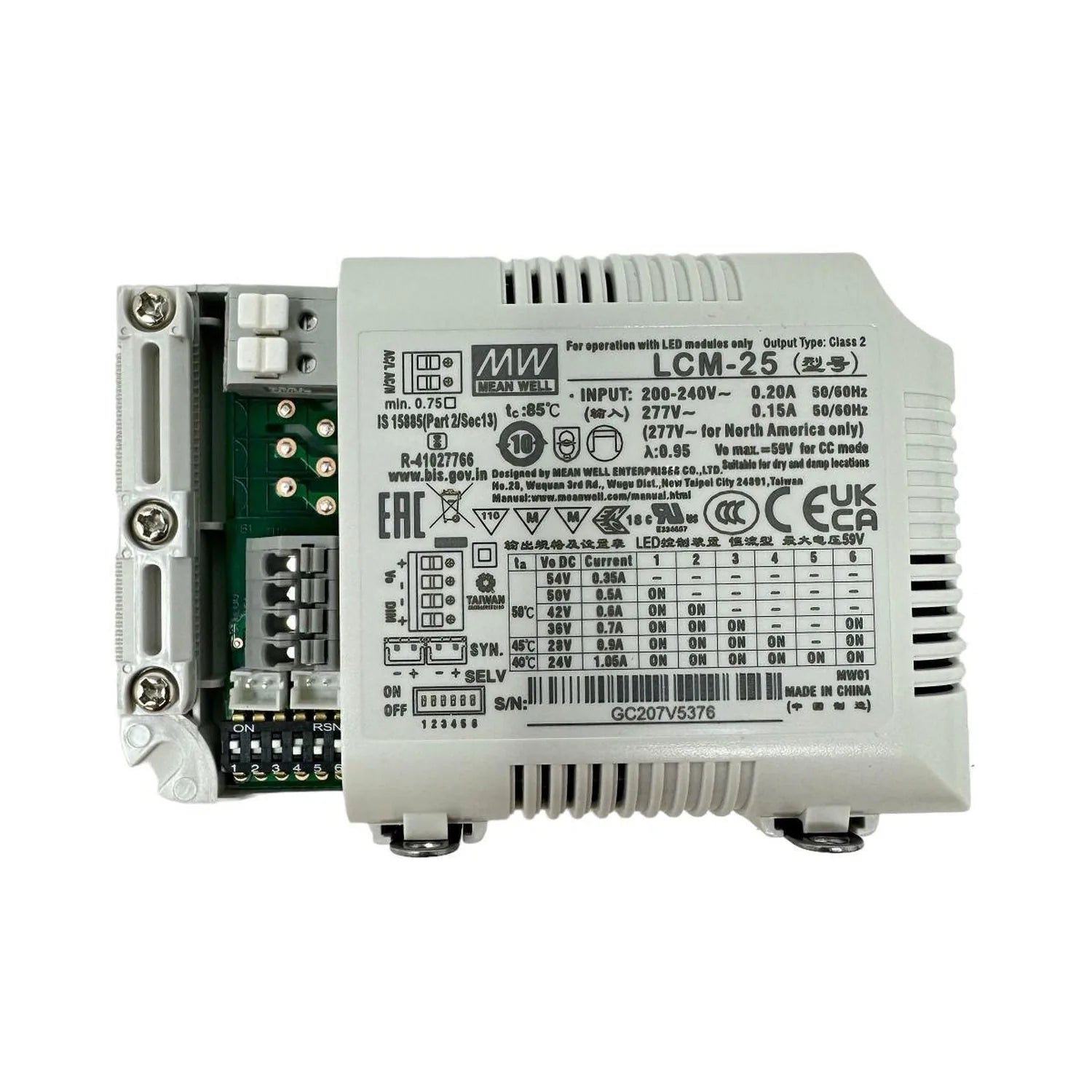

The case is low profile plastic, Class II, and cooled by free air convection. Input and output terminals sit on the same side. In a cramped ceiling void that makes a real difference, since cables only need to reach one end of the unit. It measures 105*68*23mm and weighs 0.16Kg.
Because one driver can act as master to nine others, a run of downlights or panels across a room can be dimmed together from a single control signal. The adjustable current lets one stocked part cover LED loads that need different drive currents, which suits installers who would rather not carry six separate drivers.
Before you wire it
- Minimum dimming level is about 6%
- Do not connect DIM- to -V
- For indoor use only, installed in a well-ventilated place by a qualified person
Technical Specifications 30 rows Show
| Brand | Mean Well |
| Model | LCM-25 |
| Power | 25W |
| Output type | Constant Current |
| Current level | 350mA 500mA 600mA 700mA(default) 900mA 1050mA |
| Factory default current | 700mA |
| Current tolerance | 5% |
| Current ripple | 5.0% max. @rated current |
| Setup time | 500ms / 230VAC |
| Input voltage | 180 ~ 277VAC 254 ~ 392VDC |
| Frequency | 47 ~ 63Hz |
| AC current | 0.17A/230VAC 0.15A/277VAC |
| THD | <20% (@load50%/230VAC; @load75%/277VAC) |
| Inrush current | Cold start 20A at 230VAC |
| Leakage current | <0.5mA / 240VAC |
| Max. drivers on a 16A breaker | 26 units (type B) / 44 units (type C) at 230VAC |
| Dimming | 0 ~ 10VDC, or 10V PWM signal or resistance |
| Synchronisation | Synchronization up to 10 drivers (1 master + 9 slaves) |
| Sync dimming range | 10%~100% |
| Efficiency | 86% |
| Power factor | PF0.94/230VAC, PF0.91/277VAC @full load |
| Standby power | <0.5W |
| Protection | Short circuit, over temperature |
| Housing | Plastic enclosed (Class II) |
| Cooling | Free air convection |
| Withstand voltage | I/P-O/P:3.75KVAC |
| Safety standards | UL8750, CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 |
| MTBF | 3298.3K hrs min. Telcordia SR-332 (Bellcore) |
| Dimensions | 105*68*23mm (L*W*H) |
| Weight | 0.16Kg |
Manufacturer datasheet. Figures as published by the manufacturer.
