Glass Light Switch Touch LED Dimmer Triac RF 2.4GHz | Ledison S1-T
- Vendor
- Ledison
- SKU
- 201000
- Availability
- In stock
- Weight
- 0.15 kg
£31.49inc VAT £26.24exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

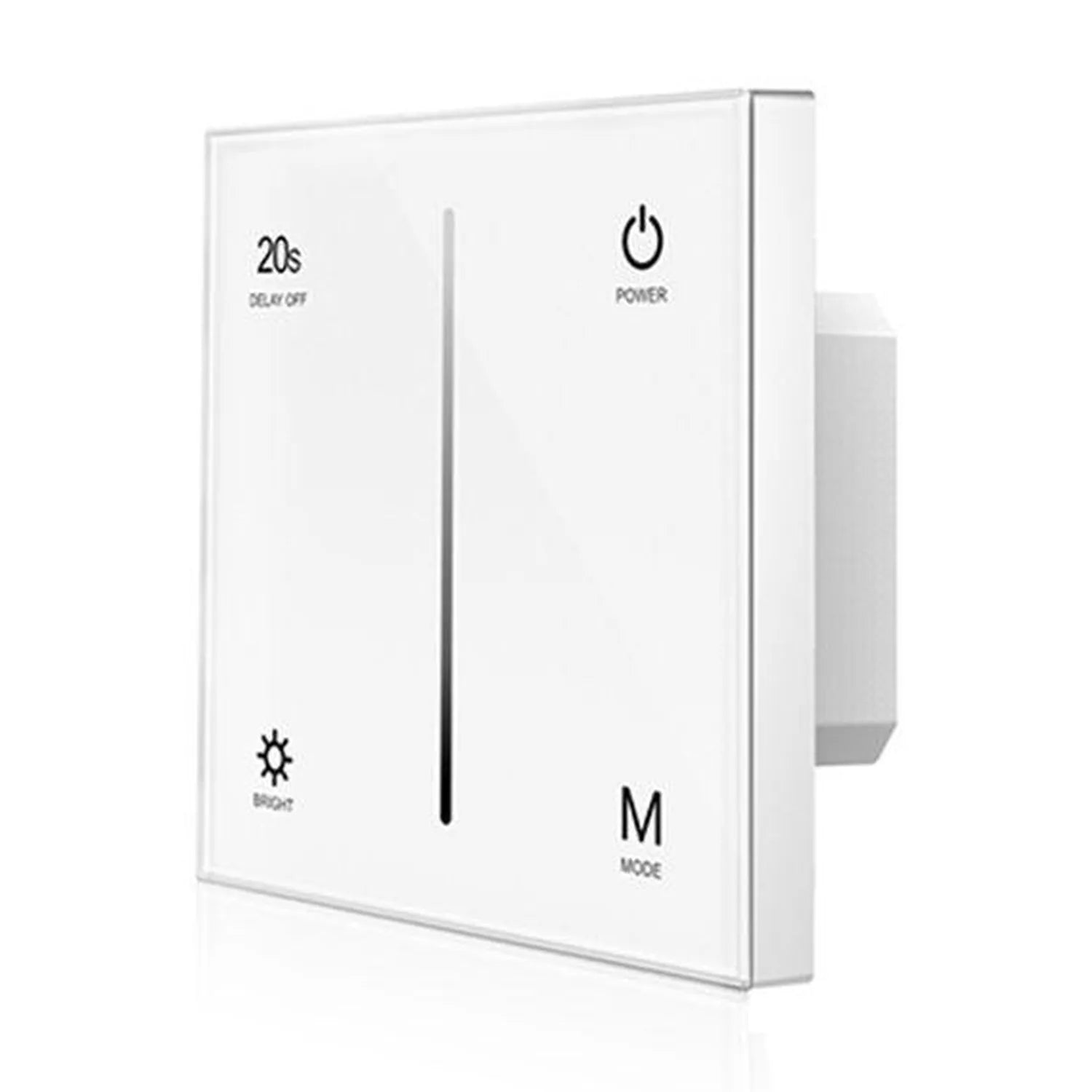

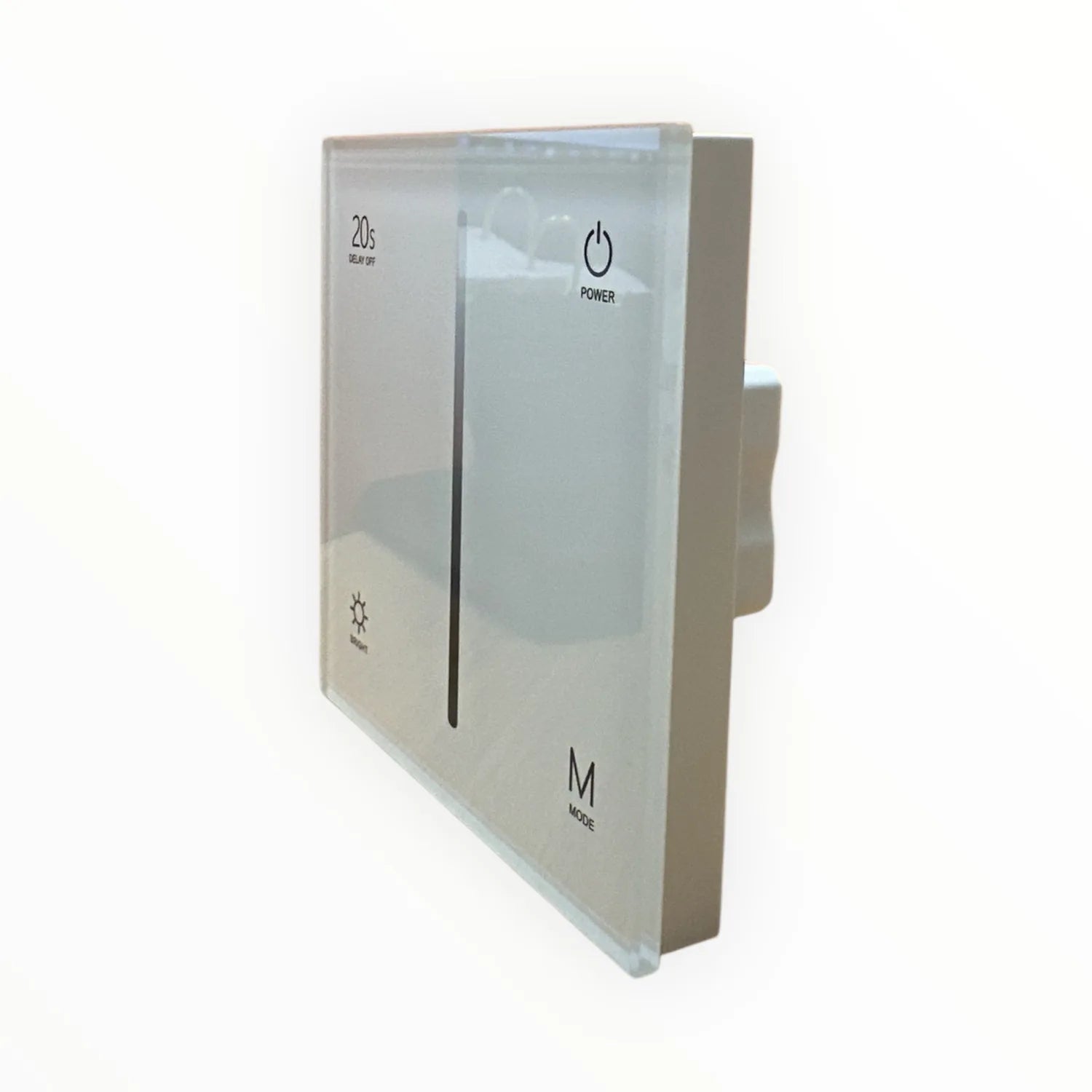

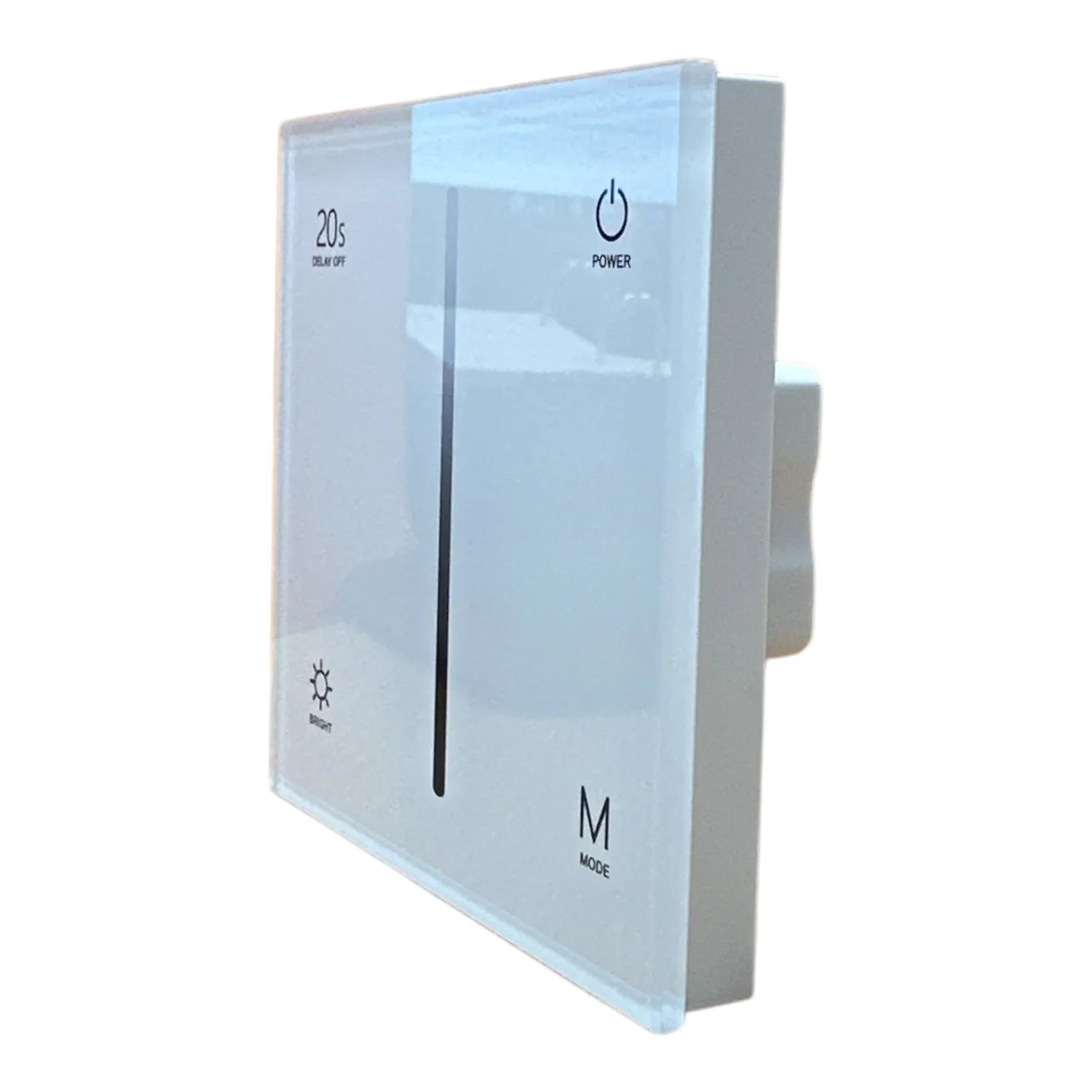

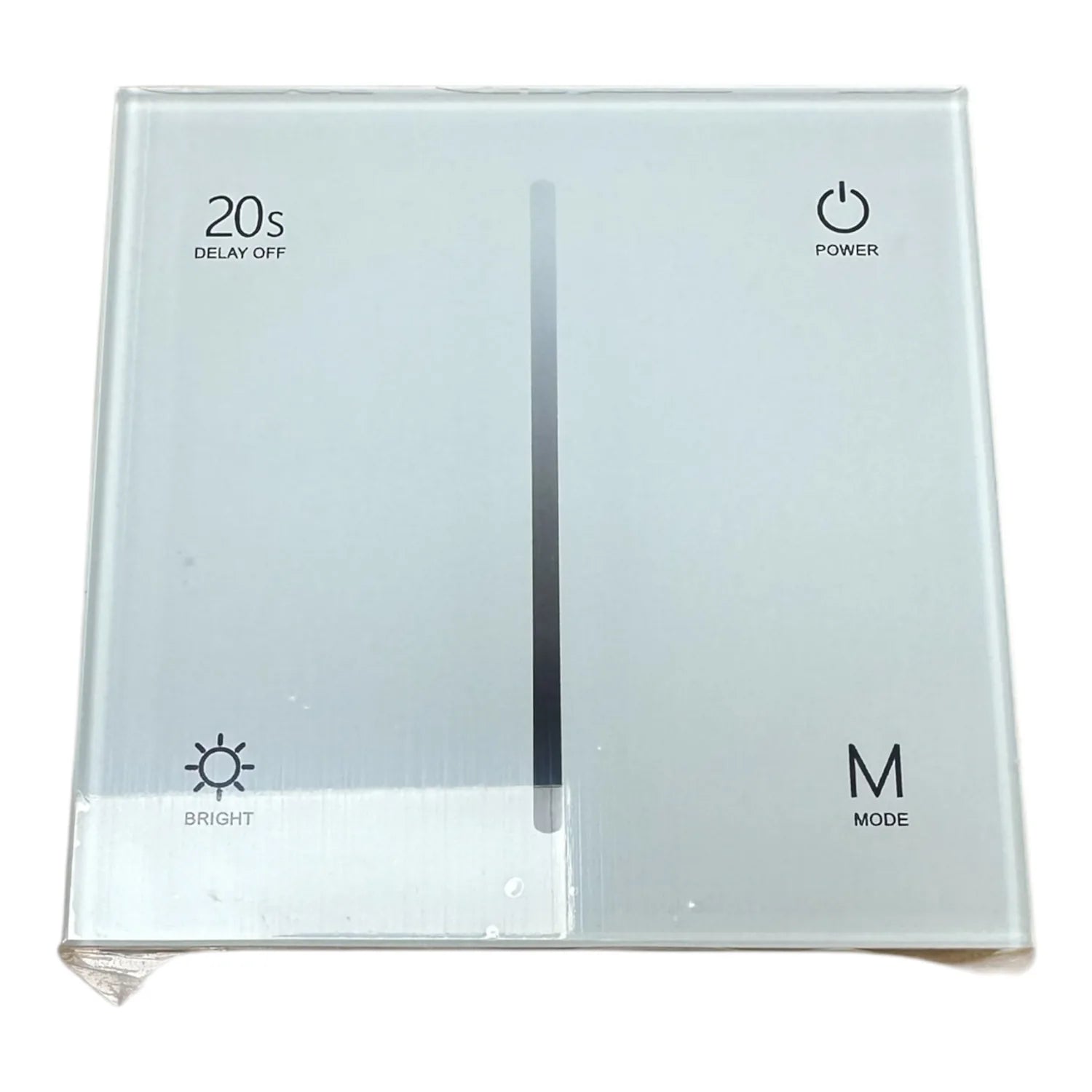

This glass light switch pairs an AC Triac LED dimmer with a tempered glass touch panel. Slide a finger along the centre of the panel and the brightness moves anywhere from 0 to 100% across 256 levels. The panel is backlit. You can find it in the dark without fumbling for the wall.
Glass light switch and dimmer features
- Supply: AC100-240V input and output
- Output current: max 1.2A
- Output power: max 288W at 240V (120W at the bottom of the AC100-240V input range)
- Dimming: 256 levels from 0-100%, with leading edge or trailing edge set by a DIP switch
- Remote control: works with compatible Skydance RF 2.4GHz remotes from up to 30 metres
- Delay off: turns the light off after 20s
Compatible lighting
The S1-T handles dimmable LED lamps, Triac dimmable LED drivers, halogen and incandescent lights. Because the dimming edge is selectable, you can match the switch to whichever method your lamps or drivers prefer. It carries an IP20 rating and a 5-year warranty.
Fitting and load sizing

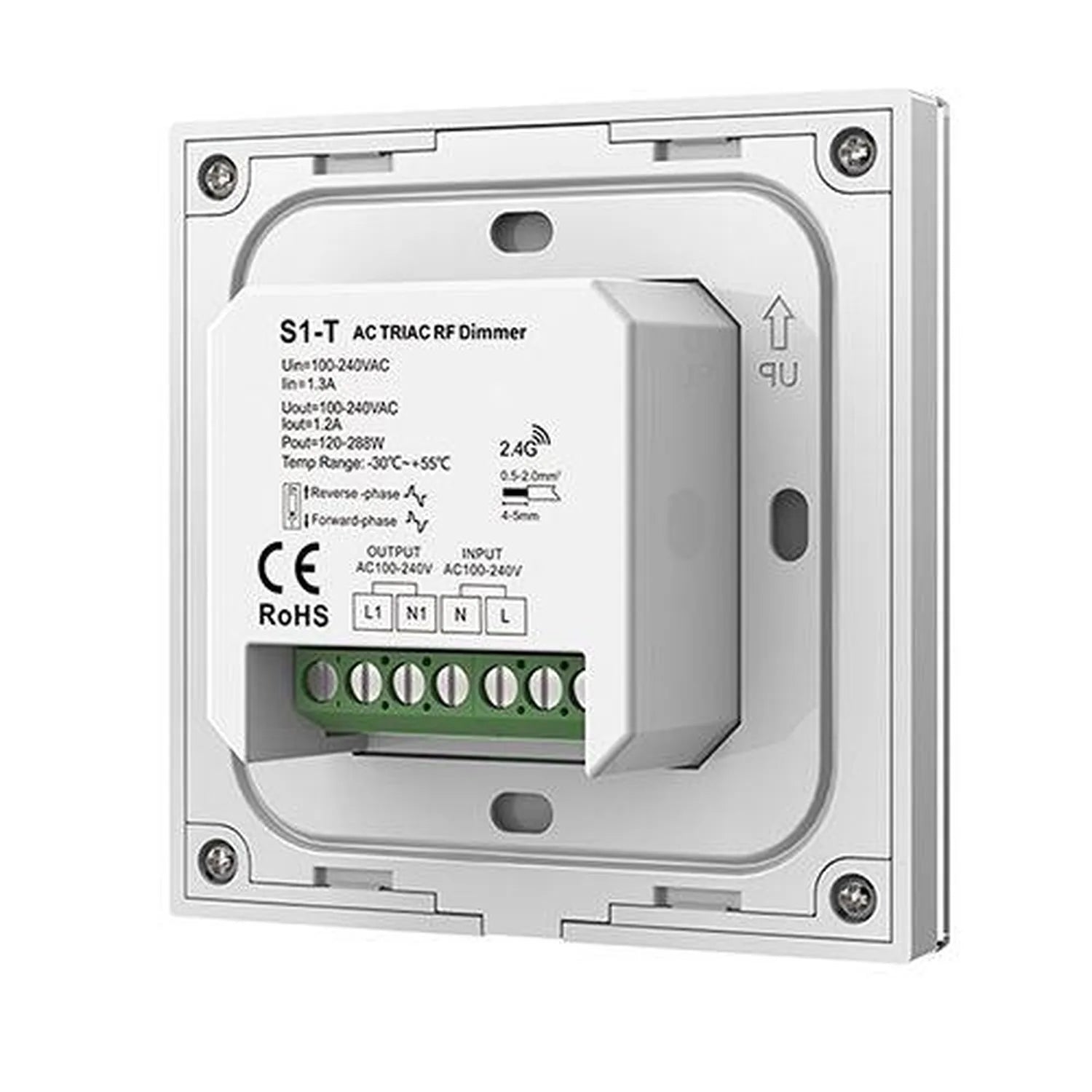

The switch fits standard European 86-size back boxes. It measures 86mm x 86mm, with an 11.5mm front panel and a 35mm back part behind it.
Set the DIP switch before you switch the power on. When working out how many lamps or drivers one switch can carry, go by their input power or input current rather than their output power, and keep the total within the 1.2A and 288W limits above. Get that wrong and the load is understated.
Optional remote
A Skydance 2.4G dimming remote is not required for the touch panel to work. Add one if you want to adjust the lights from across the room, with control from up to 30m.
Technical Specifications 24 rows Show
| Model | S1-T |
| Product type | Touch glass panel AC phase-cut dimmer, 1 channel output |
| Input voltage | AC100-240V |
| Output voltage | AC100-240V |
| Output current | Max 1.2A |
| Output power | Max 288W at 240V (120W at the bottom of the AC100-240V input range) |
| Dimming method | Touch Slide + RF 2.4GHz |
| Dimming levels | 256 Levels |
| Dimming range | 0-100% |
| RF control distance | Up to 30m |
| Dimming type | Leading Edge / Trailing Edge Selectable |
| Compatible loads | Dimmable LED, Halogen, Incandescent |
| IP rating | IP20 |
| Operating temperature | -30°C to +55°C |
| Maximum case temperature | +85°C |
| Dimensions (datasheet drawing) | 86mm x 86mm, 11.5mm front panel, 35mm back part |
| Certifications | CE, EMC, LVD |
| Warranty | 5 Years |
| Back box | European style 86 size |
| Delay off | Turn off light after 20s |
| Remote control | Skydance's 2.4G dimming remote control (optional) |
| EMC standard | EN 55015:2013, EN 61547:2009, EN 61000-3-2:2014, EN 61000-3-3:2013 |
| Safety standard | EN 61347-2-11:2002, EN 61347-1:2015, EN 62493:2015 |
| Barcode | 0790404941824 |
Manufacturer datasheet. Figures as published by the manufacturer.
