RGB+CCT LED Dimmer Controller 4 Zone Touch Panel DMX512 | Ledison T15-1
- Vendor
- Ledison
- SKU
- 201034
- Availability
- In stock
- Weight
- 0.15 kg
£35.65inc VAT £29.71exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

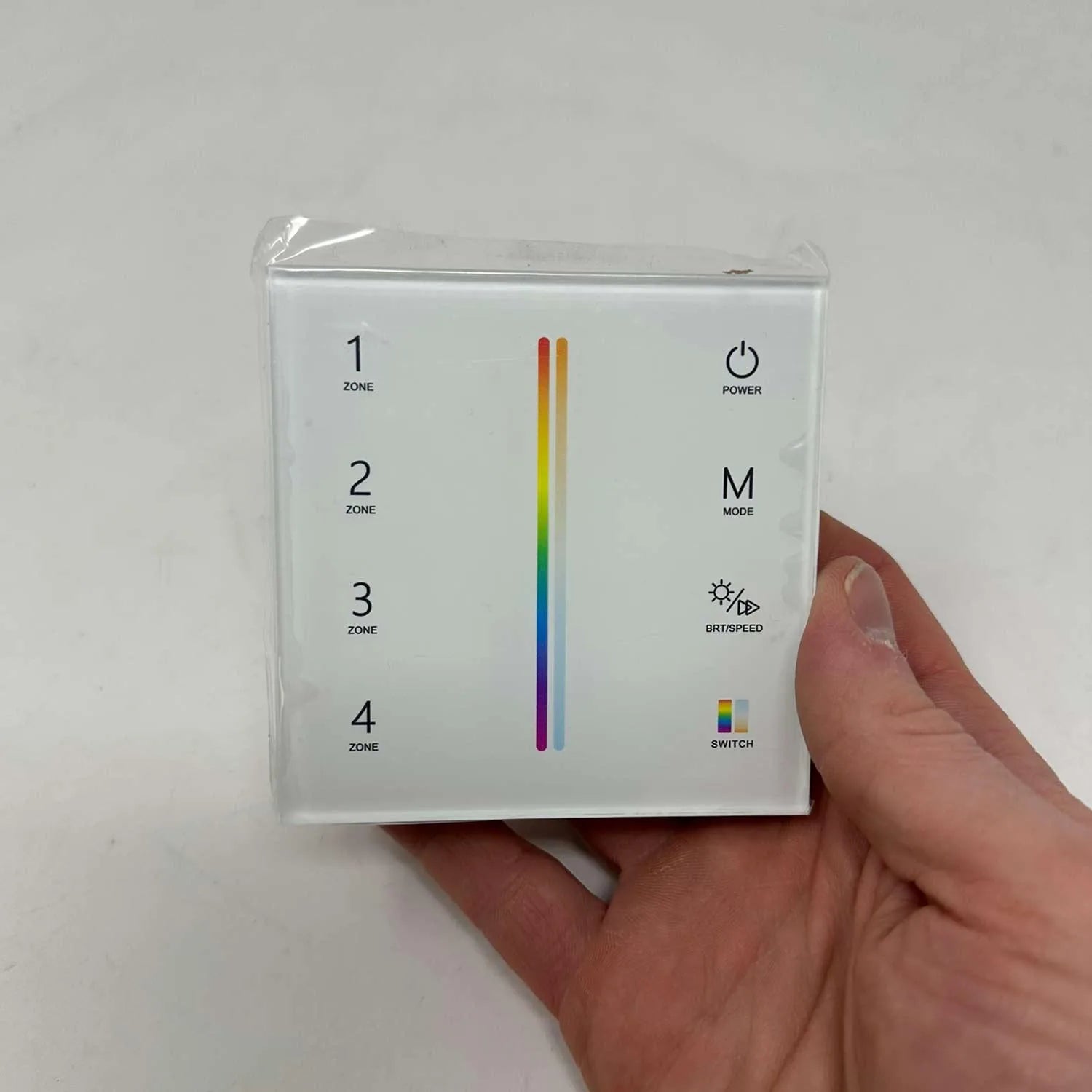

The Ledison T15-1 is a mains-powered wall touch panel for RGB+CCT lighting. It runs four zones, separately or all together, and a touch slide sets colour, colour temperature and brightness. Input is 100-240VAC.
RGB LED dimmer controller features
- Zones: 4 zones, RGB+CCT
- DMX512 output: 20 DMX channels, works with DMX decoders from any supplier
- RF 2.4GHz: acts as a 4 zone remote, with each zone able to control several RF 2.4G LED controllers
- Dimming: 256 levels across a 0-100% range
- Dynamic modes: 10 built in, with 10 brightness and speed levels
- RF range: 10m in barrier-free space
Two ways to control your lighting
Wire it as a DMX512 master and it drives DMX decoders from any supplier. Or use it as an RF 2.4GHz remote, where a single zone can command several RF 2.4G LED controllers at once. Pick whichever suits the installation.
Where it fits
RGB+CCT LED strip lighting at home is the obvious use. It also suits shops, showrooms, hotels and offices, along with architectural and decorative lighting schemes.
Installation notes

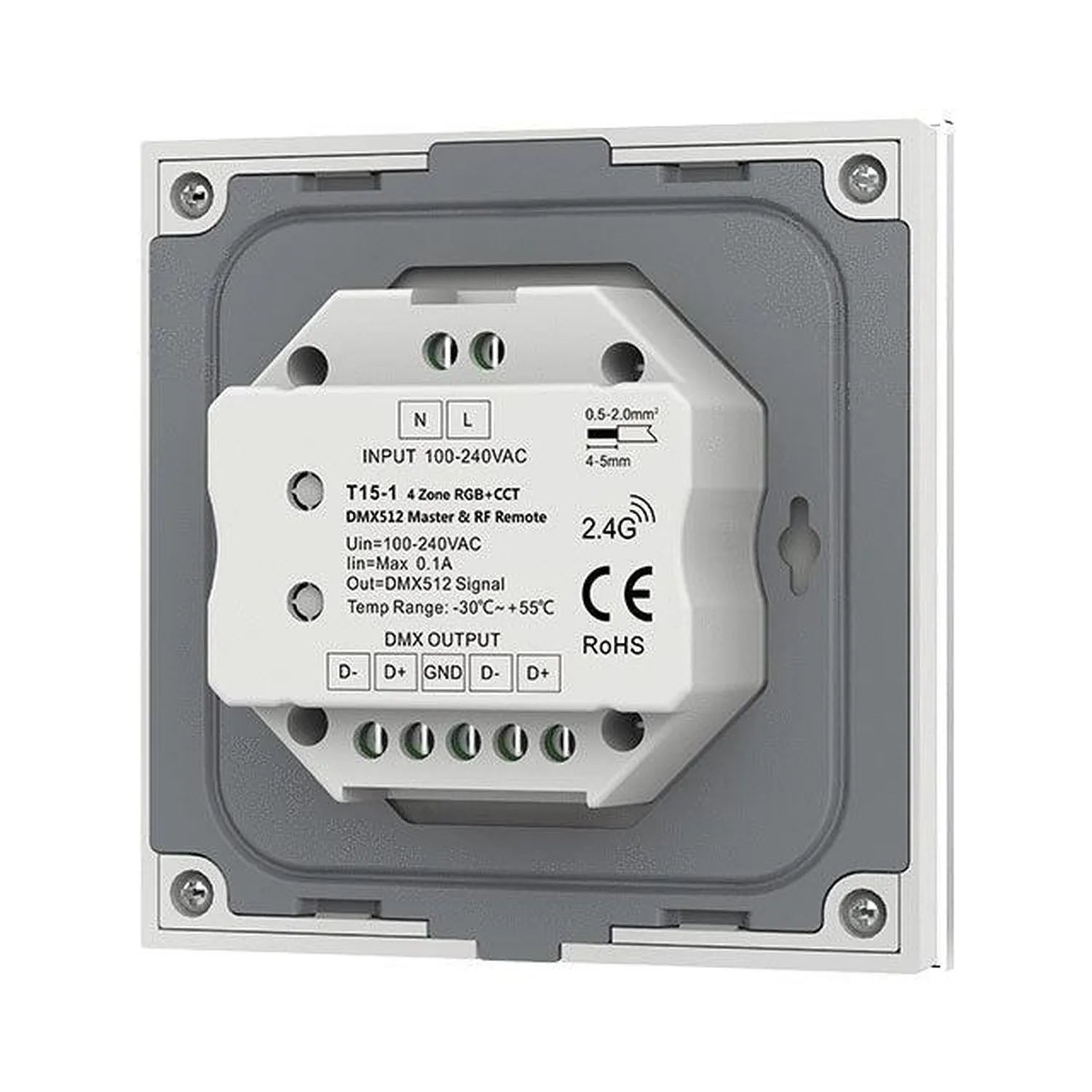

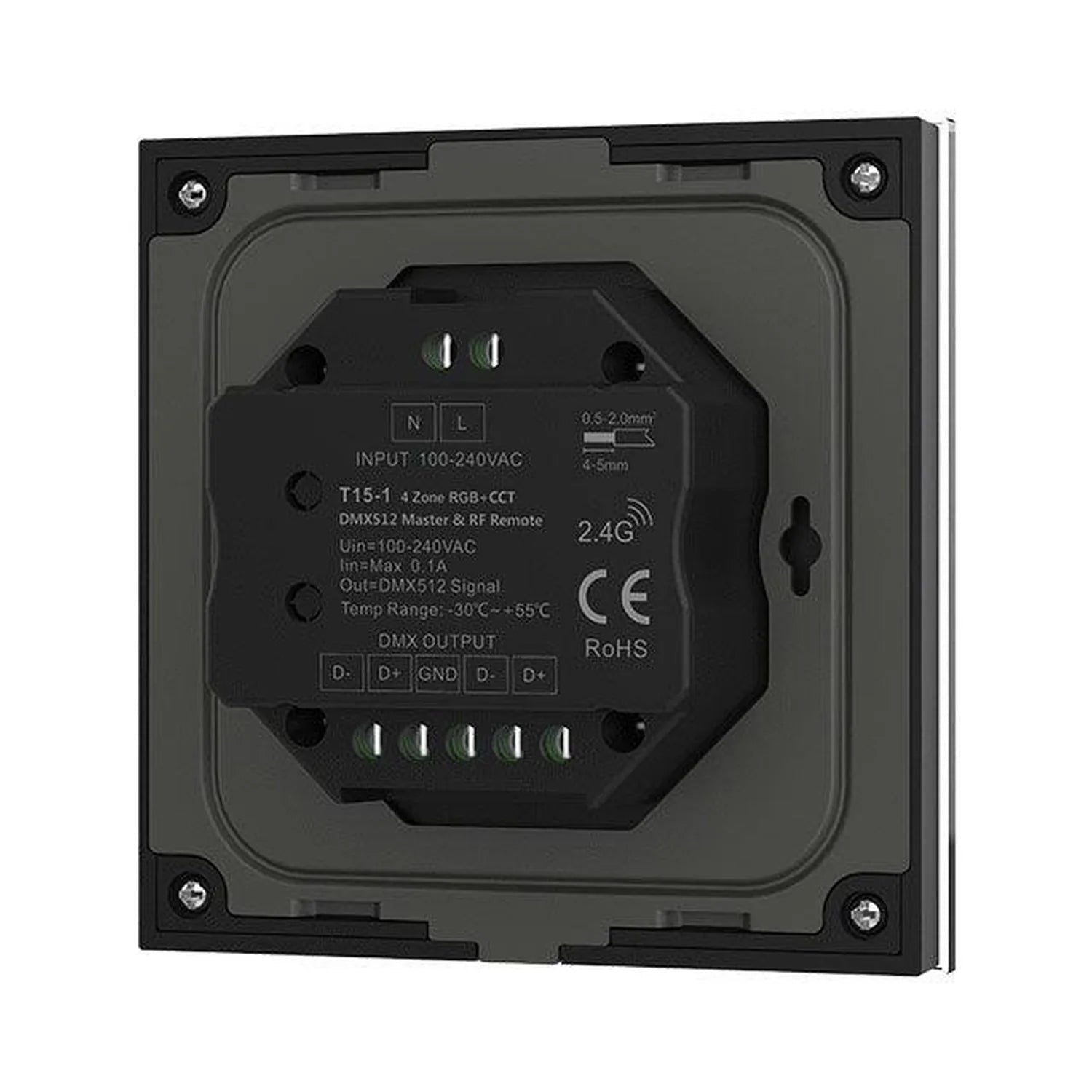

The panel fits a European style 86 size back box and measures 86.00 mm x 86.00 mm x 33.00 mm. Set the DMX decoder addresses as shown in the manual. Rated IP20, so it is for indoor use.
Finish and warranty

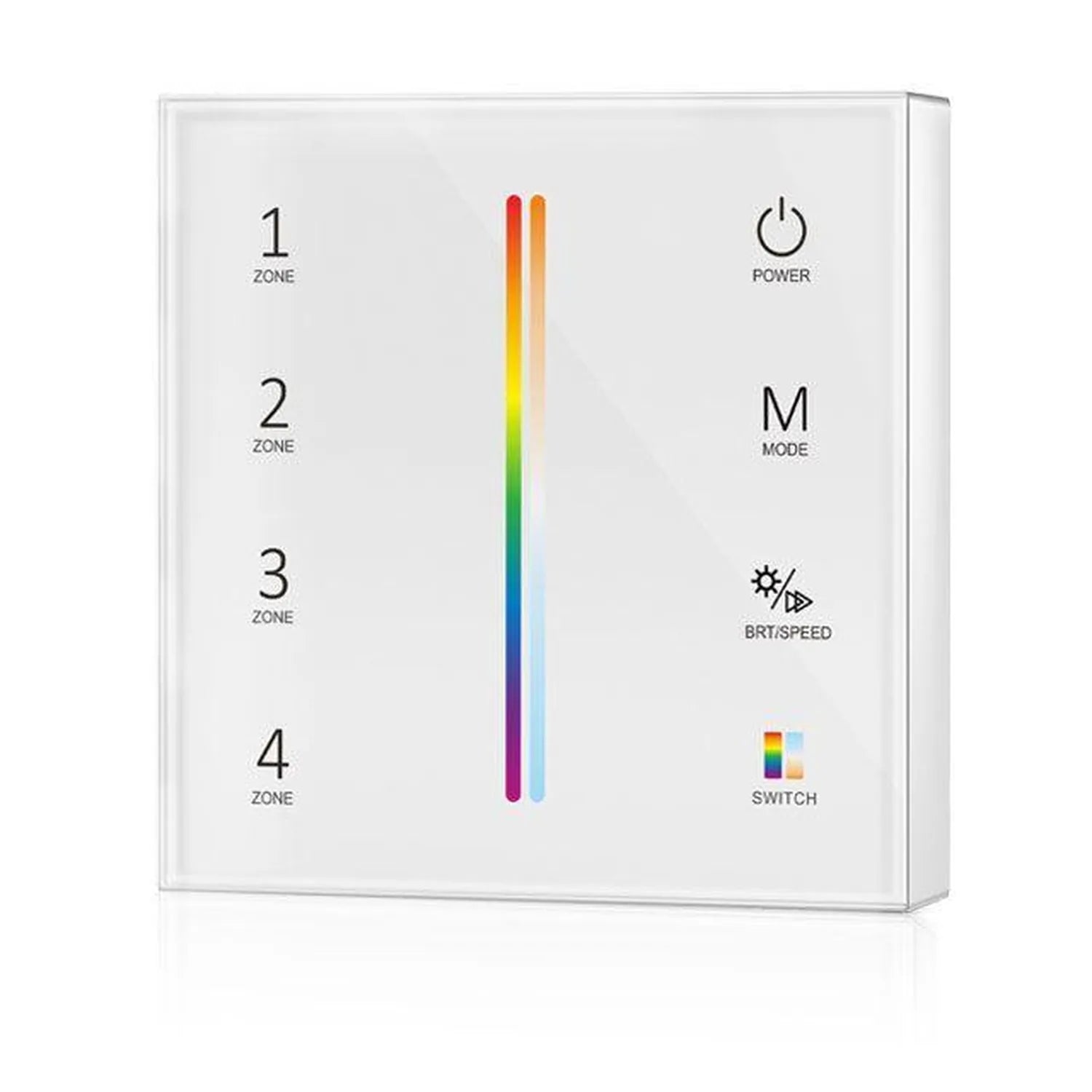

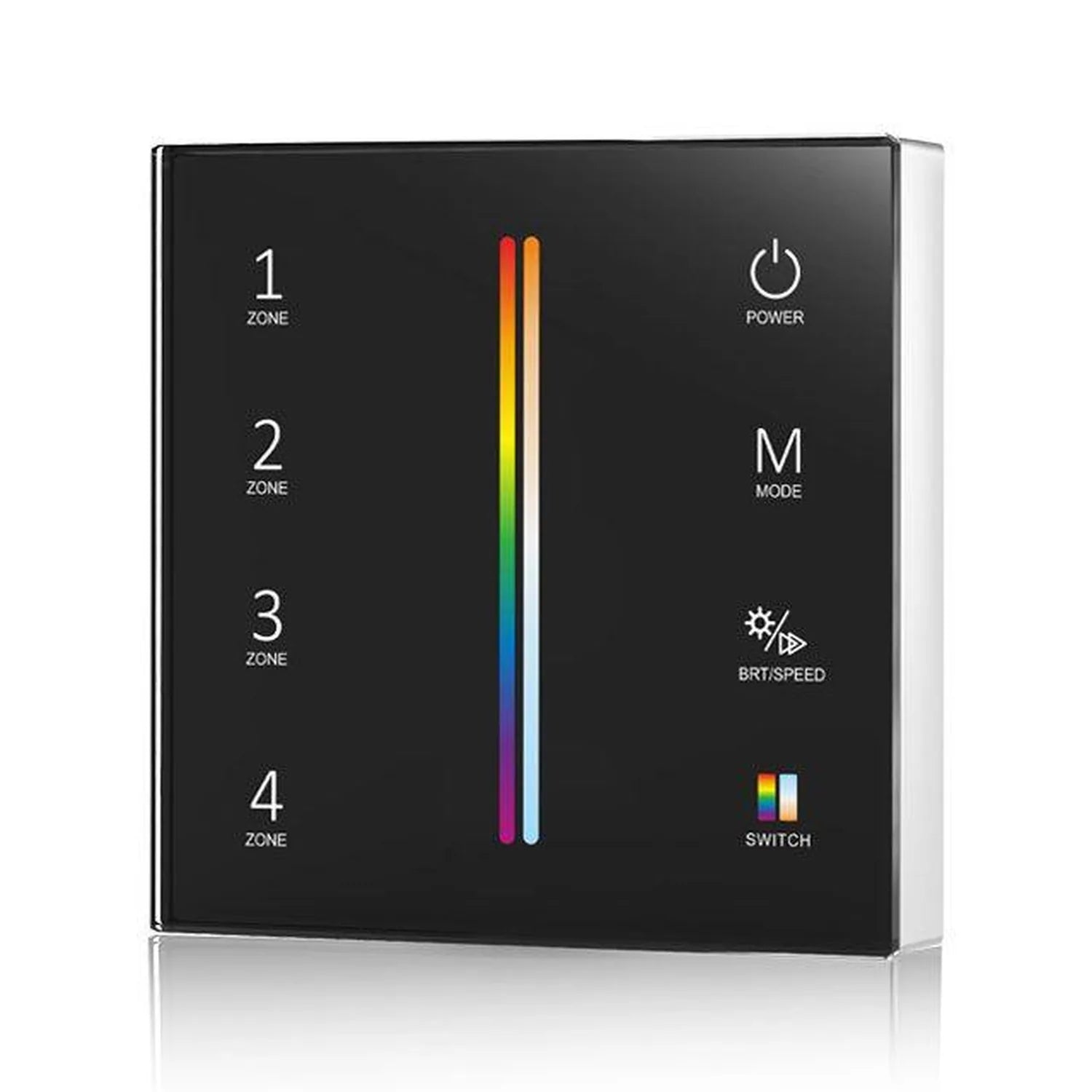

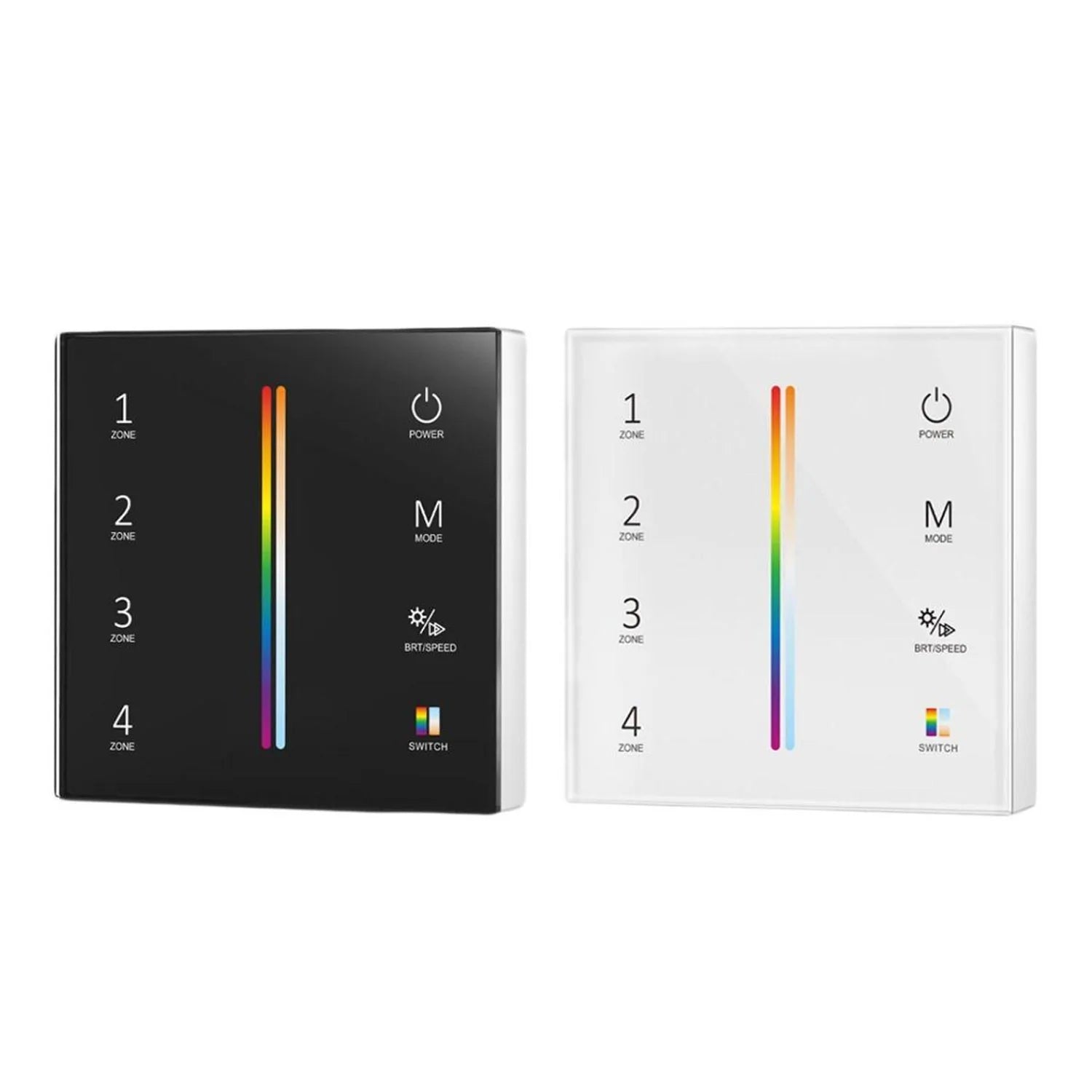

Choose a white or black glass panel. Ledison covers the T15-1 with a 5-year warranty, and it carries CE, EMC and RED certification.
Technical Specifications 28 rows Show
| Model | T15-1 |
| Product type | Wall Mounted Touch Panel LED RGB CCT Controller |
| Light type | RGB+CCT |
| Zone control | 4 Zones |
| Control | Touch colour / colour temperature slide |
| Output DMX channel number | 20 |
| Input voltage | 100-240VAC |
| Input current | Max 0.1A |
| Output signal | DMX512, RF 2.4GHz |
| Input signal | Touch Key + RF 2.4GHz |
| RF control distance | 10m barrier-free space |
| Dimming levels | 256 Levels |
| Dimming range | 0-100% |
| Panel size | 86.00 mm x 86.00 mm x 33.00 mm |
| Package | L112 x W112 x H50mm |
| Gross weight | 0.230kg |
| Operation temperature | -30°C to +55°C |
| Case temperature max | +65°C |
| IP rating | IP20 |
| EMC standard | ETSI EN 301 489-1 V2.2.3, ETSI EN 301 489-17 V3.2.4 |
| Radio equipment | ETSI EN 300 328 V2.2.2 |
| Warranty | 5 Years |
| Dynamic modes | 10 built-in dynamic modes |
| Brightness / speed | 10 levels |
| DMX compatibility | DMX decoder from any supplier |
| Back box | European style 86 size |
| Panel colours | White & Black glass panel |
| Certification | CE,EMC,RED |
Manufacturer datasheet. Figures as published by the manufacturer.
