2 Pin LED Strip Light Connector T Shape 10mm Single Colour | Ledison
- Vendor
- Ledison
- SKU
- 0790404943675
- Availability
- In stock
- Weight
- 0.025 kg
£2.93inc VAT £2.44exc VAT
Delivery from £7.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

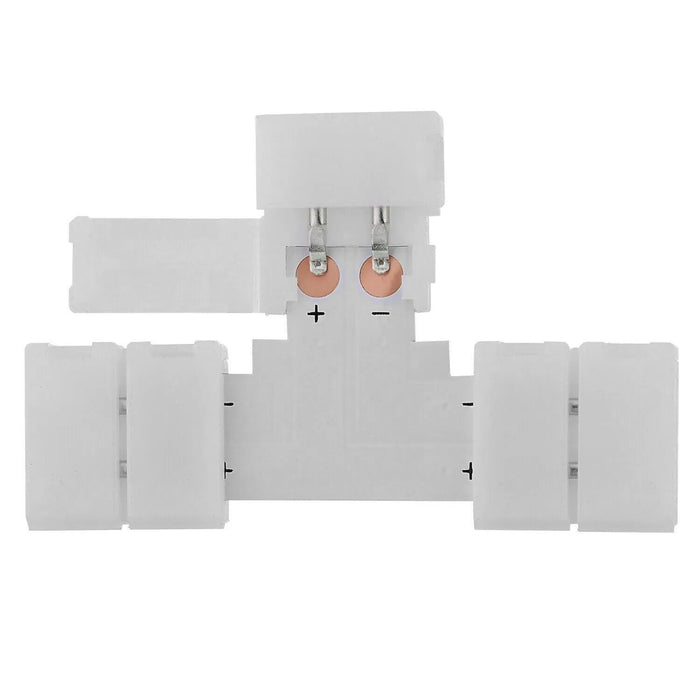

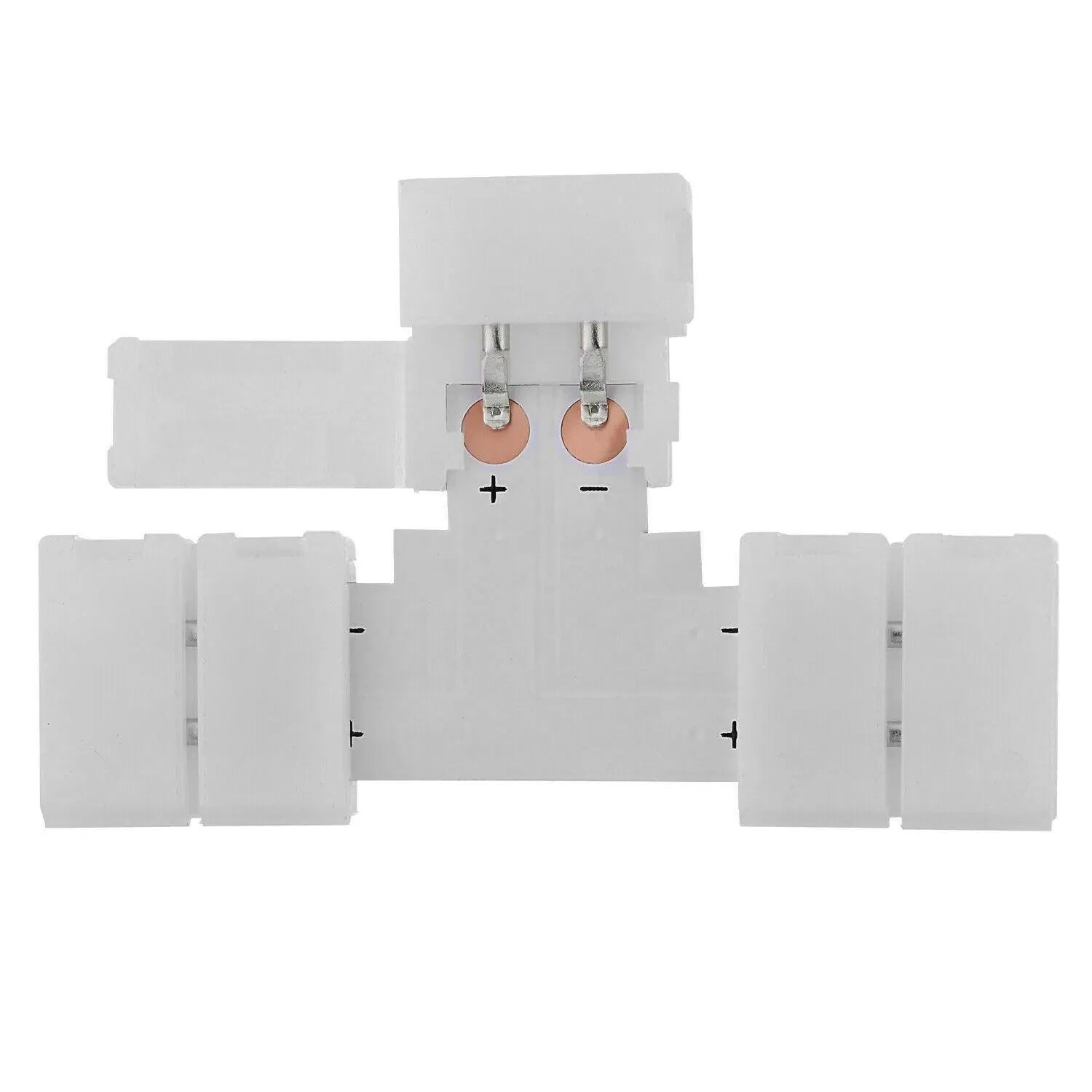

This 2 pin LED strip light connector is T shaped, so one fitting joins three runs of 10mm single colour LED strip at a T junction, board to board. Soldering is not needed. You press the terminals closed with a pair of standard pliers and the joint is made.
2 pin LED strip light connector details
- Pins: 2, marked positive and negative
- PCB width: 10mm
- Supply voltage: for 12V, 24V and 48V LED power supplies
- Strip chips: SMD2835, SMD5050 and SMD3528
- Ratings: 300V DC rated voltage and 10Amps rated current
- Body: white plastic
Where it fits
Use it wherever a single colour strip run needs to branch. A length running along a shelf, a cove or a kitchen plinth can split off in a second direction from one point, with all three sections connected in the same fitting. It suits 10mm wide single colour strip only, built on SMD2835, SMD5050 or SMD3528 chips.
The connector works across 12V, 24V and 48V systems, which means the same part can be kept in the van for different jobs.
Fitting it
Slide each strip end into the connector with the pads lined up. The positive and negative markings on the 2 pins make polarity easy to check before closing. Then press the terminals down with standard pliers. That is the whole job, with no iron, flux or heat shrink involved.
For installers this cuts the time spent on each junction. For homeowners it removes the hardest part of fitting strip lighting, since a clean solder joint on a narrow pad takes practice.
Technical Specifications 10 rows Show
| Type | T shape connector, board to board |
| Pins | 2 pin |
| PCB width | 10mm |
| LED strip | Single colour |
| Voltage | 12V, 24V, 48V |
| Compatible chips | SMD2835, SMD5050 and SMD3528 |
| Rated DC voltage | 300V |
| Rated current | 10Amps |
| Colour | white |
| Material | plastic |
Manufacturer datasheet. Figures as published by the manufacturer.
