Zigbee LED Controller 2 in 1 Single Colour Dual White | Mi-Light FUT035Z+
- Vendor
- Skydance
- SKU
- 601202
- Availability
- In stock
- Weight
- 0.15 kg
£27.25inc VAT £22.71exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

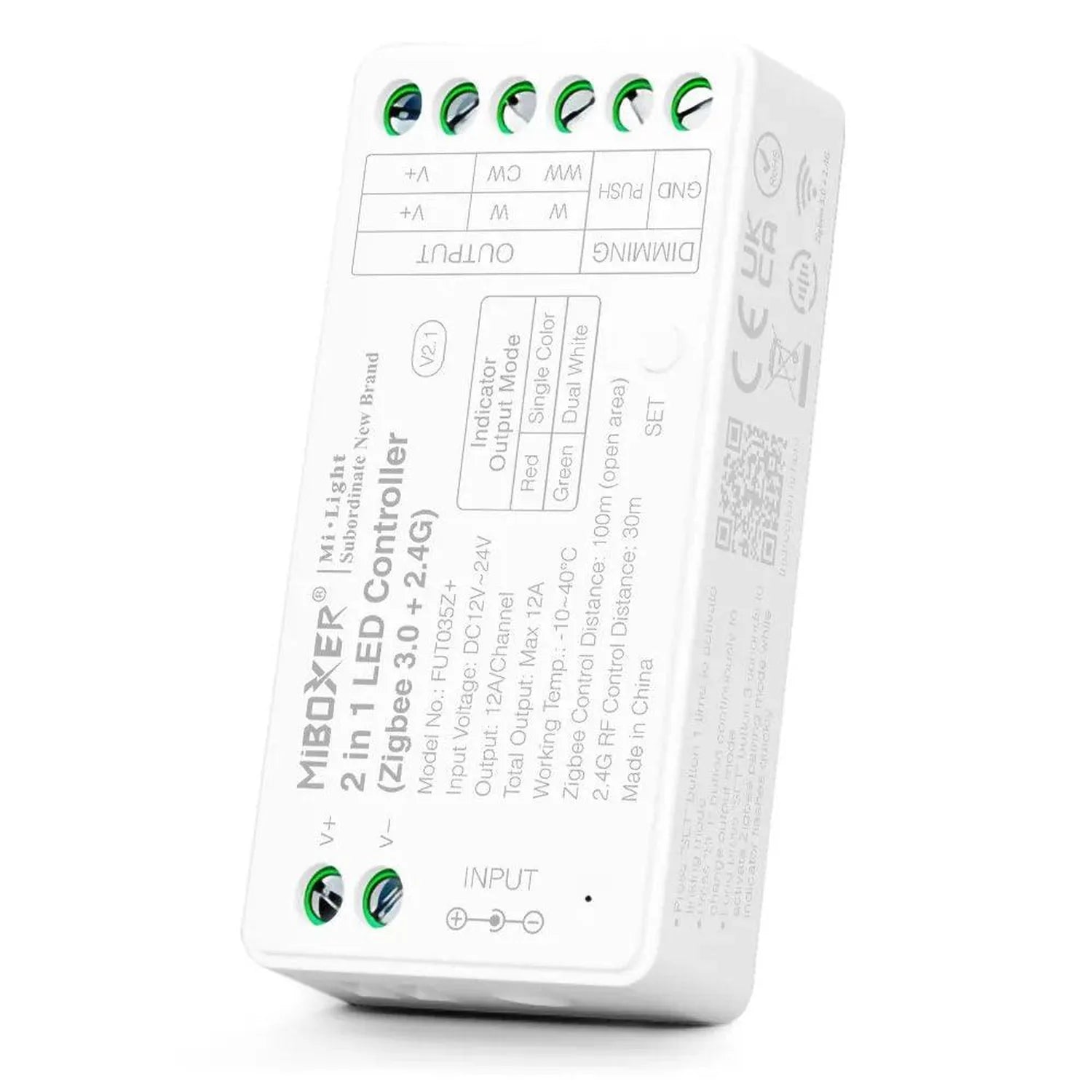

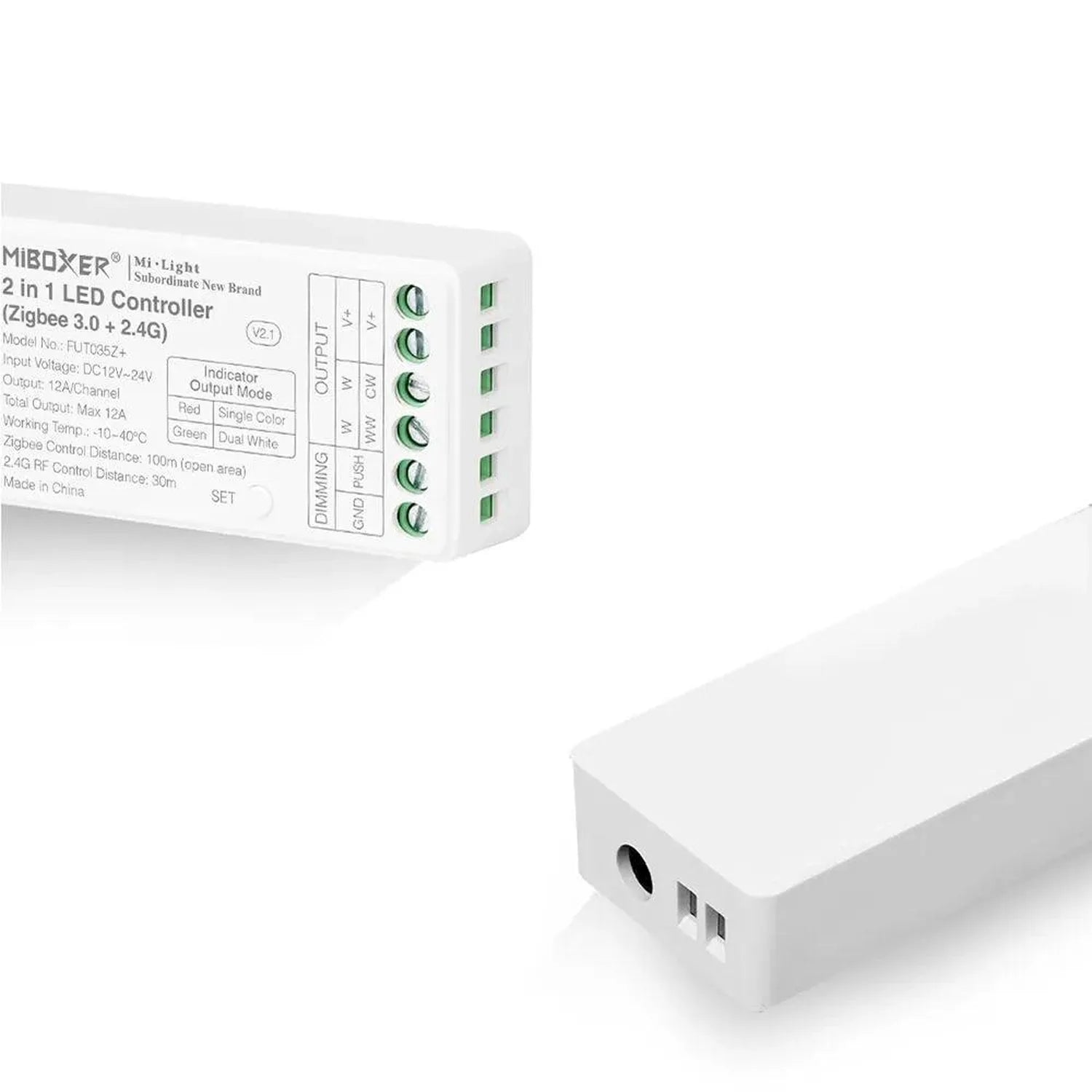

The Mi-Light FUT035Z+ is a 2 in 1 controller for single colour or dual white LED strip. It works over two protocols, Zigbee 3.0 and 2.4G RF. Press SET to change output mode. The indicator turns red for single colour and green for dual white, so you can confirm the mode at a glance.
Zigbee LED controller features
- Protocol: Zigbee 3.0 standard plus 2.4G RF
- Control range: 100m over Zigbee (open area), 30m from a 2.4G RF remote
- Adjustment: brightness and colour temperature
- PUSH dimming: works from a wall push switch, with a short press for on/off and a long press for stepless dimming
- Auto-transmitting: each light relays the remote signal to the next within 30m
- PWM frequency: switchable between 16KHz high and 250Hz low
A 'Do Not Disturb' mode is also built in for use after power cuts.
Control options
Pair it with a Mi-Light / MiBoxer 2.4GHz remote for direct control. Compatible handsets include the FUT006, FUT007, B1, B2, K1, FUT087 and S1, all sold separately. The specification table below gives the full list of supported variants.
For app and voice control, add a Zigbee 3.0 gateway (sold separately). This brings in the Tuya Smart app along with Amazon Alexa and Google Assistant. Philips Hue control is also possible; the manual covers how to set it up.
Choosing the output mode
One controller covers two strip types. Set it to single colour for a standard one-channel strip, or switch to dual white where you need colour temperature adjustment. The switchable PWM frequency gives you a choice between 16KHz and 250Hz output.
Technical Specifications 11 rows Show
| Brand | Mi-Light / MiBoxer |
| Model | FUT035Z+ |
| Output modes | Single colour / dual white |
| Protocol | Zigbee 3.0 + 2.4G |
| Zigbee control distance | 100m (open area) |
| 2.4G RF remote control distance | 30m |
| PWM frequency | 16KHz / 250Hz |
| App control | Tuya Smart (Zigbee 3.0 gateway needed) |
| Voice control | Amazon Alexa / Google Assistant (Zigbee 3.0 gateway needed) |
| PUSH dimming | Short press on/off, long press stepless dimming |
| Compatible remotes | FUT006, FUT007, B1 / B1-B / T1, B2 / T2, K1 / K1-B, FUT087, FUT087-B, S1-B / S1-W, S1-G, WL-Box1 |
Manufacturer datasheet. Figures as published by the manufacturer.
