400 Watt LED Driver 24V Constant Voltage IP67 | Glacial GP-CVM400P-24V
- Vendor
- Glacial
- SKU
- 999013
- Availability
- Sold out
- Weight
- 1.024 kg
£93.40inc VAT £77.83exc VAT
Sorry, this one is sold out
Tell us you want it and we will find out when it is back, or point you at the closest thing we have in stock.
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description
The Glacial GP-CVM400P-24V is a 400 watt LED driver with a 24V constant voltage output, built for large LED strip installations and moving signs. It delivers 400.8W at 0-16.7A. That is enough for one driver to feed several long runs of strip, so the wiring stays simple.

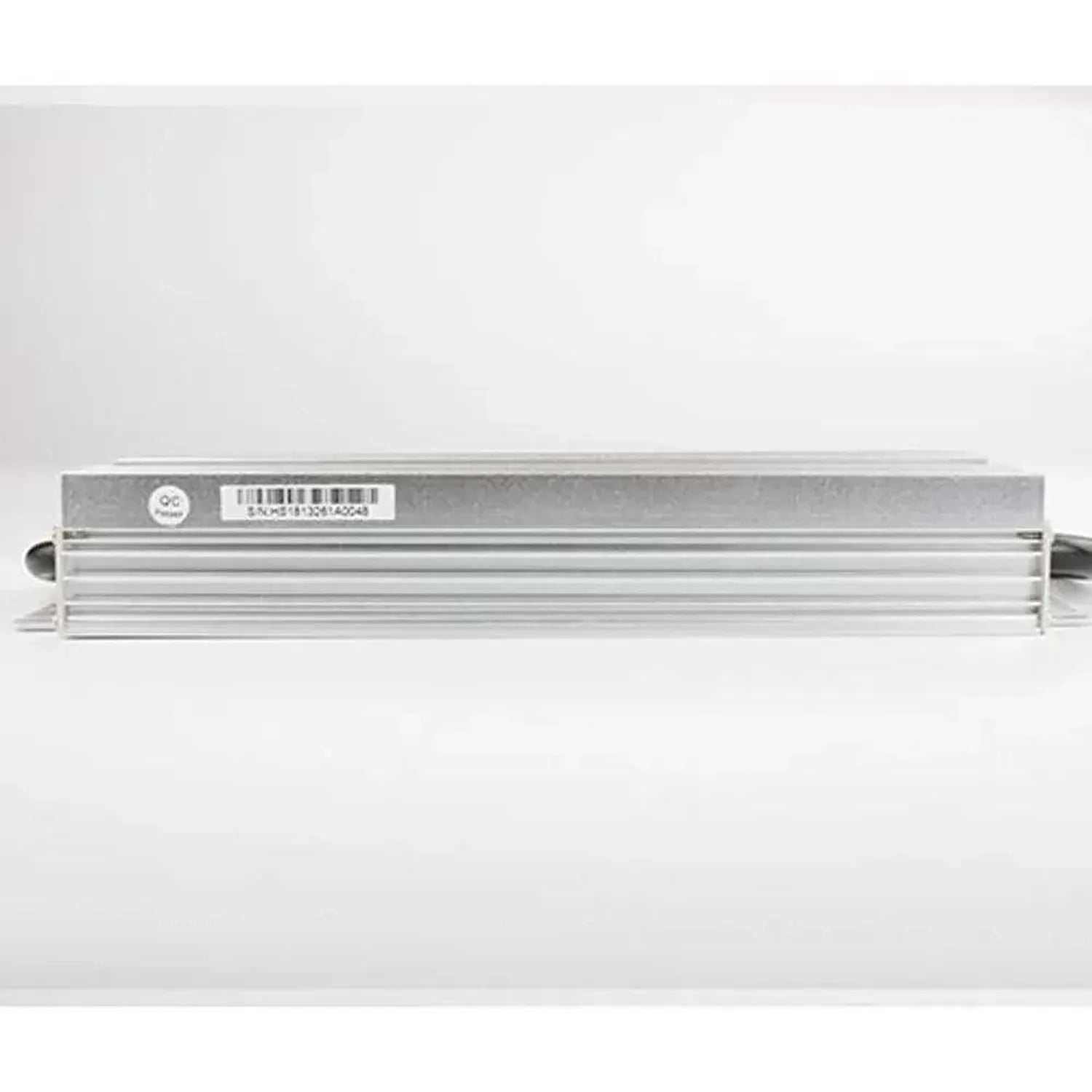

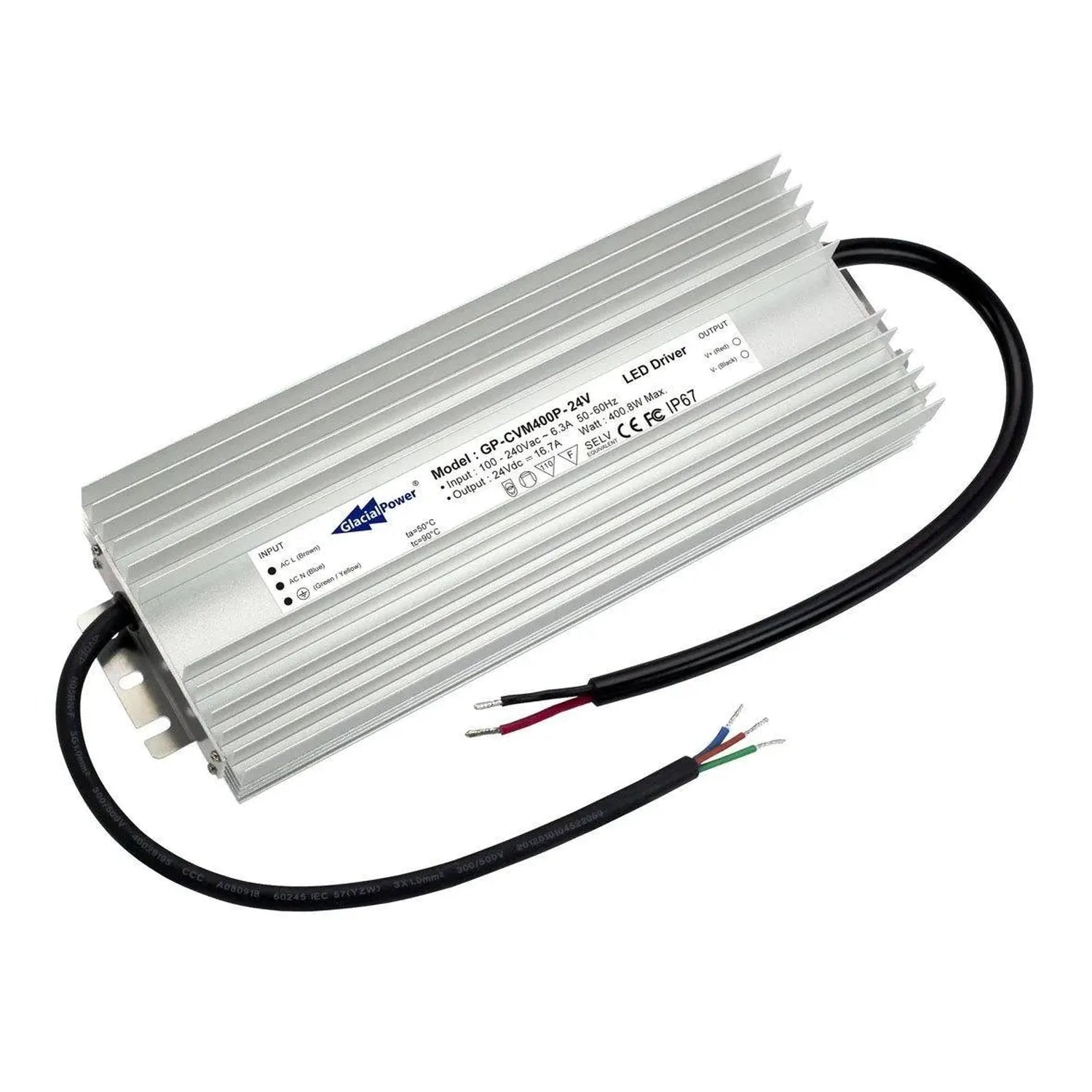

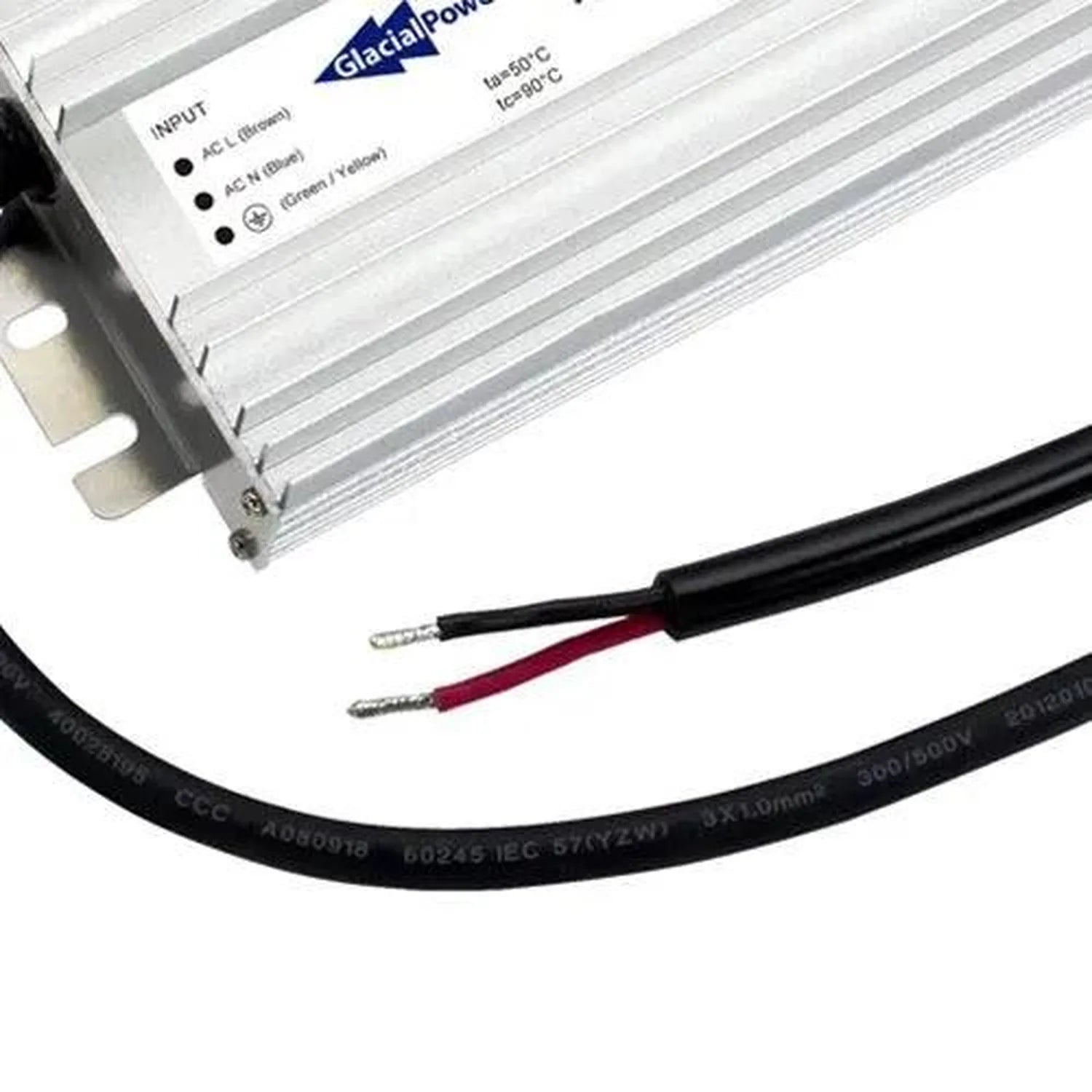

400 watt LED driver in a sealed metal case
The aluminium housing is fully isolated, potted with heat-conducting silicone and sealed to IP67. You can fit it indoors or outdoors, including in dusty, oily, humid and high-vibration locations. There is no fan. Cooling comes from free air convection alone.
Key features
- Output: 24V DC, 0-16.7A, 400.8W
- AC input: universal, 90 ~ 264Vac
- Efficiency: up to 93%, with active PFC
- Standby draw: no-load consumption < 0.5W at 230Vac
- Protection: over voltage, over current, short circuit and over temperature
- Operating temperature: -30°C to 50°C
Applications
Use it wherever a 24V LED strip needs a single, sizeable supply. Long strip runs are the obvious job. Moving signs are another, and the IP67 rating means both indoor and outdoor installations are covered.
Size and weight
The case measures 300 x 98 x 38.5 mm and weighs 1270g, so plan your mounting position with that footprint in mind. Check the circuit breaker figures in the specification table before putting more than one unit on the same circuit, as the number of drivers allowed depends on breaker type and rating.
Technical Specifications 38 rows Show
| Brand | Glacial |
| Model | GP-CVM400P-24V |
| Type | Constant Voltage mode |
| Output voltage | 24V |
| Rated current | 0-16.7A |
| Rated power | 400.8W |
| Ripple and noise (max) | 350mV |
| Efficiency at 230Vac (typical) | 93% |
| Voltage tolerance | 5% |
| Setup time (max) | 0.5s / 230Vac, 1s / 115Vac, at full load. |
| Rated input voltage | 100 ~ 240Vac |
| Input voltage range | 90 ~ 264Vac |
| Frequency | 47 Hz ~ 63 Hz |
| AC current (max) | 5A at 115Vac / 2.5A at 230Vac |
| Power factor | >0.98 at 115Vac / >0.94 at 230Vac at full load. PF0.9 at 70% load |
| Total harmonic distortion | THD < 20% at 230Vac, full load |
| Inrush current (max) | Cold Start 120A (Td=1020us measured at 50% Ipeak) at 230VAC |
| Max. number of PSUs on circuit breaker | B type : 1 unit (25A), C type : 1 unit (16A) / 2 units (25A), D type : 3 units (16A) / 4 units (25A) at 230VAC |
| Leakage current | <1mA / 240Vac |
| Protections | OVP / OCP / SCP / OTP |
| No-load consumption | < 0.5W at 230Vac |
| IP rating | IP67 |
| Cooling | Free Air Convection. (Metal Housing) |
| Operating temperature | -30C ~50C (Refer to output load derating curve) |
| Operating humidity | 20% ~ 90% RH non-condensing. |
| Storage temperature | -40 ~ +80C |
| Storage humidity | 10% ~ 90% RH |
| Vibration | 10~500 Hz, 2G 10 min./1 cycle, period for 60 min. each along X, Y, Z axes. |
| Safety standards | EN61347-1, EN61347-2-13, independent, IP67 Approved. |
| Withstand voltage | I/P-O/P: 3.75KVac , I/P-FG:1.88KVac , O/P-FG:0.5KVac |
| Isolation resistance | I/P-O/P,I/P-FG,O/P-FG:100M ohms / 500Vdc at 25C |
| EMI conduction and radiation | Compliance to EN55015,FCC part 15 |
| Harmonic current | Compliance to EN61000-3-2 Class C(75% load),EN61000-3-3 |
| EMS immunity | Compliance to EN61000-4-2,3,4,5,6,8,11;EN61547,criteria B |
| MTBF | 120K hours min. MIL-HDBK-217F(25C) |
| Dimensions (L x W x H) | 300 x 98 x 38.5 mm |
| Weight | 1270g/pcs |
| Suitable for | LED Strips and Moving Sign applications |
Manufacturer datasheet. Figures as published by the manufacturer.
