All LED Linear Bay Lights

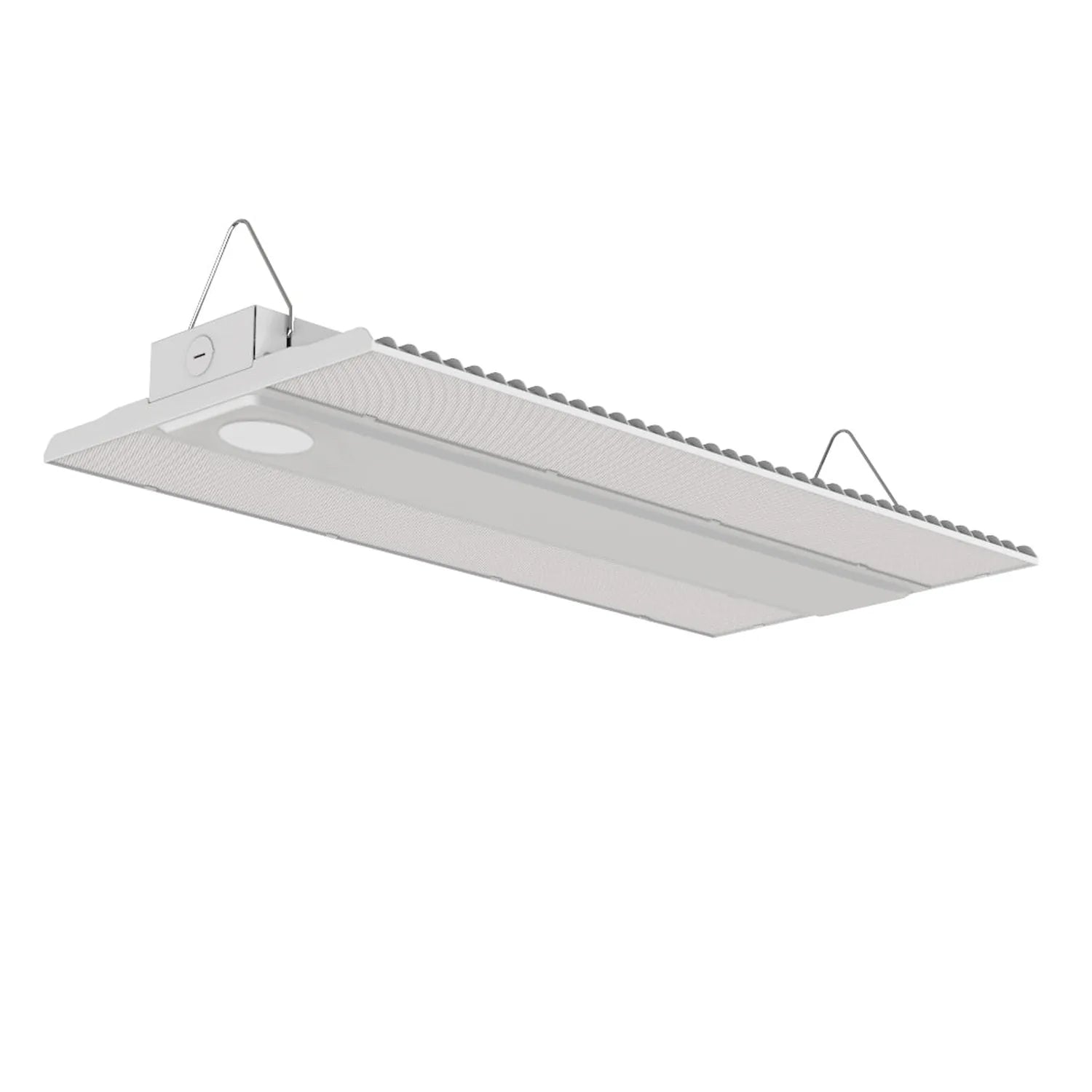

White rectangular LED high bay light fixture with dual hanging brackets and ribbed heat sink detail, shown at an angle agains

LED Linear High Bay Light 150W 22,500lm 1-10V IP44 | Zeus HF-LHB150W-D

£78.70
Skip to product information
White rectangular LED high bay light fixture with dual hanging brackets and ribbed heat sink detail, shown at an angle agains

LED Linear High Bay Light 150W 22,500lm 1-10V IP44 | Zeus HF-LHB150W-D

Vendor
Ledison
SKU
113350
Availability
Pre-order
Weight
9.0 kg

Not in stock right now. We will confirm the lead time before dispatch.

£78.70inc VAT £65.58exc VAT

Delivery from £7.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

The Zeus HF-LHB150W-D is a 150W linear LED high bay light producing 22,500 lumens at 150lm/W. Philips 2835 LED chips sit inside an aluminium housing with a built-in heat sink, which keeps them cool during long running hours. Dimming over 1-10V is included as standard.

LED linear high bay light features

  • Output: 150W, 22,500 lumens, 150lm/W
  • LED chips: Philips 2835
  • Optics: 120° beam angle, CRI >80
  • Supply: AC100-277V, 50/60Hz, power factor >0.9
  • Protection: IP44
  • Size and weight: 360 × 260 × 54mm, 2.75kg

Where it fits

This fitting is built for large indoor spaces with high ceilings. Typical sites include warehouses, factories, workshops and indoor parking areas. Retail stores and supermarkets use it too, as do sports halls, exhibition centres, agricultural buildings and greenhouses.

Installation is by suspension. A 110cm chain comes with the light, so it can hang below roof steelwork or a high ceiling. The 1-10V dimming input lets you link it to a compatible controller and set light levels to suit the space.

Housing and cooling

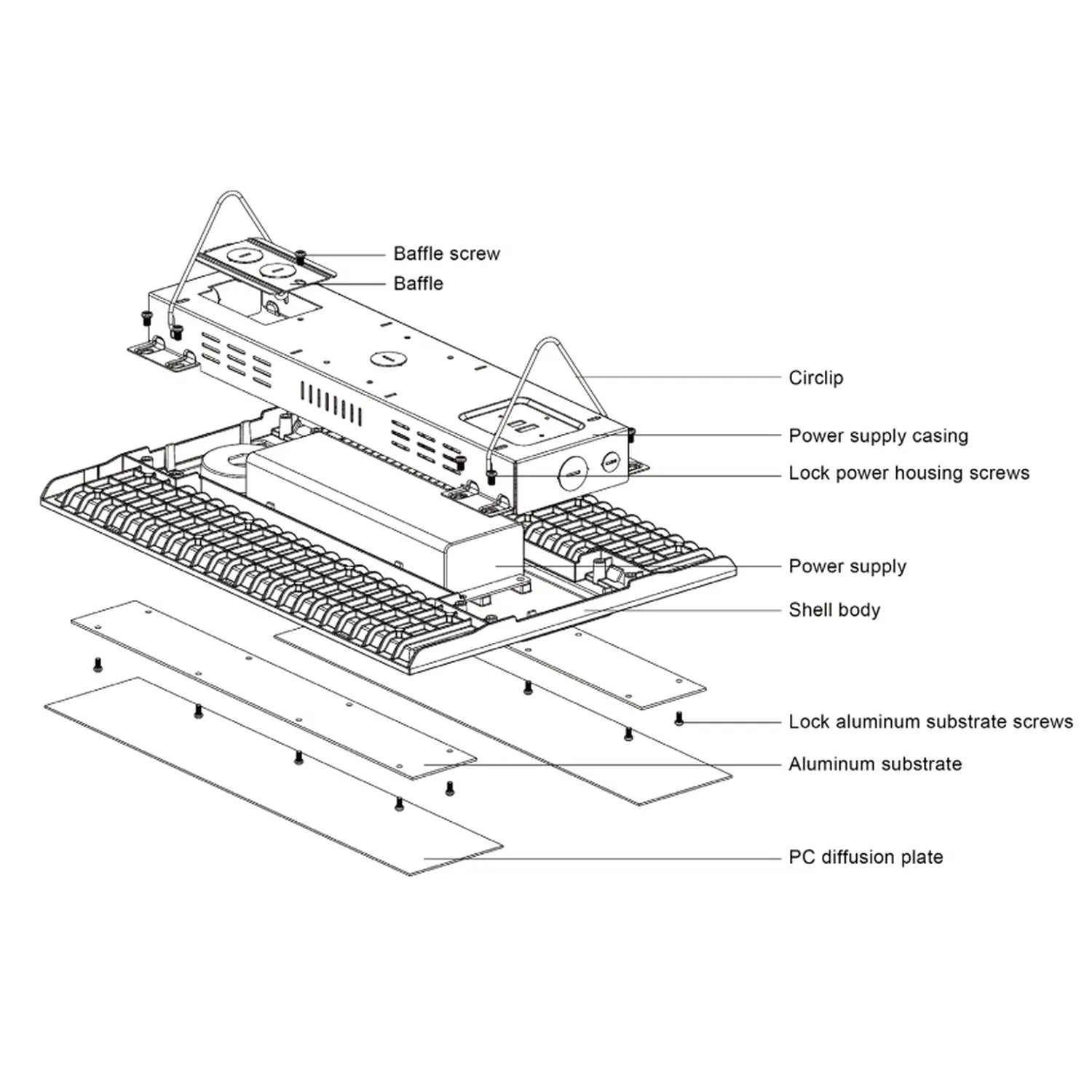

The body is aluminium, finished with a tempered glass or PC lens. Heat is drawn away through integrated aluminium heat dissipation. That matters for LED chips, which run better cool.

Other versions and warranty

Need extra control? Versions with a microwave sensor, DALI, Zigbee or emergency function are available on request. The light carries a 5-year warranty.

Technical Specifications 20 rows Show
Product nameZEUS Linear LED High Bay Light
ModelHF-LHB150W-D
Power150W
Luminous efficiency150lm/W
Total light output22,500 Lumens
LED chipPhilips 2835
Beam angle120°
CRI>80
Power factor>0.9
Input voltageAC100-277V
Frequency50/60Hz
Dimming1-10V dimming by default
Protection ratingIP44
Housing materialAluminium with Tempered Glass / PC Lens

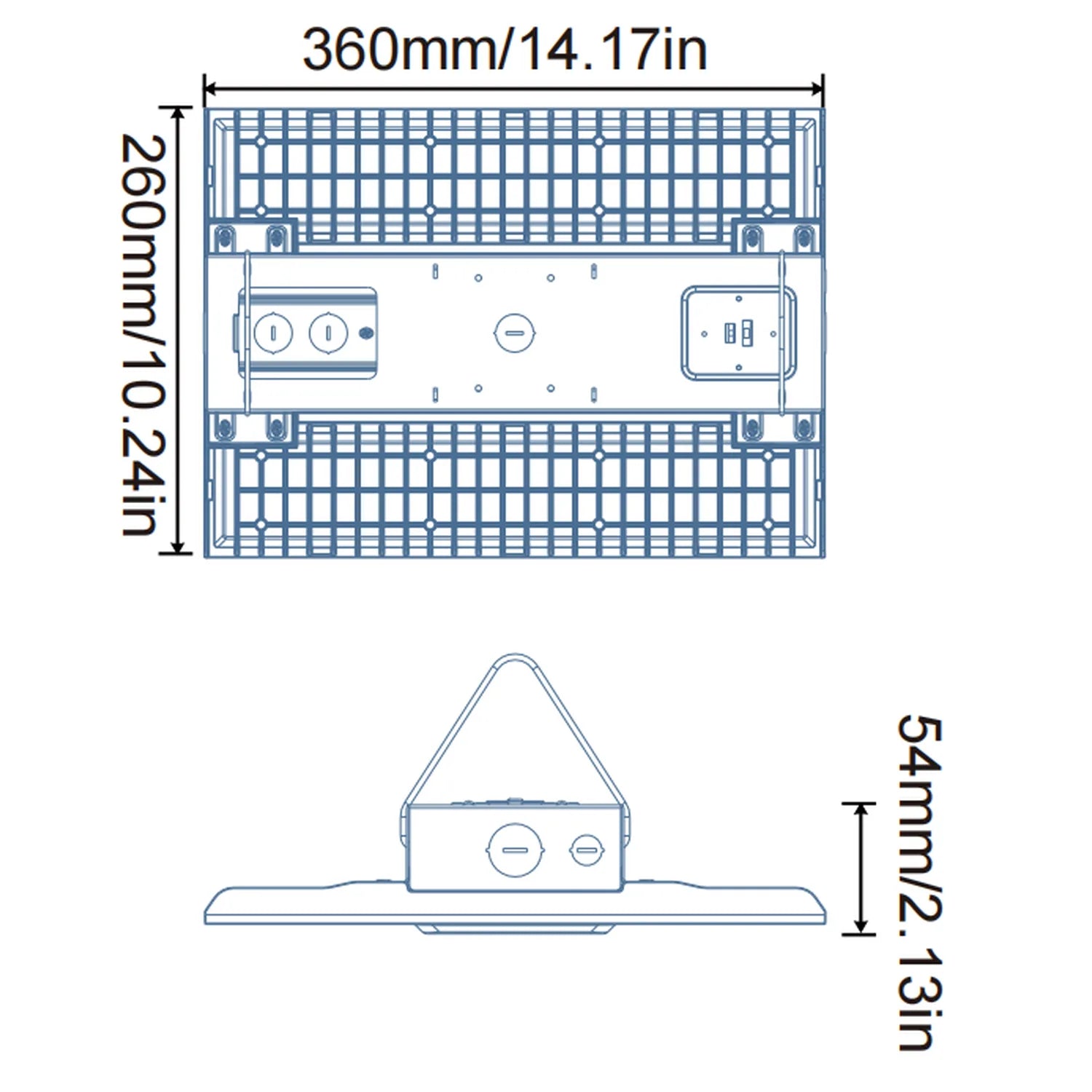

Dimensions360 × 260 × 54mm
Suspension chain length110cm
Net weight2.75kg
Optional functionsMicrowave Sensor, 0/1-10V, DALI, Zigbee, Emergency
CoolingIntegrated aluminium heat dissipation
Warranty5 Years

Manufacturer datasheet. Figures as published by the manufacturer.
