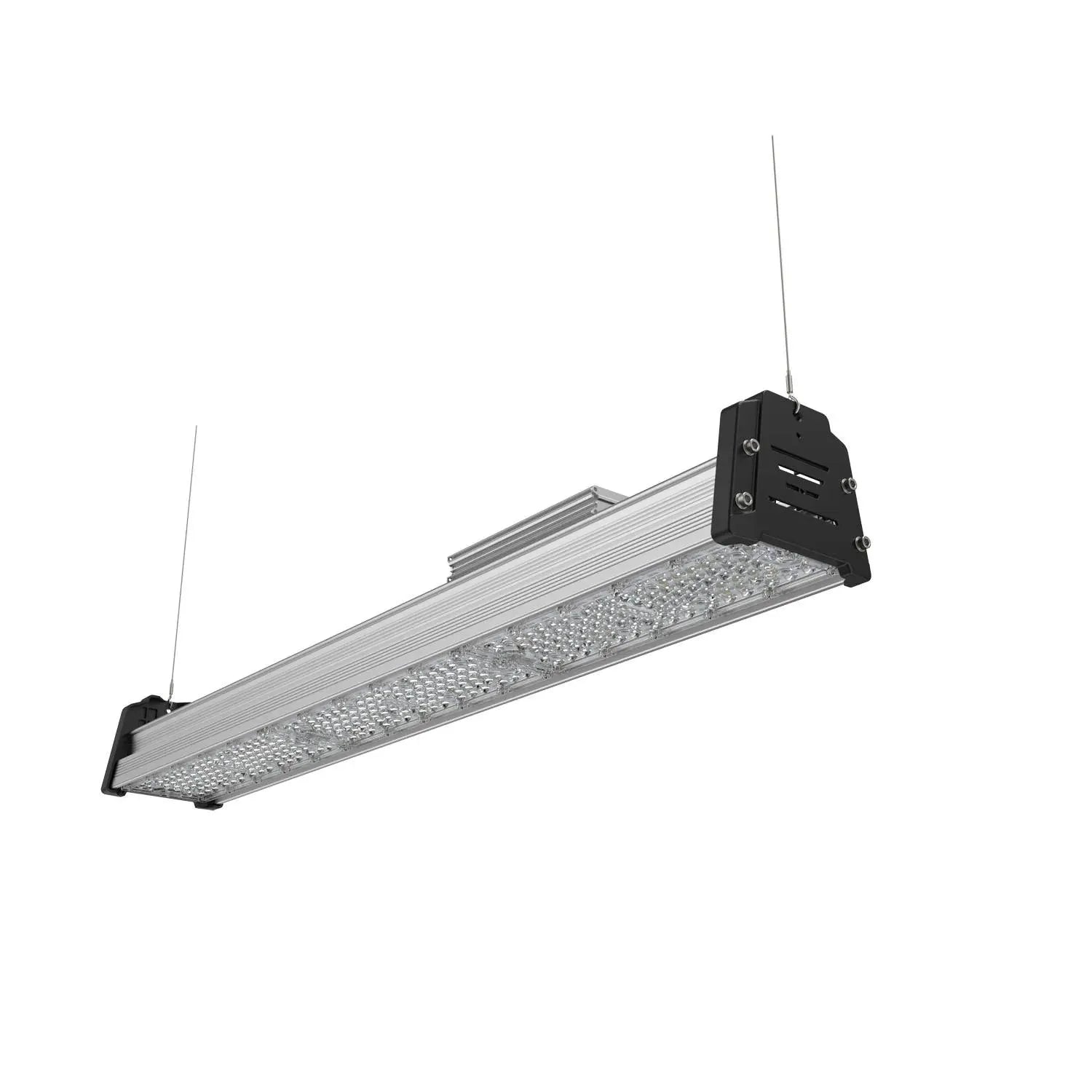

LED Linear High Bay Light 240W IP65 38,400lm | Ledison LuxeBay

The Ledison LuxeBay is a 240W LED bay light built for warehouses, factories and other industrial buildings that need wide, even coverage from height. It produces 38,400 lumens at an efficacy of 160 lm/W, giving strong output for high-rack storage, production floors and distribution centres.

Key features of this led linear high bay light

• Power output, 240W drawing 336 SMD 2835 LED chips
• Light output, 38,400 lumens at 160 lm/W efficacy
• Beam angles, 30°, 60°, 90°, 30x70°, 40x130° and 60x90°, made to spec on request
• Housing, aluminium body rated IP65 against dust and water, IK10 against impact
• Dimming, 0-10V or DALI control options

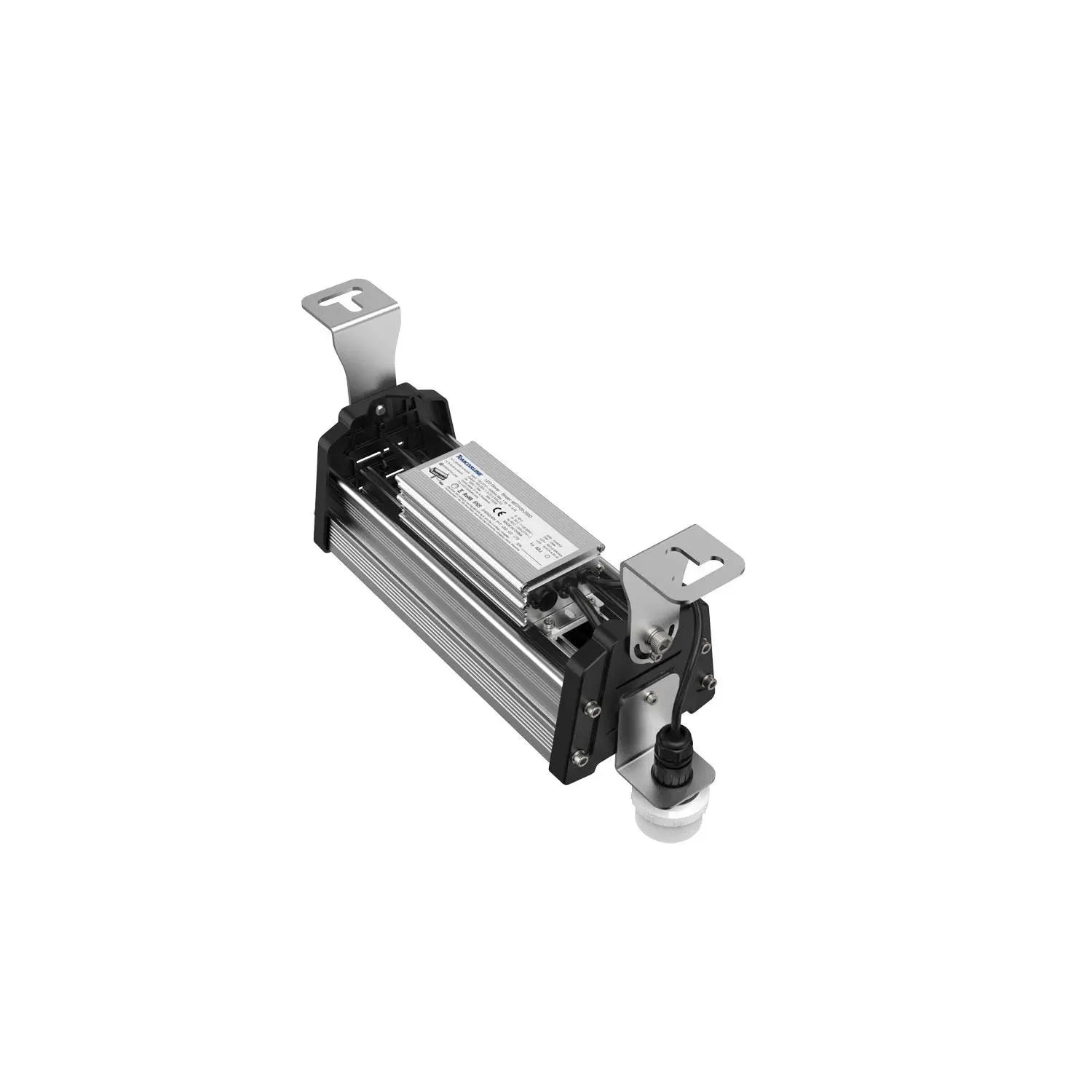

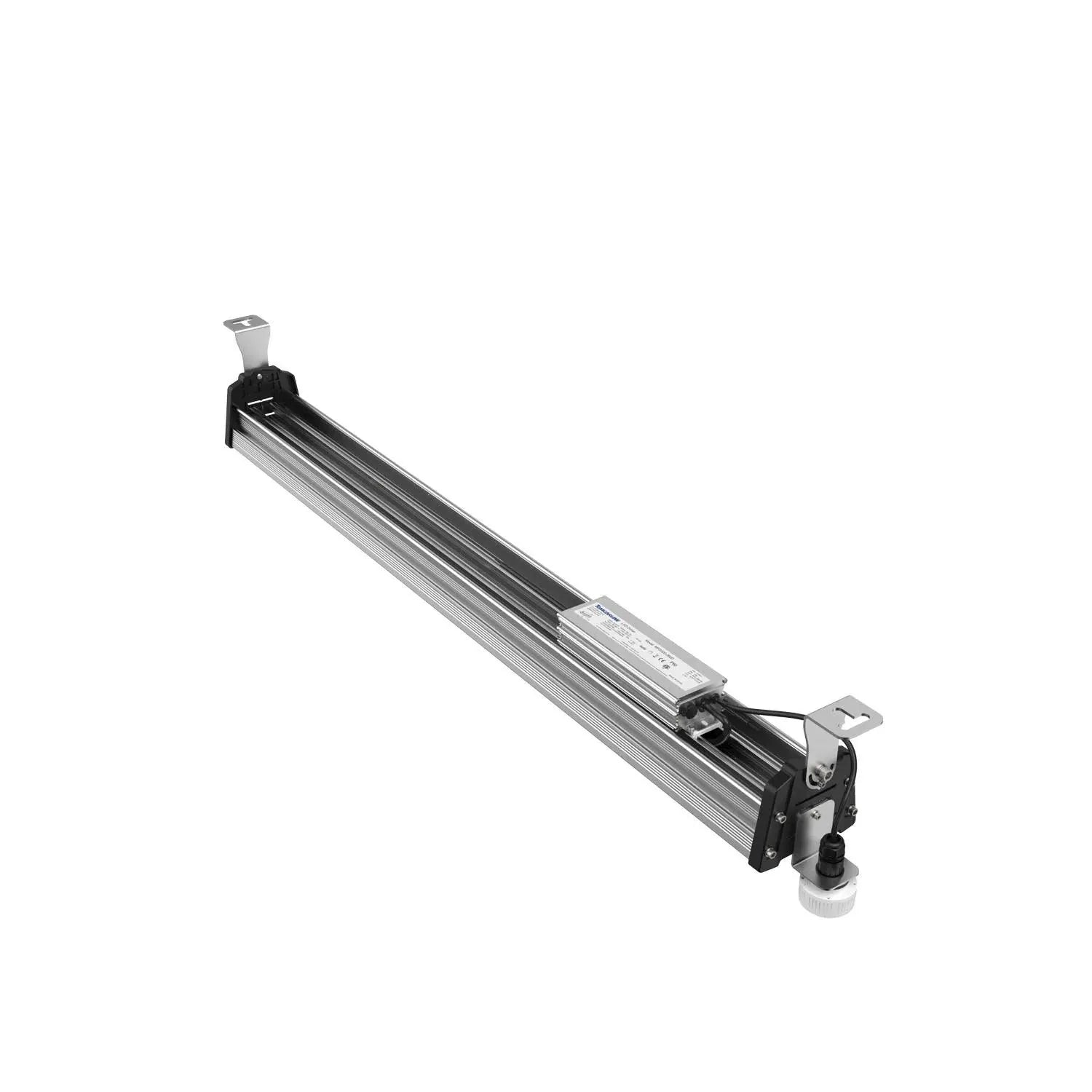

• Driver, high-performance driver operating at up to 97% efficiency

Applications

Suited to high-rack warehouses, manufacturing facilities, workshops, distribution centres and aircraft hangars where fittings are mounted well above the working area. The range of beam angles allows the same fitting to be specified for wide open floors or for narrower aisle lighting.

Optical design

A dedicated lens spreads light down through racking to lower levels, reducing dark patches between fittings across large industrial spans.

Installation

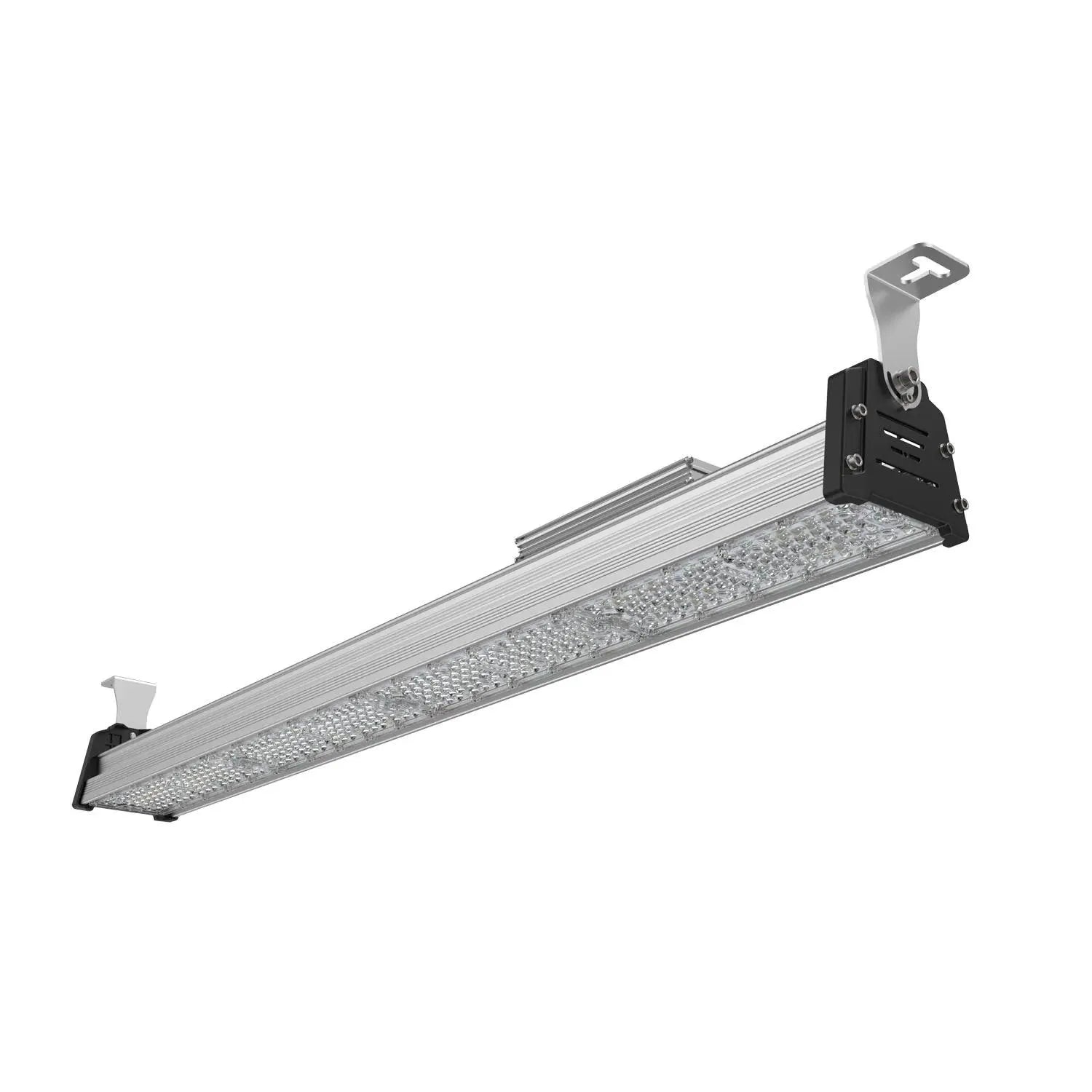

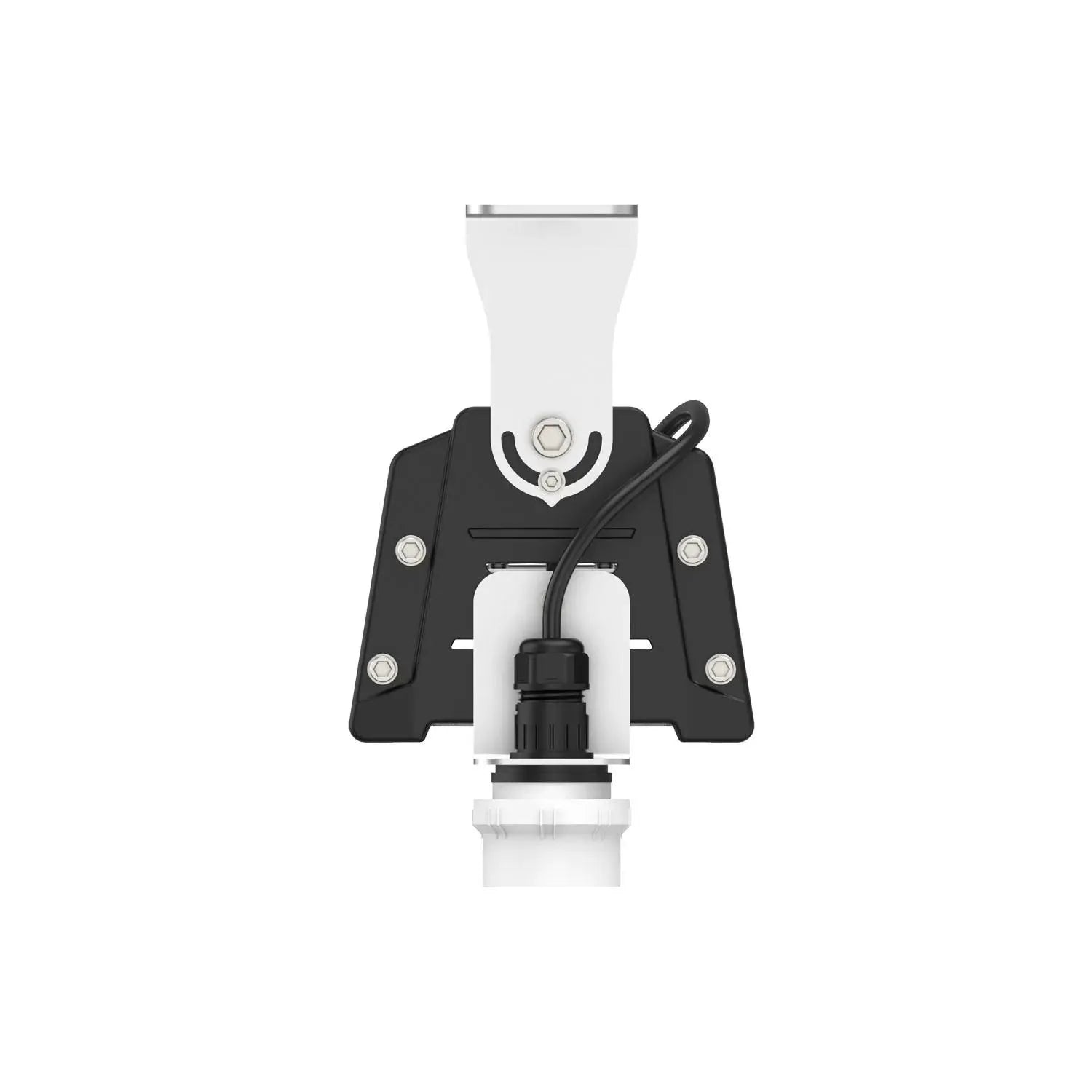

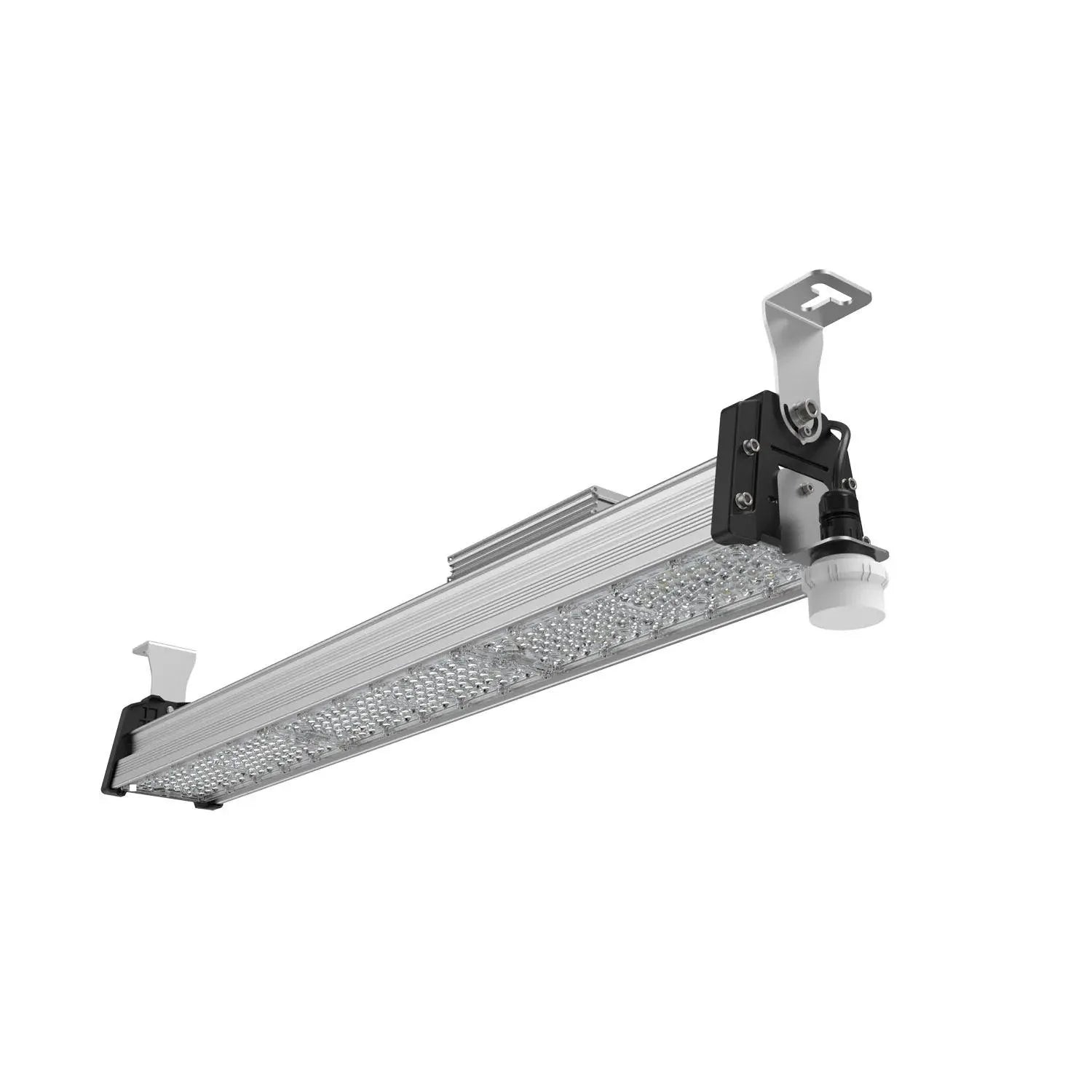

Metallic suspension rods extend up to 2 metres for high-ceiling fitting. Surface mounting brackets adjust up to ±45°, letting the beam be angled towards aisles or task areas rather than straight down.

Build and warranty

The aluminium housing is designed to cope with dust, vibration and daily industrial use. It carries a 5-year warranty and meets TUV and IEC electrical standards.
