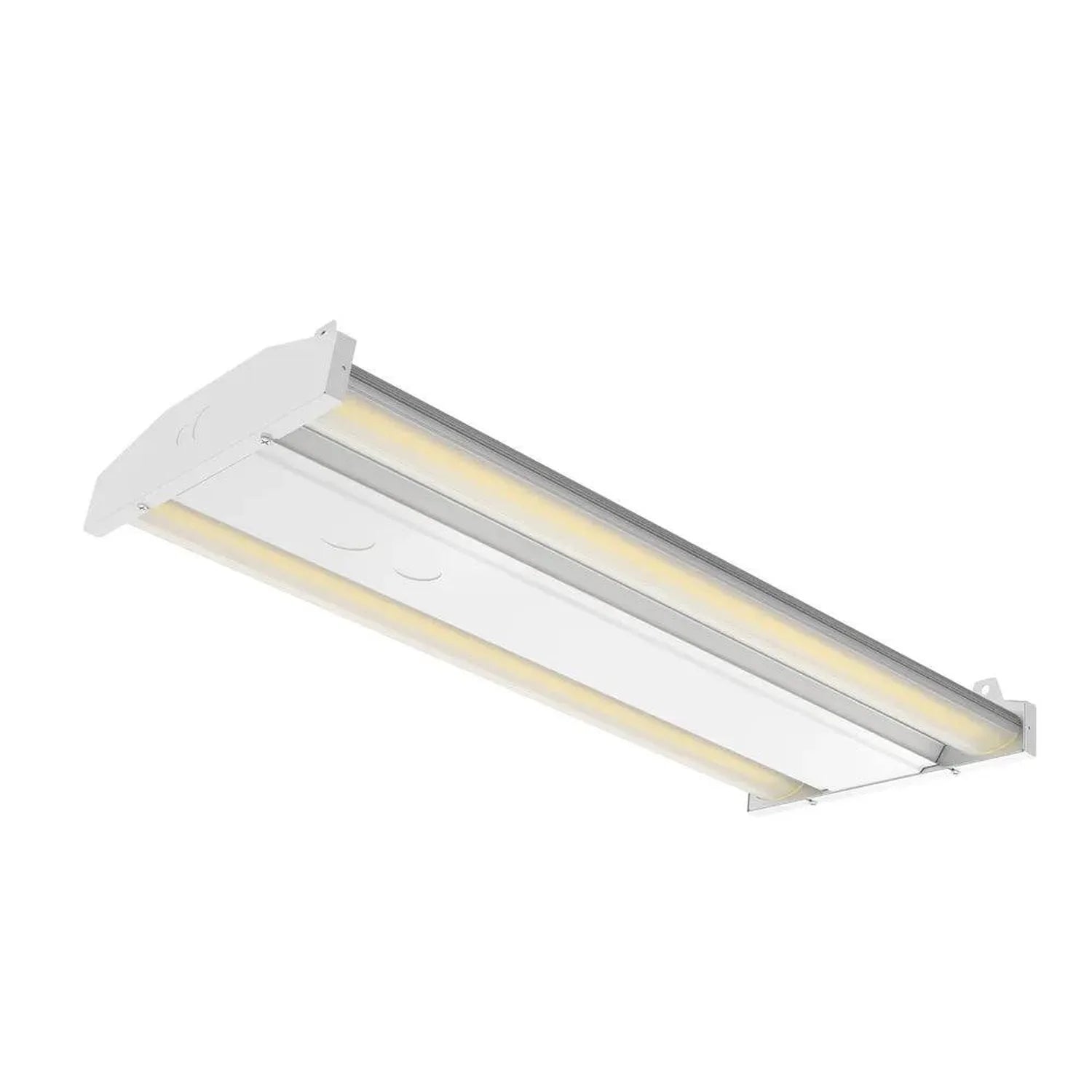

White linear LED high bay light fixture with dual lamp channels and warm light output, shown at angle against white backgroun

Linear LED High Bay Light 75W 4000K IP65 120° | Ledison Zeus

1-10V Dimmable
£78.70
Skip to product information
White linear LED high bay light fixture with dual lamp channels and warm light output, shown at angle against white backgroun

Linear LED High Bay Light 75W 4000K IP65 120° | Ledison Zeus

Vendor
Ledison
SKU
113340
Availability
In stock
Weight
9.0 kg

£78.70inc VAT £65.58exc VAT

Delivery from £7.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

The Ledison Zeus is a 75W linear LED high bay light producing 10575 lumens at 4000K, with an IP65 rating and a 120° optic fitted as standard. It is 600mm long and finished in white. The heat sink is a pure aluminium extrusion that draws heat away from the LEDs, and the housing carries an anti-corrosion coating.

LED high bay light features

  • Output: 75W, 4000K, 10575 lumens
  • Protection: IP65 rated, anti-corrosion coated housing
  • Optics: 120° beam as standard, with a lens that can be swapped on site
  • Electrical: 120-277V input and a flicker-free driver
  • Colour rendering: Ra80
  • Lifetime and warranty: up to 60,000 hours, backed by a 5-year warranty

Where it is used

Warehouses, aircraft hangars, factories and supermarkets are typical sites for this fitting. It also suits logistics centres and packing areas. The lens change on site means the optic can be altered after installation without replacing the whole light.

Dimming options

Two versions are available. Choose a non-dimmable unit, or a 1-10V dimmable unit for connection to a compatible control system.

Mounting and wiring

Three installation methods are supported: suspended on metal hanging ropes, surface mounted or pole mounted. An adjustable 2M hanging kit is supplied as standard. The surface mount kit is a separate order.

Wiring is quick. A large central junction box opens without tools, so the installer can make connections at height with no extra kit.

Supplied with the light

  • Adjustable hanging kit 2M
Technical Specifications 21 rows Show
Product typeIndustrial LED High Bay Light
Power75w
Luminous flux10575 Lumens
Colour temperature4000K
IP ratingIP65
Optic beam angle120° Standard
Voltage120-277V
Dimming1-10V Dimmable
Heat sinkPure Aluminium Extrusion
Protection treatmentAnti-Corrosion Coating
FinishWHITE
Installation typesSuspended, Surface Mount, Pole Mount
InstallationTool-Free Junction Box Access
Colour rendering indexRa80
Length600mm
Hanging kitAdjustable hanging kit 2M; surface mount kit ordered separately
Junction boxLarge central junction box
LensReplaceable on site
DriverFlicker-free
LifetimeUp to 60,000 Hours
Warranty5 Years

Manufacturer datasheet. Figures as published by the manufacturer.
