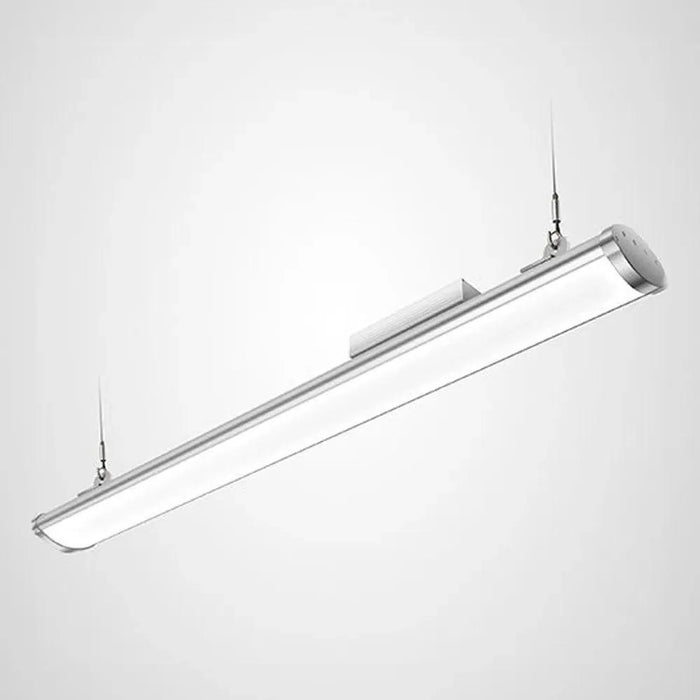

Linear LED high bay light fixture suspended from ceiling, silver aluminum housing with white diffuser panel, dual hanging cab

200W LED Linear High Bay 150cm IP65 28000lm | Ledison

£131.25
Skip to product information
Linear LED high bay light fixture suspended from ceiling, silver aluminum housing with white diffuser panel, dual hanging cab
200W LED Linear High Bay 150cm IP65 28000lm | Ledison

200W LED Linear High Bay 150cm IP65 28000lm | Ledison

Vendor
Ledison
SKU
113301
Availability
In stock
Weight
6.6 kg

£131.25inc VAT £109.38exc VAT

Delivery from £7.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Talk to our sales team

Product Description

This 200W LED linear high bay is a 150cm fitting built for warehouses, factories, workshops and other spaces with higher ceilings. It is IP65 rated for damp or dusty industrial conditions and forms part of the Skyline high and low bay range from Voltacon.

Led linear high bay performance

The fitting runs at 120 lumens per watt and uses a wide beam angle with patented light distribution to spread coverage across the working area. It is built as a replacement for 400W SON lamps in installations mounted above 12 metres, giving strong output while cutting running costs.

Key features

  • Driver, Mean Well HLG-240H-48A
  • LED chips, 672 latest generation SMD2835
  • Impact protection, IK10 rated diffuser, withstanding 20 joules of impact
  • Certification, TUV, UL, DLC, CE, RoHS and SAA
  • Control options, DALI and 1-10V dimmable versions available
  • Waterproofing, IP65

Applications

The 150cm body suits suspended installation in warehouses, production areas, retail units and other industrial or commercial premises where wide, even coverage is needed at height.

Dimensions and weight

The fitting measures 1505 x 135 x 72mm and weighs 6.6kg, sized for larger commercial and industrial spaces.

Technical Specifications 20 rows Show
Fitting:LINEAR BAY
Lumen:28000lm
Wattage (rated):200 Watt
Color Rendering index:>80
Voltage:100-305VAC
Typical efficiency:140lm/W
Line frequency:50/60Hz
Beam Angle:120deg.
Average lifetime:50,000 hours
Net Weight per piece 15kg
Color Temperature:
Power factor0.96 @ 240VAC
Warm white:3000K/22800LM
Dimensions1505*135*72mm
Natural white:4000K/23900LM
DimmableNO
Cool white:5500K/25000LM
Warranty:5 years
Operating Temp:-20 OC to 50 OC
Certification:ROHS Compliant, CE, UL

Manufacturer datasheet. Figures as published by the manufacturer.
