ZEUS Linear LED High Bay 240W 36000lm Tri Colour 1-10V Dimmable

The ZEUS Linear LED High Bay Light is a 240W fitting built for warehouses, factories, workshops and other large commercial spaces. It produces 36,000 lumens at 150lm/W, giving a strong light output while keeping running costs down compared with older metal halide or fluorescent high bay fittings.

Key features of this LED linear high bay

• Output, 240W consumption delivering 36,000 lumens at 150lm/W
• LED chips, Philips 2835
• Beam angle, 120° for wide, even coverage across the floor area
• Dimming, 1-10V dimming built in as standard
• Protection rating, IP44
• Colour rendering, CRI >80, power factor >0.9

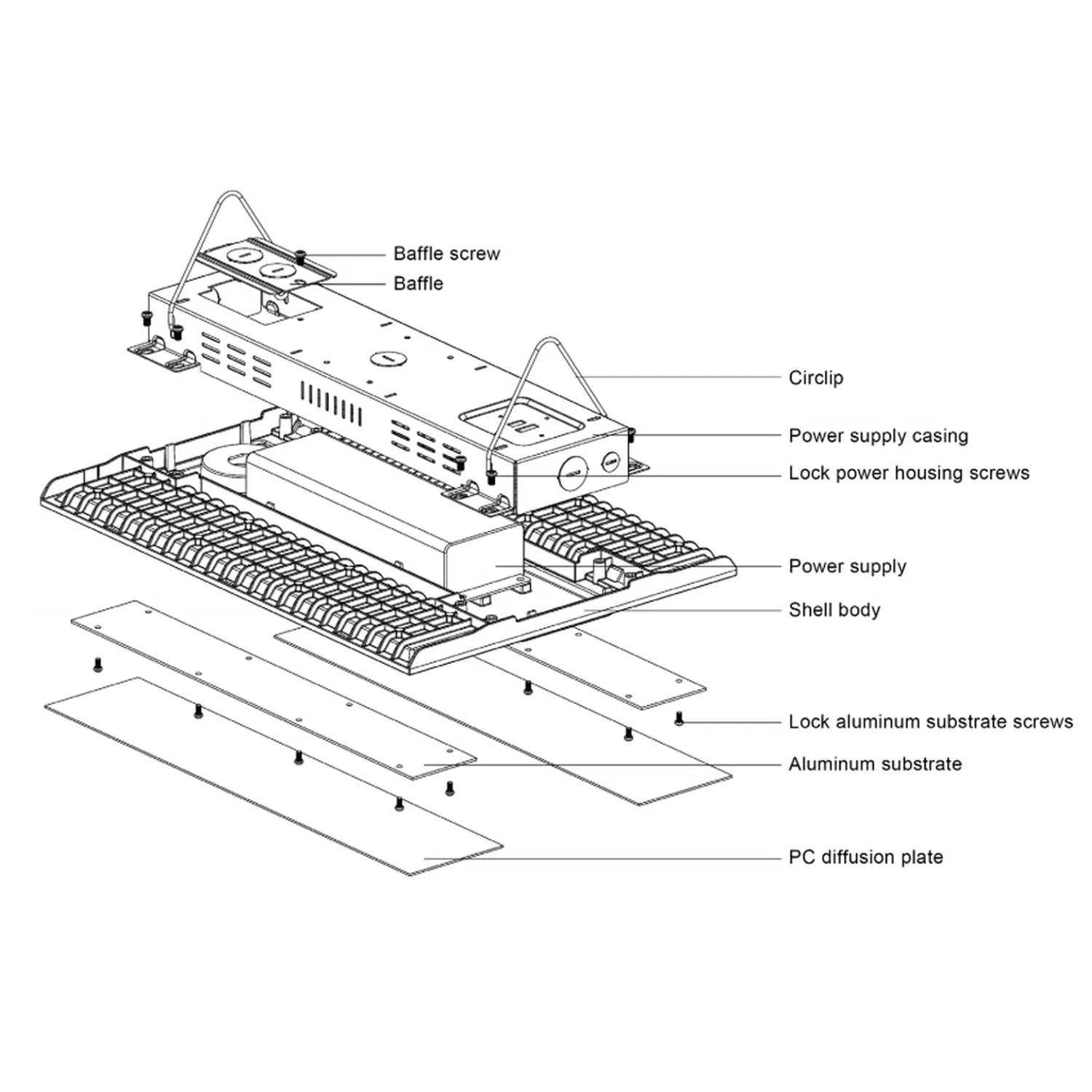

Housed in aluminium with a tempered glass or PC lens, the fitting is finished as a Tri Colour version, and includes a 110cm suspension chain for hanging from warehouse or factory ceilings. Input runs on AC100-277V at 50/60Hz, which suits most commercial supplies without extra equipment.

Control options

Alongside the standard 1-10V dimming, the fitting can take optional DALI control, Zigbee smart lighting integration, a microwave motion sensor, or emergency backup, letting an installer match the control setup to the building rather than relying on a single fixed configuration.

Where it's used

This high bay suits warehouses and logistics centres, factories and workshops, retail stores and supermarkets, indoor parking facilities, sports halls and exhibition centres, agricultural buildings and greenhouses, and general commercial storage. The 120° spread and 1-10V dimming make it easy to zone lighting across large floor plates and cut energy use when full brightness isn't needed.

Construction

The aluminium body and heat sink structure are designed to keep the LED chips running at a stable temperature, which supports consistent light output over the working life of the fitting. Model reference: HF-LHB240W-D.
