12V LED Driver 60W Dimmable IP67 Constant Voltage | Glacial GP-LP060P-12VA
- Vendor
- Glacial
- SKU
- 900513
- Availability
- In stock
- Weight
- 0.473 kg
£30.40inc VAT £25.33exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

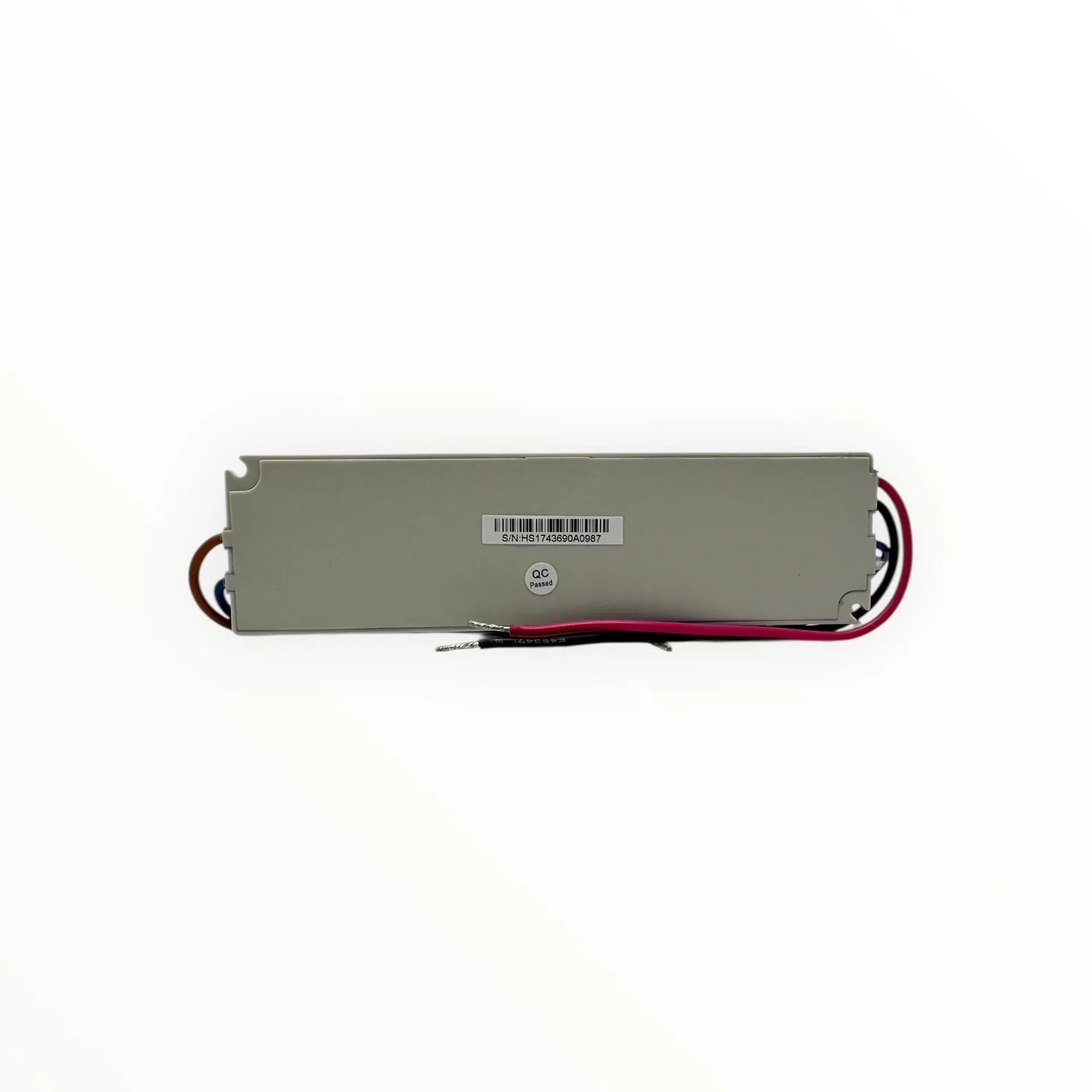

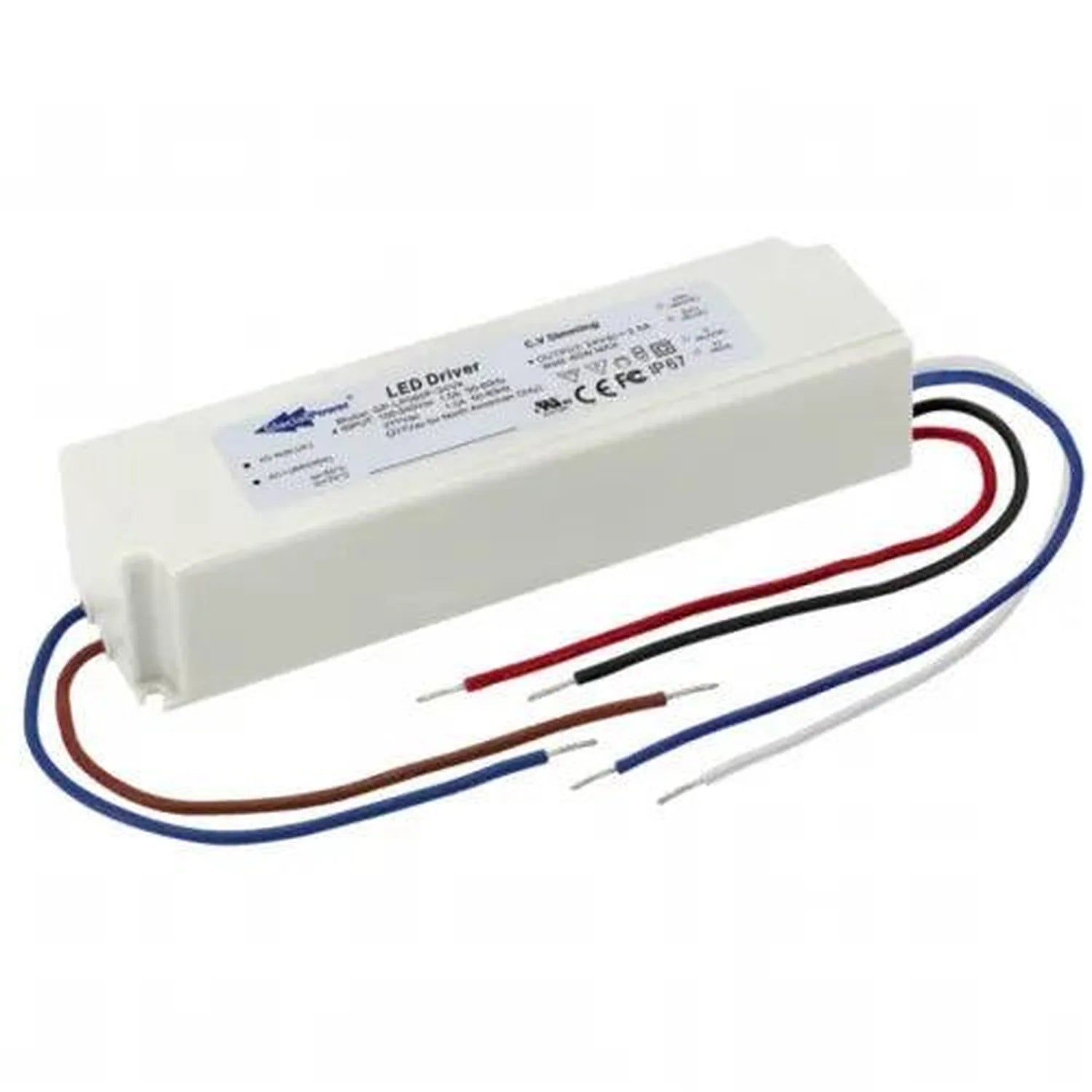

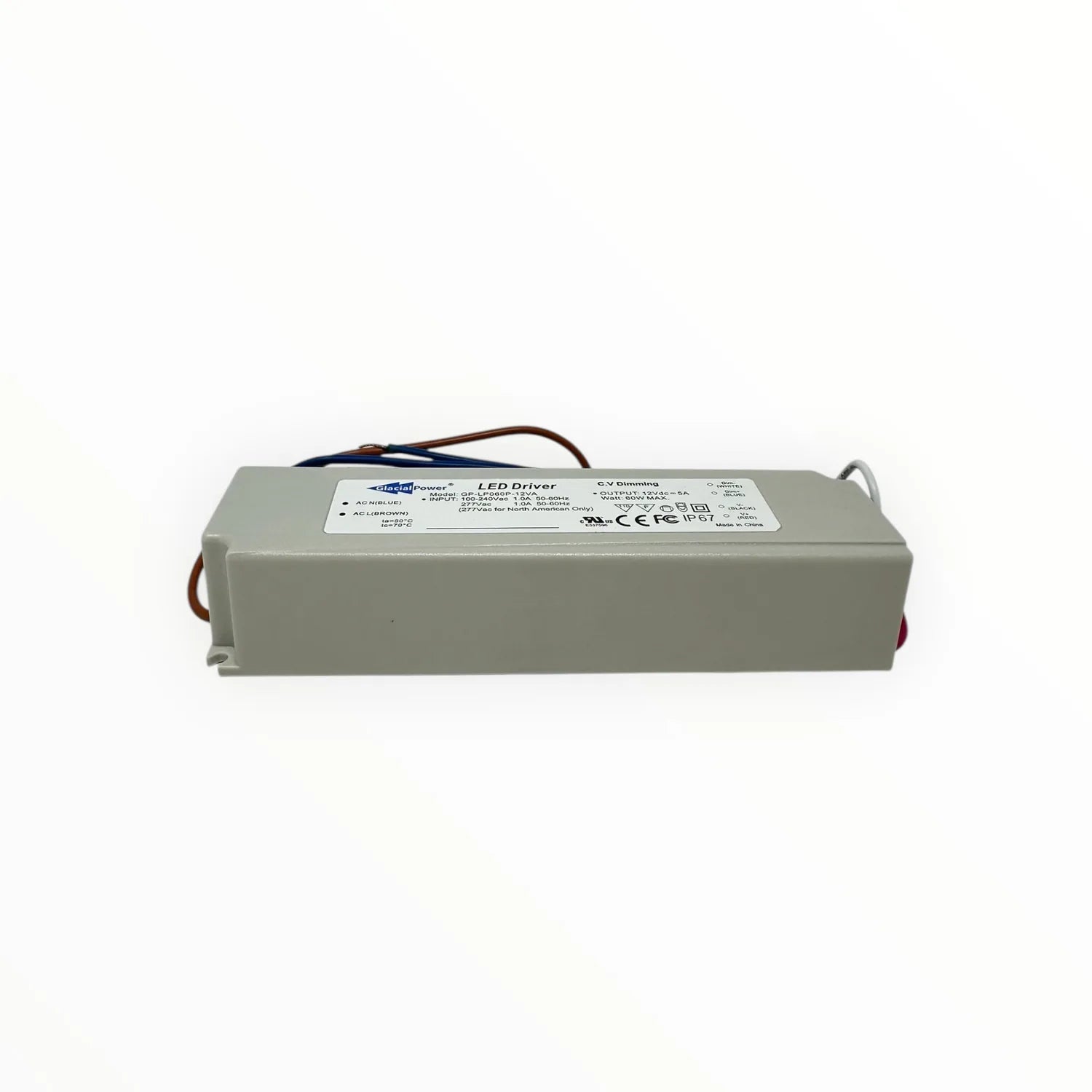

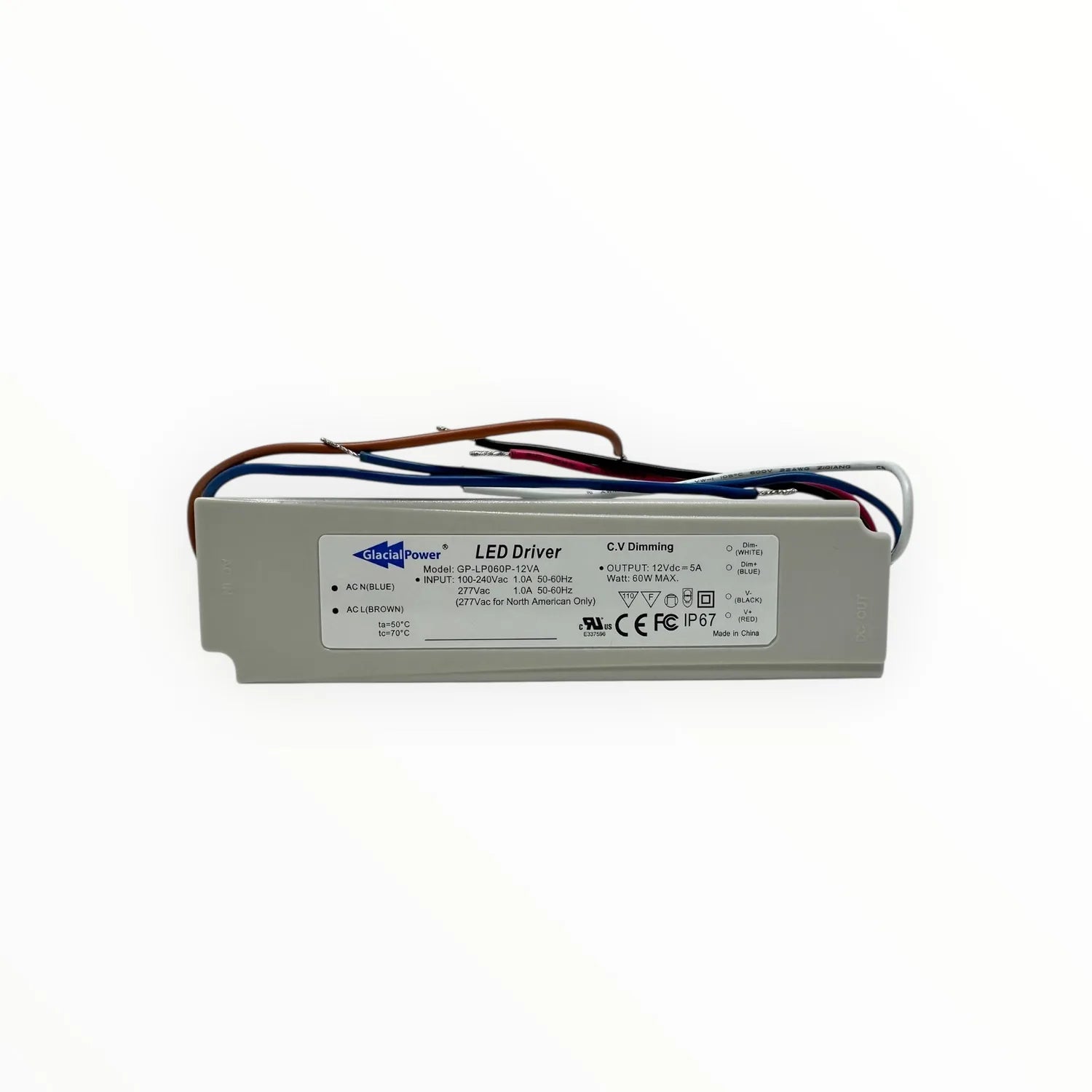

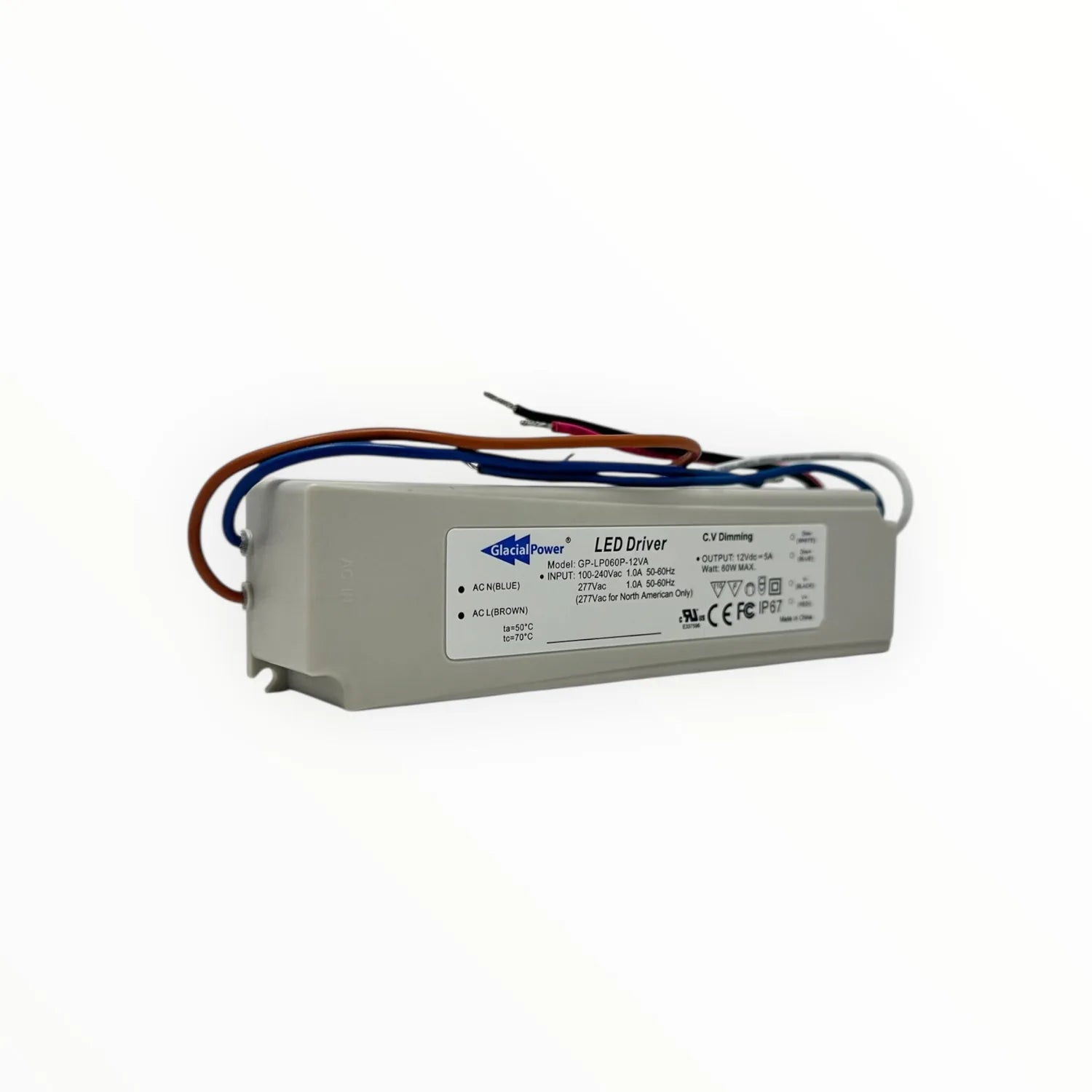

The Glacial GP-LP060P-12VA is a 12V constant voltage power supply built for LED strip lighting. It delivers 60W at 12V DC (0-5A) from a fully insulated IP67 plastic case, so the same unit can go on an indoor job or an outdoor one. Use it as a plain non-dimmable driver, or wire in a dimmer. There is no fan. Heat is shed by free air convection.
12V LED driver key features
- Output: 12V DC, 0-5A, 60W, constant voltage with PWM style output
- Dimming: 3-in-1 control via DC 0-10V (or potentiometer), PWM or 0-100K resistance
- Input: universal AC input from 90 to 305VAC, with built-in 2-stage PFC
- Efficiency: 85% at full load
- Protection: over voltage, over current, short circuit and over temperature
- Enclosure: IP67, Class 2 power supply unit, 163 x 44.2 x 32.5 mm and 371g
Where it fits
This driver is aimed at 12V LED strip installations. The IP67 case makes it a sensible pick for outdoor lighting where the power supply needs that level of protection, and it suits commercial and domestic LED projects alike.

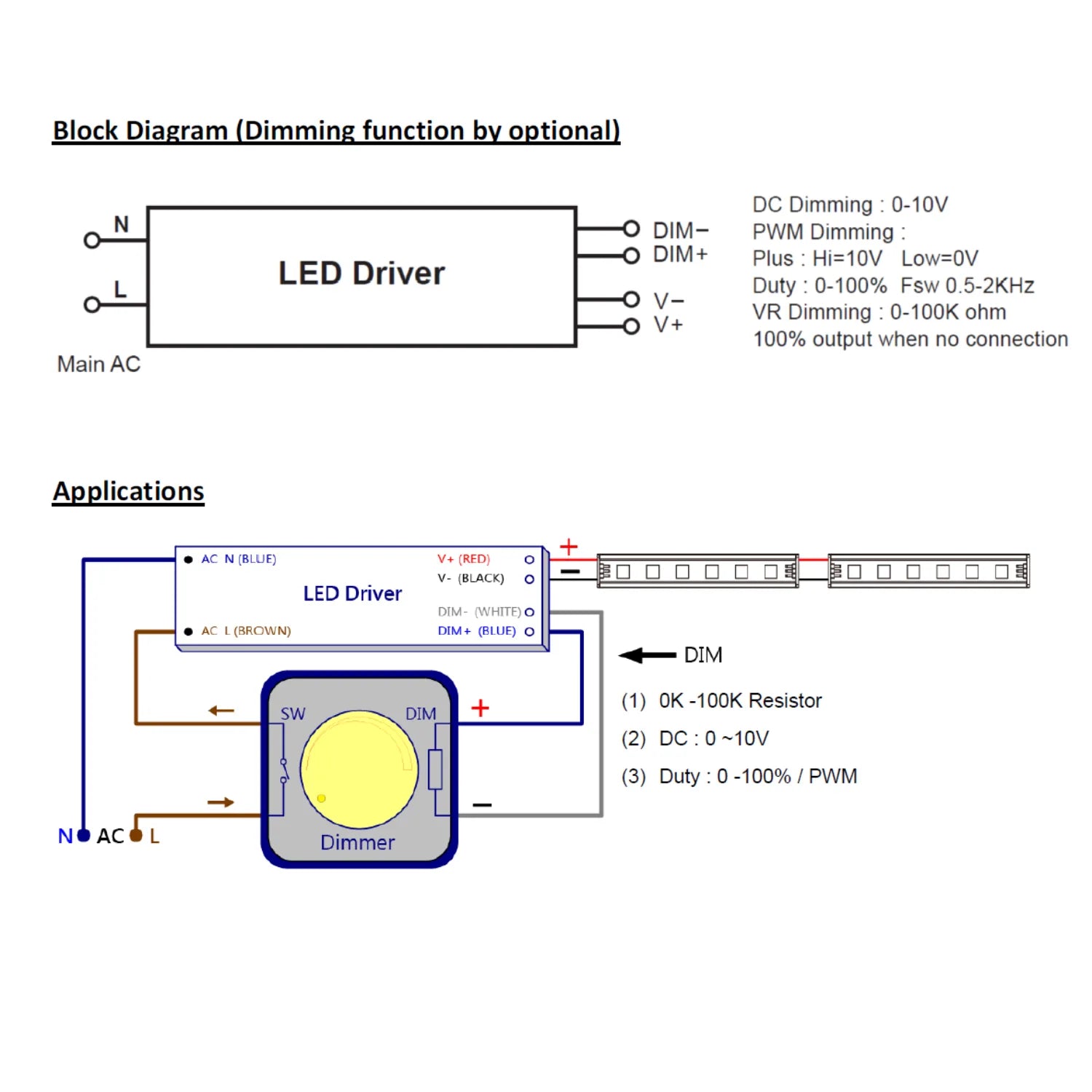

Installers get a choice. Leave the dimming inputs unused and it runs as a standard driver; connect a 0-10V controller, a potentiometer, a PWM signal or a resistance dimmer and the strip becomes adjustable. One unit covers both cases.
Cooling and housing
Because it relies on convection rather than a fan, there are no moving parts to wear out or collect dirt. The insulated plastic housing carries the IP67 rating on its own. Full electrical, environmental and compliance data, including the safety standards it is approved to, is listed in the specifications tab.
Technical Specifications 40 rows Show
| Brand | Glacial |
| Model | GP-LP060P-12VA |
| Type | Constant Voltage PWM Style Output |
| Output voltage | 12V |
| Rated current | 0- 5A |
| Max. power | 60W |
| Dimming | 3-in-1: DC 0-10V (or potentiometer), PWM, 0-100K resistance |
| Ripple and noise (max) | 1Vp-p at 100% duty output |
| PWM dimming frequency | >1700Hz |
| Efficiency at 230VAC | 85% with full load. |
| Setup time (max) | 0.5 sec. / 230VAC with full load. |
| Input voltage range | 90 ~ 305VAC |
| Frequency | 47 Hz ~ 63 Hz |
| AC current (max) | 1A at 115VAC / 0.5A at 230VAC |
| Power factor | PF >0.98 at 115Vac / PF >0.94 at 230Vac / |
| Power factor correction | Built in 2 Stage PFC Function. |
| Inrush current (max) | 60A at 230VAC |
| No-load consumption | < 0.5W at 230VAC |
| Leakage current | < 0.5mA / 240VAC |
| Protections | OVP / OCP / SCP / OTP |
| Over current protection | 110% ~ 150% rated current. |
| Over voltage protection | 110%-150% rated output voltage |
| IP rating | IP67 |
| Protection class | Class 2 Power Supply Unit. |
| Housing | Fully Insulated Case with IP67 Level |
| Cooling | Cooling by Free Air Convection |
| Operating temperature | -20C ~50C ambient operating at full load (Refer to output load derating curve) |
| Operating humidity | 20% ~ 90% RH non-condensing. |
| Storage temperature | -40C ~ +80C |
| Storage humidity | 10% ~ 90% RH |
| Vibration | 10~500 Hz, 2G 10 min./1 cycle, period for 60 min. each along X, Y, Z axes. |
| Safety standards | EN61347-1, EN61347-2-13 , IP67/UL8750/UL60950 Approved. |
| Withstand voltage | I/P - O/P: 3.75K VAC |
| Isolation resistance | I/P-O/P:100M ohms / 500VDC at 25C |
| EMI conduction and radiation | EN55015 |
| Harmonic current | EN61000-3-2 Class C,EN61000-3-3 |
| EMS immunity | EN61000-4-2,3,4,5,6,8,11 Light industry level, criteria A |
| MTBF | 200k hours min. MIL-HDBK-217F(25C) |
| Dimensions (L x W x H) | 163 x 44.2 x 32.5 mm |
| Weight | 371g/pcs |
Manufacturer datasheet. Figures as published by the manufacturer.
