24V LED Driver 40W Triac Dimmable IP65 | Glacial GP-CVP040N-24VH-P02
- Vendor
- Glacial
- SKU
- 999032
- Availability
- In stock
- Weight
- 0.24 kg
£28.30inc VAT £23.58exc VAT
Delivery from £7.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description
The Glacial GP-CVP040N-24VH-P02 is a constant voltage 24V LED driver built for LED strip, with a rated output of 24V DC at 1.7A (40.8W). It dims from a standard mains dimmer and accepts both leading edge and trailing edge triac types. Dimming runs from 5% to 100%.
24V LED driver features
- Output: 24V DC, 1.7A, 40.8W constant voltage
- Dimming: triac phase-cut, leading and trailing edge, 5% to 100%
- Input: 220-240V AC rated, 205-256V AC range
- Efficiency: 84% typical, with ripple and noise of 0.6Vp-p
- Housing: fully potted, IP65, measuring 107.5 x 43.5 x 32 mm and weighing 240g
- Protection: over voltage, over current, short circuit and over temperature, all with automatic recovery
Where it fits
Because the housing is potted and rated IP65, the driver can be mounted indoors or outdoors, in dry or damp locations. Typical jobs include domestic LED strip runs, restaurant and hospitality lighting, retail and display work, and decorative or theatre installations.
If a fault trips one of the protection circuits, the driver comes back on its own once the condition clears. No manual reset is needed.
Installing the driver

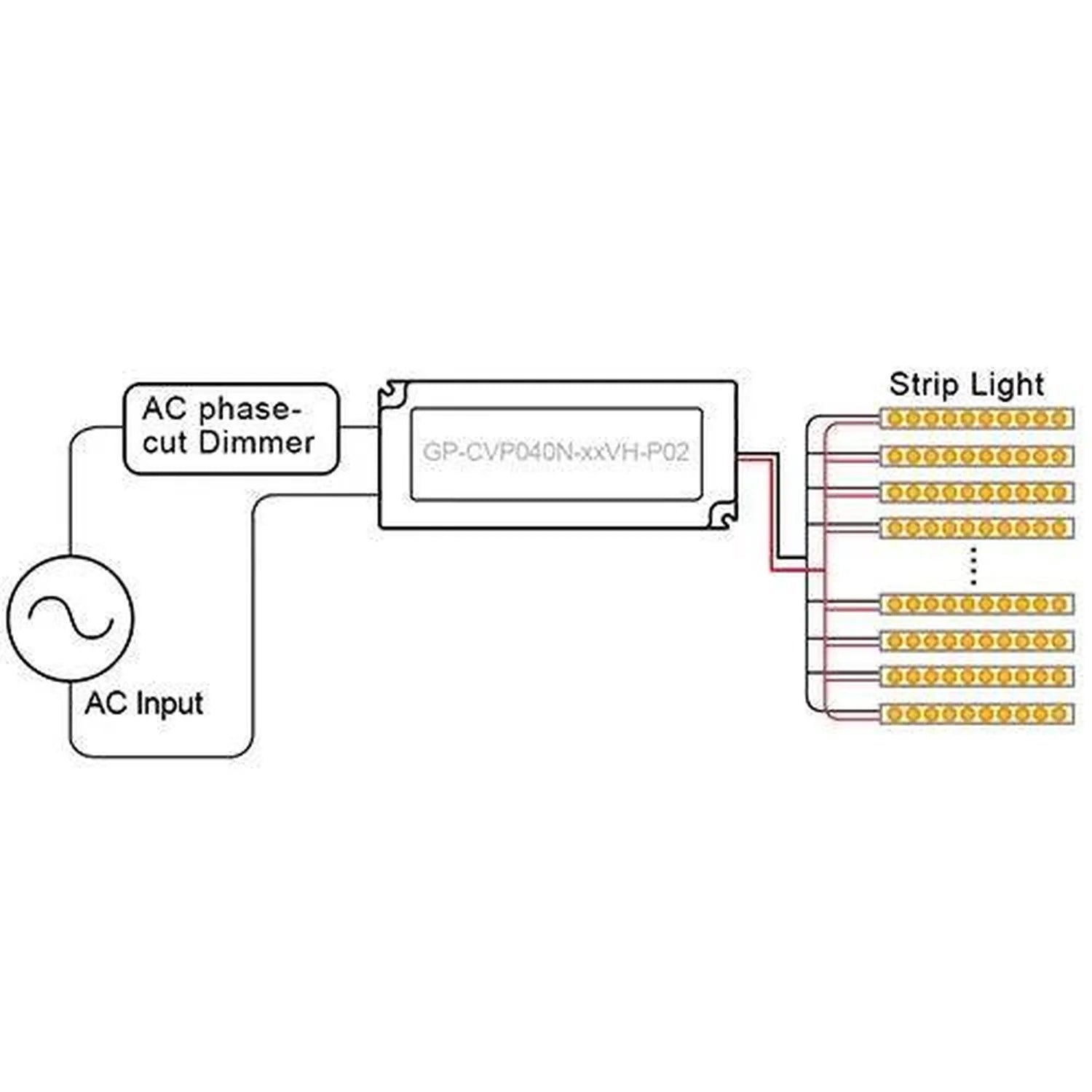

Fit it in line with current electrical regulations. Pair it with a compatible triac dimmer to get the full 5% to 100% range from your 24V strip.
Standards and warranty
The GP-CVP040N-24VH-P02 meets EN61347-1 and EN61347-2-13 for safety, and EN55015, EN61000-4 and EN61547 for EMC. It is RoHS compliant. Glacial covers it with a 2-year warranty.
Technical Specifications 38 rows Show
| Brand | Glacial |
| Model | GP-CVP040N-24VH-P02 |
| Type | Constant Voltage LED Dimmable Driver |
| Output voltage | 24VDC |
| Rated current | 1.7A |
| Rated power | 40.8W |
| Ripple and noise (max) | 0.6Vp-p |
| Voltage tolerance | ± 5% |
| Dimming type | TRIAC (Leading & Trailing Edge) |
| Dimming range | 5%~100% |
| Efficiency (typical) | 84% |
| Setup time (max) | 0.5S / 230VAC at full load |
| Rated input voltage | 220~240VAC |
| Input voltage range | 205~256VAC |
| Frequency | 50/60 Hz |
| AC current (max) | 0.5A at 230VAC |
| Power factor | > 0.45 at 230VAC with full load. |
| Inrush current (typical) | Cold Start 50A at 230VAC |
| Leakage current (typical) | <1mA / 230VAC |
| Over voltage protection | 120 % - 150% Output voltage limiting, auto-recovery |
| Over current protection | 120% - 150% Constant current limiting, auto-recovery |
| Over temperature protection | 110°C - 125°C Temperature limiting, auto-recovery |
| Short circuit protection | Hiccup mode, recovers automatically after fault condition is removed |
| IP rating | IP65 |
| Installation | Fully potted suitable for dry and damp location applications |
| Operating temperature | -20°C to +50°C |
| Operating humidity | 20% ~ 90% RH non-condensing. |
| Storage temperature | -20 ~ +80C |
| Storage humidity | 10% ~ 90% RH |
| Safety standards | meet EN61347-1,EN61347-2-13 |
| Withstand voltage | I/P - O/P : 3.75K VAC |
| Isolation resistance | I/P-O/P : 100M ohms / 500VDC at 25C |
| EMC standards | meet EN55015,EN61000-4-2,3,4,5,6,8,11 ,EN61547 |
| MTBF | 100K hours min. @Ta=25°C |
| Dimensions (L x W x H) | 107.5 x 43.5 x 32 mm |
| Weight | 240g/pcs |
| Warranty | 2 Years warranty |
| RoHS | RoHS compliant. |
Manufacturer datasheet. Figures as published by the manufacturer.
