24V Constant Current LED Driver 60W 3-in-1 Dimmable IP67 | Glacial GP‐LS60P‐24CA
- Vendor
- Glacial
- SKU
- 900408
- Availability
- In stock
- Weight
- 0.5 kg
Was£33.59£27.99Save £7.39Save £6.16
£26.20inc VAT £21.83exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description
This Glacial 24V LED driver supplies 60W in constant current mode, with a rated 2.5A output across a 16 ~ 24V region. Dimming is 3-in-1. The aluminium housing is potted with heat-conductive silicone and sealed to IP67, so the driver can be mounted in dusty, oily, humid or high-vibration locations.
24V LED driver key features
- Output: 2.5A constant current, 16 ~ 24V, 60W
- Dimming: DC 0-10V (or potentiometer), PWM and 0K-100K resistance
- Input: universal 90~305V AC with built-in active PFC
- Efficiency: 86% at 240Vac, with no-load consumption below 0.5W
- Protection: over voltage, over current, short circuit and over temperature

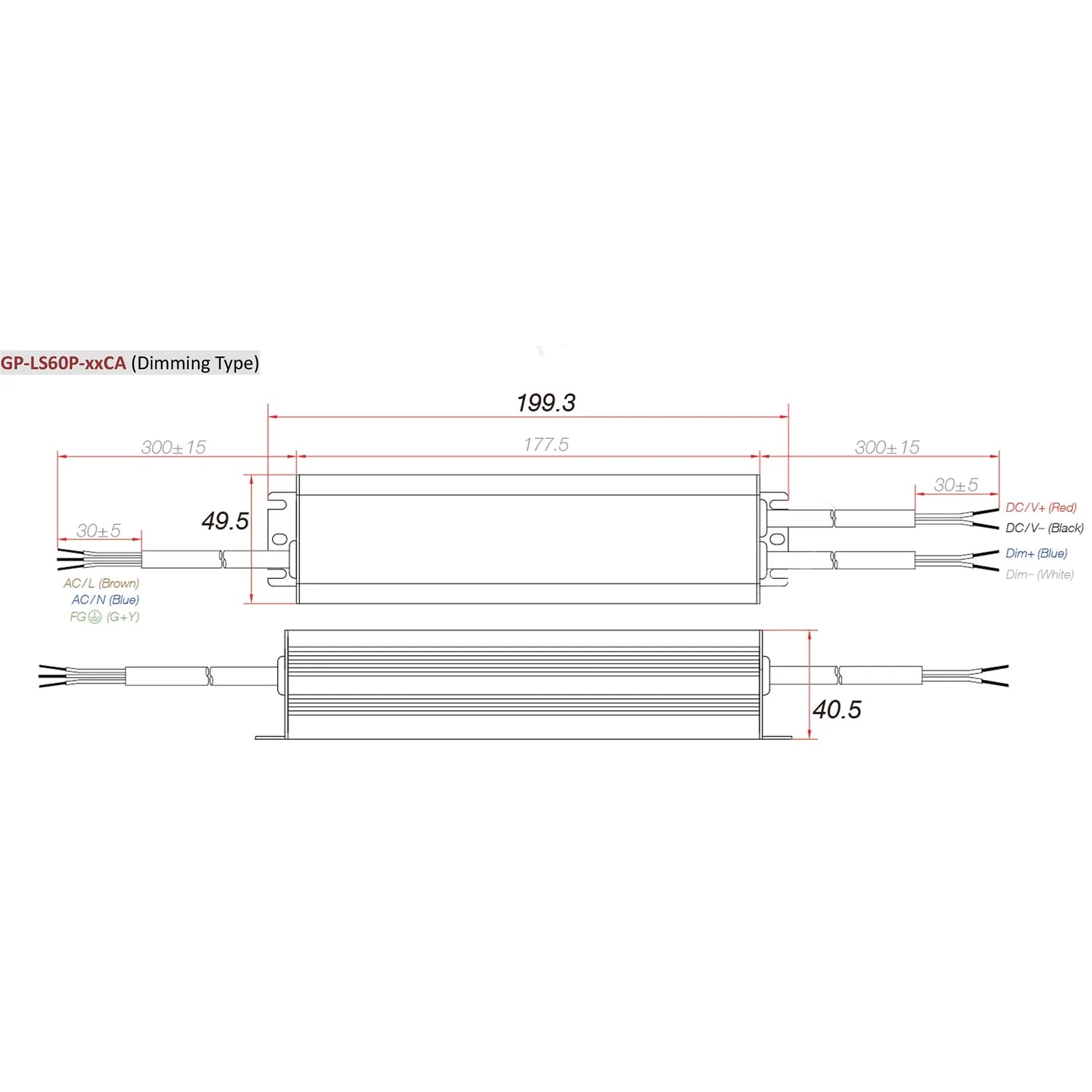

- Enclosure: IP67 aluminium, 199.3 x 49.5 x 40.5mm, 762g
Where it fits
Sealed construction makes it a good match for dusty, damp or high-vibration areas. There is no fan. Cooling is by free air convection, and the driver operates from -30°C to 50°C, with the derating curve to be consulted for the upper end of that range.
Dimming options
Three control methods are built in. You can dim with a DC 0-10V signal or an electronic potentiometer, with a PWM signal, or with a 0K-100K resistance. For PWM control the pulse is Hi=10V and Low=0V, with a 0%-100% duty cycle and a switching frequency of 0.5-3KHz.
Standards and reliability
Safety approvals listed are UL8750, EN61347-1 and EN61347-2-13. EMI conduction and radiation comply with EN55015 and FCC Part 15, and the driver meets ErP EU_1194_2012 Stage 3. Glacial quotes an MTBF of 200K hours minimum to MIL-HDBK-217F (25°C). Over current protection resets itself once the fault clears; over temperature protection latches and needs the power cycling to recover.
Technical Specifications 42 rows Show
| Brand | Glacial |
| Model | GP‐LS60P‐24C(A) |
| Output voltage | 24V |
| Constant current region | 16 ~ 24V |
| Rated current | 2.5A |
| Current tolerance | ± 5% |
| Rated power | 60W |
| Ripple and noise (max) | 200mV |
| Efficiency at 240Vac (typical) | 86% |
| Voltage tolerance | -1% ~ +5% |
| Setup time | < 0.5 Sec at 230VAC |
| Input voltage range | 90 ~ 305VAC |
| Rated input voltage | 100 ~ 240VAC/ 277VAC (for North American Only) |
| Frequency | 47 ~ 63 Hz |
| AC current (max) | 0.8A at 100 ~ 240VAC / 0.4A at 277VAC for North American Only |
| Power factor | ≥ 0.98 at 120VAC / ≥ 0.94 at 240VAC / ≥ 0.92 at 277VAC, at full load |
| Inrush current (max) | COLD START 70A at 240VAC |
| No-load consumption | < 0.5W |
| Over current protection | 95 ~ 105% rated current. Auto-recovery after fault condition disappeared. |
| Short circuit protection | Hiccup mode & recovers after fault condition disappeared. |
| Over temperature protection | RT2: 105 ± 10°C. Latch mode (Re-power on to recover). |
| IP rating | IP67 |
| Housing | Aluminium, potted with heat-conductive silicone |
| Cooling | Free air convection |
| Operating temperature | -30°C ~ 50°C, refer derating curve. |
| Operating humidity | 20% ~ 90% RH non-condensing. |
| Storage temperature | -40°C ~ 60°C. |
| Storage humidity | 10% ~ 90% RH. |
| Vibration | 10~500 Hz, 2G 10 min./1 cycle, period for 60 min. each along X, Y, Z axes. |
| Safety standards | UL8750, EN61347-1, EN61347-2-13, IP67 Approved. |
| Withstand voltage | I/P-O/P: 3750VAC. |
| Isolation resistance | I/P-O/P: 100M ohms / 500VDC at 25°C. |
| EMI conduction and radiation | Compliant to EN55015, FCC Part 15. |
| Harmonic current | Compliant to EN61000-3-2 Class C, EN61000-3-3. |
| EMS immunity | Compliant to EN61000-4-2, 3, 4, 5, 6, 11; EN61547. |
| Energy compliance | Compliant with ErP EU_1194_2012, Stage 3 Directives for Energy-Related Products |
| MTBF | 200K hours min. MIL-HDBK-217F(25°C). |
| Dimensions (L x W x H) | 199.3 x 49.5 x 40.5mm |
| Weight | 762g/pcs. |
| Mode | Constant Current |
| Dimming | 3-in-1: DC 0-10V or electronic potentiometer, PWM, 0K-100K resistance (A type) |
| PWM dimming | Puls: Hi=10V, Low=0V, Duty: 0%-100%, Fsw: 0.5-3KHz |
Manufacturer datasheet. Figures as published by the manufacturer.
