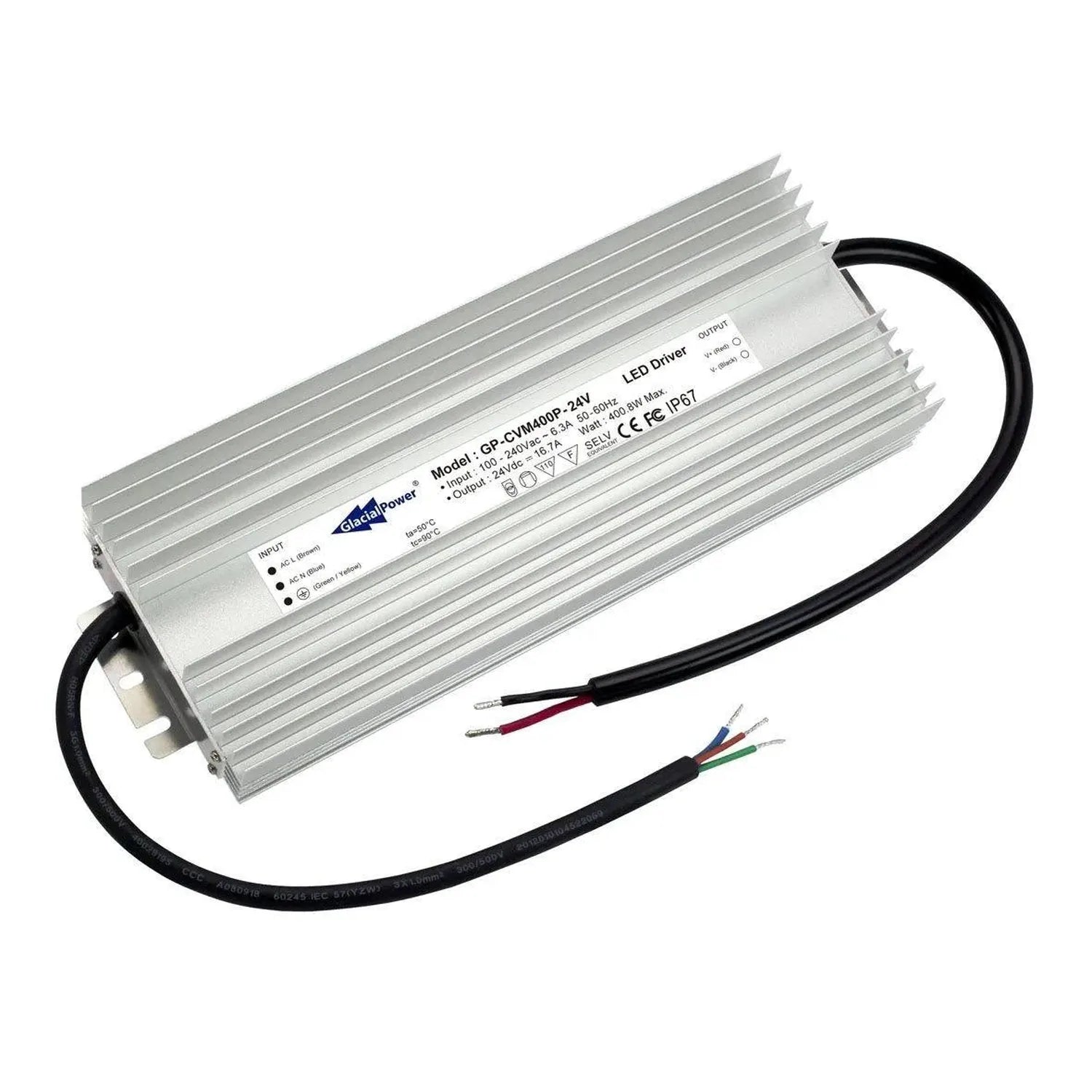

LED Driver 24V 400W IP67 3in1 Dimmable | Glacial GP-CVM400P-24V

The Glacial GP-CVM400P-24V is a constant voltage LED driver built for 24V LED strip lighting, signage and architectural installations. It outputs 24V DC at a rated 400.8W, with up to 16.7A of output current, so a single unit can run larger strip runs without stacking multiple smaller drivers.

LED driver 24v built for demanding sites

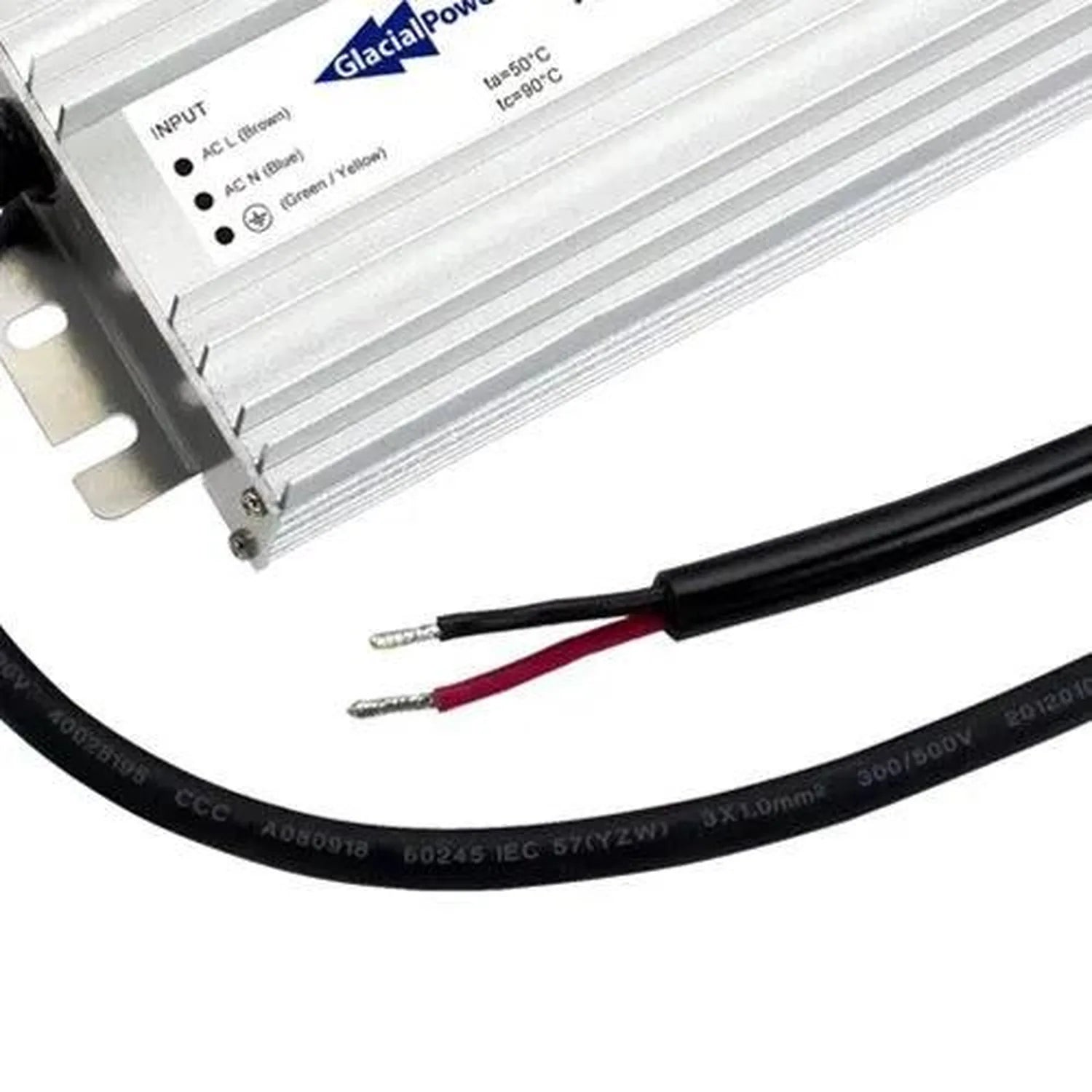

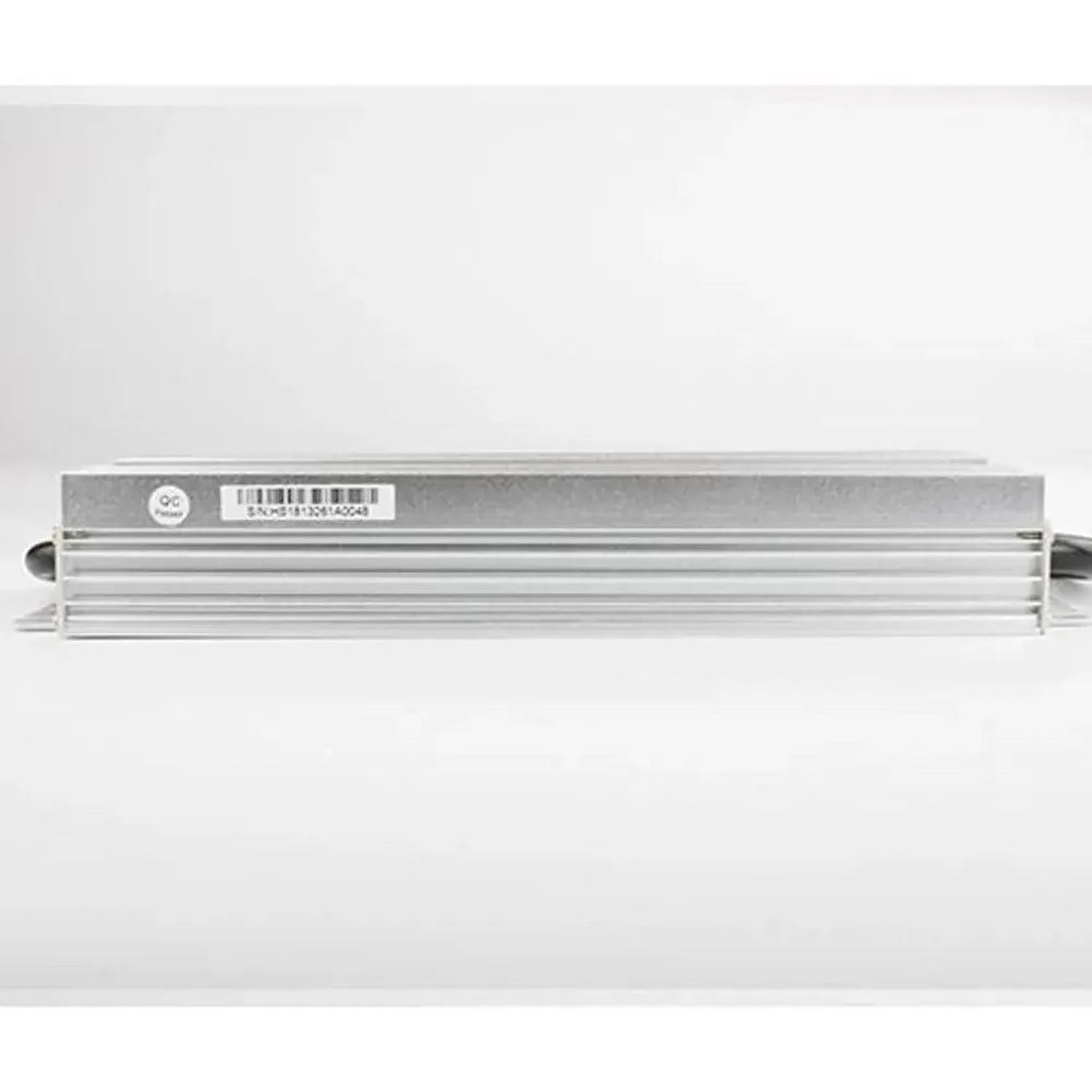

The driver sits inside a fully insulated aluminium housing rated IP67, suitable for both indoor and outdoor use where dust and moisture are a factor. The metal case doubles as a heatsink, cooling the unit through free air convection with no fan required.

3-in-1 dimming

The dimmable version supports three dimming methods: 0-10V DC, PWM dimming across a 0% to 100% duty cycle, and resistance dimming from 0KΩ to 100KΩ. A dim-to-off function is also available on compatible dimmable versions, useful for lighting control systems that need a full off state.

Key features

• Output, 24V DC, 400.8W rated, 0 to 16.7A
• Efficiency, 93% typical at 230VAC
• Power factor, greater than 0.98 at 115VAC, greater than 0.94 at 230VAC at full load
• Protection rating, IP67, fully insulated aluminium housing
• Surge protection, 4kV/2kV
• Built-in protection, over voltage, over current, short circuit and over temperature, with auto recovery

Applications

Suited to commercial LED strip lighting, shopfronts, signage, display lighting and architectural features where a stable 24V DC supply is needed. The IP67 housing also makes it a candidate for outdoor lighting and garden lighting projects where the driver itself is exposed to the weather.
