54W Dimmable LED Driver 1-10V Constant Current 200-1050mA | Easeic LNA154AL
- Vendor
- Easeic
- SKU
- 632154
- Availability
- In stock
- Weight
- 0.15 kg
£39.85inc VAT £33.21exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

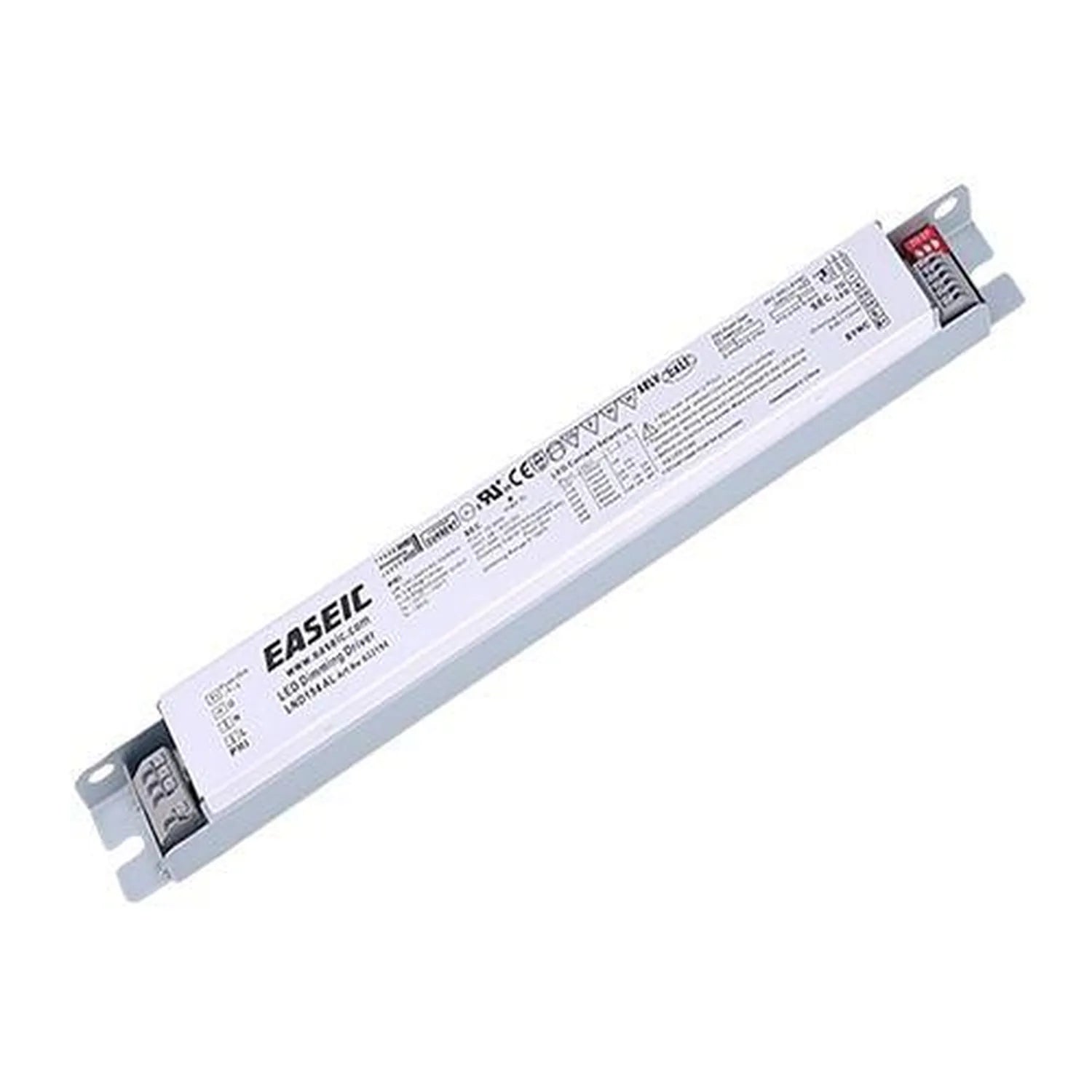

The Easeic LNA154AL is a constant current LED driver rated up to 54W, with output current set by DIP switch anywhere from 200mA to 1050mA. It suits LED panels, downlights, battens, linear fittings and architectural luminaires. Match the current to your LED array before wiring it in.
Dimmable LED driver with four control options
- Output power: up to 54W
- Output current: 200-1050mA, selected by DIP switch
- Output voltage: 3V to 66V DC, maximum open circuit voltage <77V
- Dimming: 0/1-10V, PWM, resistance or PUSH-Dim, flicker-free analogue across 0-100%
- Mains input: 100-277V AC, 50/60Hz, power factor >0.95, THD <10%
- Protection: short circuit, over voltage, over current and open circuit
Efficiency is up to 88%. The housing measures 280 x 30 x 26mm, slim enough to sit inside compact fittings, and connections are made with push terminals.
Where it fits
Recessed luminaires and LED panels are the obvious home for it. It also works in linear LED fittings and battens, and in commercial lighting for offices, shops and hospitality venues. Luminaire manufacturers building OEM fittings use it too.
Before you install
Setting the current
The driver leaves the factory set to 200mA. Change the DIP switches to the current you need before the LEDs are connected. The full 54W is only available from 850mA upwards, and at 200mA the ceiling is 13W, so check the DIP switch table in the datasheet when sizing.
Wiring PUSH-Dim
Keep the total length of push-dim cabling under 20m. Use a self-reset push button with no indicator light, linked between Push-dim and L(AC). A standard push-button switch is all it takes.
Technical Specifications 30 rows Show
| Brand | Easeic |
| Model | LNA154AL |
| Type | LED 1-10 Dimmable Driver |
| Output power | Up to 54W |
| Output current | 200mA - 1050mA Adjustable |
| Factory default current | 200mA |
| Output voltage | 3V - 66V DC |
| Maximum open circuit voltage | <77V |
| Input voltage | 100 - 277V AC |
| Frequency | 50 / 60Hz |
| Input current | 0.69A@100VAC 0.61A@120VAC 0.31A@230VAC |
| Maximum input power | 61.5W |
| Inrush current | Cold start 39A at 230VAC |
| Leakage current | <0.5mA/230VAC |
| Dimming type | 0/1-10V / PWM / Resistance / PUSH-Dim |
| Dimming range | 0 - 100% |
| Efficiency | Up to 88% |
| Power factor | >0.95 |
| THD | <10% |
| Protection features | Short Circuit, Over Voltage, Over Current, Open Circuit |
| Operating temperature | -20°C to +50°C |
| Maximum case temperature | 75°C for life, 85°C for UL safety |
| Dimensions | 280 x 30 x 26 mm |
| Protection class | UL Class 2 |
| Weight | 0.23Kg |
| Audible noise | <24dB Class A |
| Approvals | UL8750, UL1310, CSA-C22.2 No.250.0-08, ENEC EN61347-1, EN61347-2-13 |
| Wiring | 16-24 AWG solid copper wire rated >=300V/85C |
| Order code | 632154 |
| Warranty | 5 Years |
Manufacturer datasheet. Figures as published by the manufacturer.
