1 Gang LED Dimmer Switch 0-120W 2 Way Trailing Edge White | Varilight V-Pro JQP401W
- Vendor
- Varilight
- SKU
- JQP401W
- Availability
- In stock
- Weight
- 0.15 kg
£37.75inc VAT £31.46exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

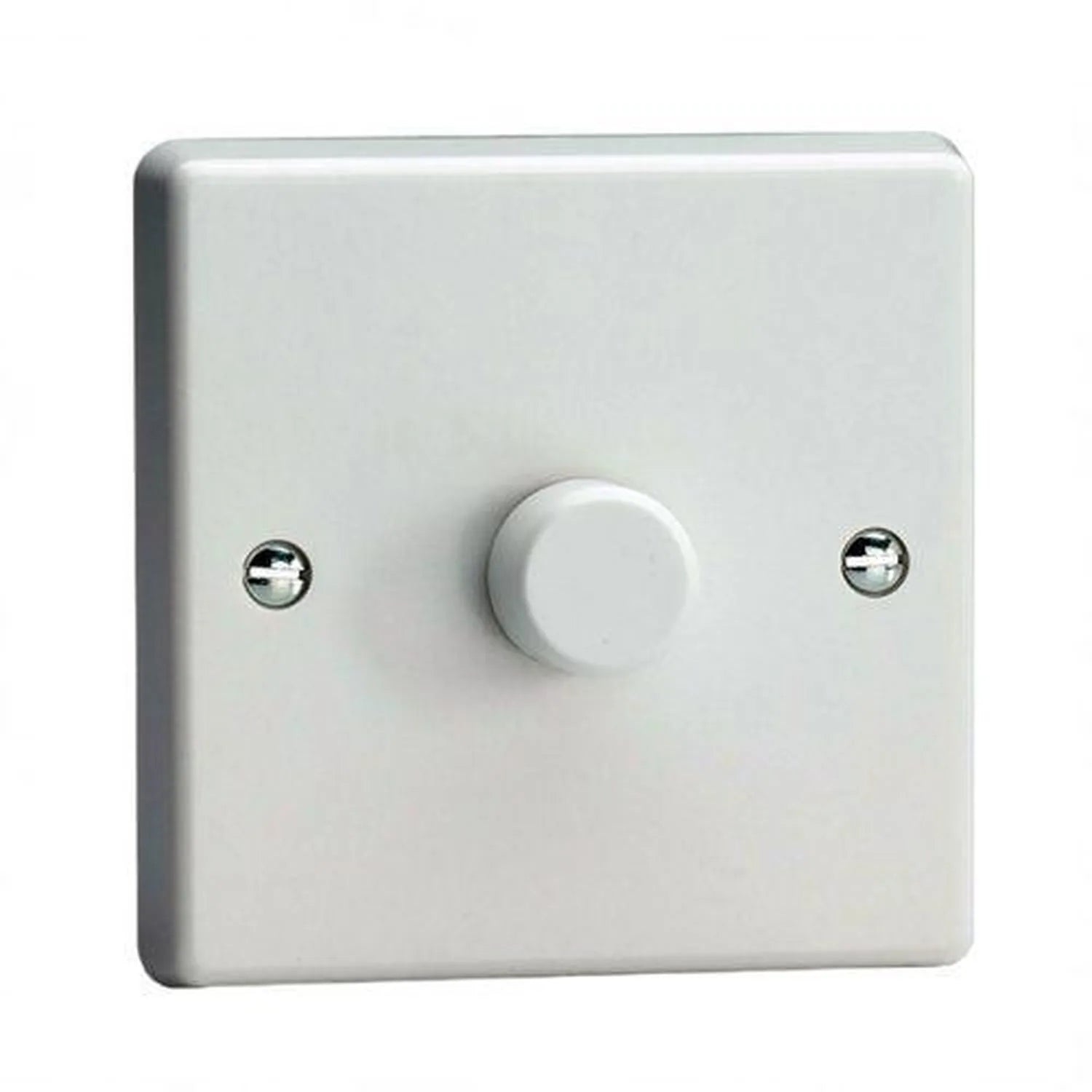

The Varilight V-Pro JQP401W is a 1 gang, 2 way LED dimmer switch with a push on/off rotary knob. Press the knob to switch the lights on or off, then turn it to set the level. It handles 0-120W of LED load in a white plastic finish with a matching white knob.
1 gang LED dimmer switch features
- Load range: 0-120W LED, with no minimum load and no maximum number of lamps.
- Dimming mode: silent trailing edge by default. A selectable simulated leading-edge mode (Mode 2) suits certain LEDs.
- Minimum brightness: programmable with pushes of the knob, so you can get the best dimming range from your lamps.
- Overload protection: a microprocessor turns the lights down or off if the dimmer is connected to too many lights or transformers, until the load is corrected.
- Finish: white plastic with a white knob.
- Size: 85x85x47mm, with an 11mm deep faceplate and a recommended back box depth of 25mm.
Where to use it
This dimmer suits mains lighting and many dimmable LEDs. It also works with most dimmable electronic transformers. It is rated for indoor use only.
Why does the minimum brightness setting matter? LED lamps vary in how low they can dim before they flicker or cut out. Setting the floor yourself gives each circuit a usable range from the lamps you have fitted.
Installation notes
The switch runs on 230V 50Hz and is built to BS EN 60669-2-1. Fixing centres are 60.3mm and the depth from the mounting face is 16.1mm. A 25mm back box is the recommended depth. The live terminal is 3.2mm and takes up to 3 x 1.5mm² conductors, which helps where a 2 way circuit brings several cores into the box.
Technical Specifications 18 rows Show
| Brand | Varilight |
| Model | JQP401W |
| Range | V-Pro |
| Description | 1-Gang, 2-Way Push-On/Off Rotary |
| Maximum load rating | LED: 120W |
| Finish | White Plastic |
| Knob colour | White Knob |
| Dimensions | 85x85x47mm |
| Faceplate depth | 11mm |
| Recommended back box depth | 25mm |
| Barcode | 5021575581065 |
| Fixing centres | 60.3mm |
| Depth from mounting face | 16.1mm |
| Weight | 106g |
| Voltage | 230V 50Hz |
| Terminal (live) | 3.2mm, capacity 3 x 1.5mm² |
| Safety standard | BS EN 60669-2-1 |
| Use | Indoor Use Only |
Manufacturer datasheet. Figures as published by the manufacturer.
