4 Gang LED Dimmer Switch 4 x 0-120W 2 Way Matt Chrome | Varilight V-Pro JSDP254
- Vendor
- Varilight
- SKU
- JSDP254
- Availability
- In stock
- Weight
- 0.15 kg
£101.80inc VAT £84.83exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

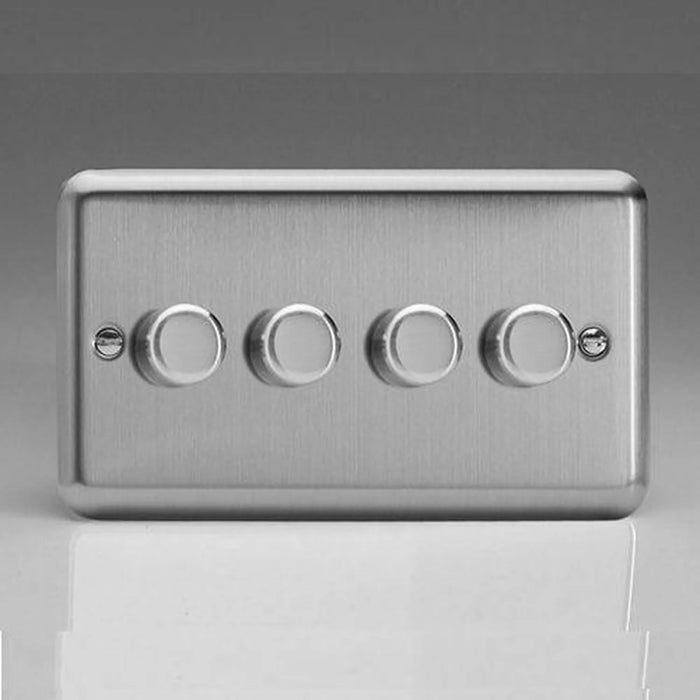

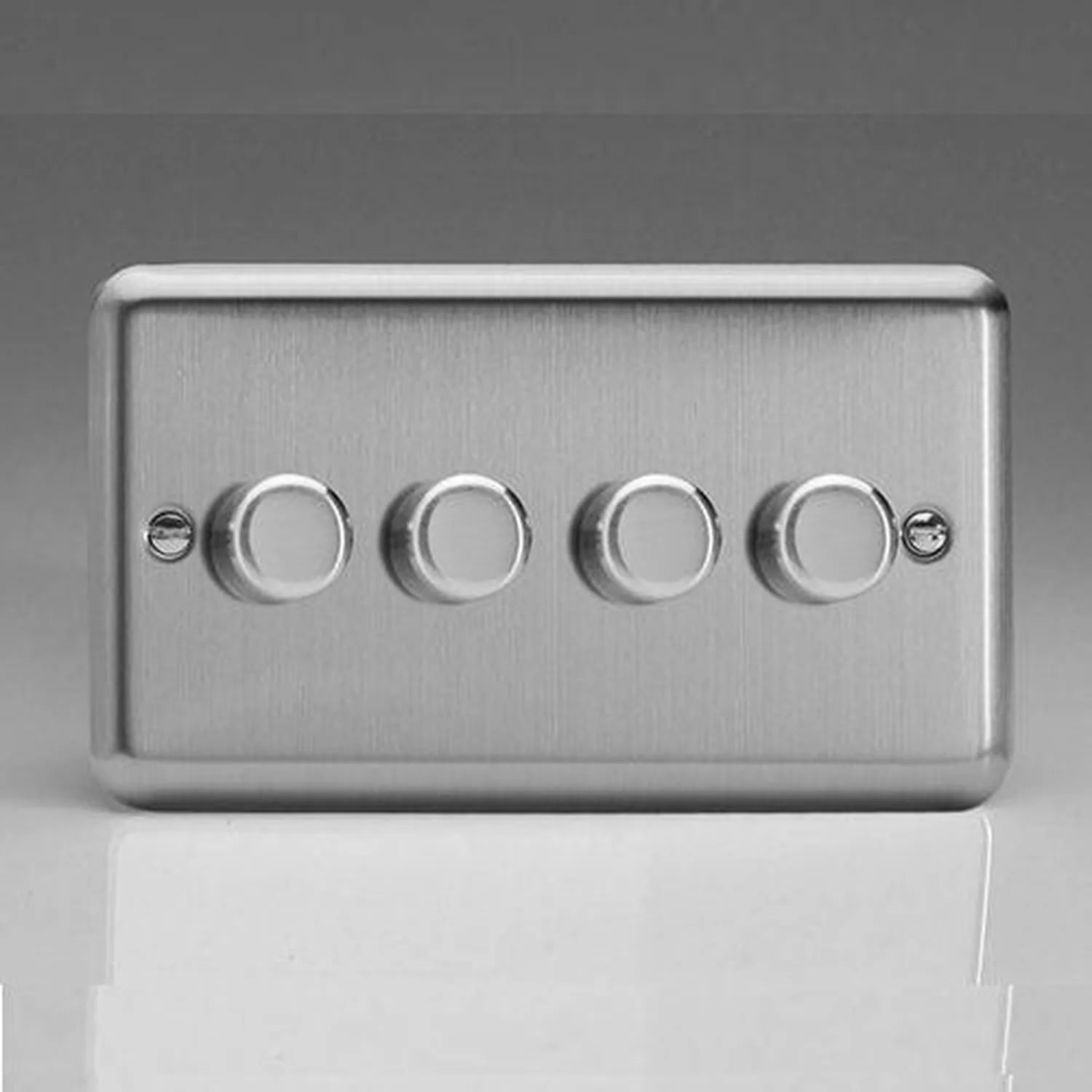

This Varilight V-Pro JSDP254 puts four independent dimmers on one plate. Each gang handles 0-120W, up to 10 LEDs, and the Matt Chrome faceplate from the Value range is fitted with brushed steel knobs. Push a knob to switch on or off. Turn it to dim.
4 gang LED dimmer switch features
- Load per gang: 4 x 0-120W, with a maximum of 10 LEDs on each.
- LED compatibility: works with both trailing edge and leading edge LED loads.
- Other lamp types: also suits halogen, incandescent lights and dimmable transformers, with no minimum load.
- Programmable: the minimum brightness can be set to match your lamps and room, a process done in three steps.
- Finish: Matt Chrome plate with brushed steel knobs.
Installation notes
The dimmer fits a 25mm deep wall box. It runs on 230V 50Hz and must be earthed.
For 2-way circuits, pair it with a standard 2-way switch at the second location. Dimming is only possible from the V-Pro unit itself, not from both positions. Need 3-way switching? Add an intermediate switch to the circuit.
Rated for indoor use only, and made to BS EN 60669-2-1.
In the box
- Varilight V-Pro JSDP254 4 gang dimmer switch
- Detailed data sheet covering programming
Care
Wipe the metal surface with a microfibre cloth to keep the finish clean.
Technical Specifications 20 rows Show
| Brand | Varilight |
| Model | JSDP254 |
| Range | V-Pro Series |
| Description | 4 Gang, 4 x 0-120W (up to 10 LEDs) Dimmer |
| Load per gang | 0W-120W (maximum 10 LEDs) |
| Finish | Matt Chrome |
| Back box | Fits in a 25mm Deep Wall Box |
| Knob colour | Brushed Steel Knob |
| Decorative range | Value |
| Barcode | 5021575591040 |
| Dimensions | 88x148x47mm |
| Faceplate depth | 7mm |
| Fixing centres | 120.6mm |
| Depth from mounting face | 17.7mm |
| Weight | 340g |
| Voltage | 230V 50Hz |
| Terminal (live) | 3.2mm, capacity 3 x 1.5mm² |
| Safety standard | BS EN 60669-2-1 |
| Use | Indoor Use Only |
| Earthing | Product Must Be Earthed |
Manufacturer datasheet. Figures as published by the manufacturer.
