3 Gang LED Dimmer Switch 2 Way 3 x 0-120W Brushed Steel | Varilight V-Pro JSDP303
- Vendor
- Varilight
- SKU
- JSDP303
- Availability
- In stock
- Weight
- 0.15 kg
£67.19inc VAT £55.99exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

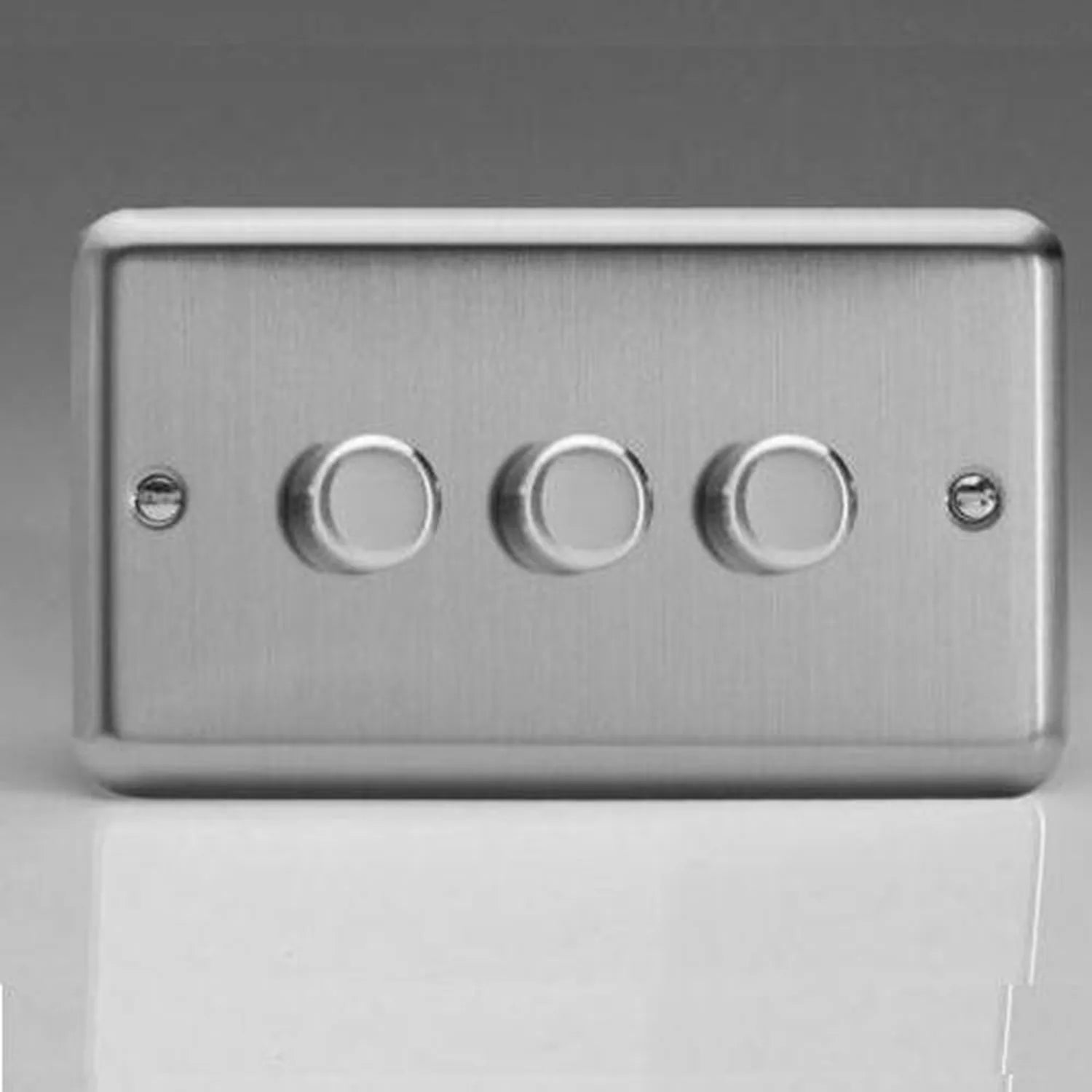

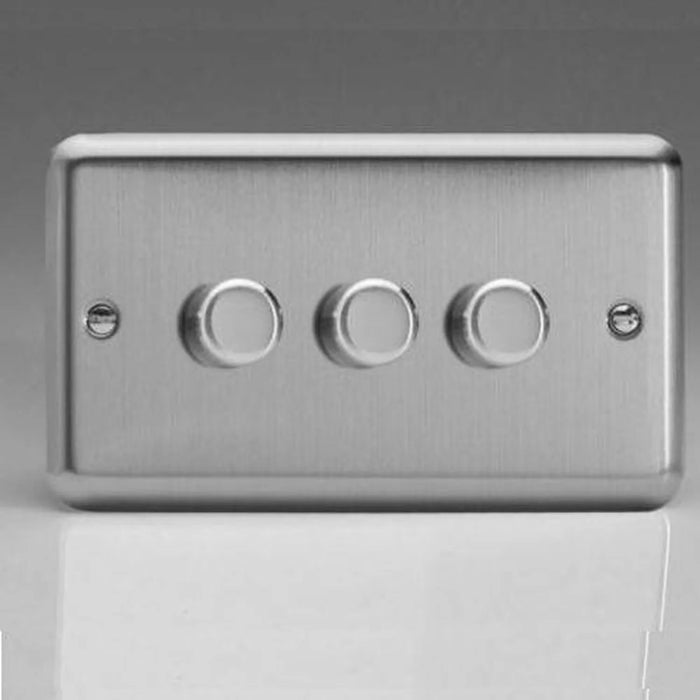

This 3 gang LED dimmer switch comes from the Varilight V-Pro series and is finished in brushed steel. Each of the three knobs works on its own: push it to switch the light on or off, then turn it to set the level. Every gang handles 0-120W, up to a maximum of 10 LEDs.
3 gang LED dimmer switch features
- Load per gang: 3 x 0-120W, maximum 10 LEDs per gang
- Dimming type: trailing edge and leading edge LED loads
- Other loads: halogen and incandescent lights plus dimmable transformers, with no minimum load
- Programmable: minimum brightness adjusts in three steps
- Control: push on/off with rotary dimming
- Finish: brushed steel
Setting the minimum brightness
V-Pro dimmers can be programmed. You choose the lowest brightness level to suit the lamps you have fitted and the room they light, across three steps. That matters with LEDs, which can behave differently at the bottom of the dimming range. A detailed data sheet is supplied in the box to walk you through it.
Installation notes
The switch fits a 25mm deep wall box. It works in 2-way circuits alongside a standard 2-way switch at the second location.
One limit to know before you wire it: dimming is only possible from the dimmer itself, not from two locations. Need 3-way switching? Add an intermediate switch to the circuit.
Looking after the finish
Wipe the metal faceplate with a microfibre cloth to keep the brushed steel clean.
In the box
- Varilight V-Pro JSDP303 3 gang dimmer switch
- Detailed data sheet
Technical Specifications 13 rows Show
| Brand | Varilight |
| Model | JSDP303 |
| Range | V-Pro |
| Description | 3-Gang 2-Way Push-On/Off Rotary LED Dimmer 3 x 0-120W |
| Load per gang | 0W-120W (maximum 10 LEDs) |
| Finish | Brushed Steel |
| Back box | Fits in a 25mm Deep Wall Box |
| Control | Push-on-off button and rotary dimming control |
| Dimming | Trailing-edge and leading-edge LED loads |
| Other loads | Halogen and incandescent lights and dimmable transformers, no minimum load |
| Minimum brightness | Adjustable, in three steps |
| 2-way switching | Works with a standard 2-way switch at the other location; cannot be dimmed from 2 locations |
| In the box | Detailed data sheet |
Manufacturer datasheet. Figures as published by the manufacturer.
