3 Gang 2 Way LED Dimmer Switch 0-100W per Gang White | Varilight V-Pro JQP303W
- Vendor
- Varilight
- SKU
- JQP303W
- Availability
- In stock
- Weight
- 0.15 kg
£65.05inc VAT £54.21exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

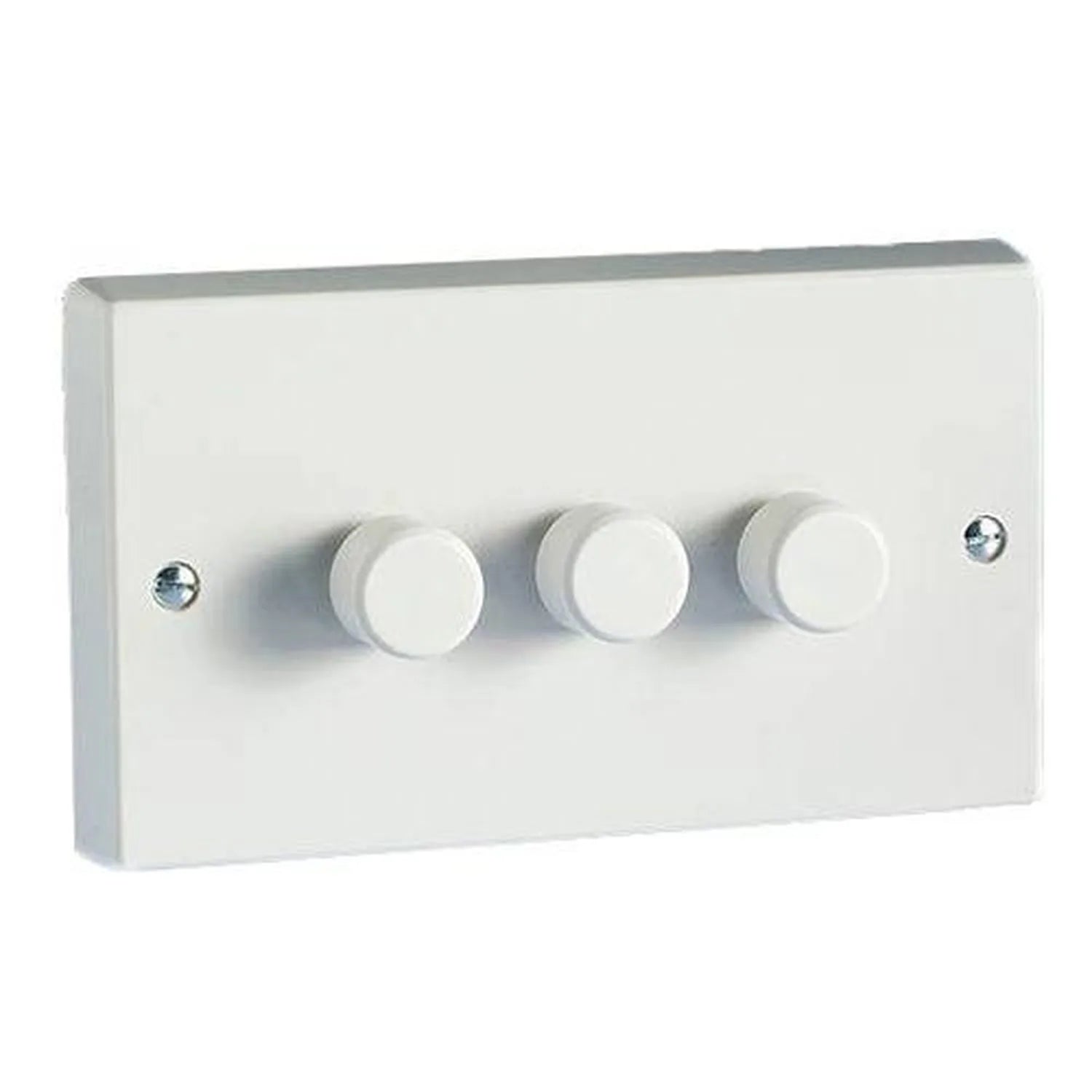

This Varilight 3 gang dimmer switch comes from the V-Pro series and is built for LED lighting. It is a 2 way switch in a white case, with three independent gangs each handling 0-100W (10 LEDs). Push a knob to switch that circuit on or off. Turn it to dim.
3 gang dimmer switch features
- Load per gang: 0-100W (10 LEDs)
- Control: push-on/off rotary
- Dimming: trailing edge by default, with a selectable simulated leading-edge mode (Mode 2) for certain LEDs
- Overload protection: turns the lights down or off until the load is corrected
- Minimum load: none
- Finish: white case
Protection built into the dimmer
A microprocessor watches the connected load. If the dimmer is wired to too many lights or transformers, it reduces the output or switches the lights off, and it stays that way until the load is brought back within limits. Nothing needs resetting by hand once the circuit is corrected.
Where it suits
Use it on mains lighting and on many dimmable LEDs. It also works with most dimmable electronic transformers and with dimmable low-energy lighting. Because there is no minimum load, a gang can run a small number of low-wattage LED lamps without trouble.
Choosing a dimming mode
Trailing edge is the default and suits most LED lamps. Some LEDs dim more smoothly on a leading-edge signal, which is why the V-Pro offers a simulated leading-edge setting as Mode 2. Try the default first, then switch modes if a lamp flickers or will not dim cleanly.
The 2 way configuration means each gang can be wired with another switch, so a room or stairwell can be controlled from two points. Three gangs on one plate keep separate lighting circuits together in a single, tidy position.
Technical Specifications 11 rows Show
| Brand | Varilight |
| Model | JQP303W |
| Range | V-Pro |
| Description | 3-Gang, 2-Way Push-On/Off Rotary |
| Maximum load | 0-100W (10 LEDs) per gang |
| Dimming type | Default trailing-edge, with a selectable simulated leading-edge mode (Mode 2) |
| Case | White case |
| Control | Push-On/Off Rotary button |
| Overload protection | Turns the lights down or off until the load is corrected |
| Minimum load | No minimum load |
| Suitable for | Mains lighting, most dimmable electronic transformers, dimmable low-energy lighting including many dimmable LEDs |
Manufacturer datasheet. Figures as published by the manufacturer.
